9x12 Plate holders 1

Discussion in 'Plate Cameras and Accessories' started by Ian Grant, Jun 25, 2008.

  1. moegl

    moegl Member

    Messages:
    1
    Joined:
    Nov 30, 2010
    Location:
    Scandinavia
    Shooter:
    Medium Format

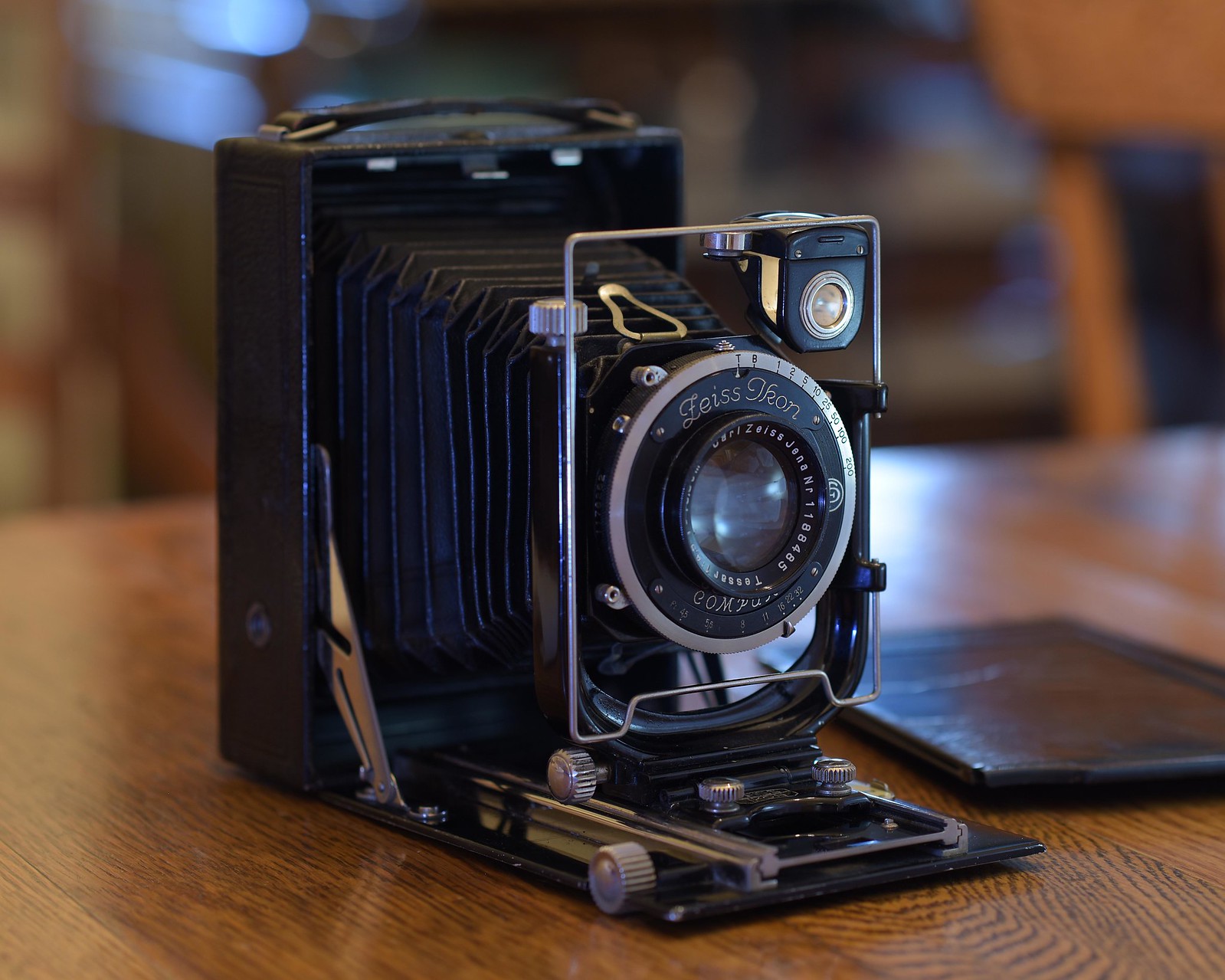

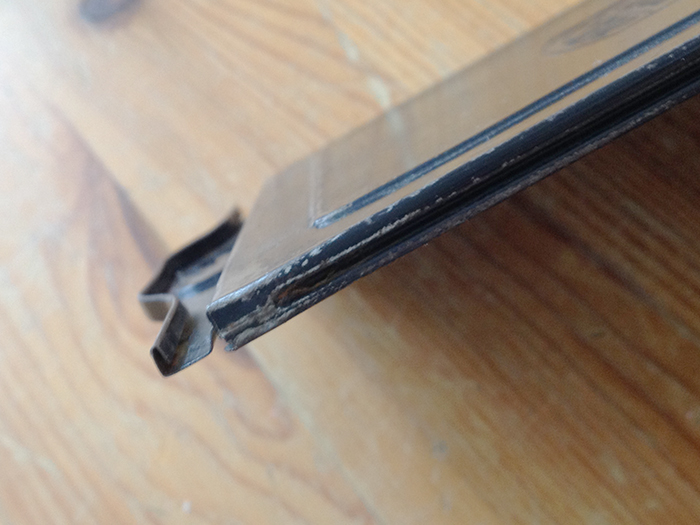

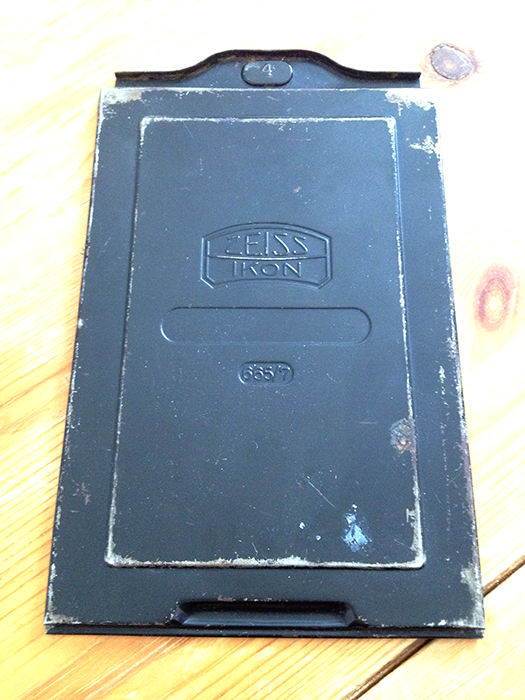

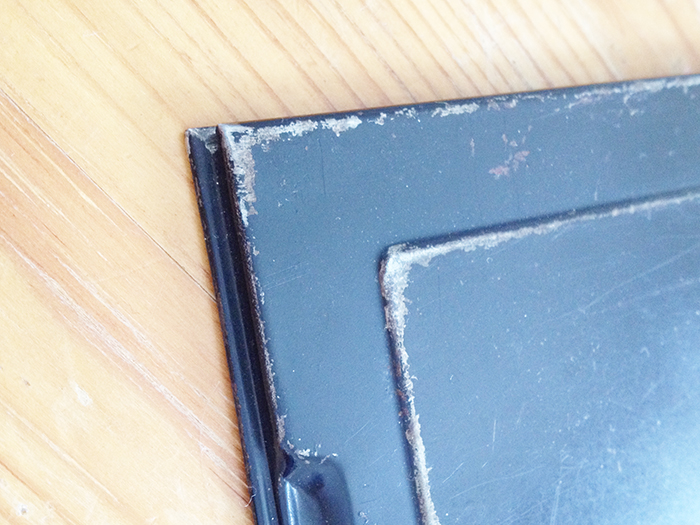

    Zeiss Ikon 665/7 9x12 plate holder
    works with Kodak Recomar 33


    Attached Files:

  2. John Earley

    John Earley Member

    Messages:
    148
    Joined:
    May 1, 2012
    Location:
    Central Virg
    Shooter:
    Multi Format
  3. Farside

    Farside Member

    Messages:
    63
    Joined:
    Apr 10, 2008
    Location:
    Ireland
    Shooter:
    4x5 Format
  4. John Earley

    John Earley Member

    Messages:
    148
    Joined:
    May 1, 2012
    Location:
    Central Virg
    Shooter:
    Multi Format
  5. Nokton48

    Nokton48 Member

    Messages:
    765
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    9x12cm "Normalfalz" Plate Holders

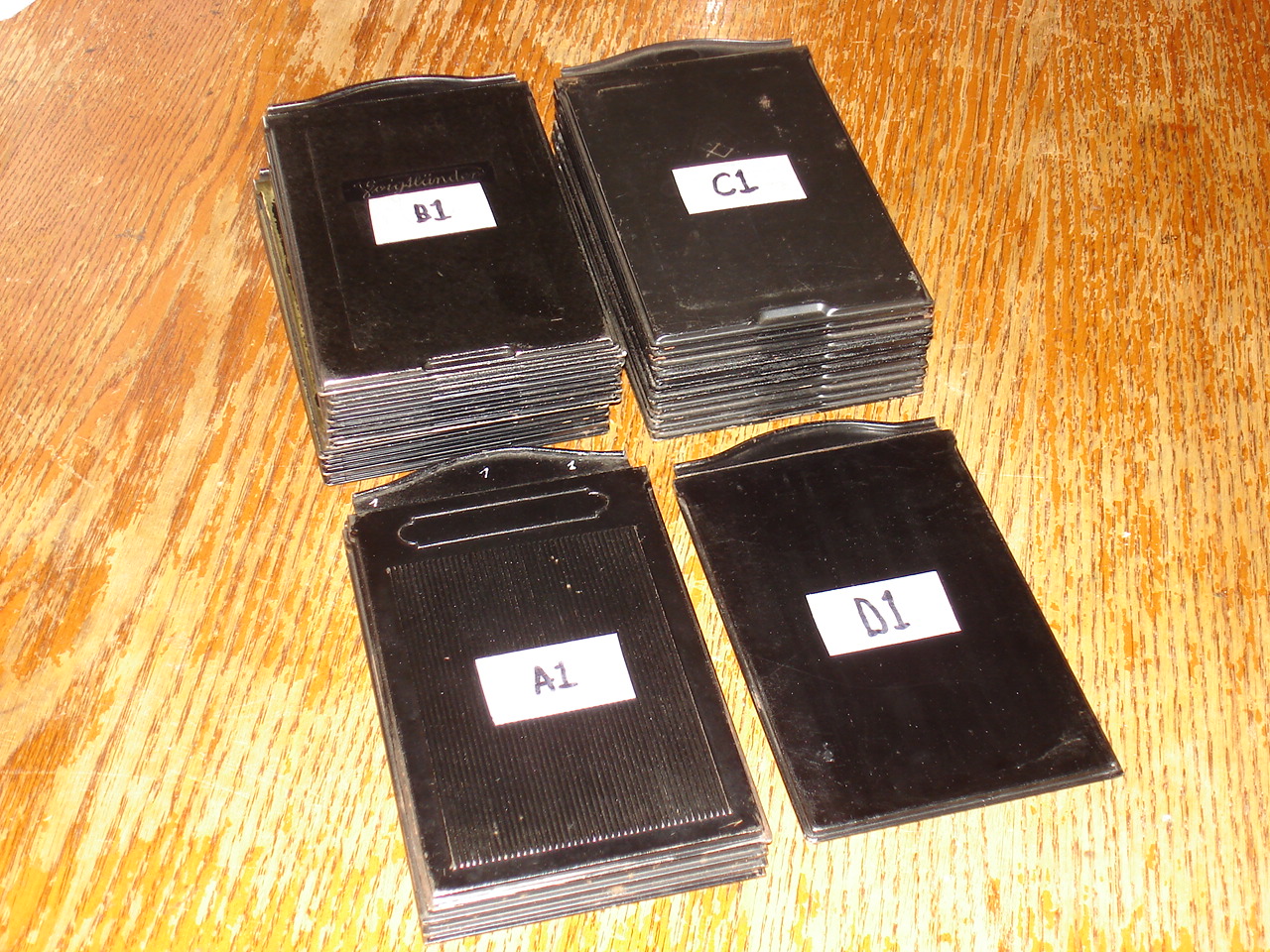

    Here is my collection of 9x12cm "Normalfalz" Plate Holders.
    I use these in my three Plaubel Makiflex cameras (see my avatar).

    All of these holders have film sheaths inside them.
    I have acquired alot of 9x12cm film over the past several years.

    Top left: twelve Voigtlander holders.
    Top right: ten holders from the Ukraine.
    Lower Left: four RADA "Normalfalz" holders.
    Lower right: unmarked 9x12 "Normalfalz" holder.

    All of these holders fit in a Plaubel Makiflex 9x12cm film back.


    Attached Files:

    • 001.JPG
      File size:
      575 KB
      Views:
      138
  6. Nokton48

    Nokton48 Member

    Messages:
    765
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

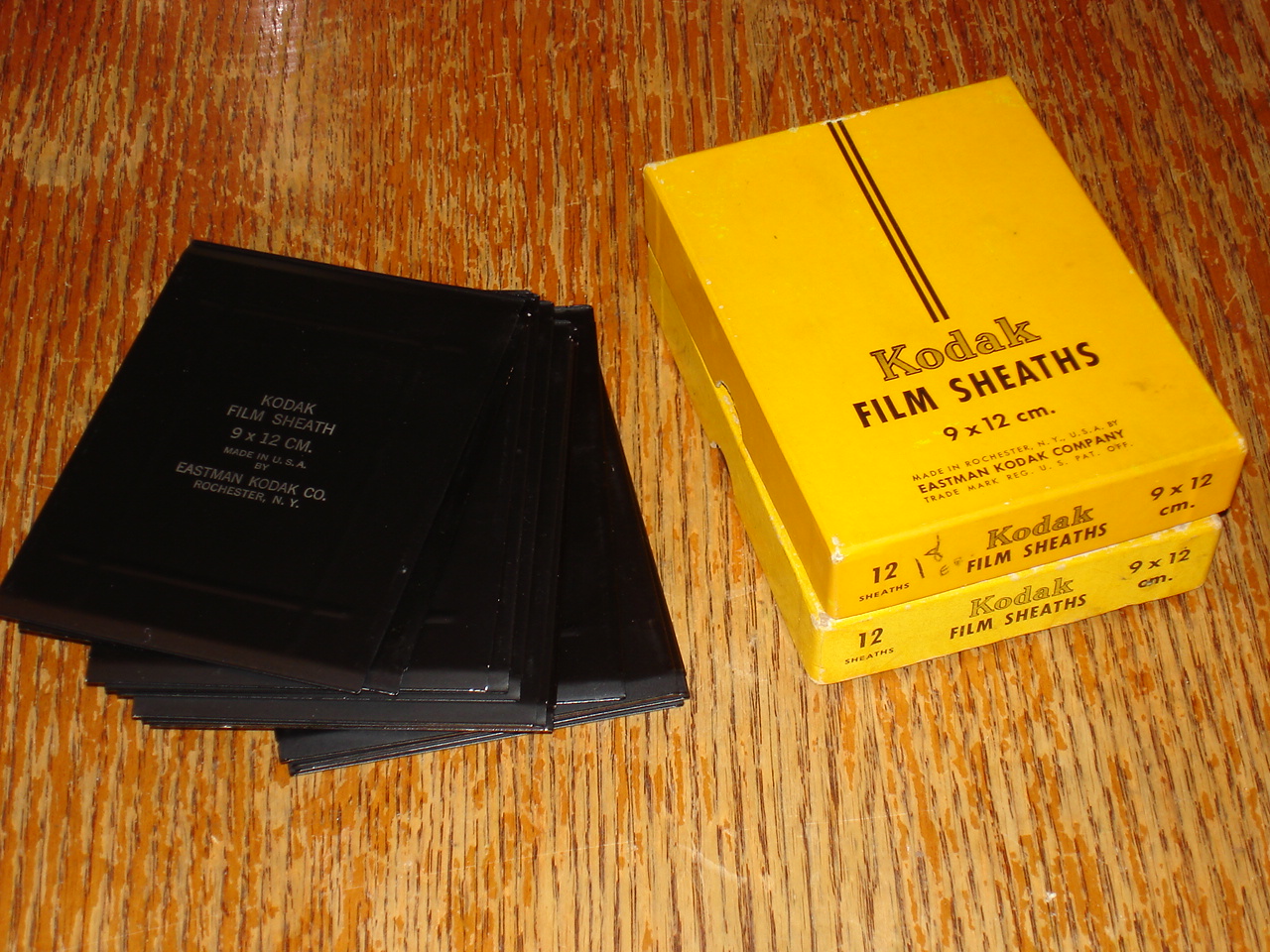

    Thirteen "extra" 9x12cm Kodak film sheaths.
    These will fit in the above holders.


    Attached Files:

    • 002.JPG
      File size:
      568.7 KB
      Views:
      144
  7. John Earley

    John Earley Member

    Messages:
    148
    Joined:
    May 1, 2012
    Location:
    Central Virg
    Shooter:
    Multi Format
  8. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format

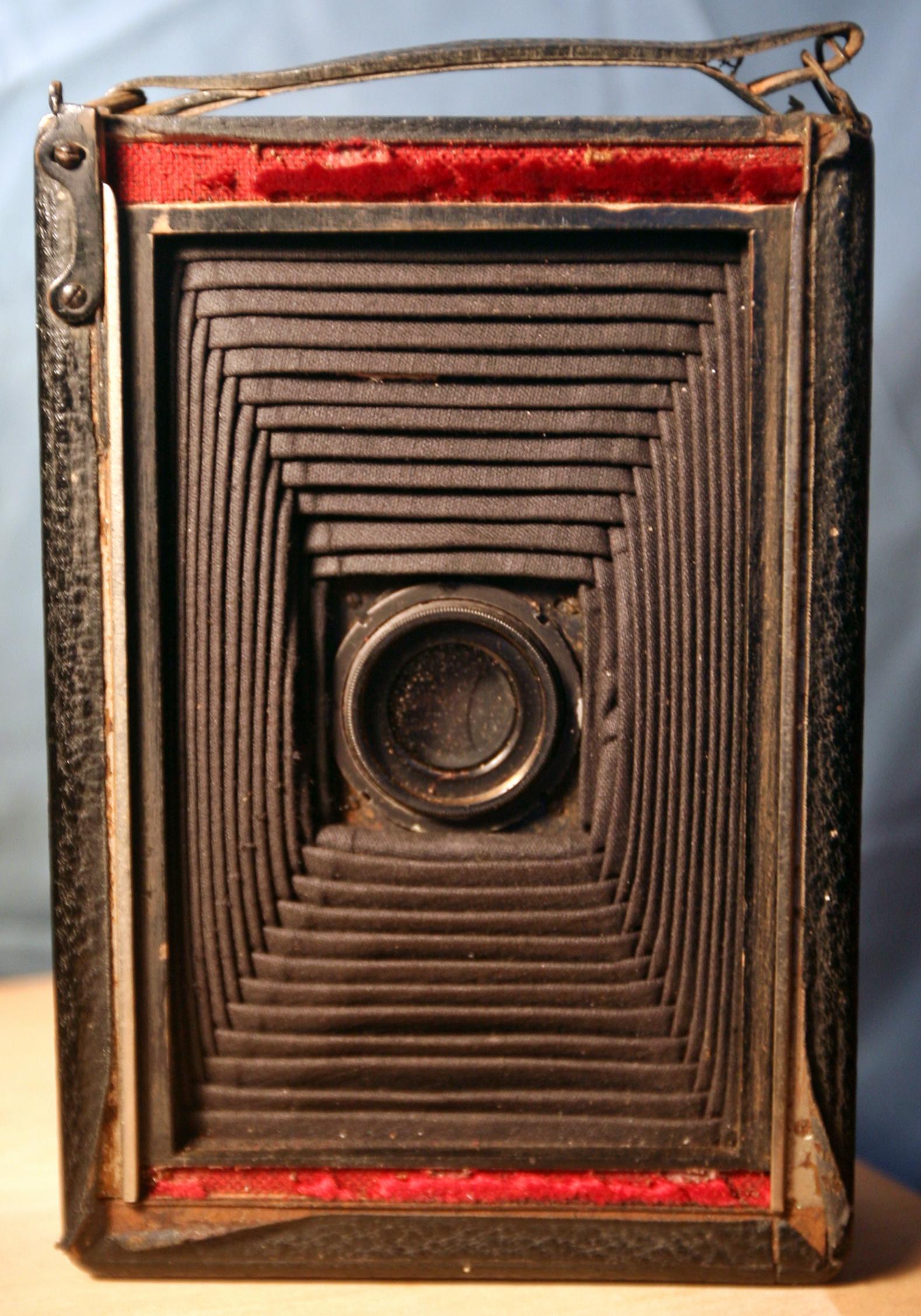

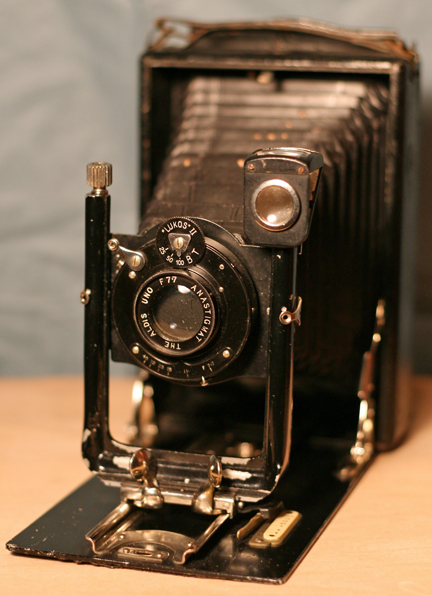

    The Cameo 9x12 cm plate camera

    Lukos ll.JPG
    Front .jpg

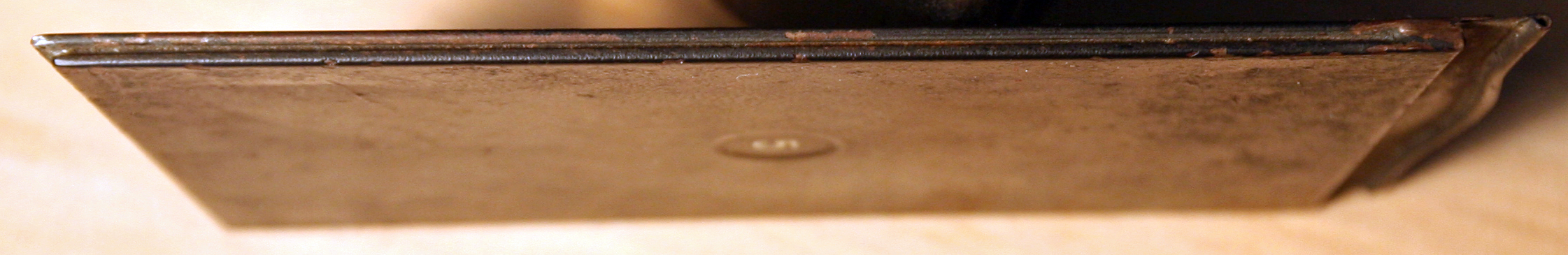

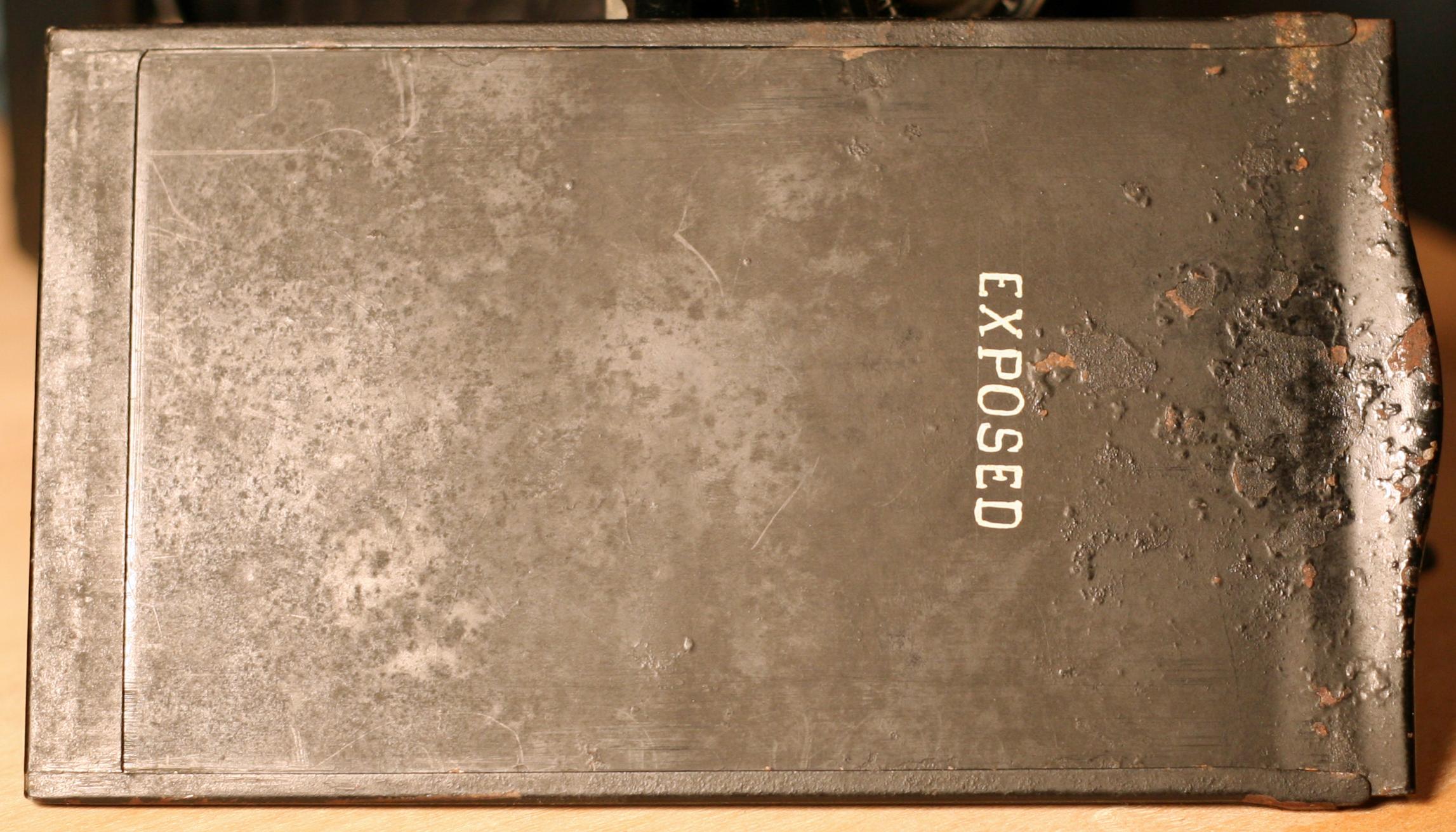

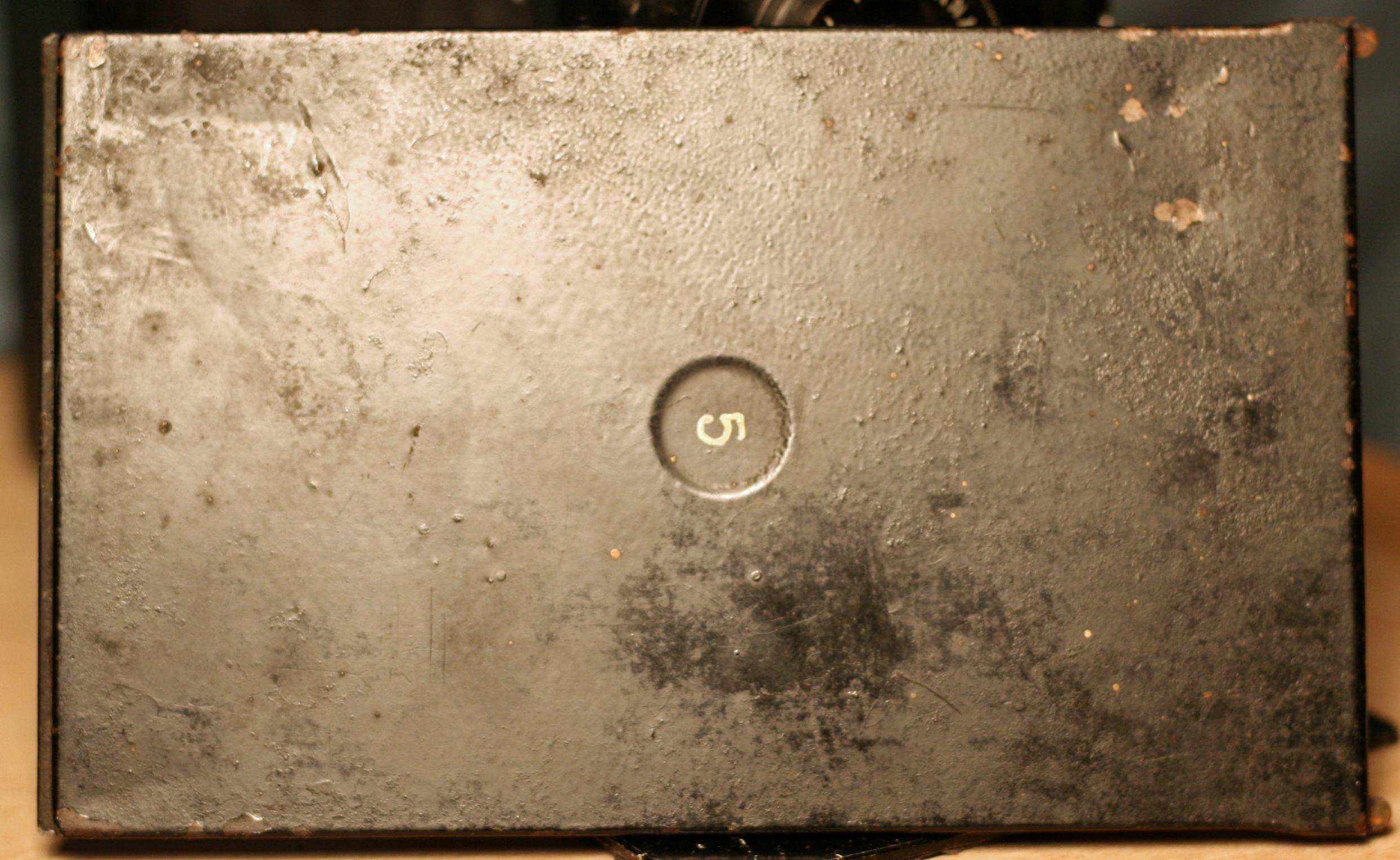

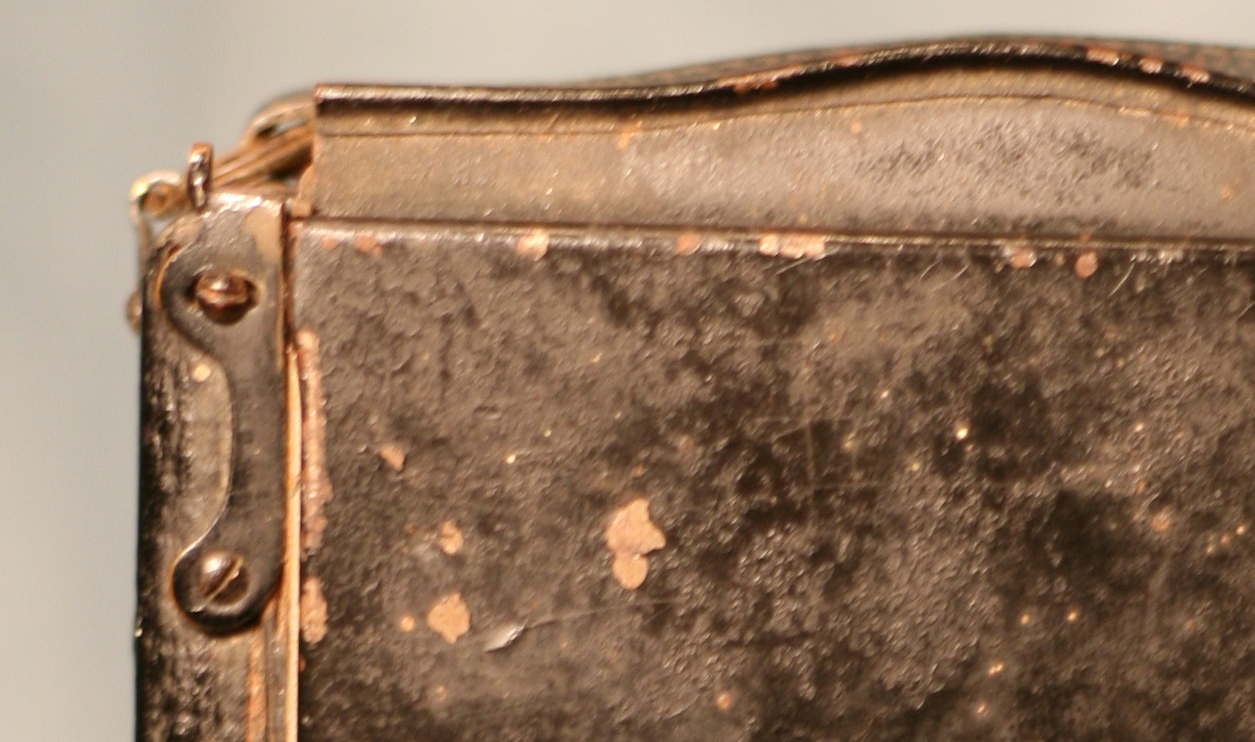

    The plate holder is 10 cm wide and a total of 17.7 long to the top of the pull out slide in the middle.

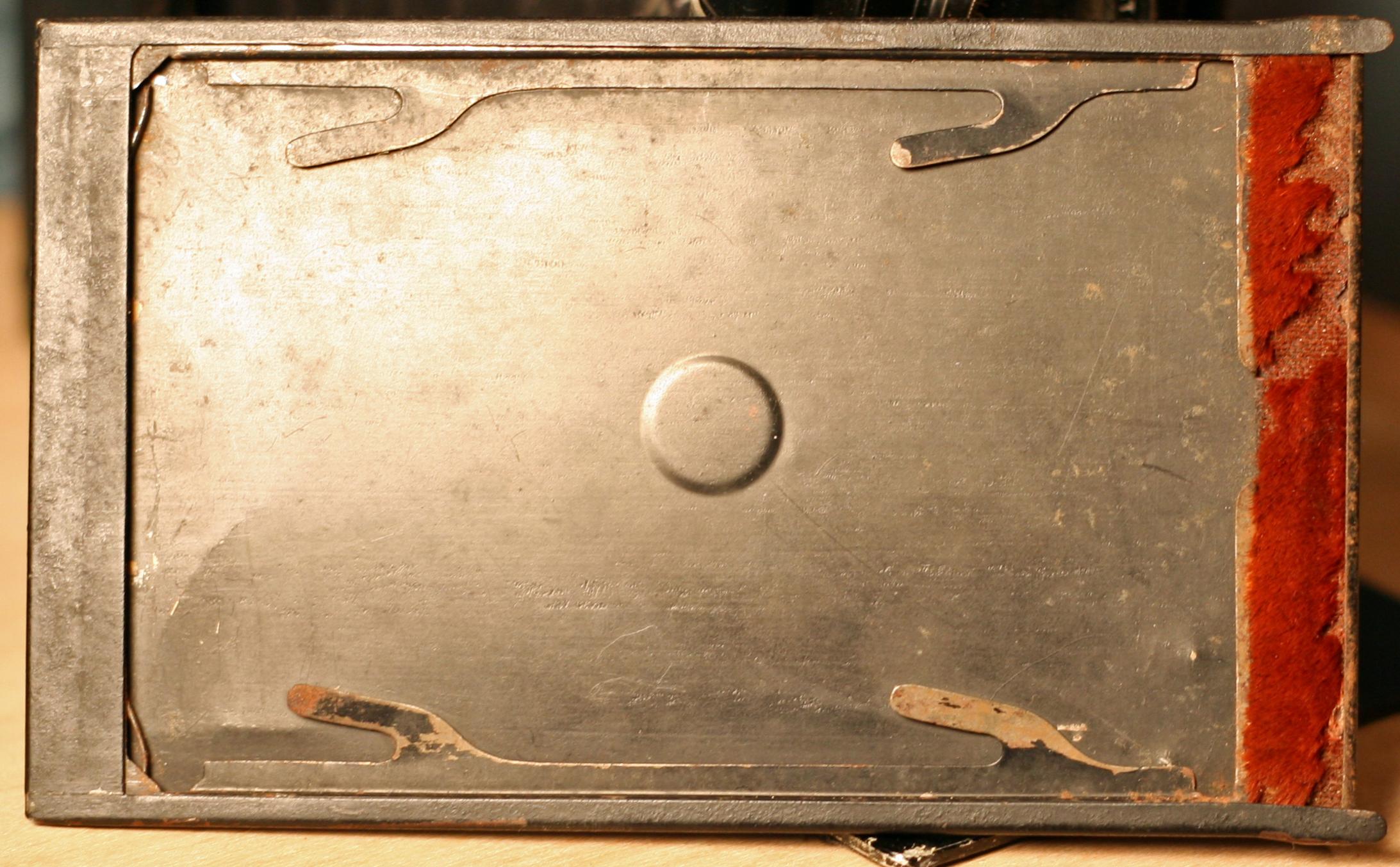

    Inside the plate holder, in-between the overlap lips is 13.6 cm long and 9 wide.
    A piece of glass could be 14.5 cm long but should be shorter, say about a little less than 14 cm

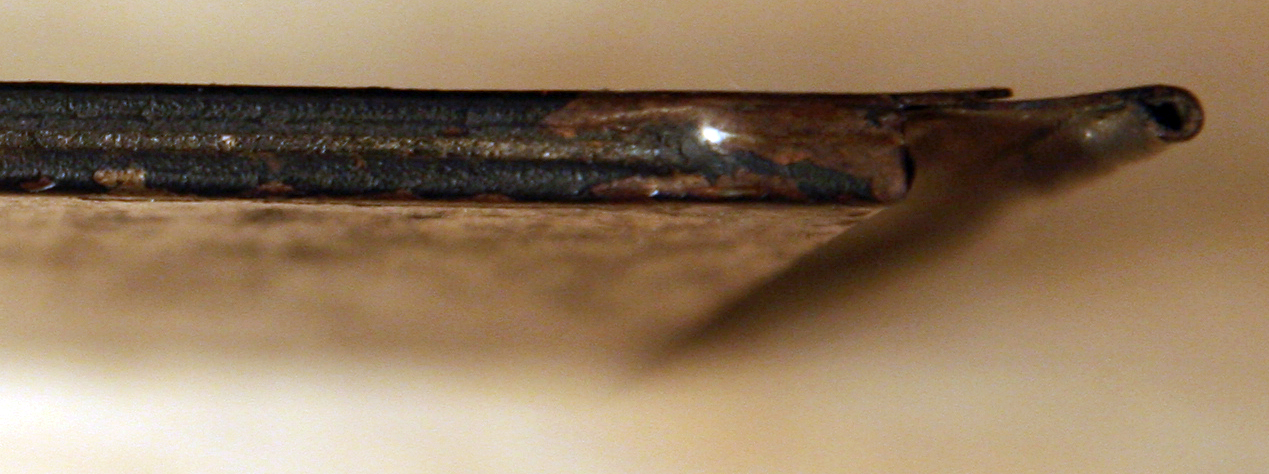

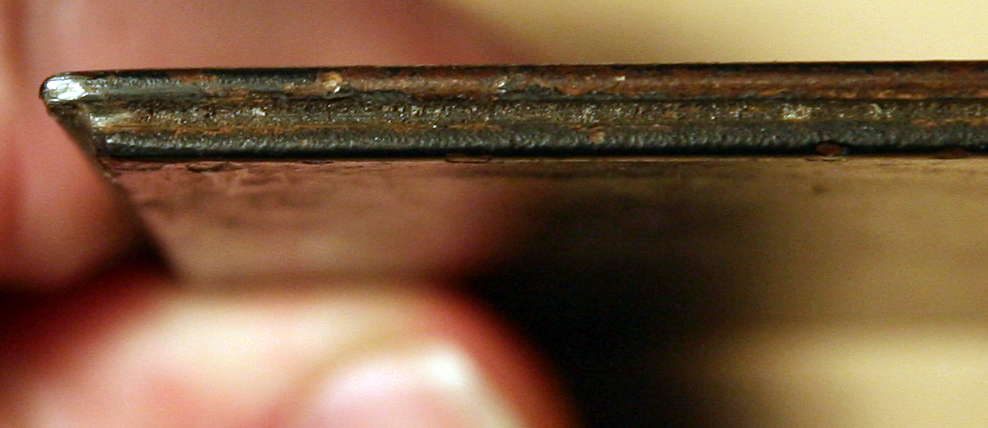

    There is a 2mm (.2cm) lip at the bottom of the plate holder
    Two tabs stick up 4mm
    The glass is clear and the shutter fires. The camera is labeled Cameo. The lens is THE ALDUS UNO F7.7 ANASTIGMAT
    It does not have a ground glass attachment.

  9. anfenglin

    anfenglin Subscriber

    Messages:
    327
    Joined:
    Nov 8, 2013
    Location:
    Leipzig, Germany
    Shooter:
    Multi Format

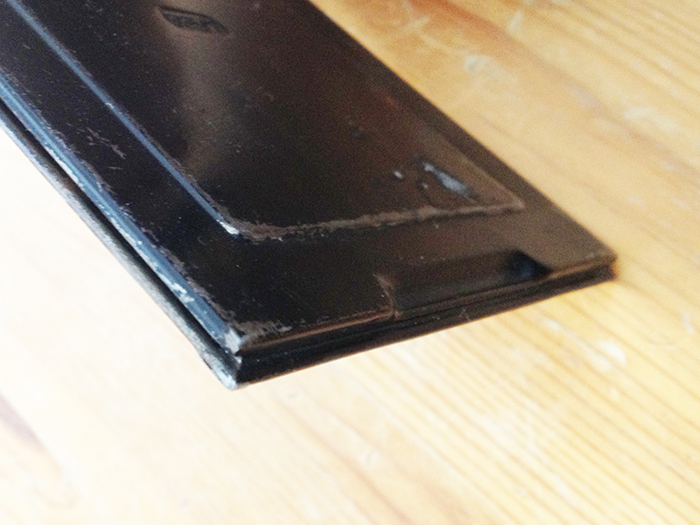

    The Cameo supposedly has the same type of "falz" as my Agfa Isolar, the so-called "Normaldoppelfalz", but to be sure I'd need to see the sides of the inserts.

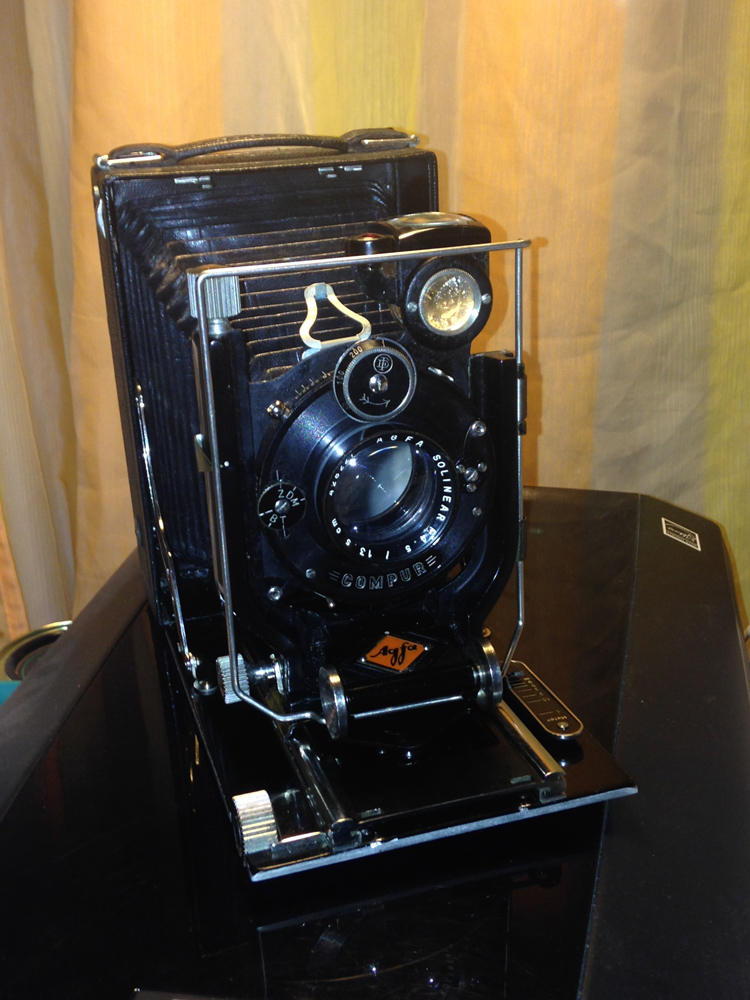

    Here is my Agfa Isolar 408, restored her myself.
    cheers


    Attached Files:

  10. OP
    OP
    Ian Grant

    Ian Grant Subscriber

    Messages:
    19,789
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
  11. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format
  12. OP
    OP
    Ian Grant

    Ian Grant Subscriber

    Messages:
    19,789
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    Do you mean you're missing a focus screen back ?

    I have quite a few film pack holders of various sizes including 9x12 and have made focus backs from them in the past so owners can focus their cameras on a GG screen. I'm not sure what I have without looking and they are not immediately accessible.

    Ian

  13. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format
    If I had another plate holder I could cut a window in the back of it and throw a black cloth over us and use that.
    Now that I look again at the ebay post it looks like there may be a rear attachment for the glass. It may also be the front of the camera closed. I do not want to buy another funky old camera that may or may not fit the one I have. I may buy a plate holder or two if they had the same dimensions.

    Ebay is being blocked and I cannot stay on a page long enough to see just what is being sold. The screen goes gray.

    Last edited by a moderator: Jan 28, 2015
  14. Sponsored Ad
  15. OP
    OP
    Ian Grant

    Ian Grant Subscriber

    Messages:
    19,789
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    Let me know what the plate holders are like, I have 100's of them, they are stored sorted by size and edge type It's easier to use old film mpacks for focus screens because you cam make a shade that folds back into it as well.

    Ian

  16. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format
  17. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format
  18. OP
    OP
    Ian Grant

    Ian Grant Subscriber

    Messages:
    19,789
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    Join the rest of us, 9x12's are a bit of a mine-field as the backs aren't standard. You need to be very specific.

    Ian

  19. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format
    Well, nothing I've seen on eBay is specific enough to purchase, except that other Cameo 7.7 and it also lacks a glass. Measurements have been posted here for this Cameo in case someone has one like it or has a similar sized holder they do not know what is for.
    I have a Primo 8 outfit lacking nothing that is close in size to use instead. It has 3 plate holders with film holder inserts so it can do 6 shots per outing, with ground glass focusing instead of one shot without it.
    Did any of you see this film insert?
    http://www.ebay.com/itm/9x12cm-Film-sheet-metal-insert-for-glass-plate-holders-in-very-good-condition-/251233982927?pt=LH_DefaultDomain_0&hash=item3a7eb659cf
    I just bought 3 holders on ebay from Moldova of all places that are shown with a cm ruler. The width is 10cm and that is what I need. They may be 1cm too short but so what? I intend to cut it open to expose the back of the glass which will be frosted for my needs. The other 2 may or may not be usable.
    Progress not perfection.

    Last edited by a moderator: Jan 28, 2015
  20. Farside

    Farside Member

    Messages:
    63
    Joined:
    Apr 10, 2008
    Location:
    Ireland
    Shooter:
    4x5 Format
  21. OP
    OP
    Ian Grant

    Ian Grant Subscriber

    Messages:
    19,789
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    The prices are way over the top for almost all the items being sold. We have a couple of UK sellers like that and buyers are paying 2-3 times more than they'd pay from a reputable dealers who'd include a guarantee.

    Film inserts are usually quite cheap $10-$15 for 3, cheaper if you buy quite a few.

    Ian

  22. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format

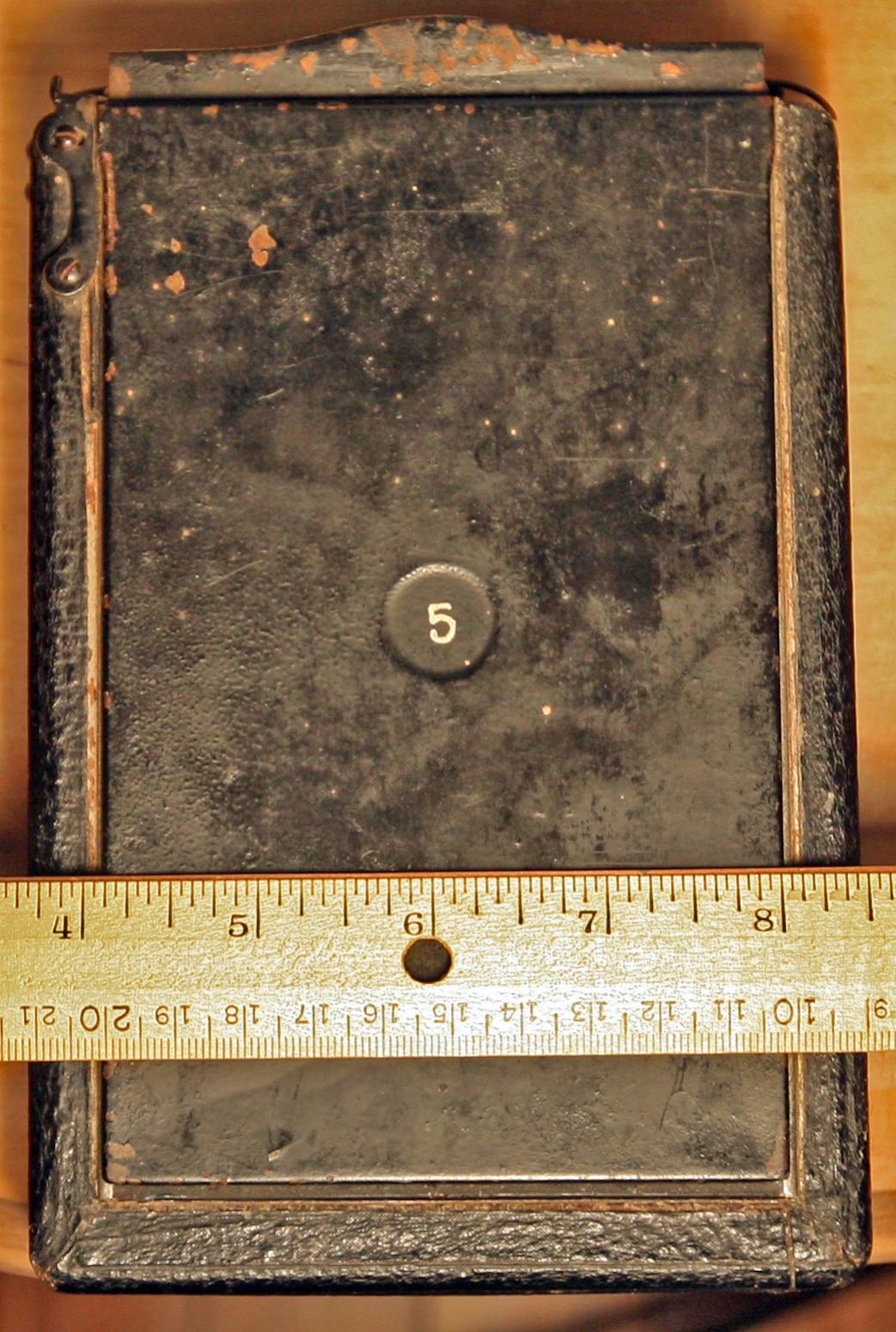

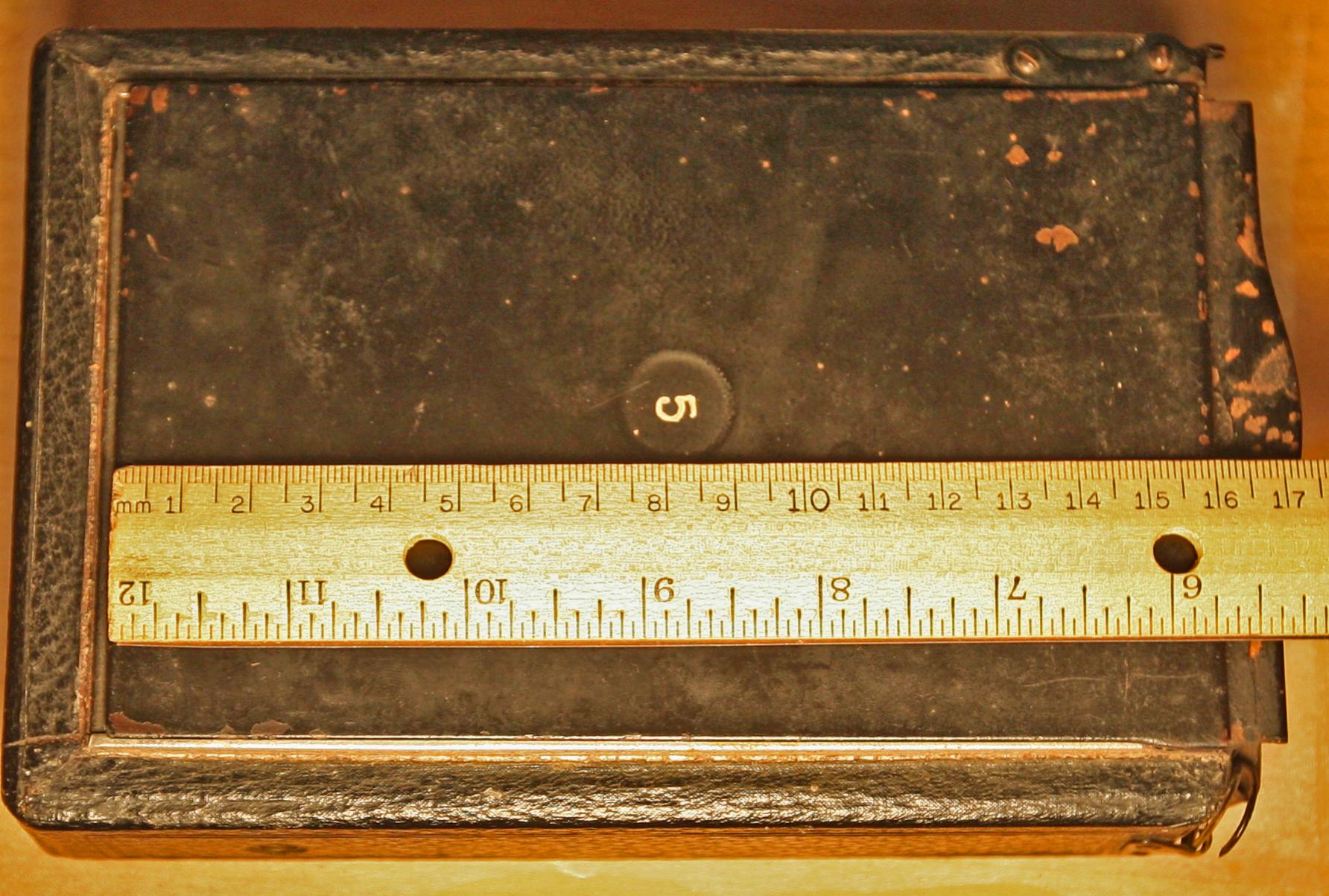

    I'm posting dimensions again in the hopes someone has a plate holder or two in the size I need. The plate holder has a rectangular bump that sticks out in the back of the camera. It is 10cm wide or 3 7/8 inches wide by 16cm long or just over 6 1/4 inches long. That is plus draw slide handle and a 1/8 inch or 3cm lip on the bottom. There are pictures in the plate camera forum on page 9 showing the groove in the side. http://www.apug.org/forums/forum192/51677-9x12-plate-holders-1-a-9.html
    Just asking…
    W.jpg L.jpg
    thankyou

    Last edited by a moderator: Jan 30, 2015
  23. Farside

    Farside Member

    Messages:
    63
    Joined:
    Apr 10, 2008
    Location:
    Ireland
    Shooter:
    4x5 Format
    That rang a bell and I had a look in a drawer. I found a few AP Paris holders, which though actually being real 9x12 are pencil labelled (in the dim and distant past, by some snapper) 3 1/2" x 4 3/4". This makes me wonder if yours are actually sized for the U.S. market and likely some plate-sized derivative. I know that many European 9x12 cameras were sold in the UK and US as being inch sizes and were supplied with holders for the local film sizes.

  24. studiocarter

    studiocarter Member

    Messages:
    421
    Joined:
    Dec 19, 2008
    Location:
    Pittsburgh
    Shooter:
    Multi Format
    3 1/2 x 5 3/8 inch glass would fit but I'd have to cut some to be sure.
    Do you think your holders would cover the length? 4 3/4 would be too short.
    I've been looking on ebay and you are right that American sellers all list sizes in inches not cm. However they do not give enough measurements to know what size they actually are. Showing rulers really helps.

  25. Farside

    Farside Member

    Messages:
    63
    Joined:
    Apr 10, 2008
    Location:
    Ireland
    Shooter:
    4x5 Format
    I stopped collecting the various '20s and '30s 9x12 film/plate holders when I had enough to match the ones I had. In the process I got lumbered with a few oddball sizes chucked in as part of lots. Yours are longer by a cm and wider by 5mm than any of mine, leading me to suspect a local variant.
    The 5x4 standardisation post-war was the best thing to happen, removing all this hassle and uncertainty. Except for 9x12, which soldiered on, but at least it was contained in outwardly-appearing 5x4 holders and could be used in Linhofs and Graflexes, etc.

  26. OP
    OP
    Ian Grant

    Ian Grant Subscriber

    Messages:
    19,789
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    I'll try and uncover the boxes of metal dark-slides later today or tomorrow, as you need much longer than the typical ones I should be able to find if I have any thing vaguely suitable quite quickly, they are sorted by edge type & size.

    There's definitely some longer Houghton's holders amongst them.

    Ian
