Darkroom Portraits (Part 2)

Discussion in 'Darkroom Equipment' started by Sean, Apr 24, 2012.

  1. RSalles

    RSalles Member

    Messages:
    142
    Joined:
    Aug 29, 2013
    Location:
    RS - Brazil
    Shooter:
    4x5 Format
    Lovely place to retire, Mike! Congrats,

    Cheers,

    Renato

  2. jbrianfoto

    jbrianfoto Subscriber

    Messages:
    156
    Joined:
    Oct 9, 2006
    Location:
    Fredericksburg, VA
    Shooter:
    8x10 Format
    I really like the exposed beam in the ceiling.

  3. jbrianfoto

    jbrianfoto Subscriber

    Messages:
    156
    Joined:
    Oct 9, 2006
    Location:
    Fredericksburg, VA
    Shooter:
    8x10 Format

    Really, really cool how you mounted the Hifi in the wall !

  4. c41

    c41 Member

    Messages:
    139
    Joined:
    Jul 21, 2016
    Location:
    H
    Shooter:
    Medium Format

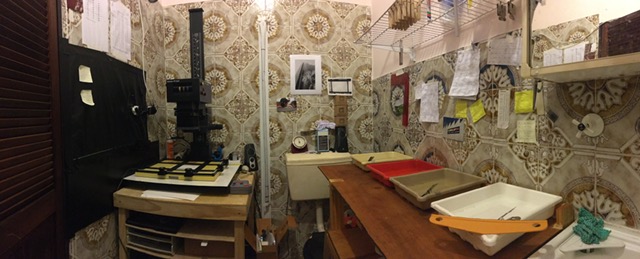

    My darkroom is temporary, for as long as we rent this house.
    It's squeezed in the laundry pretty nicely. The enlarger sits in a shower space.
    Bottom right is the laundry sink that meets all my wet stuff needs, so I skipped on building an extended sink, and just have a 'wet table' for trays as visible on the right.
    I couldn't pull the 'dunny' out since it isn't mine, so I just built the wet table around it.
    There are more racks for stuff top right out of shot.
    Behind is a hot water tank and washing machine, so no more space to extend into.
    Would be nice to have somewhere to layout prints/negatives etc. to look at but this is it.

  5. Neal

    Neal Subscriber

    Messages:
    1,783
    Joined:
    Dec 3, 2004
    Location:
    Chicago, Wes
    Shooter:
    Multi Format
    Nice! Reminds me of my darkroom form '81 to '95. The Bride didn't complain but she didn't like it.

    Neal Wydra

  6. Black Dog

    Black Dog Member

    Messages:
    3,511
    Joined:
    Jul 21, 2003
    Location:
    Running up that hill
    Shooter:
    Multi Format
    Good effort in a limited space!

  7. c41

    c41 Member

    Messages:
    139
    Joined:
    Jul 21, 2016
    Location:
    H
    Shooter:
    Medium Format
    Thanks Neal, Black Dog. I've since squeezed in another bit of shelving as well, I was getting increasingly nervous storing all my negatives directly above the sink!

    My penance is to do all the household laundry - I'm forever challenging my 7 year old daughter if she really needs a third change of clothes that day! - but overall it's a very fair price to pay for a space that makes all the difference for me, I'd be lost without it.

  8. CMoore

    CMoore Subscriber

    Messages:
    1,558
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    C41. I have ALWAYS liked you and the Honest Quality that you bring to APUG. You are one of our Best Members Ever.!
    Say.......Old Buddy Old Pal... why not come on over and help organize MY Darkroom...you handsome devil you.:smile:

  9. c41

    c41 Member

    Messages:
    139
    Joined:
    Jul 21, 2016
    Location:
    H
    Shooter:
    Medium Format
    Lol, maybe I can wash your socks while I'm at it :smile:

  10. Black Dog

    Black Dog Member

    Messages:
    3,511
    Joined:
    Jul 21, 2003
    Location:
    Running up that hill
    Shooter:
    Multi Format
    Yes, you definitely want to avoid that if possible...btw kids ALWAYS need another change of clothes!

  11. narsuitus

    narsuitus Member

    Messages:
    1,049
    Joined:
    Nov 24, 2004
    Shooter:
    Multi Format
    This is my third enlarger for my third darkroom. My first could only handle 35mm film. My second could handle 35mm and 6x6cm film. This one can handle 35mm, 6x6cm, 6x7cm, and 6x9cm film.

    [​IMG]
    Photo Enlarger
    by Narsuitus, on Flickr

  12. ac12

    ac12 Member

    Messages:
    689
    Joined:
    Apr 27, 2010
    Location:
    SF Bay Area (SFO), USA
    Shooter:
    Multi Format
    N
    My first was/is a 6x6. Used 99+% of the time for 35mm.
    My second, that I never even used was 6x7. It was replaced by the 4x5 enlarger.
    My third which is waiting for the darkroom to setup is 4x5.

  13. David Brown

    David Brown Member

    Messages:
    3,729
    Joined:
    Feb 16, 2004
    Location:
    Earth
    Shooter:
    Multi Format
    Looks like a darkroom! Build-out in our new (old) house. Converted bedroom, but there's hot and cold running water, proper drains, and central AC and heat.

    Still got a lot to do: safelights and some other electrical, light-proof the door, build print drying racks, work out some storage issues, and down the line: build a small island to replace that temporary folding table.

  14. Sponsored Ad
  15. JPJackson

    JPJackson Subscriber

    Messages:
    168
    Joined:
    Nov 23, 2014
    Location:
    NE TN
    Shooter:
    Large Format
    Looking nice!

  16. CMoore

    CMoore Subscriber

    Messages:
    1,558
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Holy Cow.!
    VERY nice indeed. :smile:

    I did something similar, but our bedrooms are nowhere near that big.:sad:
    Plus, the bedroom that WAS available has windows at The Corner. So i lost A LOT of (the already limited) wall space to glass that i had to cover with 1/2" plywood.

  17. Renato Tonelli

    Renato Tonelli Subscriber

    Messages:
    780
    Joined:
    Jan 26, 2007
    Location:
    New York,NY & Pontremoli
    Shooter:
    Multi Format
    Nice layout - looks like a very comfortable place to work in.

  18. Michael Firstlight

    Michael Firstlight Subscriber

    Messages:
    119
    Joined:
    Mar 2, 2017
    Location:
    Raleigh, North Carolina
    Shooter:
    Medium Format
    Darkroom build in progress - far from finished....

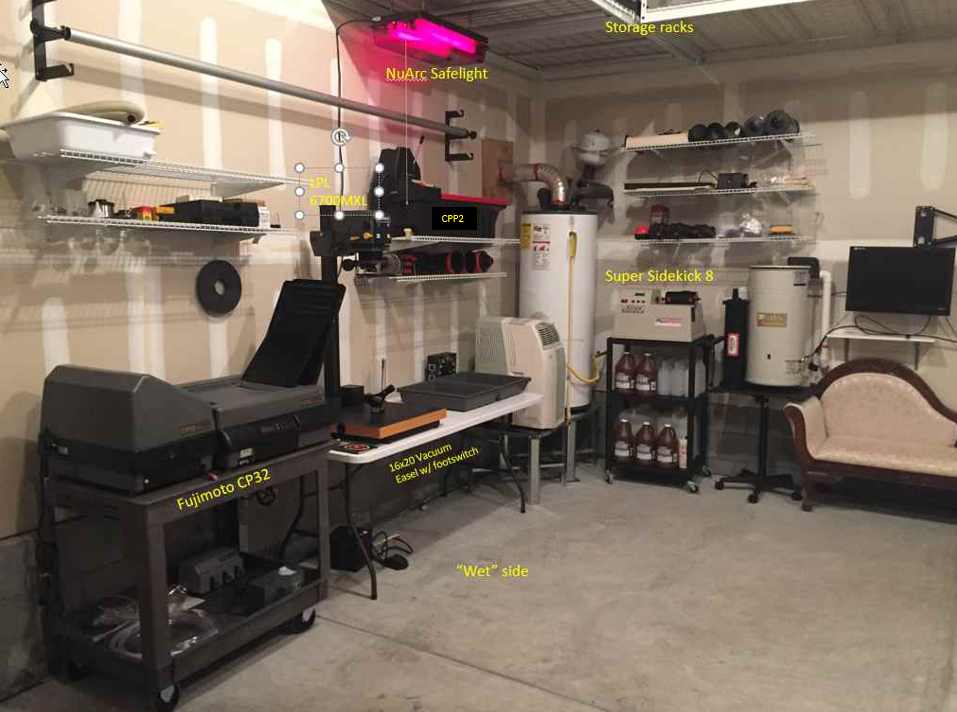

    The new 'dry-to-dry' wet darkroom is beginning to take shape - but still far from done. After packing up my 25-year old darkroom in the early 2000's, I'm refitting my garage to be a combo darkroom/shooting studio. I had been using the room only a as convertible shooting studio until now - it is about 20x24 feet total. Next, I'm going to insulate the garage door, and/or maybe build a false insulated wall in front of it, finish and paint the walls/ceiling, put down TrafficMaster Allure vinyl plank flooring (light oak), and install a ductless mini-split heat pump to replace the 12,000 BTU portable AC/Heater I've been using for the past few years. Soon entering retirement from my hi-tech career that displaced my job as a full-time staff photographer for a large multi-national long ago, this will become a very active, long term working space for me when I am not out shooting.

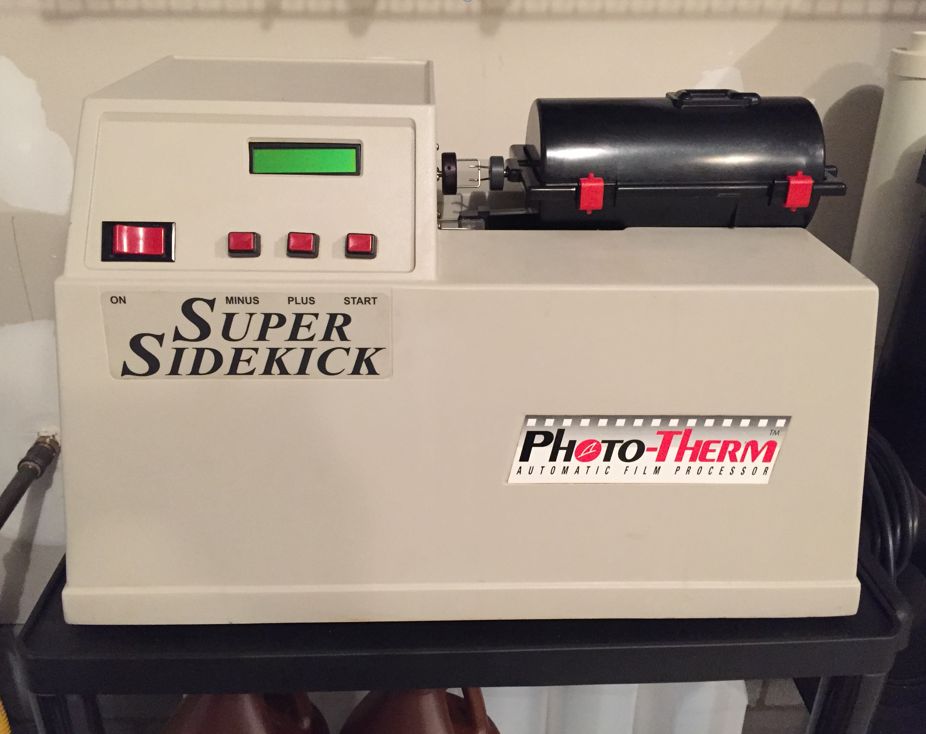

    My goal is to have a virtually 'dry' wet darkroom. For film processing I picked up a used Phototherm Sidelkick 8 that requires no water or drain hookup. I had Phototherm in Trenton NJ do a 100% overall - which is really a complete rebuild that turns any older Sidekick into an up-to-date Super Sidekick. They pretty much gutted it and replaced virtually everything inside (pump, motherboard, heater etc), so it is effectively a brand new Super Sidekick 8 (save for the outer shell) for less than half the cost of a new Super Sidekick 4 (you can't even buy a new Sidekick 8 anymore). and SSK8 would probably run $8-10K new if they were being manufactured new as the SSK4's are running about $7K new. So, if you want an amazing new Super Sidekick for a relative song, buy a used Sidekick off eBay and have PhotoThrem rebuild it at a fraction of the cost of a new unit. The lead tech at Phototherm, Jerry, is AMAZING and super helpful. Phototherm pretty much stocks all of the parts except for the 8-roll drums. I've got four drums - two 4's and two 8's as well as the 4x5 film insert and put the entire rig on a portable cart with the bottles from US plastics for the chemistry, water, and drainage. I could tap the water line right next to it to provide a continuous cold-water feed later since it sits next to the water heater and easily send the drain tube to simple drain I could set up later, but it’s not necessary with the 5Gal bottles.

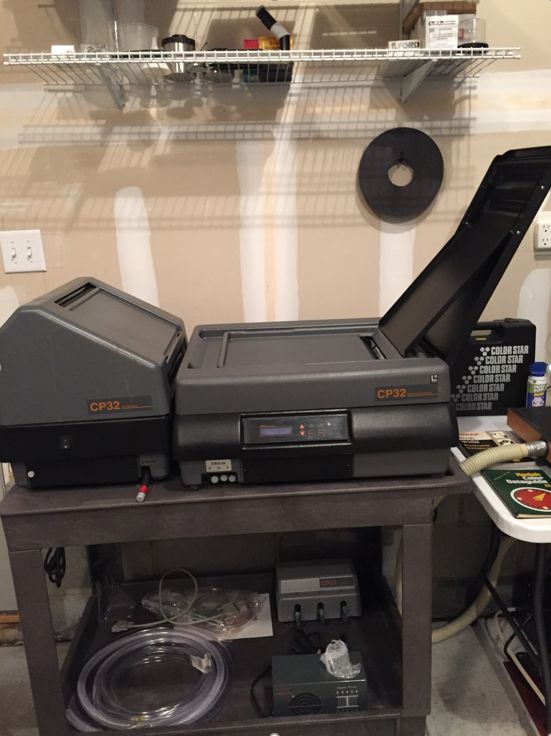

    For dry-to-dry print processing, I went with something similar - an incredible Fujimoto CP-32 with a W/D unit and replenish unit on a mobile cart. To use the W/D unit I might have to rig up a water feed and drain, but I really don't need any sink, faucet, or temp control units as the Sidekick and Fujimoto both manage precise digital temps. The CP-32 can do up to 11x14, and for anything larger or one offs I can break out the Jobo CPP2 and have some manual tanks and trays for occasional low volume use.

    Eventually I'll move the digital side of my workflow into the same room - a Nikon Coolscan 9000 and an Epson 7880 24” printer along and a beast of an i7 workstation that drives them.

    It's all a bit ugly right now. I plan to replace the folding 6' foot table with a permanent 30" deep counter top at 42" standing height, and I am currently planning to convert a small portable clothing closet into a transparent sealed/filtered drying cabinet (https://www.homedepot.com/p/Whitmor...w-Protective-Cover-in-Gray-69055955/301827331) and use my single-reel Kinderman film dryer to supply the filtered warm air instead of a Mistral head which are just too expensive; the Kinderman should do the same for a lot less.

    I ran the cable for the satellite TV tuner from the adjacent living room into the garage and made a space for a large flat panel HD TV that I use for not only watching TV, but when shooting digitally with my D800 in the room I tether my camera wirelessly to the computer hooked to the flat panel for image preview. My wireless camera transmitter is a really fast one (480Mbps) I built myself for under $75 using a wireless USB2 transmitter/receiver (Nikon's $800 WT still can't beat mine years later). For music, I have a vintage Harmon/Kardon 730 receiver hooked up to a pair of Polk RTi A3 bookshelf speakers that sound great; I'll soon add a little bluetooth adapter to stream music to it from my smartphone.

    The goal is a basically a sort of a man-cave for the photographer that I convert for shoots (I've been doing occasional portraits and still life's there for the past several years), darkroom work, post-processing and just plain old hanging out. As a shooting room I use five wireless Paul C. Buff Einstein monolights that have full wireless remote control. I used Bogen telescopic wall booms to mount a sturdy background stand bar and also use them for mounting fixed-position monlights (hair and kickers etc) along with two mobile cushioned stands on rollers - I wanted no no wires anywhere on the floor.

    For analog shooting I've returned to shooting a Pentax 67II system. I've got two complete RB67 systems. Great cams, but hardly use the beasts very much. Eventually I'll go back to shooting 4x5 in the field which previously I had only used at work in a previous life. At the moment I'm just shooting and amassing a good deal of exposed film that now needs to be developed :smile:

    Regards,
    MFL

    WetSide.jpg View attachment 192195 LPL.jpg Dry.jpg Sidekick.jpg CP32.jog.jpg View attachment 192202 View attachment 192202 lighting.jpg

    Last edited: Dec 21, 2017
  19. Ai Print

    Ai Print Subscriber

    Messages:
    731
    Joined:
    May 28, 2015
    Location:
    Colorado
    Shooter:
    Multi Format
    Slowly but surely getting there.

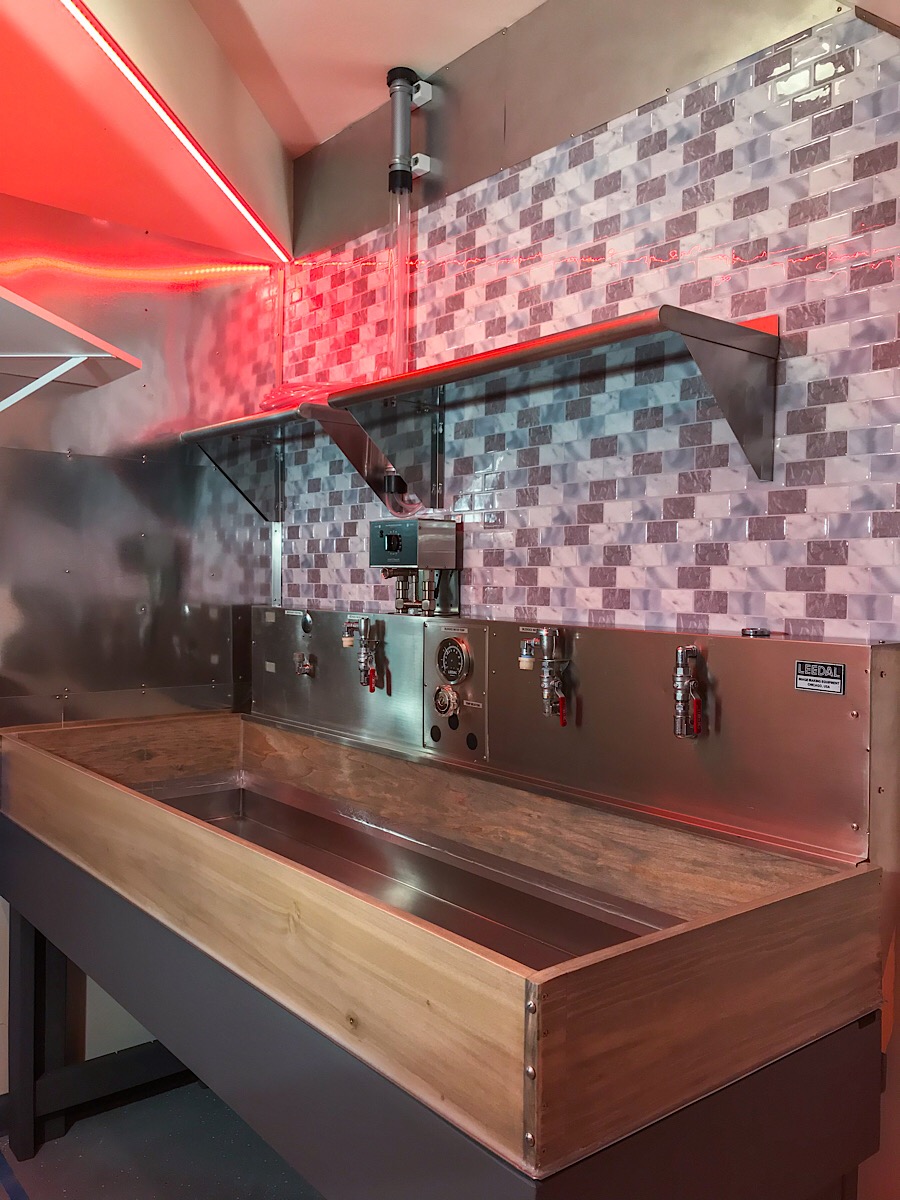

    Here is one of two sinks placed in the wet side area. The sink is 6’ feet and was originally 4” deep but I took about a week to put an 8” extension on it to make it a deep utility sink. The tubing going up the center of the wall is for dedicated chemistry disposal lines, each with their own pump to send spent chemistry to holding tanks in the garage above. Developers and stop bath will be one line and fixer the other.

    I wish I could go faster but patience is really paying off on the design and touches. Once the wet side is done I will have 23’ feet of wet only sinks, counter space and basins.

    Then it is off to do the dry side with the installation of 3 LPL 4550 XLG enlargers with VCCE heads, the center one wall mounted high to enable printing of 40”x50”.

    It’s all very exciting and daunting at the same time.... 0E0A0E21-FE52-470E-A55F-0AFFF49E15B0.jpeg

  20. CMoore

    CMoore Subscriber

    Messages:
    1,558
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Holy Christ.!
    Some of you guys have Real Big darkrooms. Mine is just a bedroom conversion. Maybe 10x12, with the sink (all 4 feet of it) crammed into what was the closet.
    I have seen Pro Labs that did not have darkrooms as nice as what you guys are showing here.:smile:

    Last edited: Dec 23, 2017
  21. Frank53

    Frank53 Subscriber

    Messages:
    265
    Joined:
    May 18, 2013
    Location:
    Netherlands
    Shooter:
    Multi Format

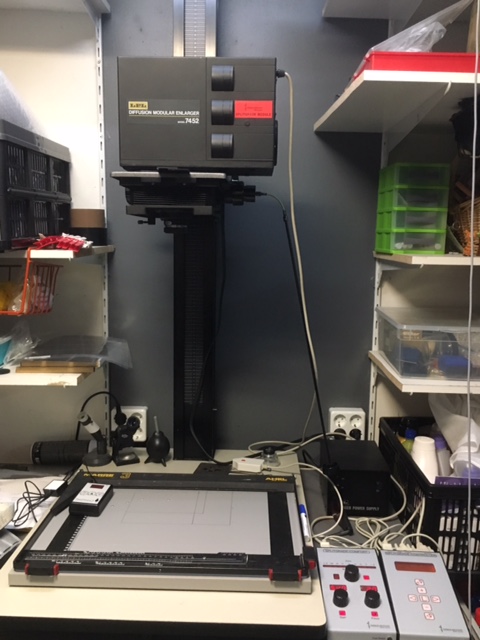

    3C312C3F-F0B5-4ABD-98FF-2DEDE212273B.jpeg A098D760-DE80-4E38-888B-1B75056953B0.jpeg 0AE8CDD0-9DD2-4582-A51E-4A633C7D8D44.jpeg

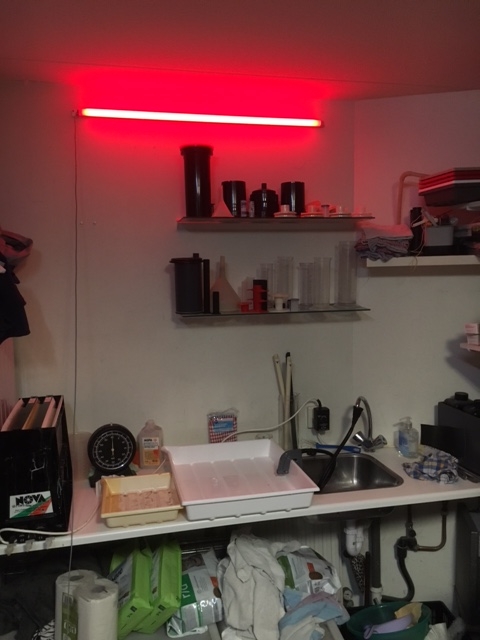

    My semi-permanent darkroom in the garage. I have the intention to move it to another room in the house, but for the moment it’s fine. The garage was the most logical place, because the sink was there.
    Regards,
    Frank

  22. ac12

    ac12 Member

    Messages:
    689
    Joined:
    Apr 27, 2010
    Location:
    SF Bay Area (SFO), USA
    Shooter:
    Multi Format
    CM
    I'll trade you my 3x7 half bath darkroom for you bedroom conversion.

  23. CMoore

    CMoore Subscriber

    Messages:
    1,558
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Touche.....:smile:

  24. Phillip Nondorf

    Phillip Nondorf Subscriber

    Messages:
    8
    Joined:
    Nov 13, 2017
    Location:
    Brooklyn
    Shooter:
    Multi Format
    Well after a whole lot of research into so many disparate things such as woodworking, boat building, plumbing, epoxying, and of course darkroom design, I have managed to complete the wet side of my laundry/bathroom darkroom. What started as a closet transformed rapidly from a spot to store my Jobo to a fully plumbed, custom built sink. It was a learning expierence, but here it all is. Now I just need to find an enlarger and figure out where to put it. :D

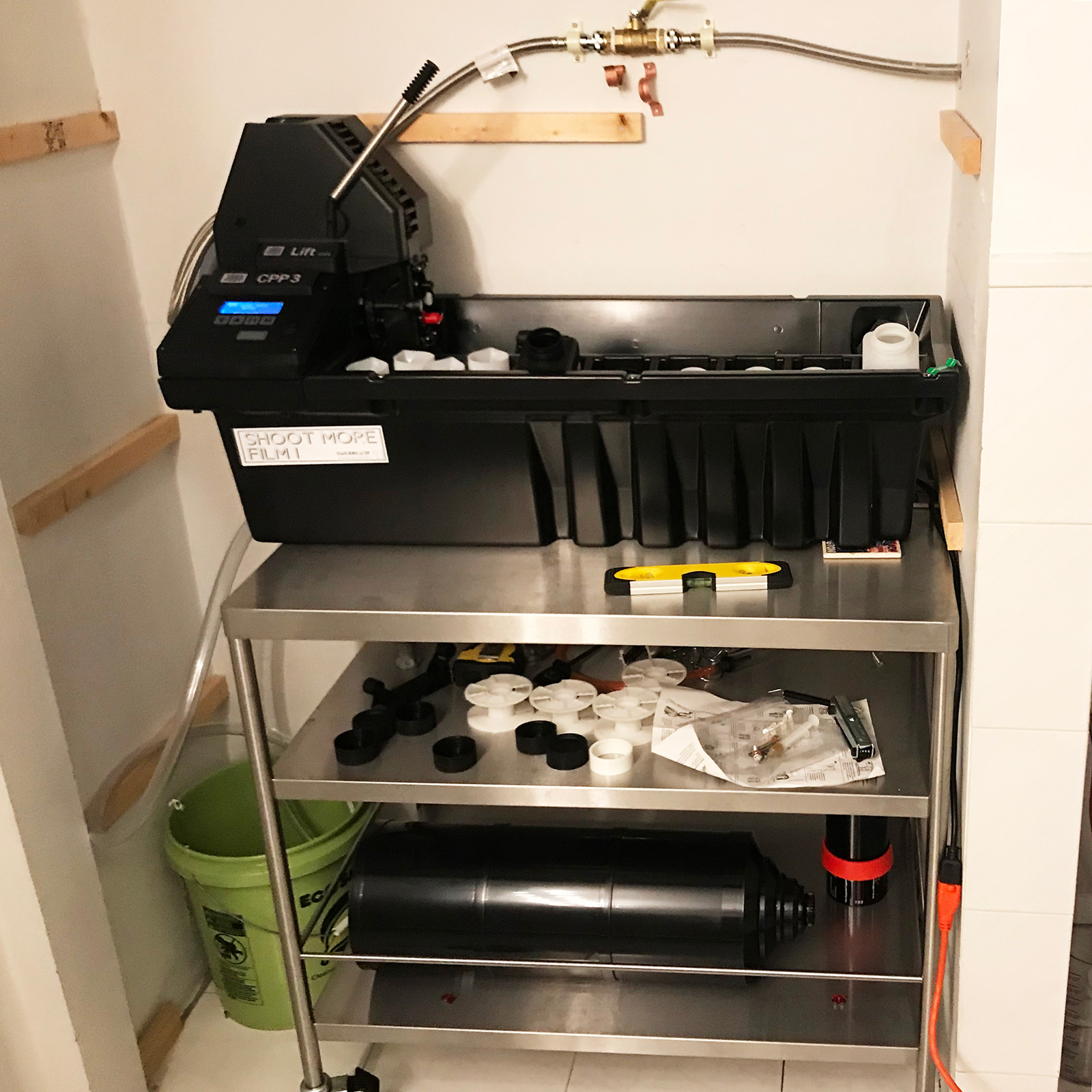

    First version, worked ok, and let me get straight to processing, but not ideal:

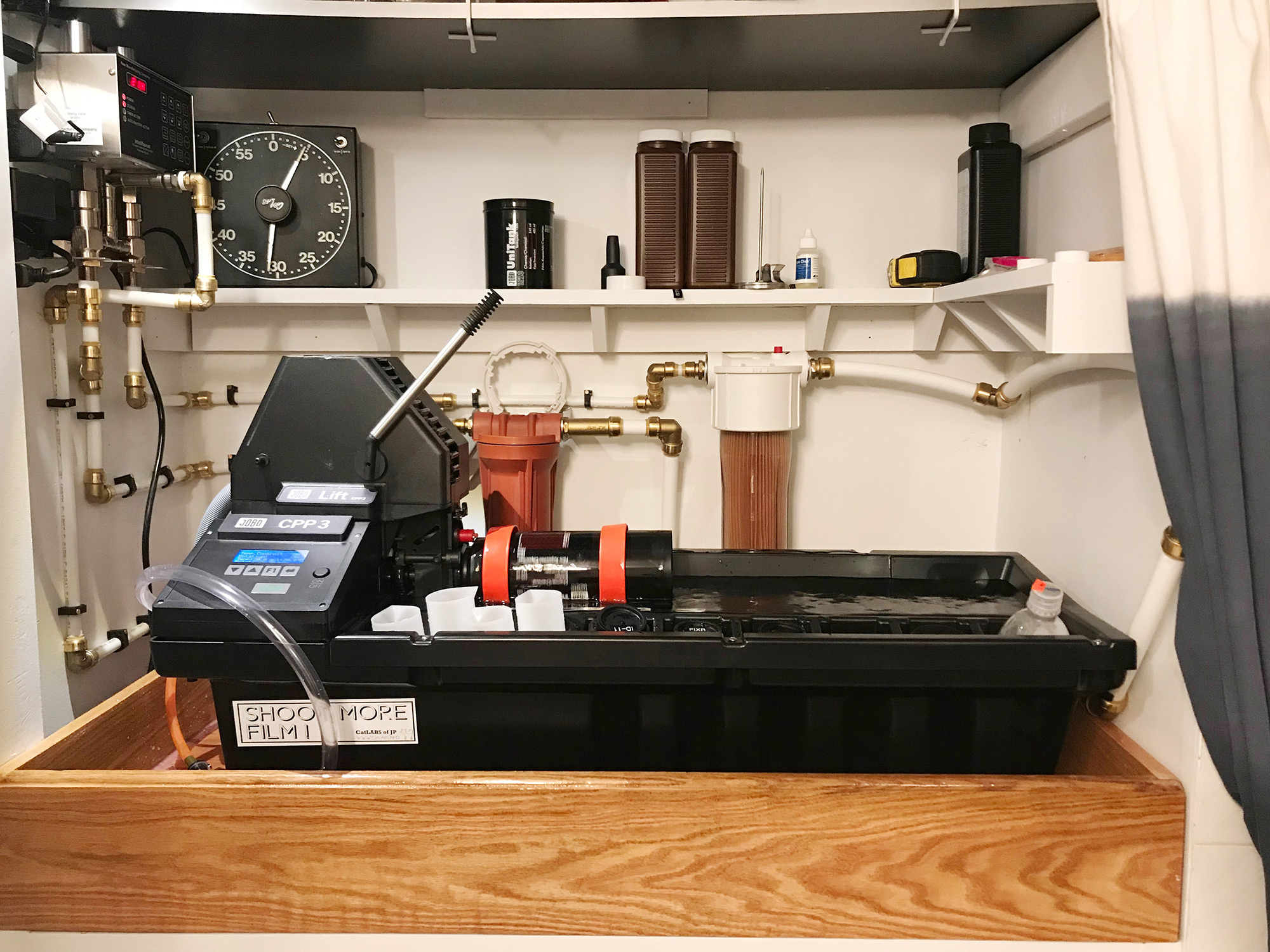

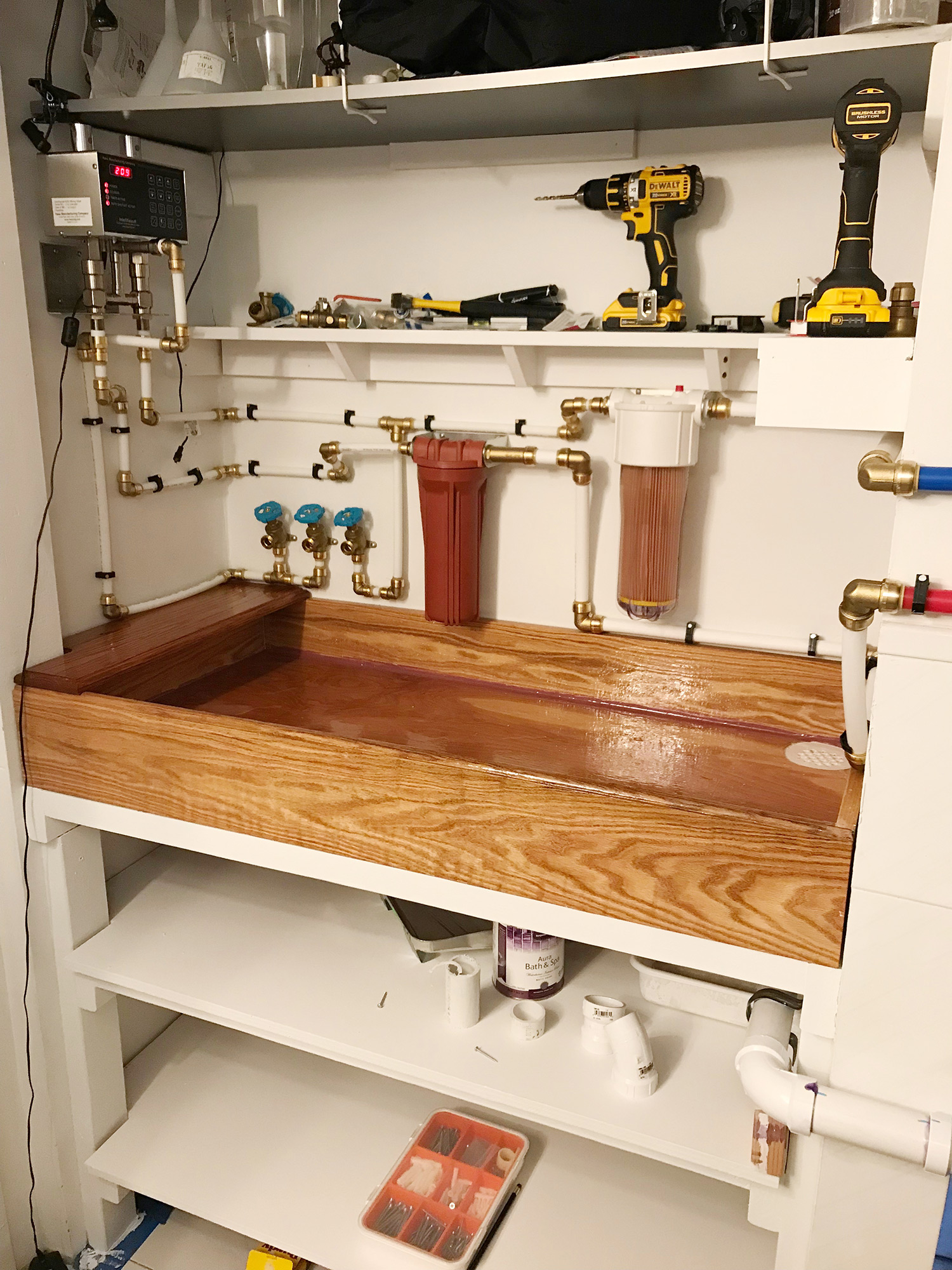

    So I removed all of that, built in a bench to hold everything, then build the sink with wood, glue, screws, epoxy filets, and 3 coats of epoxy resin. Pretty sure this thing will outlast me:
    So for now the Jobo lives in the sink until I get around to building out the rest of the darkroom.
    IMG_8294.jpg IMG_4093.jpg

  25. c41

    c41 Member

    Messages:
    139
    Joined:
    Jul 21, 2016
    Location:
    H
    Shooter:
    Medium Format
    Awesome job Phillip, reminds me of my homebrewing days with all that plumbing.
    Is that a thermostat of some kind, the box on the left?

  26. Phillip Nondorf

    Phillip Nondorf Subscriber

    Messages:
    8
    Joined:
    Nov 13, 2017
    Location:
    Brooklyn
    Shooter:
    Multi Format
    haha, yeah researching the plumbing definitely got me to some home brewing forums, glad I did too because that's where I learned enough about the sharkbite connections to decide to go with those. Yeah the box is an Intellifaucet K250, it is, simply put, amazing.
