Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
It's from an S, IIRC.

This isn't exactly 16mm, but one could consider Double8 a sort of 'quarter-frame Minox'.

Wollensak 8 Model 53
FPP Double8 ISO 100, Xtol stock
Morse tank, V800 scan


Minox

Subscriber
Joined
Oct 25, 2022
Messages
47
Location
Middle Earth
Shooter
Sub 35mm
I set my Minox cameras (8x11) to the infinity, not to the hyperfocal, when shooting distant object, usually anything over the 2 meters mark. I have noticed that the hyperfocal setting is giving me soft (not properly focused) images. The infinity mark seem to have resolved this issue.

It also has to do with the thickness of the film used; the thicker the negative, the harder is to be held properly by the gate upon closing in onto the film. The thinner the film, I noticed that the sharpness improves very much.

Other than that, I believe the others here have already said it. Good luck with your next negatives :smile:

Joined
Jul 31, 2012
Messages
2,622
Shooter
35mm RF


Minox C, Eastman XX, Rodinal. Scan from print.


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,704
Location
USA
Shooter
Multi Format
I set my Minox cameras (8x11) to the infinity, not to the hyperfocal, when shooting distant object, usually anything over the 2 meters mark. I have noticed that the hyperfocal setting is giving me soft (not properly focused) images. The infinity mark seem to have resolved this issue.

Yes!

A good portion of this book explains it. Have you read it? But you can also see for yourself too as you did.



Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
That is pretty cool Bronson. How do you develop the movie film? LOMO tank?
Morse tank, as per the original post. 25ft of un-slit Double 8 is a little easier on the wrists than processing a 100ft reel of 'real' 16mm film.

Once dried, I can flatbed scan lengths of ~48 frames from an uncut reel then use some ancient software to convert the strip to a gif. The registration in-camera is excellent; a misaligned scan and/or camera shake are easily distinguished. Scanning with sprockets at 3200dpi will produce an image ~850 pixels high, maybe enough to crop and still be 720p. The original gif was almost 10MB... definitely not H.264.

The other half of the strip:


These are looking good. Where do you get single perf 16mm ektachrome? Are you processing it yourself? regards ---john.
I get most of my submini stocks from FPP, though bigger places like B&H usually carry most of the Kodak range. Processed DIY E-6 in a yankee clipper, though I did cheat a bit and use D-19 as the first developer as I'd just mixed 2 liters of it.


Cholentpot

Subscriber
Joined
Oct 26, 2015
Messages
5,312
Shooter
35mm
Nikkormat with a Tokina 17mm, Tri-x 16mm.


















Had some frame overlap but otherwise it worked pretty well. The lens is kind of kaput though. Very hazy.


Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
Not bad for $0.50 worth of film. Did you process the Tri-X as a negative? I wonder how close it is to the 35mm stuff in terms of push-ability...

I finally gave some color separation exposures a shot.

Mamiya 16 De Lux, ~F5.6, 1/100s
Foma R100; bw reversal, 1st dev Kodak D-51 2+1 8' (amidol print developer)
Red 29, Green 61, Blue 47B

t1s.jpg t0s.jpg

Edit:

Rollei 16, "A" mode ISO 200
Kodak XX; D-51 2+1 8' (amidol print developer)
V800 negative scan

swclosed_d51s.jpg bco_d51s.jpg

Minolta 16 QT @ closest focus; F3.5 1/250, F10 1/30s
ImageLink HD; D-23 1+3 8'


Last edited:

Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
Minolta QT F3.5 1/30s
FPP Sonic 25, D-23 1+3 12'
V800 negative scan


Last edited:

Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
Thanks; I find with smaller formats it's much easy to experiment and/or fine tune processing without worrying about wasted film.

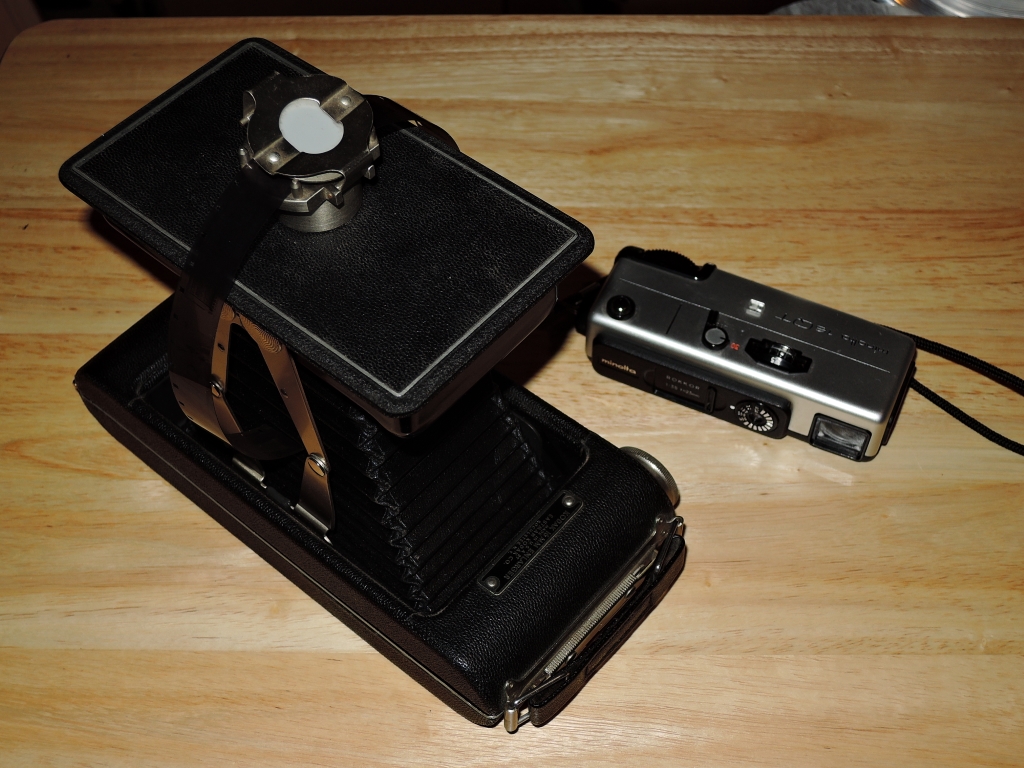

I just picked up a Kodak 71173 cine 16mm -> 616 (2.5"x3.5") enlarger from some sort of auction site.

71173ps.JPG 71173gs.JPG

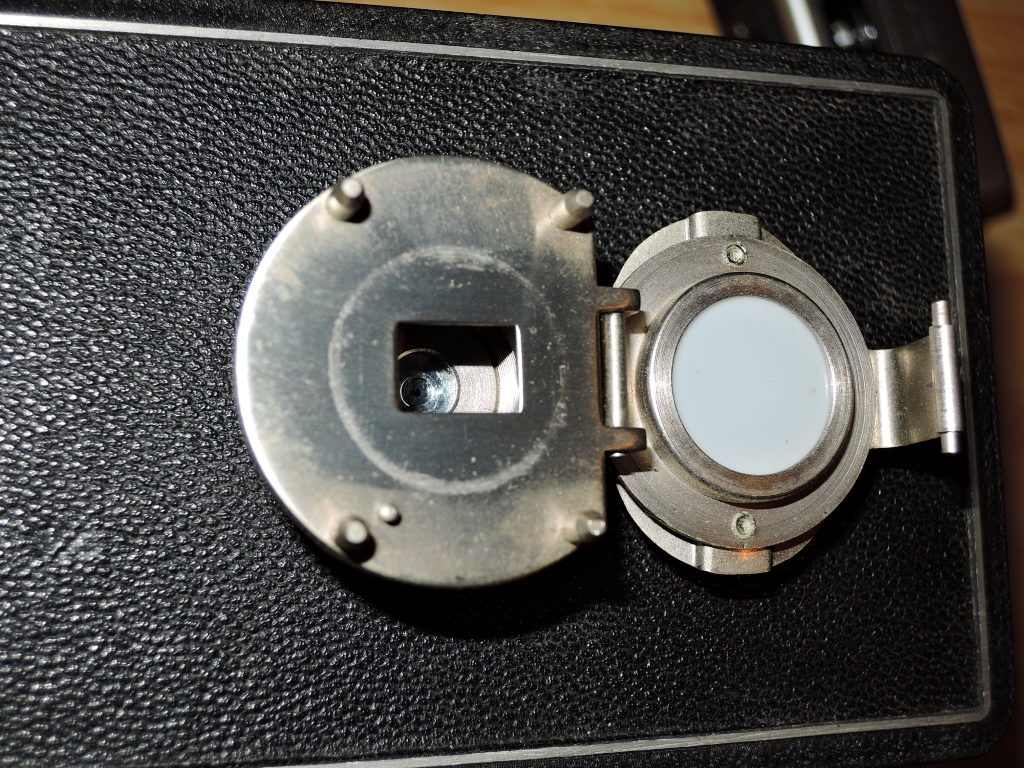

It's gated for a ~8x10mm 16mm cine frame, complete with a handy dandy registration pin. It'll only give crops from 16mm/110 still cameras but will produce a 'quad-diptych' with un-slit Double8 film.

I don't have any 616 roll film (and my 120 adapter isn't here yet) so I cut down a sheet of x-ray film and dropped it into the back, slapped a random bit of 16mm film in the holder, and opened the shutter.

Fuji HR-U, D-23 1+3 15' (w/ tray mark during development {and some digital cloning for opsec})

The aperture of the lens seems to be in the F11-16 range but that's only a guess.

I assume it works with paper as well; pretty nifty.

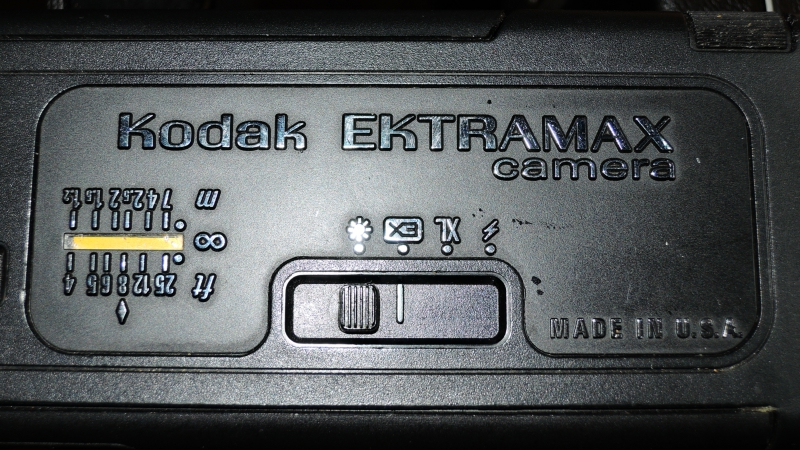

Edit: To stay on topic, I also recently picked up an Ektramax. The flash unit is dead weight, but the mechanical functions all appear to be sound and the rotating/sliding action of the focus is sweeet.


Last edited:

Huss

Member
Joined
Feb 11, 2016
Messages
7,200
Location
Hermosa Beach, CA
Shooter
Multi Format
Edit: To stay on topic, I also recently picked up an Ektramax. The flash unit is dead weight, but the mechanical functions all appear to be sound and the rotating/sliding action of the focus is sweeet.

View attachment 320507

Nice! I tried to find one but my searches were fruitless apart from one that looked like it was a dog's chew toy. Had to pass on that one (and they still wanted $60!)


Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
This one won't win any beauty contests, but it does take pictures. It requires sprockets to cock the shutter and one extra blank advance to avoid overlapping frames.

Kodak Ektramax F2 1/30s & 1/100s?
FPP BW3 (3383), Pyrocat-MC 1+1+100 14'




3383 is weird stuff. More often than not it silvers out during fixing when processed as a bw negative.


Cholentpot

Subscriber
Joined
Oct 26, 2015
Messages
5,312
Shooter
35mm
Pentax Auto 110, Fujicolor Super HR. Film did not age well...






Rollie A110, Fujicolor 200. This film got along better but I was working out the kinks in the camera. It seems it does not like when I use the function to close camera without advancing and I got a bunch of double or triple exposures.













I left the edges in intentionally. I like how it looks with 110 film.


xkaes

Member
Joined
Mar 25, 2006
Messages
805
Location
Colorado
Shooter
Multi Format
It requires sprockets to cock the shutter and one extra blank advance to avoid overlapping frames.

Just one? That's good to know, and your film is PROOF POSITIVE. A lot of 110 cameras that need the perforations require two or more "blank advances". This MIGHT be true for all of the other Kodak Ektra 110 cameras as well -- and maybe the Ektralites too. Any 110 Ektra users out there?

http://www.subclub.org/shop/kodak.htm
