Have not used the black Minolta 16QT that I got in 1986 for a while because the shutter was sticking.
I took it apart and cleaned with alcohol but still occasionally sticking. My diagnosis was a weak shutter spring. So I tightened the spring moving it over one slot. I was able to reach in there with tweezers and pull the spring out of the slot visible and move it to the next slot tighter. Worked like a charm!

Also, a cool little know fact is the shutter speed lever has a continuous action on the slow speed (30/sec) escapement. What that means is that one can set inbetween shutter speeds. So, only 30 and 250 are labeled, but if you set the lever about half way between it is about 1/100th.
Minolta 16QT open.jpg
Minolta 16QT #1 spring.jpg

Last edited:

ic-racer

Member
Joined
Feb 25, 2007
Messages
12,704
Location
USA
Shooter
Multi Format
What do you think of this cool little flash I got to replace the original Minolta flash. The original flash was smaller, but not automatic. Mine stopped working in the late 1990s but someday I could put a new capacitor in it.

However, this tiny Sunpak is a two-range Automatic flash that even has a rotating head for bounce.

If anyone else has tiny strobe/flash/speedlights please show!
Mini Sunpak flash 16mm.jpg

Joined
Jul 31, 2012
Messages
2,622
Shooter
35mm RF
Nice! Are you slitting your own film?

Thanks, and yup. I made a slitter a few years ago with some wood, some bolts and a lot of nuts. I used the nuts to space the blades, then I filled it with epoxy. Seemed like a good idea at the time, but the blades have worn. I kicked the can a bit by putting in more epoxy to use a different part of the blades. I need to just buy a JimmyLee slitter like you have there. I slit film off of 100' spools of Eastman XX. I've found the film to slit better than others. Foma for example chips and scratches easily. I think the same reasons why movie film goes through cameras easily are the same it slits easily. I slit tons of film at a time then put it in a 100' can. To get the right length I use a correct length piece of string and hold it with the film as I pull. Works well and is fast.


xkaes

Member
Joined
Mar 25, 2006
Messages
805
Location
Colorado
Shooter
Multi Format
However, this tiny Sunpak is a two-range Automatic flash that even has a rotating head for bounce.

If anyone else has tiny strobe/flash/speedlights please show!

Finding a tiny HOT-shoe flash for the Minolta QT & MG-s -- they use the same hot-shoe flash adapter -- is a challenge. There are LOTS of BIG auto-exposure flashes that will work, but I've discovered an unfortunate problem with the small auto-exposure hot-shoe flashes -- it's also a problem with the manual-exposure hot-shoe flashes as well.

Unlike most hot shoes on cameras, the Minolta QT/MG-s hot-shoe adapter only has a electrical contact one ONE side of the shoe (a hot shoe has one contact in the middle of the base/shoe and the other on the side(s) -- HARD to see). check you Minolta QT/MG-s hot-shoe adapter -- you'll see that the shoe only has a metal contact on one side.
While most LARGE flashes have contacts on both sides of the flash shoe, most small flashes only have it one ONE side -- and almost every SMALL flash I have found the side contact is on the WRONG side to work with the Minolta QT/MG-s hot-shoe adapter.
Examples of small auto-exposure flashes -- Yashica CS-14 & Konica HX-14.
Like, I said, there are larger flashes, like the Sunpak Auto 101 with contacts on both sides, and the Minolta Auto 118X, but these are mush larger and heavier -- defeating the purpose of a submini camera.
The Cosina CX-11 is very small, has AUTO, and has contacts on both sides, but is impossible to find.


jbrubaker

Member
Joined
Jan 5, 2008
Messages
104
Shooter
35mm
I went for a walk on the RR tracks today with the new Minox C. All photos are on Tmax 100 film developed in Legacy-Pro L110 1:31 for 6 minutes:



Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
I finally got my grubby mitts on some 16mm ImageLink HQ and tried a test cassette under overcast sky. The Canon 110ED20 accepts unperforated stock so I'll probably try that next.

Minolta QT, 1/30s, F3.5 ( ~ ISO 12 from a reflected reading of dry concrete)
D-23 1+2 8'
V800 negative scan




A revision of the new Godox Lux Junior flash with an articulated head for bounce/swivel (and the output adjustment dial on top) would be an ideal sub-mini flash... maybe they could call it the 'De Lux'.


Huss

Member
Joined
Feb 11, 2016
Messages
7,200
Location
Hermosa Beach, CA
Shooter
Multi Format
I finally got my grubby mitts on some 16mm ImageLink HQ and tried a test cassette under overcast sky. The Canon 110ED20 accepts unperforated stock so I'll probably try that next.

Minolta QT, 1/30s, F3.5 ( ~ ISO 12 from a reflected reading of dry concrete)
D-23 1+2 8'
V800 negative scan


View attachment 318809

A revision of the new Godox Lux Junior flash with an articulated head for bounce/swivel (and the output adjustment dial on top) would be an ideal sub-mini flash... maybe they could call it the 'De Lux'.

Also very nice!


Donald Qualls

Subscriber
Joined
Jan 19, 2005
Messages
10,069
Location
North Carolina
Shooter
Multi Format
( ~ ISO 12 from a reflected reading of dry concrete)
D-23 1+2 8'

Wow, that looks amazingly good for document film. I need to load up some cassettes and try that in one of my13x17 cameras. In the past, I've shot at higher EI and used special low contrast developers, but the images never looked that good.


Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional

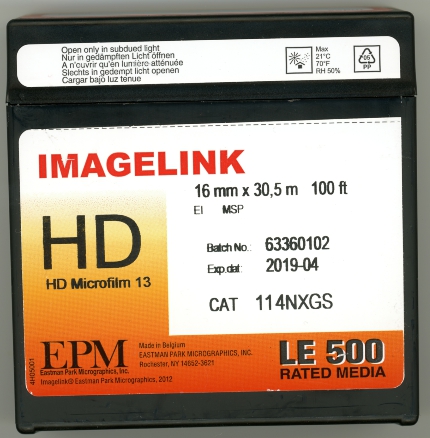

Slight correction, it's EPM ImageLink HD, not HQ, on pet 13 base (catalog #114NXGS) with a 2019-04 expiry date. The equivalent stocks in 35mm and 105mm are #114NXHU and #114NXL1, respectively.

I had to make a few educated guesses on how to best process the film but am quite pleased with the first go. It performs well in low contrast scenes.

Made in Belgium about a decade ago. Neat.

Last edited:

Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
A couple more frames from some ImageLink HD. Same camera and developer (left sitting on the bench overnight) but partly cloudy today rather than overcast. Naturally I had to stop down a bit but never went much past f8. The contrast can get pretty strong with this combo, depending on the light.

qtilhdsm.jpg stixsm.jpg


And a set of underexposures from the Canon 110ED 20. I accidentally loaded a cassette tabbed for ISO 400 metering and the 4.5 stops of ND I attached to the meter just wasn't enough. Aside from using a 100 ISO cassette next time, I might just pop out the camera's battery and use the mechanical shutter. 1/125s @ F2 should give about the same exposure as the QTs 1/30s @ F3.5 and also allow for manual aperture control.


, thin0s.jpg thin01.jpg

There is also a 'hidden' 1/30s fixed shutter speed when a flash (or hotshoe cover...) is attached to the camera. When activated it mechanically couples the aperture to the focusing scale for use with a flash of GN ~14(m) (think Nikkor Auto GN lens), also compensated for 100 or 400 speed film. I'm not certain if the 1/30s speed is also mechanical or requires the battery in place. I'd be nice to find out the camera could do both 1/125 and 1/30 when unpowered.


Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
Not too bad, only a 1/4 - 1/2 frame of slop... pretty much what you'd get on actual 110 perfs. It's a beast of a camera, despite the bulk and less-than-optimal ergonomics.

Great showing of Minox as of late. There's a pawn shop near me that has a busted copy of a B (I think) but the sticker price is still ridiculous.



Bronson Dugnutt

Subscriber
Joined
Dec 29, 2018
Messages
666
Location
USA
Shooter
Traditional
Rollei 16, Ektachrome 100D



Minolta MG-s, ImageLink HD @ ISO 6
D-19 reversal, 3'30"


FPP BW 3 (2383), Parodinal 1+100 60'

Last edited:
