    Hey Dag.bb,

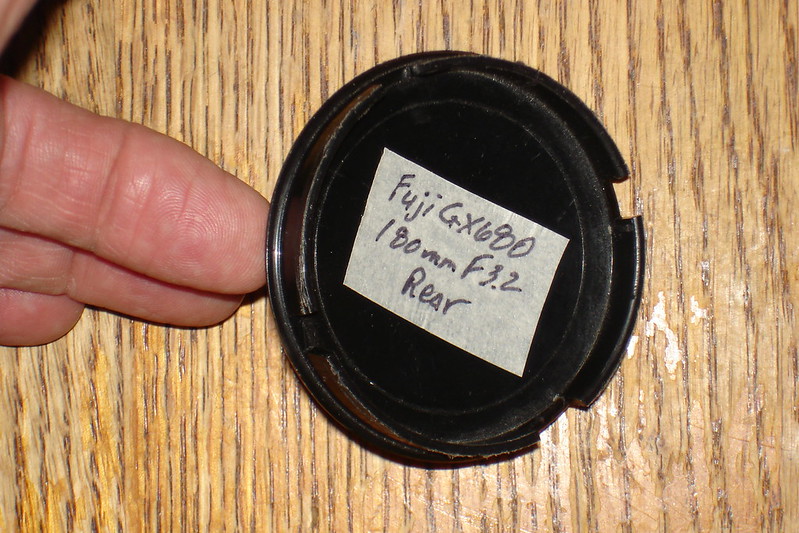

    Not a premanufactured one, but I did make my own, after perusing my collection of over a hundred lenscaps. I ended up with a Schneider large format cap (marked SN 223/26-57@) which will almost fit into the interior rear threads and friction-fit tightly. Cut some slots with a razor blade, and it fits tightly. The extremely rear-protruding cell on the 180mm F3.2 made it necessary to get creative. :smile:

    I dislike the Fuji GX680 front caps, they are cheap IMO and easily fall off, very aggravating. Threw them away, and got nice 86mm & 95mm black plastic clip-on ones from China for the front caps. I store my lenses in ziploc bags to protect them from dust and it does provide some protection from scuffing during transport to shoots.

    Please post some more photos here. Always glad to get responses. What you are doing is very interesting.

    [​IMG]DSC05746 by Nokton48, on Flickr

    [​IMG]DSC05747 by Nokton48, on Flickr

    Last edited: Apr 10, 2017
  2. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

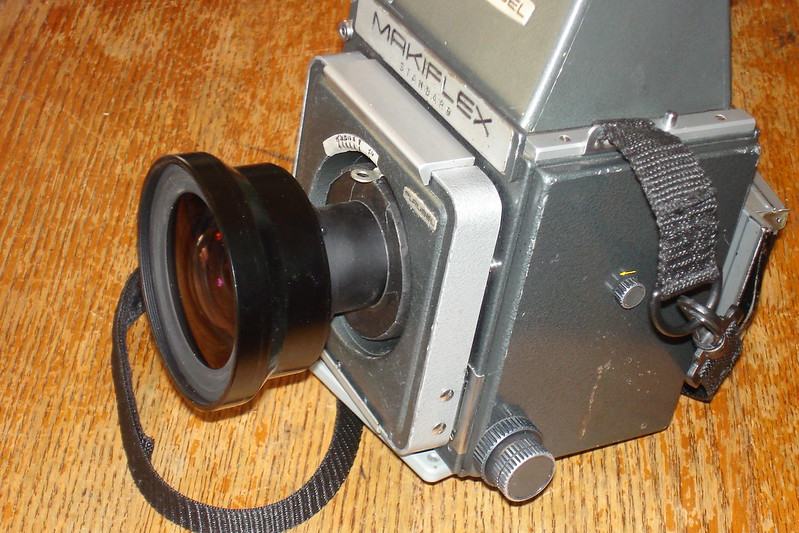

    And... Here is the Fuji GX680 80mm F5.6.
    It's strictly a closeup lens on the Makiflexes.
    But it would be great on my Sinar Normas.
    Looks very sharp on the ground glass, but the rear cell tends to hit the mirror.
    About 30 feet fully retracted in with the Peco Jr recessed board.
    At about three feet focused I can fire the shutter. It's very wide on this camera.
    Still it's worth a hundred bucks.

    [​IMG]DSC05752 by Nokton48, on Flickr

    Last edited: Apr 12, 2017
  3. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

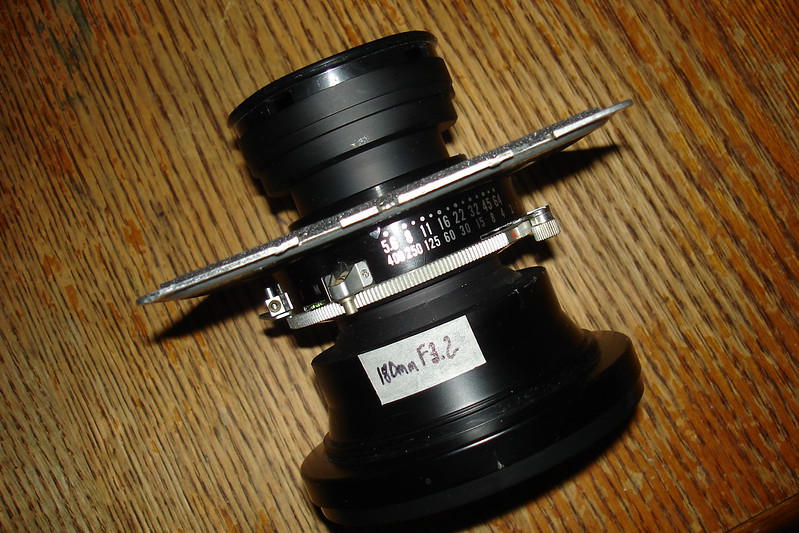

    Not too much new to report. But today I did receive another Seiko Shutter from Japan. I will happily pay a hundred bucks for these. This one came with a 180mm F5.6 Fuji WS with bad front cell. I had difficulty removing the front cell it was really on there. With a rubber clamp set in my vise, I finally wrenched it apart. Now it holds the Fuji GX680 180mm F5.6, the f/stop band is perfect ready to go for this one. It's done and beautifully functional, shown on the right. Both of these lenses are useful to me.

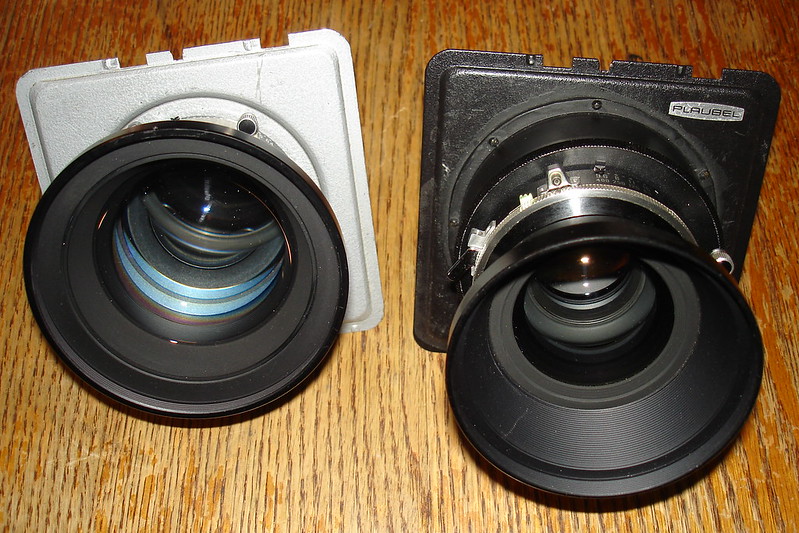

    On the left (for comparison) is the Fuji GX680 180mm F3.2, note the size difference of the front cells. The F3.2 takes a 95mm filter, most of the other Fuji GX680 lenses take 86mm's.

    [​IMG]DSC05760 by Nokton48, on Flickr

    Last edited: May 6, 2017
  4. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    I am cleaning and reorganizing my studio. HURRAY!!!!

    Here are two of my Makiflexes on my Plaubel Peco Profia Camera Stand. Every studio needs a camera stand. This is one of the focal points in my studio.

    [​IMG]DSC05778 by Nokton48, on Flickr

  5. EdSawyer

    EdSawyer Member
    Ads Enabled

    Messages:
    1,574
    Joined:
    Sep 3, 2008
    Shooter:
    Multi Format
    Looking good!

  6. chassis

    chassis Member

    Messages:
    282
    Joined:
    Jul 17, 2011
    Location:
    Eastern Pennsylvania, USA
    Shooter:
    Multi Format
    Looks great Nokton. I agree that every proper studio needs a stand!

  7. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    I am a big fan of 70mm film. Here is my Linhof Cine Rollex on one of the Makiflexes.

    [​IMG]DSC05774 by Nokton48, on Flickr

  8. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    Here i have loaded my 70mm Beatty Coleman Transet Back. It uses it's own special film spools, which luckily are in the back. Instructions say you can load it in subdued lighting, but you will lose some frames. So I loaded it in the darkroom and it went OK.

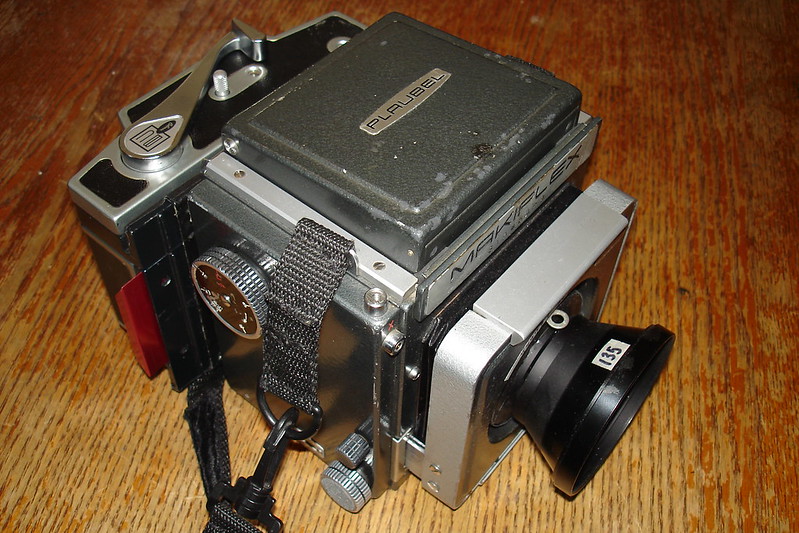

    Here is the back loaded with 55 exposures of 70mm unperforated Efke R100. It is attached to my Makiflex Standard. The lens is a Fuji GX680 135mm f5.6 Fujinon which I hacked to fit the Makiflex cameras.

    [​IMG]DSC05810 by Nokton48, on Flickr

    Ready to use!! :smile:

  9. chassis

    chassis Member

    Messages:
    282
    Joined:
    Jul 17, 2011
    Location:
    Eastern Pennsylvania, USA
    Shooter:
    Multi Format
  10. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

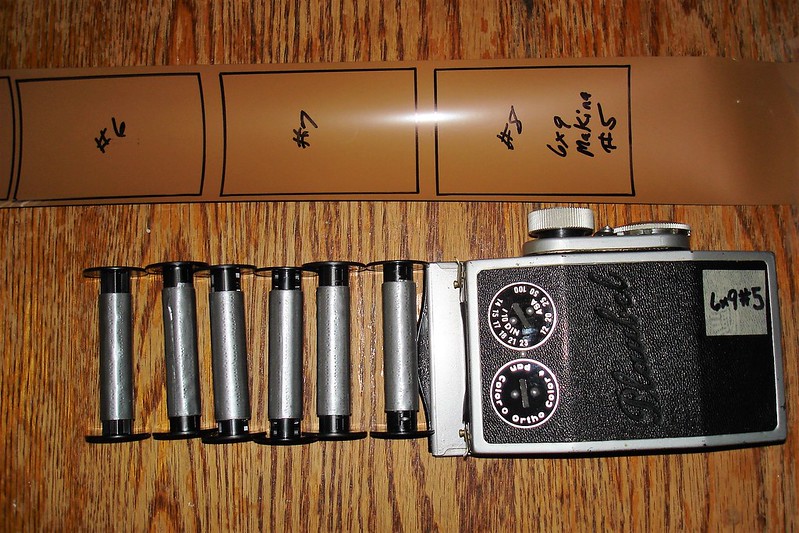

    120 film spool wrapped with four go-rounds of plain old duct tape, results in perfect frame spacing with Plaubel Makina #3 roll back. An easy solution to a vexing frame spacing problem intermittent to the Makina backs. Sure hope this works with the 6x9 backs. Why wouldn't it?? :smile:

    I intend to get out and shoot more as my life starts to settle down a bit.

    [​IMG]DSC05851 by Nokton48, on Flickr

  11. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

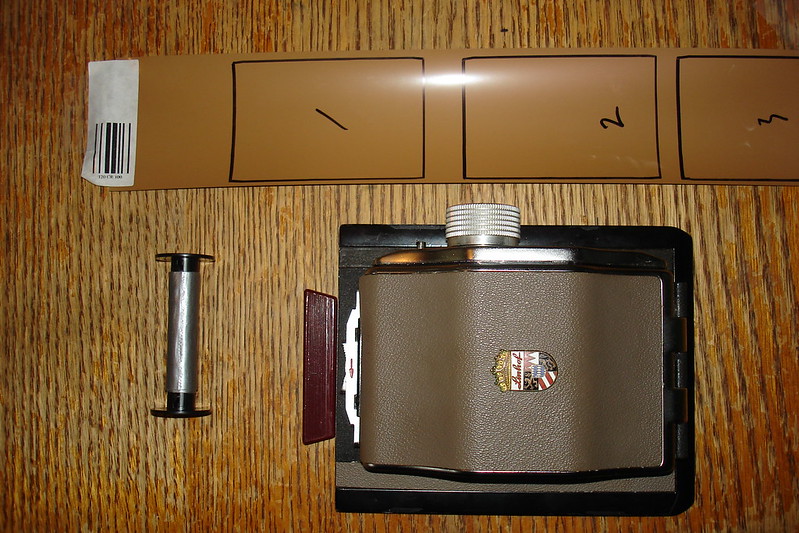

    Same good result from my 4x5 6x9cm Linhof wind knob back. Eight perfectly spaced frames is the result. :smile:
    These wind knob Linhofs are notorious for intermittent spacing issues. Duct tape comes through, again!
    [​IMG]

    [​IMG]DSC05849 by Nokton48, on Flickr

    Last edited: Jul 22, 2017
  12. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    Here is the result of the duct taped spool, with one of my five or six 6x9cm Plaubel Makina backs. These are somewhat dodgy regarding frame spacing, so shoring this up, is HUGE for me. It's quite disapointing to have important frames overlap (especially when you are not expecting it!) The mechanism is rather primitive and archaic, as well as extremely unusual in design. But now it appears to be working beautifully so far.

    Make a tick mark on the duct tape, with a sharpie marker, as you wrap it, so that you get the correct amount of tape on the spool. Easy to do.

    Hurray! :smile:

    [​IMG]DSC05861 (2) by Nokton48, on Flickr

  13. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    Last edited: Sep 17, 2017
  14. Sponsored Ad
  15. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    Here's a 70mm Agfa Aviphot 200 PE1 neg, processed in Rollei Supergrain, at approx EI 100 or so.

    Camera used was a Hasselblad 500 C/M with 100mm T* Planar, and Hasselblad 70mm A70 film magazine. Negs were processed in Rollei Supergrain developer, in the Kindermann 70mm developing tank.

    [​IMG]Aviphot 200 Supergrain 100 EI by Nokton48, on Flickr

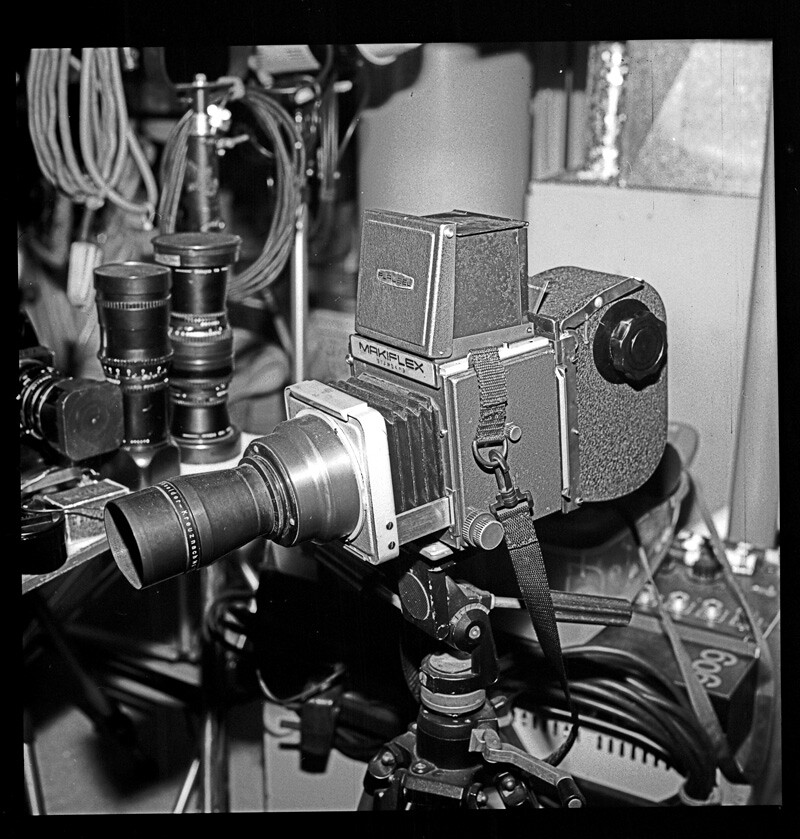

    The camera shown is one of my Plaubel Makiflexes, with barrel mounted 360mm Schneider Tele-Xenar. The film back is a Beatty Coleman, which will take up to one hundred feet of perforated or unperforated 70mm film, and produces a 6x9cm negative. Probably made for school camera photography. This will also fit my Sinars.

    This is an old image, cause I sold the old old Tele-Xenar and replaced it with a much nicer 60s vintage chrome one. Better match to what I am fitting it to.

    Last edited: Sep 17, 2017
  16. AgX

    AgX Member

    Messages:
    17,569
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    That Kindermann plastic reel seems to be a "plain" one, thus neither of the Jobo or Paterson type.
    Thus it is loaded like a metal reel?

  17. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

    It is actually a " USA made dental x-ray 70mm reel" Only $9 US If you wish I will post the website They have a minimum $50 purchase

    It loads as easy as the metal kindermann But only about ten US feet, not the full fifteen

  18. MattKing

    MattKing Subscriber

    Messages:
    23,312
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    Please post the website. Those of us with old 616/116 cameras always appreciate more options.

  19. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
  20. MattKing

    MattKing Subscriber

    Messages:
    23,312
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    Thanks for the link!

  21. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format

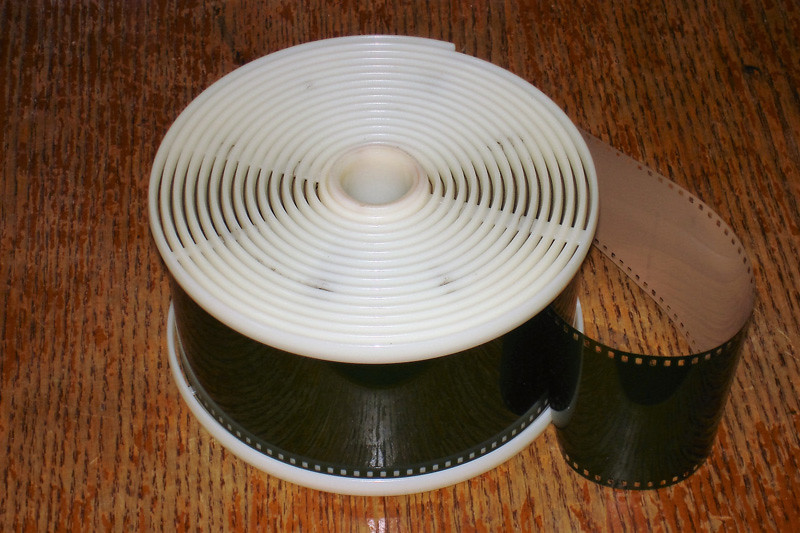

    Here's the nylon 70mm reel test loaded with some old Kodak Portra 70mm film

    [​IMG]70mm Dental Reel by Nokton48, on Flickr

    As you can see it will almost take a full fifteen roll of 70mm film.

  22. gorbas

    gorbas Subscriber
    Ads Enabled

    Messages:
    627
    Joined:
    Dec 9, 2007
    Location:
    Vancouver, Canada
    Shooter:
    35mm Pan
    Thank you! Is there anybody else interested in 70mm reels? I would like to buy one

  23. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    [​IMG]Fuji 100mm F4 Makiflex Fp4+ Mic-X by Nokton48, on Flickr

    This is a test of the 100mm F4 Fuji GX680 lens, which I hacked to the Plaubel Makiflex. Ilford FP4+ Mic-X dev

    In our city "Connell's Hardware" has been a fixture for over a hundred years. I loved to go in there, Ralph Connell knew where every screw and nut and thingee were to be had. Connells had a pot bellied stove for heat, and was the central fixture of the store. One day everybody asked "where is Ralph" and they found him slumped next to the stove. He was 92. Connells has now been converted into the very cool "Vicks Pizza" which embellishes the history of Connells. Here I have crammed the Makiflex into a corner of the locked up establishment, the original sign is even in Vick's logos and restaraunt design, The sign is now gone but sold for big big big bucks.

  24. AgX

    AgX Member

    Messages:
    17,569
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    By the way, those 70mm reels are not used in dentistry but material testing.

  25. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    I just bought this ultra rare original Plaubel Makiflex Automatic Iris Schneider 150mm f5.6 Symmar lens. It is coming from Poland :smile:

    In thirty + years this is the first one I have ever seen offered by itself. I have seen them seen many times offered with cameras before. This one seems only to be available in Europe; The Symmars are not in the USA Plaubel catalogs. Nor are the Auto Voiglander Heliars.

    [​IMG]Makiflex Symmar 150mm f5.6 by Nokton48, on Flickr

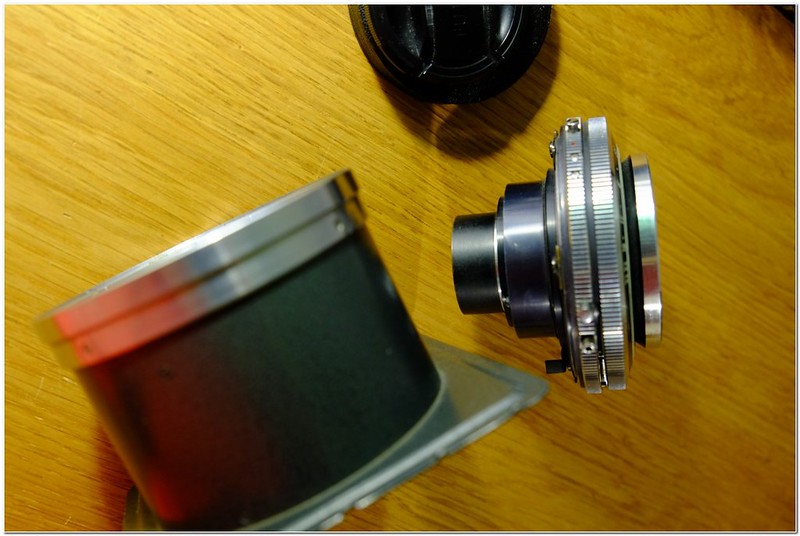

    Here is another view of my new goodies. The long prolongation tube with board will go on my longer automatic lenses, I can use another one. A very big bonus actually. The 150mm will go on a flat Automatic Plaubel Makiflex lens board.

    [​IMG]Symmar Makiflex 150mm F5.6 Auto Iris by Nokton48, on Flickr

    Last edited: Oct 5, 2017
  26. OP
    OP
    Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    784
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    Here's another view of the Connell Hardware sign. This one with Plaubel Makina IIIR, 100mm F4.2 Anticomar (the sharp Makina 100mm lens!), Ilford FP4+, Legacy Mic-X dev

    [​IMG]Connels Sign Makina IIIR 100mm F4 by Nokton48, on Flickr

    The Makina folds up nicely and fits in a coat pocket, whilst the Makiflex does not :smile:
