The Power Of Volts and Milliamps!!

Discussion in 'Medium Format Cameras and Accessories' started by ic-racer, Jul 17, 2013.

  1. ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
  2. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

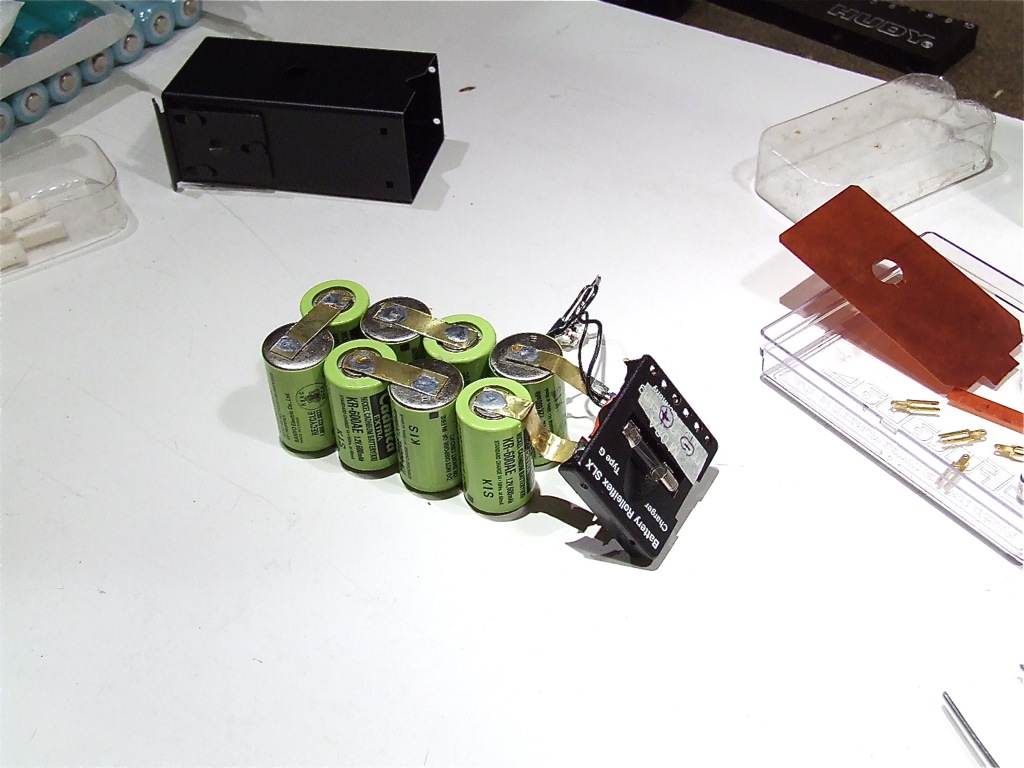

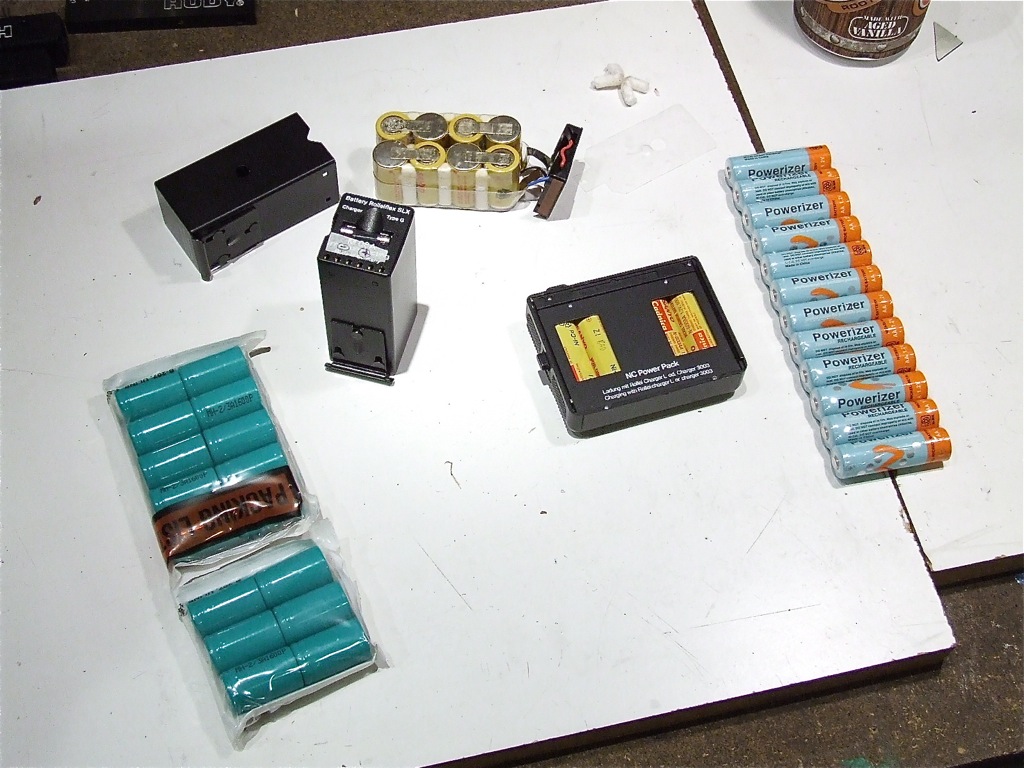

    Here is a battery that I last rebuilt quite a few years ago. It read 6V when I took the picture. I tried to restore it with some charge/discharge cycles on an automated charger without success. The pack with the yellow batteries measured 0V.

    Last edited by a moderator: Jul 17, 2013
  3. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

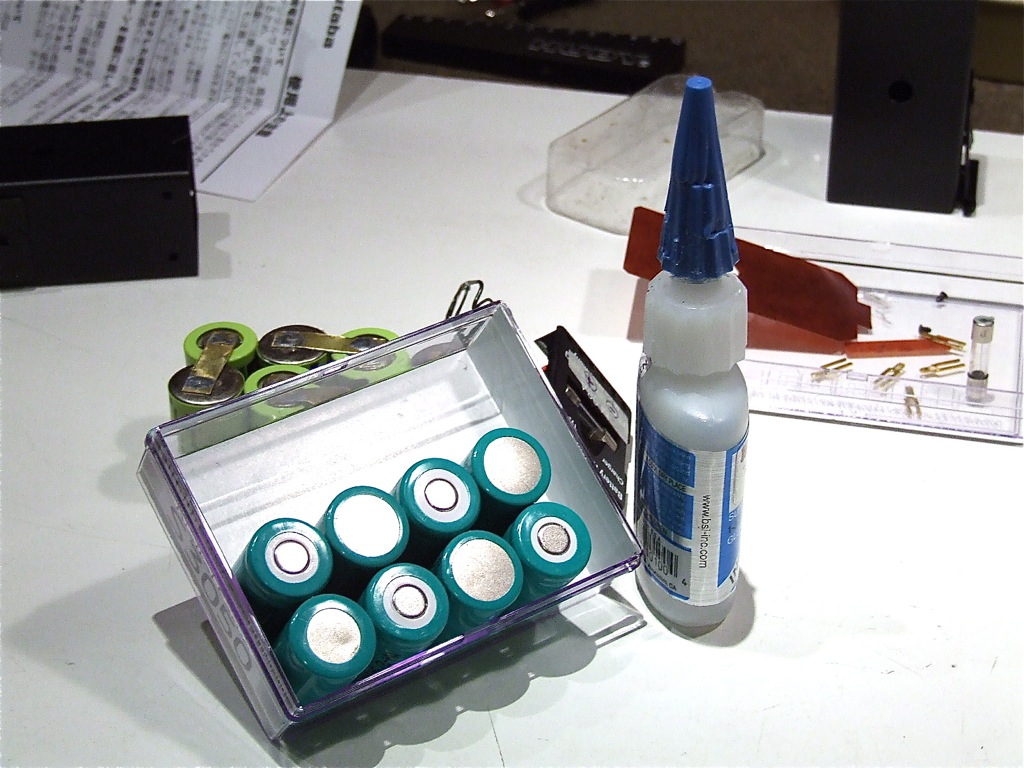

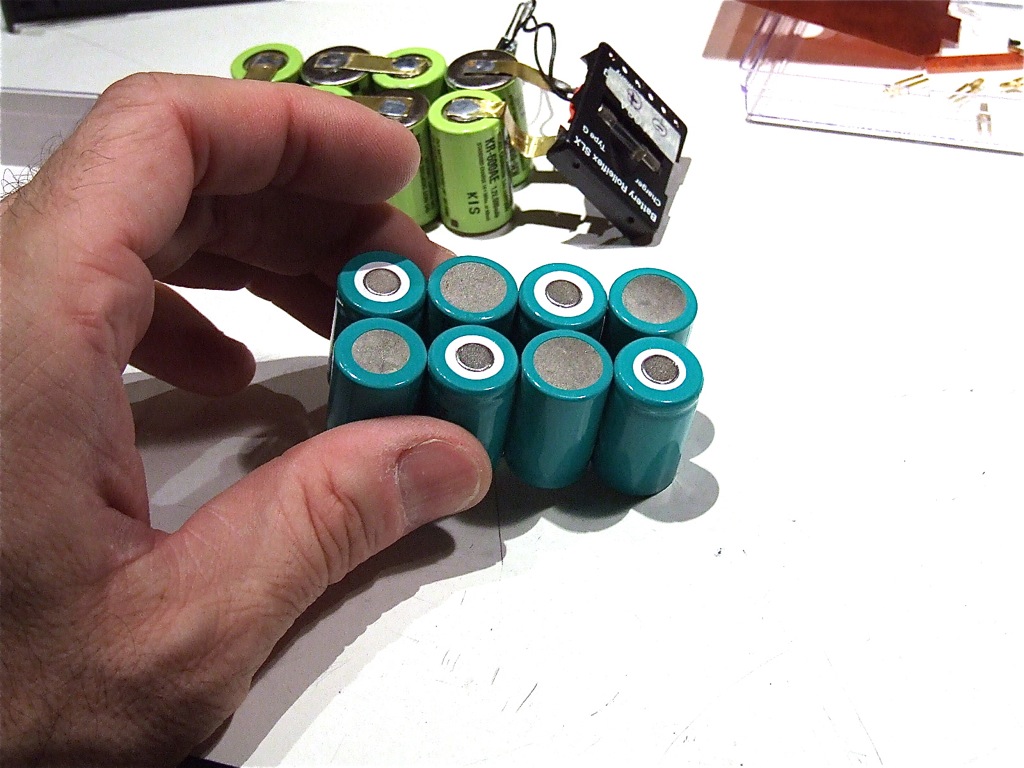

    I put the new batteries in a box and used super glue to hold them together:

  4. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

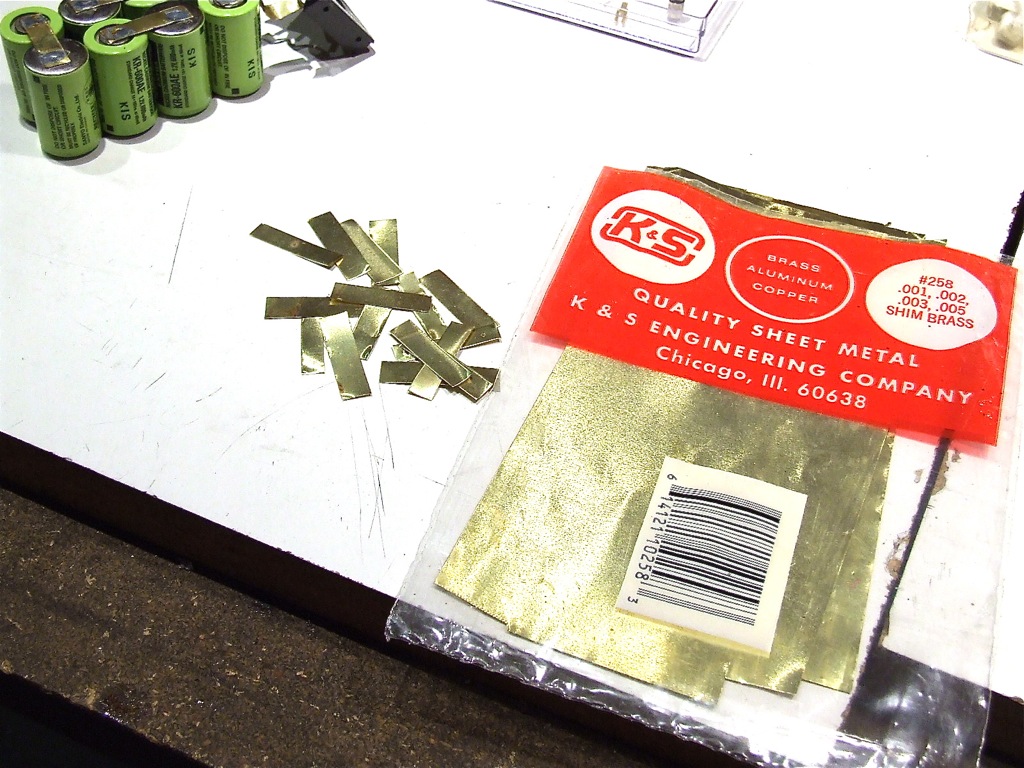

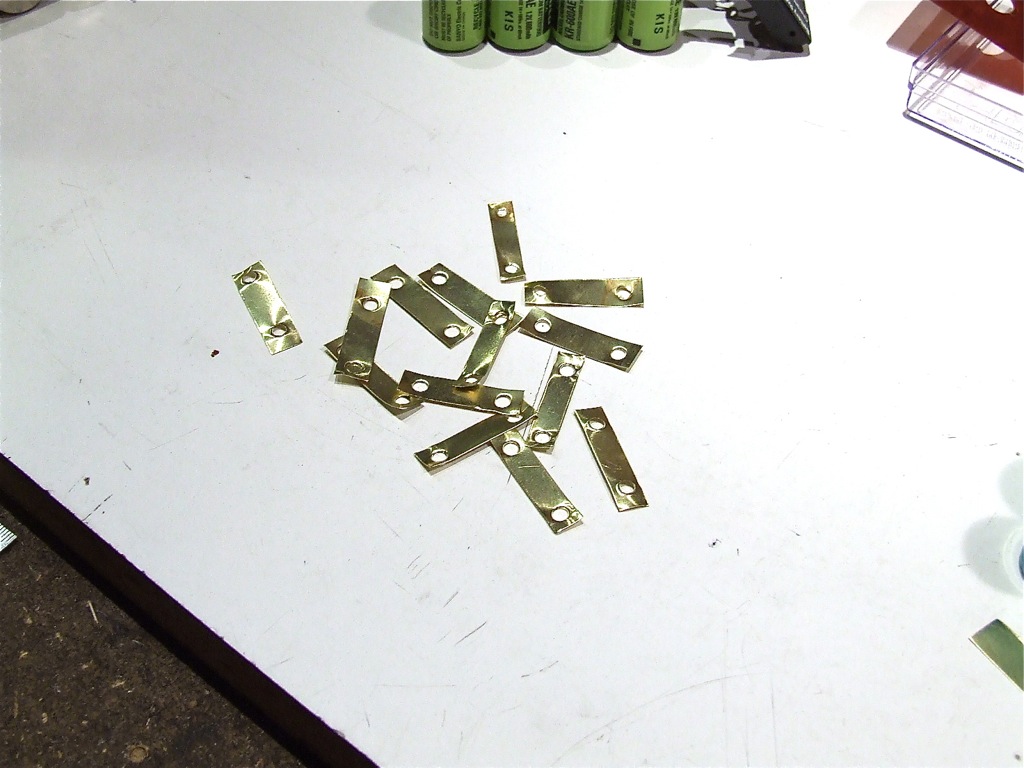

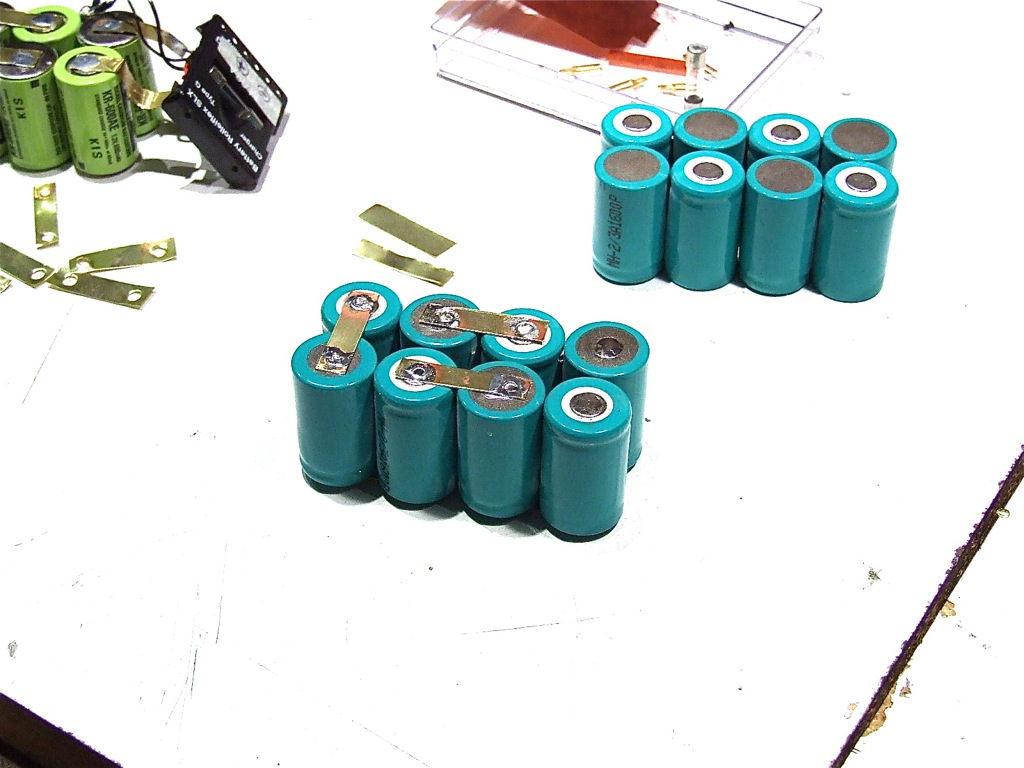

    I made up solder tabs from brass sheet metal:

  5. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

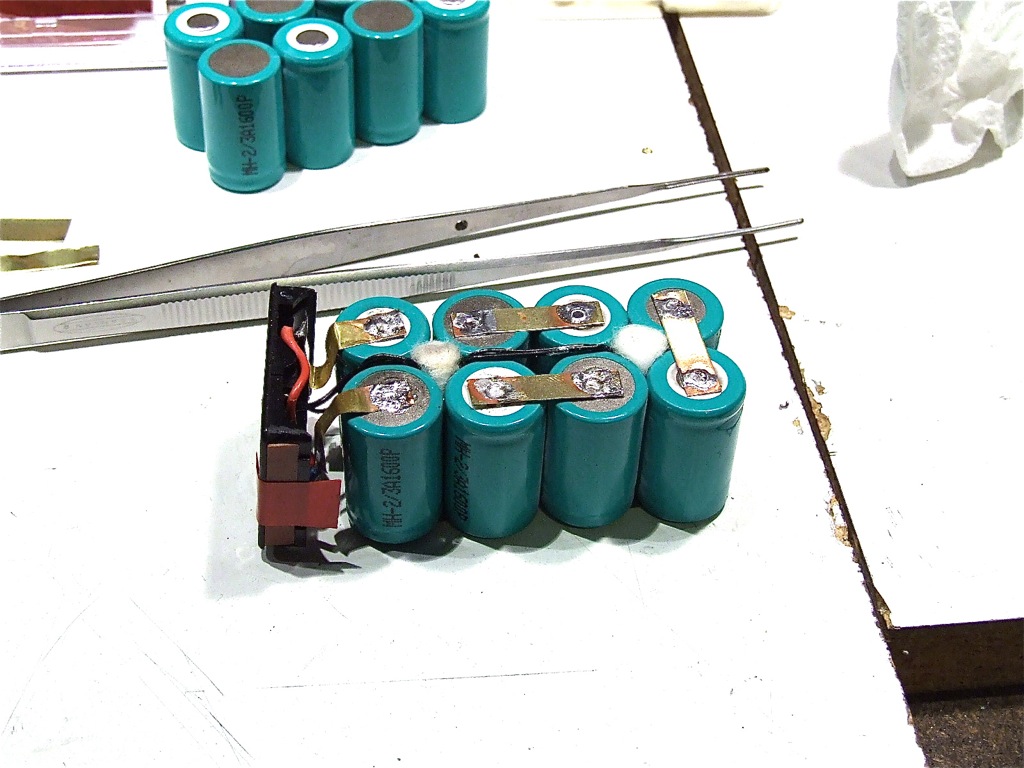

    Solder the tabs in place:

  6. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Solder on the end plate:

  7. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

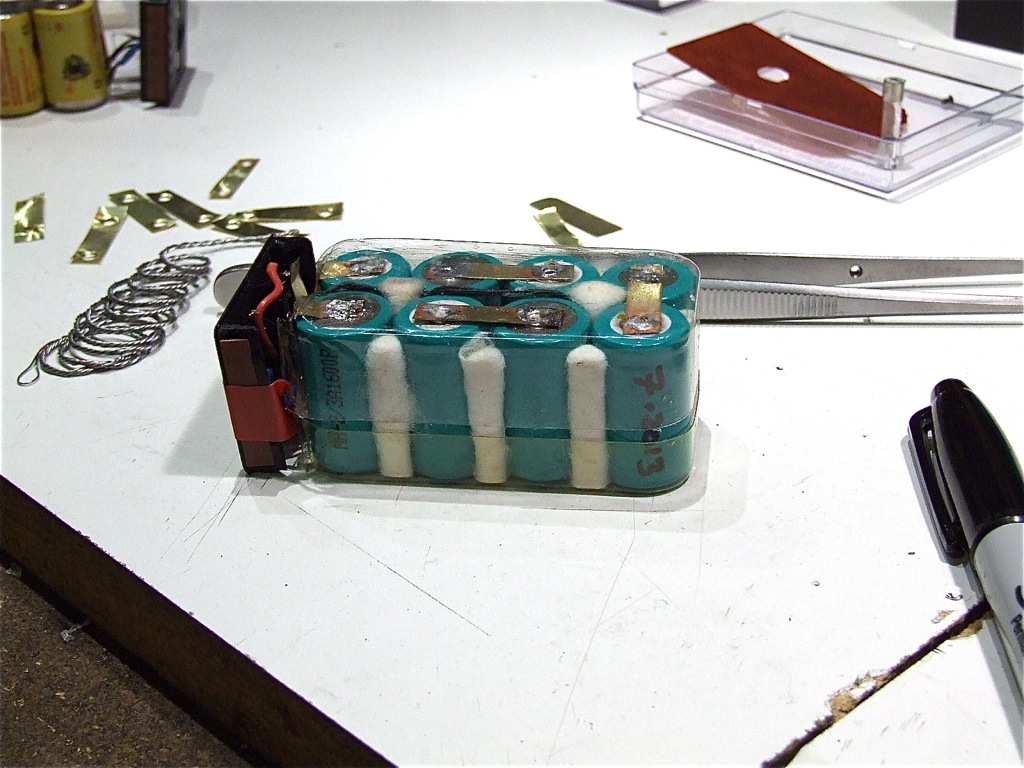

    Replace the padding and temp sensors:

  8. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

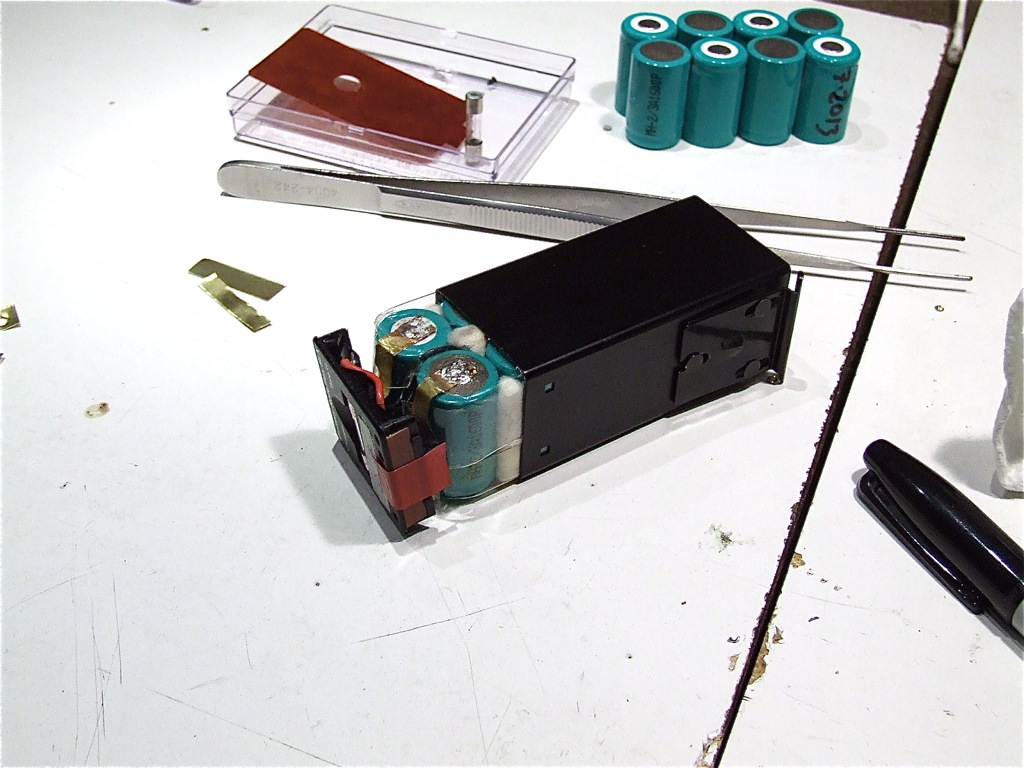

    Put it all together:

  9. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    I just got back from shooting using the new battery. It really restored the camera to perfect function. The last few years, every time I picked up the camera the battery was dead. Charging only lasted for a day and even then the peak voltage was low.

    I'm working on an adapter plug so I can use an automated/computerized charger. The pins need to be exactly 1.5mm. I'm searching for suitable materials.

  10. polyglot

    polyglot Member

    Messages:
    3,473
    Joined:
    Jun 12, 2009
    Location:
    South Austra
    Shooter:
    Medium Format
    Hey, you know you can buy the cells with solder-tabs pre-installed (designed for making up packs!) instead of contact nubbins? That way you don't run the risk of thermal damage to the battery's chemistry when you solder the pack together.

  11. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    I have always made my own tabs. I'm not sure pre-affixed tabs will line up correctly in a pack like this. Probably from habit, when I first rebuilt the pack in 1984, non-tabbed cells were all I could obtain.

  12. deisenlord

    deisenlord Member

    Messages:
    480
    Joined:
    Dec 22, 2004
    Location:
    Minneapolis,
    Shooter:
    4x5 Format
    The pre-built pack's work fine.

  13. deisenlord

    deisenlord Member

    Messages:
    480
    Joined:
    Dec 22, 2004
    Location:
    Minneapolis,
    Shooter:
    4x5 Format
    I also found one of the rare rollei power interface gizmos and its really great, I have a big NIMIH battery pack on a coil cord I plug into it. Go for days and days.

  14. Sponsored Ad
  15. gleaf

    gleaf Member

    Messages:
    270
    Joined:
    Dec 9, 2012
    Location:
    Kentucky
    Shooter:
    Large Format
    Thin nickle strip bonded (pulse welded) for custom connections.

  16. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

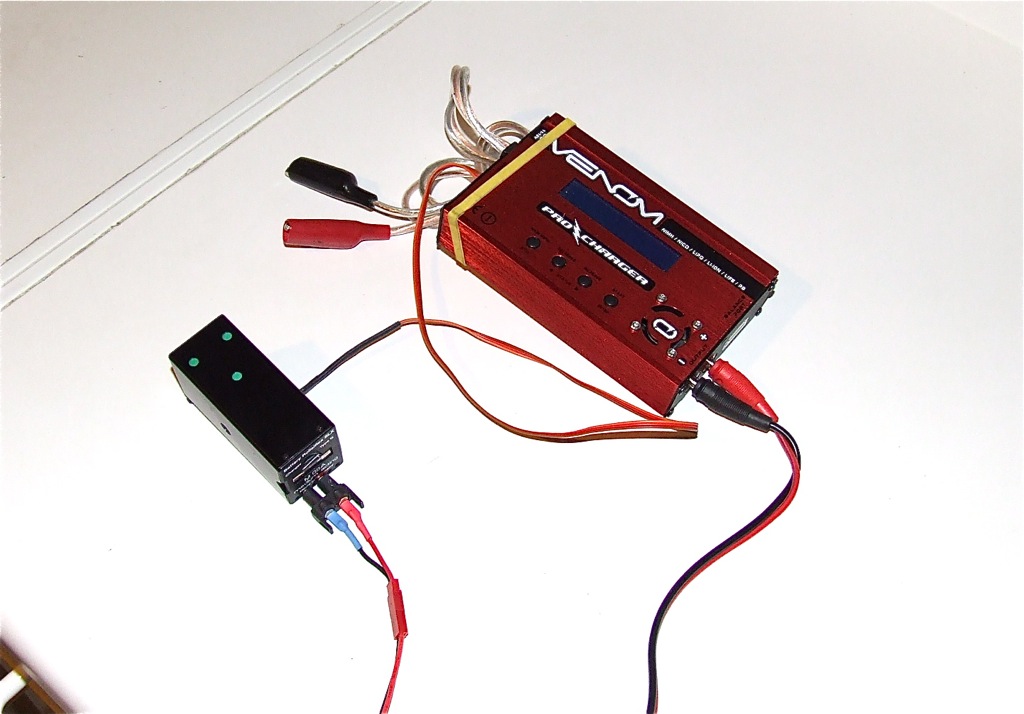

    Here is my new charging setup:

  17. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

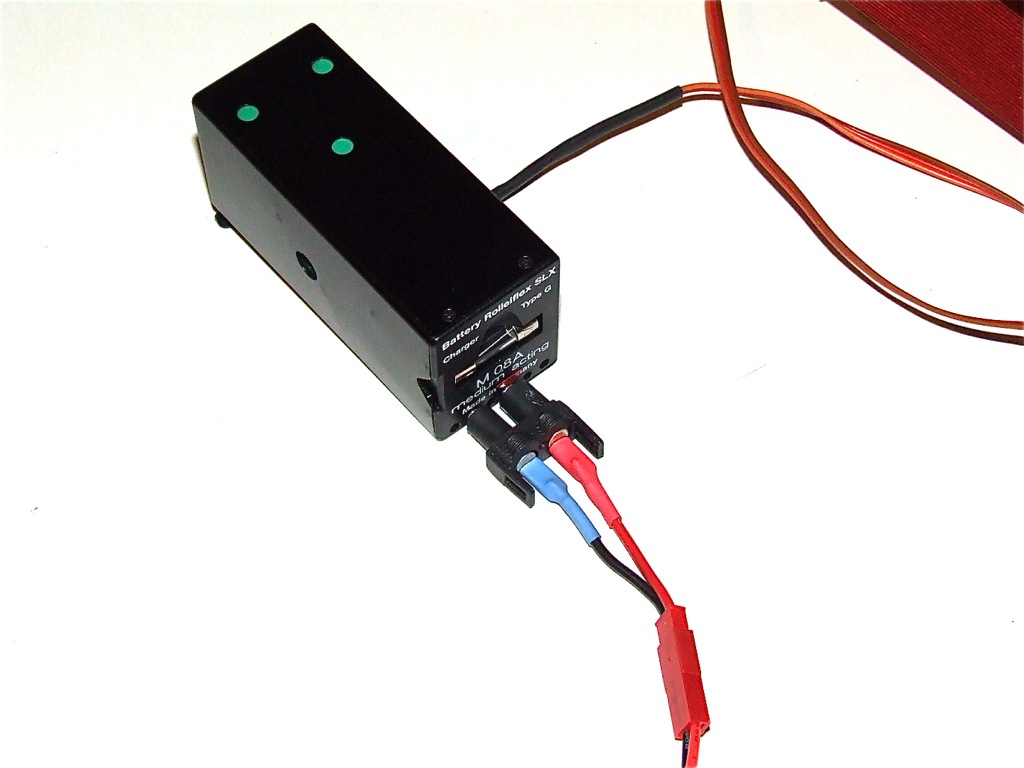

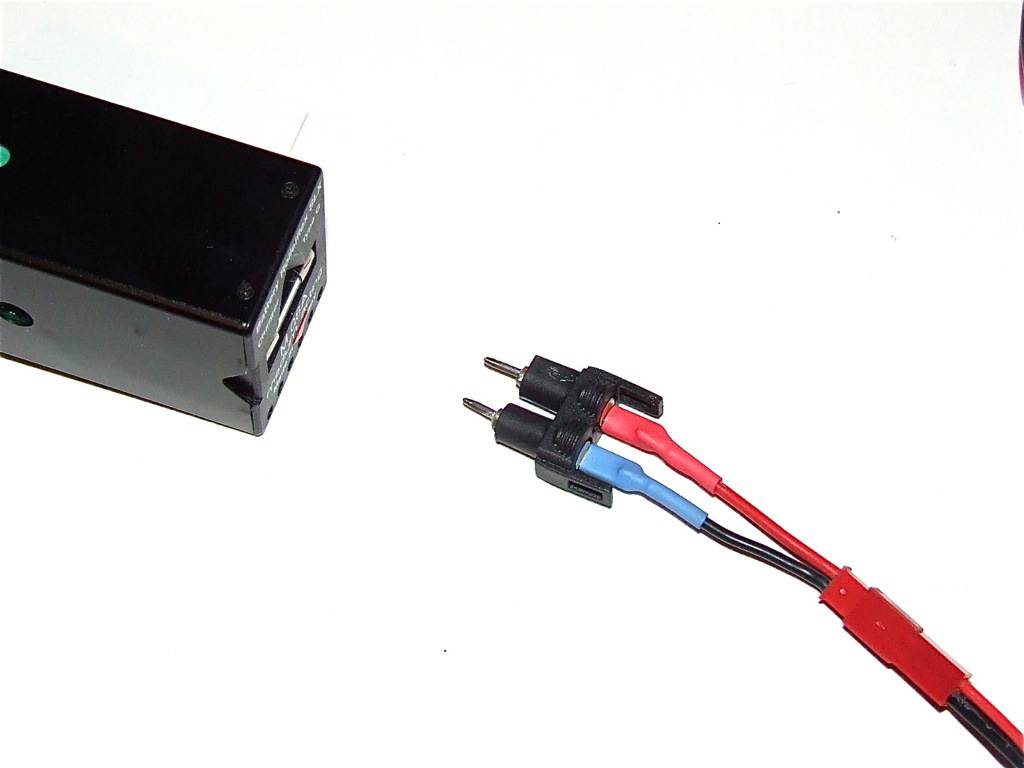

    This is the custom connector I constructed to link the charger to the batteries. That other wire is the thermistor probe, the battery just sits on top of it when charging or I use a rubber band to hold it close to the battery:
    View attachment 71849
    View attachment 71850

    (double post? Some difficulty being encountered posting pictures lately; should be only two pictures posted)


    Attached Files:

    Last edited by a moderator: Jul 19, 2013
  18. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Next is to make a charging adapter for the new SL3003 NiMH batteries.

  19. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Update: I'm traveling with the SLX and no charger. Day 5 and the battery is still going strong.

  20. andrewf

    andrewf Member

    Messages:
    51
    Joined:
    Jul 24, 2010
    Location:
    Melbourne, Australia
    Shooter:
    Multi Format
    I'm really impressed! Good work!

  21. FiatluX

    FiatluX Member

    Messages:
    226
    Joined:
    May 11, 2010
    Location:
    Scandinavia
    Shooter:
    4x5 Format
    Just did mine as well, altho with presoldered cells..
    Only to find that both my mags wont wind the film properly anymore, I´m guessing gummed up old lube or something similar after 12-15 years of no use. Sigh!

  22. E. von Hoegh

    E. von Hoegh Member
    Ads Enabled

    Messages:
    6,021
    Joined:
    Sep 14, 2011
    Location:
    Adirondacks
    Shooter:
    Multi Format
    "The Power Of Volts and Milliamps!!"

    E x I = W
    Where:
    E= EMF in volts
    I = Current in Amps
    and
    W = Power in Watts
    :wink:

  23. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Someone got it!
    BTW I'm still basking in power...I have not had to charge for almost 2 months. Also, I discovered me 'broken' 33ft electric release works just fine now. A worn out battery won't provide trigger signal through the 33feet of cable.

  24. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Update. The cells used in the battery finally gave out. They drain and charge, giving about 1000mAh, but they don't hold the charge very long. Just a few days.
    Battery rebuild time again!

  25. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

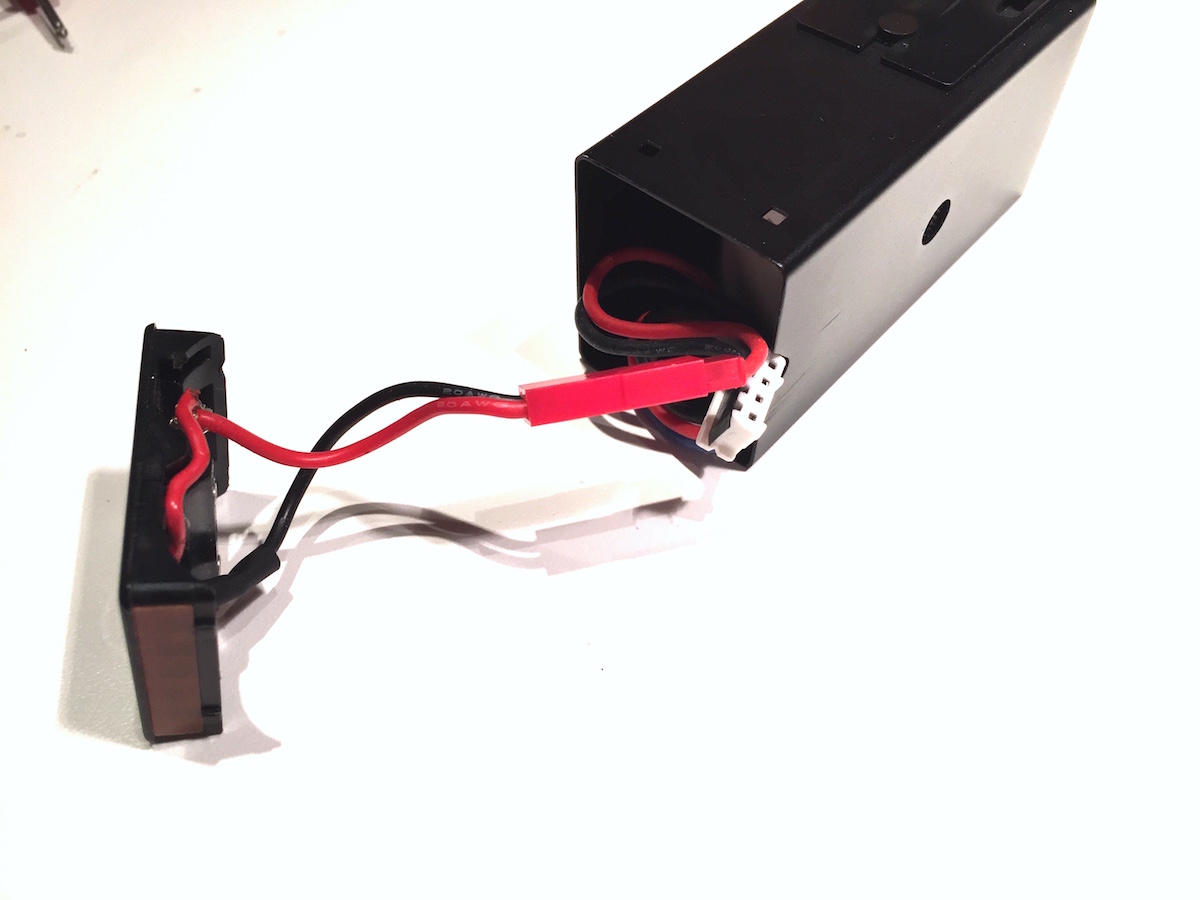

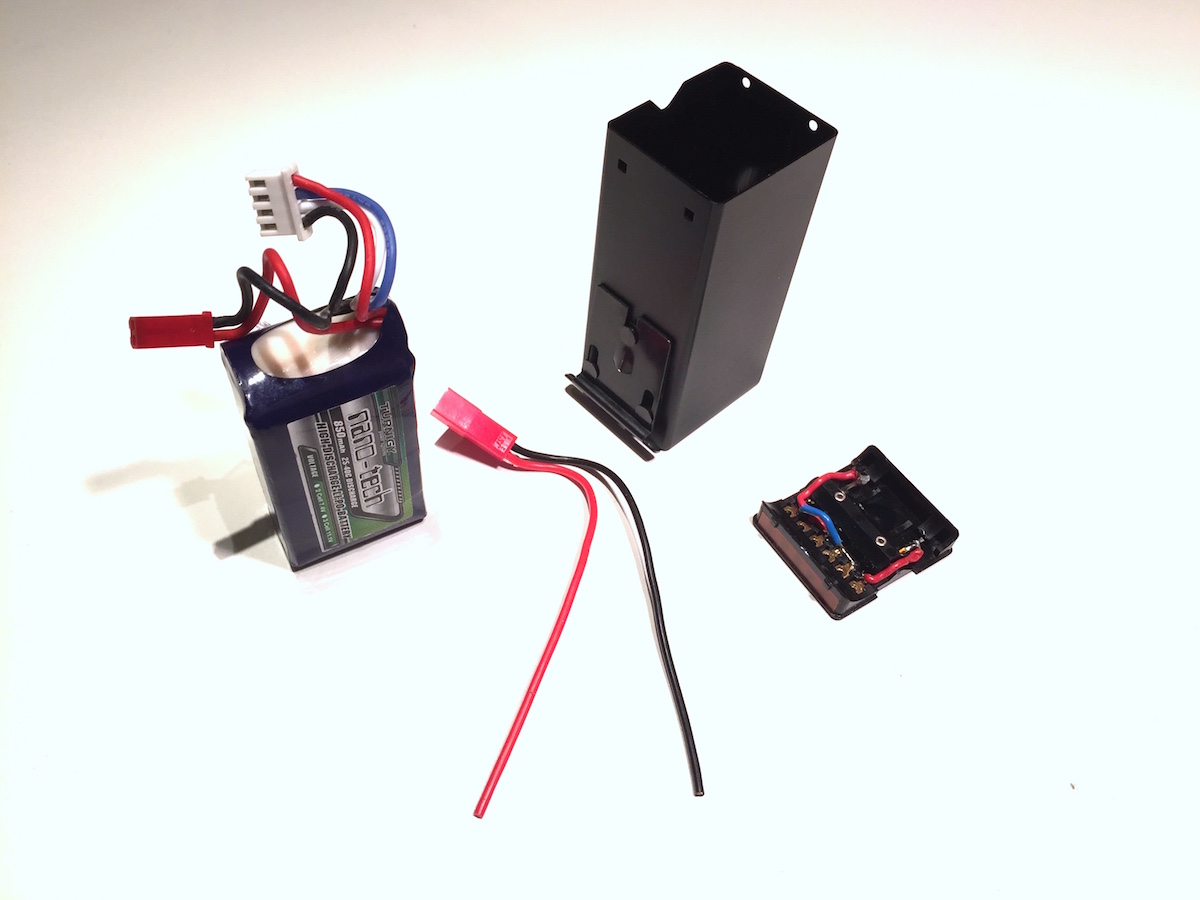

    In this simplest form for testing, the connector allows the LiPo to be removed for charging on a LiPo balance charger. It is just a matter of removing the two screws holding the battery case together. There is also the option of doing a non-balanced 3-cell lipo charge with the battery in the case. The battery that I'm using did a non-balanced charge with 3mV cell separation. As good or better than some other batteries with balanced charging. Of course do this at one's own risk, after a few cycles one cell could get too low or too high. Non-balanced charging probably causes most of the lipo fires.
    Rollei Lipo1small.jpg Rollei Lipo2 small.jpg

    Last edited: Dec 4, 2017
  26. OP
    OP
    ic-racer

    ic-racer Member
    Ads Enabled

    Messages:
    8,889
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    My measurements show the fully charged NiMh Rollei pack to be around 13V with my peak charger. My fully charged 3-cell LiPo pack is 12.1v with my lipo charger. The minimum cell voltage I'd like to avoid is 3.0, which would give a battery voltage of 9V, way below the 6008i cutoff. The 6008i also turns itself off after 40 seconds. There is the possibility of leaving the meter hold switch ON which may drain and trash the LiPo. However, a new LiPo is only about $10!

    BTW: This is just an experimental pack. A more user-safe pack should incorporate this:
    [​IMG]

    Last edited: Dec 4, 2017
