You mean on my measurements? They are there as the slot interval is 1 stop.
Sorry I've been away for a while, had some vacation in Lapland.
It’d be useful to have 100, 200, and 400 meter points.
I haven’t read this whole thread, but, yes, correctly exposed and processed black and white film will generally have at least 4 stops of tone values below a correctly exposed 18% gray card, and the upper limit of highlights varies from film to film, but you can usually get at least 4-5 stops over middle gray.
what you’re doing is interesting, but doesn’t necessarily directly relate to data I’ve posted online, as my information is relative to exposing a gray card through a camera lens and using an incident light meter to set exposure. That being said, if you’ve processed the film to ISO contrast, an 18% grey card will land ~0.90 log density above film base plus fog. The catch is, where middle grey lands is going to vary a lot based on developer used, agitation, temperature, and how long it was in the developer.
The responsivities (ADC units per µW/cm2) shown in Fig.8 of the datasheet have allowed changes min-max +/-15%. Plus conversion from µW/cm2 to lux is not entirely trivial. Since this thread discusses fine points of sensitometry at the level of 1/3 stop (26%) or less, the measurement should be accurate to 10% or better, total error budget, not just calibration of zero point of illumination. In that respect, I believe that a good exposure meter might actually not be that bad; Gossen used to include with some of its meters a calibration constant in lux.
Great. Thank you, and interesting. How about measuring the exposure time?
Point taken. I guess I was reacting to the thread as a whole, including a discussion of the speed point to 3 decimal places in logE, which possibly raised my expectations.They promise certain accuracy, but you never know how much you are under the tolerances. Getting constantly same results from different slots might be indication that the sensor is far more better than what the spec says. But that is just guessing.
A good reminder, yes. But I mean, I've 3D printed, used chinese ebay LEDs, built my own diffusors etc. What can you expect, really?
Good luck in your endeavor. And do not forget the overall goal: images.
essentially I'm doing the same
But doesn't your test vary by developer too? I probably do not understand your claim here.
You're making exposures, yes, but not using a camera. There's nothing wrong with that approach. My setup more closely replicates what you'd get out in the real world
Yes, which is why I also list which developer was used, dev temperature, agitation scheme, and processing time.
Point taken. I guess I was reacting to the thread as a whole, including a discussion of the speed point to 3 decimal places in logE, which possibly raised my expectations.
View attachment 298424
My setup more closely replicates what you'd get out in the real world because it's using a camera and actually going through the camera lens
and technically, if the in-camera reflective meter (if it had one) was correct, would net the same results as using an incident meter.
you're exposing film and characterizing the curve, which is useful, but doesn't directly relate it to in camera exposures.
Does it really. and more importantly, should it?
Obviously you are not testing the accuracy of the camera and lens. So how exactly does your testing conditions represent the results from a camera operating system in the real world?
A TTL meter measures the actual light passing through an optical system. A hand held meter must assume general conditions. While as far as I can tell, you've minimized some of the variables, the actual exposure is still an unknown.
The test doesn't need to be made with a camera to directly relate to camera exposure.
I completely understand Adrians point of view and practice.
It's a matter of intent. My intent was to provide a documented way that most anybody could easily reproduce with their own equipment in order to calibrate their particular setup to their own conditions in a reasonably accurate and consistent way. The OPs intent isn't that. I've never said one is better than the other or either one should be followed.
Other people may not be testing the accuracy of their own set up, however I have gone through that exercise with my equipment to the best accuracy I can muster with what I have available to me. This is why I use a transmission rated lens If you're not familiar with them, they're lenses where the actual amount of light passing through the lens is measured and the f-stop markings (more appropriately t-stop markings) are marked on the barrel of the lens with the aperture control ring on the barrel of the lens so you can grab it and turn it to the t-stop you want. Awful handy. You can incident meter a scene and turn the ring to the t-stop the meter says and sure enough, that's the amount of light actually hitting the image plane, minus any in-accuracies you might have in actually putting the mark on the t-stop mark on the barrel. The same goes for why I use a strobe and incident meter. It's about accuracy and repeatability while taking things like shutter accuracy out of the equation. I have multiple strobes and multiple light meters (and multiple cameras) that I've gone through this exercise with to compare against each other just to eliminate any one piece that might not be that accurate.
Going back to how this replicates a camera system out in the real world? That wasn't the direct intent. The direct intent was two fold. One was to allow me to come up with development times for film coming into my lab, the other intent was to provide a documented way that others could use their real cameras out in the real world to reproduce it for themselves if they so desired. You can't realistically claim that this is for real users using real cameras out in the real world if what you're doing doesn't itself have a real camera with a real lens. Yes, I've done some things to eliminate variables for my particular setup based on my own needs, however, those are variables that a real user with a real camera may actually need to have in the equation so that they can calibrate their own particular setup to their own working conditions and practices.
No it isn't. The camera I'm using has a TTL meter in the camera, and guess what? If I turn the strobe modeling light on and measure that with the incident meter, set the t-stop of the lens to what the incident meter says and the cameras shutter speed to what the incident meter says and half press the shutter button so that it meters using the camera TTL meter, the camera TTL meter agrees that the exposure is correct. So, while yes, technically, I don't know *exactly* how many MCS is actually hitting the image plain, I'm well inside of a quarter of a stop and given that my incident meters measure in 1/10 stop increments, it'd be willing to wager I'm easily +-1/10 of a stop or less in terms of accuracy.
See my comment about intent above.
Again, as I've stated multiple times elsewhere in material I've posted here on Photrio and in other threads, the goal was not to reproduce super stringent and scientific methods, or to try to match methodologies that others here on Photrio deem acceptable (or not, some on here are weird), but rather to be as reasonably accurate as I can be with easily accessible and reasonably affordable equipment and then document that and make it publicly available for others to adapt to their own needs. I've disclosed that more times than I'd care to remember. I never ask if I can do something until after I've already done it. I generally find that often times people tend to be overly clingy to the status quo or old established practices, which usually leads to being dismissive of other ways of getting to a destination. I have zero problems with taking the status quo or old established practices and throwing them right out the window and coming up with something using a different path. You'd be amazed at the things you learn when you're willing to do that, and shockingly (or not) still arrive at something useful. That's not to say the status quo or established practices don't have value, they do, or did at one point for a given intent. That just may not necessarily match my intent. Nothing wrong with that.
Adrian, I think your approach is valid in that you are attempting to eliminate all the variables. However, the major variable that I don’t see addressed is the spectral content of the ambient light as well as the spectral transmission of the optics. This is true even when lighting conditions *appear* the same (ie sunny conditions from day to day) and, obviously, why studio lighting was invented. Regarding studio lighting: It’s not clear to me if you are testing in a studio or outdoors, but the difference in effective speeds between these two lighting sources is well known. Variances in glasstypes and coatings means variations in spectral transmission *separate and distinct* from absolute transmission (T-stop calibration), which means your results are really only valid for the specific lens you are using unless you account for spectral content. I would also recommend performing a veiling glare test to eliminate the effect of lens contrast….again, a variable separate and distinct from T-stop characterization. These effects contribute as much variability as varying agitation techniques or minor changes in developer times.
Whether Stephen knows it or not, that is a major point of deviation between the controlled conditions he discusses and testing under ambient conditions. It’s also why engineers test systems for performance in *both* controlled settings and out in the field.
Again, nothing wrong with your approach at all, but all the variables should be accounted for in the type of controlled tests you’re performing. Controlling variables is required to determine causality. You may not be aware of these variances due to spectral content and contrast, so I wanted to bring it to your attention.
I was attempting to start a conversation on theory. It's probably not realistic to expect questioning points of disagreement will come across as anything other than an attack. It was not my intent.
People can also contact a step tablet under an enlarger too.
I was getting at how shooting a gray card doesn't really represent shooting in the real world either,
It’s not clear to me if you are testing in a studio or outdoors
Variances in glasstypes and coatings means variations in spectral transmission *separate and distinct* from absolute transmission (T-stop calibration), which means your results are really only valid for the specific lens you are using unless you account for spectral content.
I would also recommend performing a veiling glare test to eliminate the effect of lens contrast….again, a variable separate and distinct from T-stop characterization. These effects contribute as much variability as varying agitation techniques or minor changes in developer times.
My whole point with Adrian was that a camera test doesn't necessarily represent the real world and that a film curve isn't supposed to but is part of a process that does.
No worries. I try to take middle of the road.
Assuming they have a darkroom, or access to a darkroom, yes. In this day and age, that's really rare. I get regularly contacted by people that want to use my darkroom.
True, but, if you're trying to calibrate your own process and want a relatively static fixed point of reference, it's a reasonably good place to start that's not expensive. People can also just pick a scene and shoot a series of over/unders and use massive dev chart and go with the exposure they like best and get to something that works for them that way too. There isn't really any right or wrong here. Just be aware of the variables and what's being included (or not) when factoring in changes to make to exposure or process.
We are in agreement there and on many other points. Whatever works for the individual. But bad theory can get out of control leading to such claims as "true film speeds" and conspiracy theories about manufacturers lying about film speeds.
In an earlier post, I wrote about limited flare in a camera test that shoots a target consisting of a single tone, but I didn't have access to any visuals.

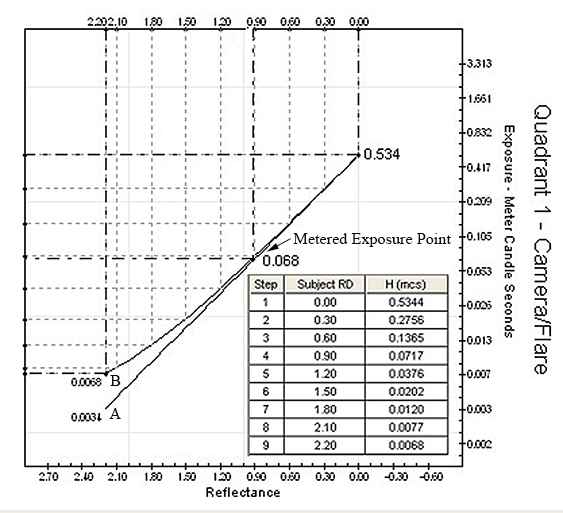

The example below is of the camera image. It's from a statistically average 2.20 log Luminance range. Curve A is a no flare curve used as a reference. Curve B is the camera image curve with one stop of flare. Flare is non-image forming light created mostly by the higher illuminance values interacting with the optical system and camera. Flare is mostly produced by the subject. Even though the exposure covers the entire negative, it disproportionately affects the shadows. One stop of flare means the value of the exposure for the shadow is added to the overall exposure. This doubles the shadow exposure (one stop) yet has a negligible affect on the highlight exposure. The metered exposure is only slightly influence by flare.
In order to have flare, you need higher exposure values influencing lower values. If the shadow didn't reach as far down in the example, the degree of flare would no longer be 1 stop. In fact, the camera image would look the same except the lower end would be cut off. If the degree of higher values was reduced, the degree of flare would also be reduced. If only a target made up of a single tone was photographed, flare from the subject would practically be eliminated. The camera image and no flare reference curves would effectively merge.
View attachment 298697
By stopping down isn't the gray card moved into the shadows where there is a greater chance for it to be affected by flare?
The answer is, it doesn't work like that. What is actually happening is the mid-tone subject value will be exposed at a lower point where the shadow exposure would normally fall. Using a more extreme example of a full range subject with a stop flare (basically the same as above) might better illustrate the point. A gray card is metered and the camera is stopped down four stops, the entire curve will move downward in the camera image, but the relationship between the exposure values will not change. The small amount of flare at the metered exposure point will not increase just because it takes the place of where the shadow exposure would normally be. Most people will test with a gray card that fills the frame, which effectively makes for a no flare test.
View attachment 298698
I did a camera test to check for this. I shot a number of different targets. The camera setting were set. I made an exposure at the meter reading and stopped down four stops using ND gels. A sensitometric test was ran along with the camera tests. The table below has the Δ log-H differences between the metered exposure density and the stopped down density over three repeated tests. Four stops is 1.20 log-H range. Anything falling around a Δ1.20 range, most likely, is due to the absence of flare adding to the exposure.
View attachment 298700
View attachment 298701
I also did a test using what Phil Davis describes as a shadow box. It's a box lined with velvet and a hole cut our with the hole surrounded by a hood. The Idea is to make the hole as dark as possible. For the test the exposure was set to a metered gray card. I used four targets of differing values with the centers cut out for the shadow box opening. The targets weren't being shot. Their purpose was to introduce flare. A sensitometric test was run along with the shadow box test and the resulting densities were placed on the curve.
View attachment 298704
