B series Prakticas have bright viewfinders in contrast to the L series. I would guess there is oil on the aperture blades. Working the lever on the back of the lens back and forth might make it usable for a while.
Praktica Appreciation Thread
-
A
- Thread starter Sewin
- Start date
Recent Classifieds
-
Want to Buy (Rada? Rollex?) Roll film back for Kodak Recomar No. 18 camera
- Started by alanshaw
-
Sold Rollei Rolleinar 2 Bay II
- Started by skylight1b
-
For Sale Beseler 8053 35mm Negative Carrier for the 23C models
- Started by mgb74
-
For Sale NIKON 20mm f/2.8 AF-D
- Started by Acere
-
Sold Coolscan 4000/5000 MA-21 Slide mount adapter (free)
- Started by RoboRepublic
Forum statistics
8 years ago I bought a brand new BX20s for $75.00 so 150 Euros for a lesser camera seems a wee high.
New member and first post so I hope someone's still reading this thread.
I have a Praktica IV (several actually) with a jammed shutter - jammed cocked.
Having taken several to bits out of curiosity I have a good idea how to open them up; but here's the problem.
The advance lever can only be removed when the shutter is released - but I can't release the shutter so I can't get the top cover off - catch 22.
I know the camera isn't valuable but I hate to be beaten by inanimate objects.
Anyone know how to release the shutter?
I have a Praktica IV (several actually) with a jammed shutter - jammed cocked.
Having taken several to bits out of curiosity I have a good idea how to open them up; but here's the problem.
The advance lever can only be removed when the shutter is released - but I can't release the shutter so I can't get the top cover off - catch 22.
I know the camera isn't valuable but I hate to be beaten by inanimate objects.
Anyone know how to release the shutter?

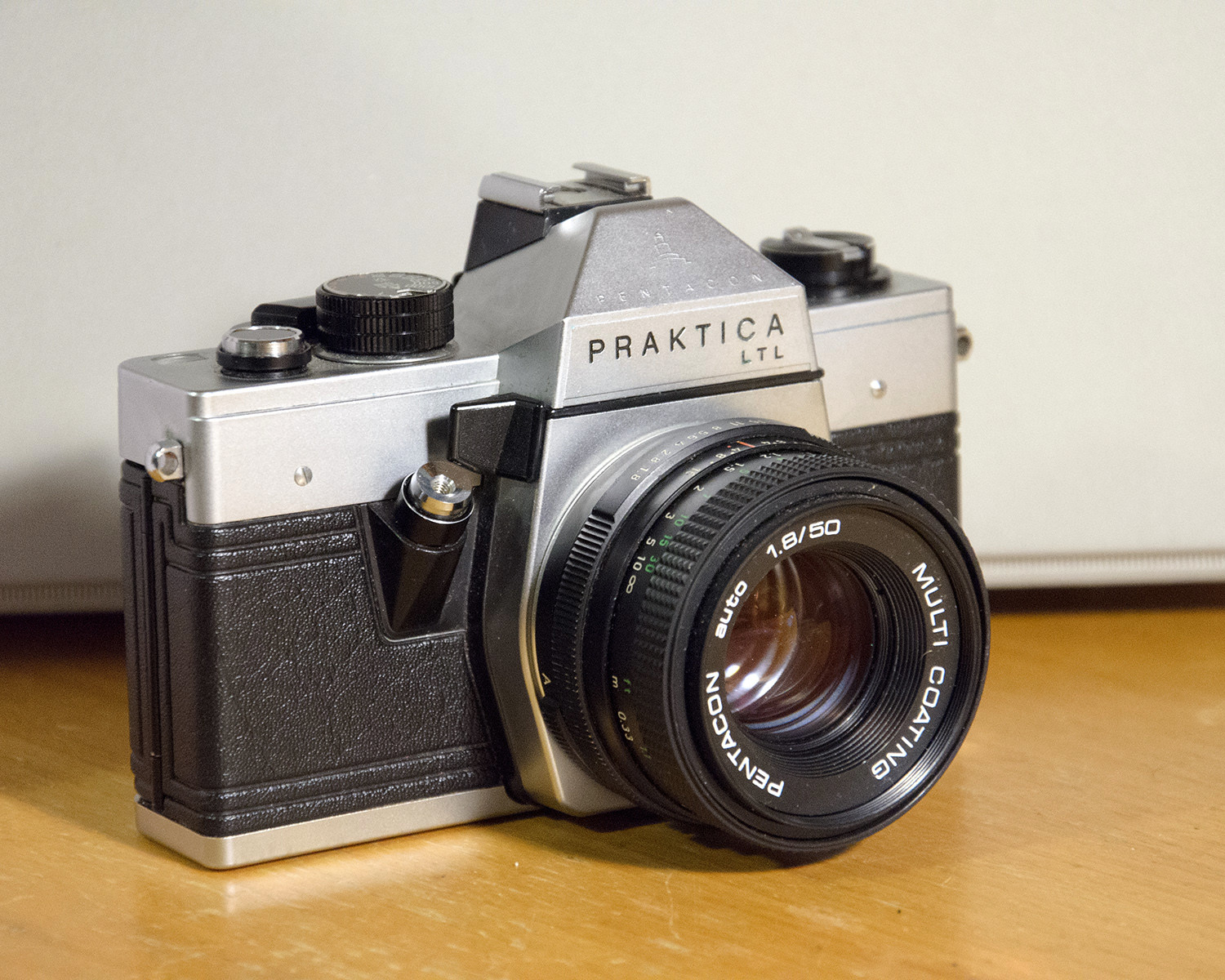

Interesting. My old LTL, bought in perhaps 1972, has rather plebeian leatherette covering, no plastic tip on the advance lever, and a self-timer. Focus aid is a microprism circle.I just picked up this camera, marked as a Praktica LTL. However, the leatherette, plastic-tipped winder, rewind knob and split screen focus aid in the viewfinder are all consistent with later models, specifically the MTL 5. Does anyone know if this variant of LTL was supposed to have existed? Maybe someone serviced an MTL 5 at some point and put an LTL top cover on it. I have not found any index of Praktica serial numbers vs. model or date to check against.
Praktica LTL by Howard Sandler, on Flickr
Sorry to hear that. Are Praktica VF's similar? I have one, and the lower speed settings do not work ("B" works), so I suspect I need to get a cover off (I was thinking maybe the lower).
Any online instructions for older Prakticas (preferably in English, but German could work).
Information on repairing the early Prakticas is hard to find - I've spent HOURS searching and either it's well hidden or simply not there (or my search technique is rubbish).
To ask the obvious: you are lining up the red triangles on the speed selector when trying the low speeds?
links you may find useful if not seen already:
https://www.rangefinderforum.com/classics/forum/messages/20735/16844.html?1256997248
https://www.rangefinderforum.com/classics/forum/messages/6899/5957.html?1147650201
https://www.rangefinderforum.com/classics/forum/messages/6899/6502.html?1148165155

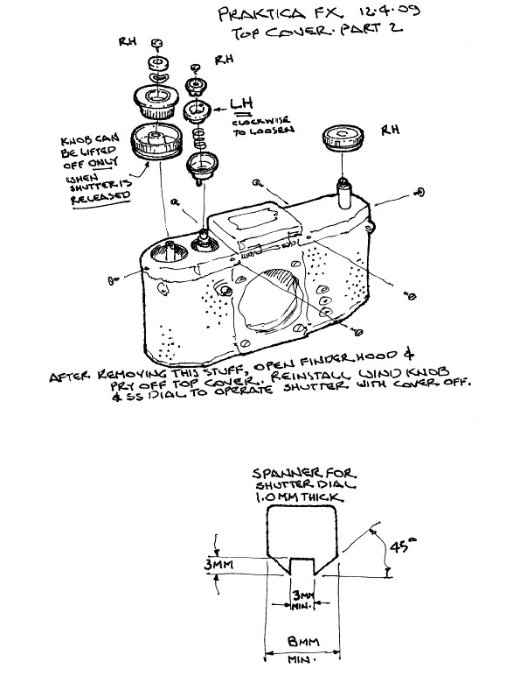

Finally a diagram for removing the top cover. (I was reluctant to post this as I can't acknowledge the origin -
PS. Praktica models MX, FX, IV &V and all variations thereof are pretty similar.
Last edited:
Thanks for that - never considered checking Flickr
@BeejayC, @Helios 1984, Thanks. Gives me some ideas.
Quite right - just pulled out 3 of the hundreds I have trying to find detailed info on these old models.
I'd echo the request made by markjwyatt - any repair diagrams, schematics exploded views..please, please post links
If you remove the bottom plate, you'll see a gear train. The gear bearings will have gummed up lube. If you don't want to lose springs or mess up the timing, I've had luck heating the gears while flushing them with a solvent, then dropping thin synthetic oil on the top of the pivots while heating the gears with a heat gun on low. Good luck.
I took a Praktica BC1 with me on a two-year European bicycle tour in 1984. It did just fine, despite being subjected to the usual searing heat and sub-zero temperatures, rainstorms and everything else that nature throws at you when you're cycling nearly every day for 3-8 hours and youth hosteling and camping. I was still using it in 1989 when it finally died due to getting thoroughly soaked in a final rainstorm. I loved that camera, and I doubt any of your Nikons or Canons or Minoltas could stand up to what my Praktica took in its stride. I suspect most folks who say Praktica cameras are no good have never used one.
My LTL withstood perhaps 10 years of pretty heavy use, including being bounced of a sidewalk, and never missed a beat. I put it away many years ago when I went to Pentax K mount; when I checked it out a year or so ago the shutter sounded right! The excellent 50mm f1.8 lens needs a CLA, since the diaphragm is sluggish. I should have that attended to, and resurrect the Tamron f3.5 200mm I also have.
- Joined
- Oct 26, 2015
- Messages
- 6,660
- Format
- 35mm
Here's a new one.
I've been shooting 16mm stock through my MTL3. It's one of the few SLRs that allows me to do it. I use a Vivitar 24 2.8 and the results are quite something.
This is using Kodak Microfilm
Eastman XX
I've been shooting 16mm stock through my MTL3. It's one of the few SLRs that allows me to do it. I use a Vivitar 24 2.8 and the results are quite something.
This is using Kodak Microfilm
Eastman XX
Welcome to Apug/Photrio !
Assuming that are American, I do not expect you to have a brought over a BC1 from the US, but bought it in Europe. Am I right?
Hi AgX,
I'm actually from England, but I've been living in the US since 1989.
I must have bought my BC1 in England (where I was living at the time). I don't recall buying it, but I do recall asking my dad for advice on what camera to buy, and he was a big Praktica fan, since he had been in the army and was stationed in Berlin in the 1950s. So he advised me to get a Praktica. I don't recall him giving a reason, other than that it was what he used. He had two Prakticas of his own. I'm guessing one was an L2, and the other might have been a Praktica Nova or maybe a Contax/Pentacon.
Anyway, I liked the look of the BC1, which had just hit the stores in 1984, and it served me pretty well. Now, after 30 years without a film camera (I messed around with digital for a while), I'm looking to get back into film photography. I was flirting with the idea of going full-on "old school" with a Praktica L2 (I fancy the idea of learning to do without a lightmeter), but the L2 seems big compared with the cameras I'm used to, and I'm finding the older/smaller Prakticas (like the Contax) are kind of expensive.
I'm actually from England, but I've been living in the US since 1989.
I must have bought my BC1 in England (where I was living at the time). I don't recall buying it, but I do recall asking my dad for advice on what camera to buy, and he was a big Praktica fan, since he had been in the army and was stationed in Berlin in the 1950s. So he advised me to get a Praktica. I don't recall him giving a reason, other than that it was what he used. He had two Prakticas of his own. I'm guessing one was an L2, and the other might have been a Praktica Nova or maybe a Contax/Pentacon.
Anyway, I liked the look of the BC1, which had just hit the stores in 1984, and it served me pretty well. Now, after 30 years without a film camera (I messed around with digital for a while), I'm looking to get back into film photography. I was flirting with the idea of going full-on "old school" with a Praktica L2 (I fancy the idea of learning to do without a lightmeter), but the L2 seems big compared with the cameras I'm used to, and I'm finding the older/smaller Prakticas (like the Contax) are kind of expensive.
The UK was a major export market for Pentacon. (Less prejudice against GDR products, which over here typically had to veil their origin.)
Here in West-Germany locally the L-series models are quite common (often veiled in their reteiler brand), the earlier series models to lesser extent, if I see them all. Contax S/Pentacon and Praktina (which all are no Prakticas) I only saw out of dissolved collections.
The L series models may seem big to you but are relatively light without battery.
Here in West-Germany locally the L-series models are quite common (often veiled in their reteiler brand), the earlier series models to lesser extent, if I see them all. Contax S/Pentacon and Praktina (which all are no Prakticas) I only saw out of dissolved collections.
The L series models may seem big to you but are relatively light without battery.
