Pix of your home-built cams, mods and creations here please (part 2)

Discussion in 'Camera Building, Repairs & Modification' started by Sean, Apr 24, 2012.

  1. Nokton48

    Nokton48 Member
    Ads Enabled

    Messages:
    829
    Joined:
    Oct 8, 2006
    Shooter:
    Multi Format
    [​IMG]DSC05687 by Nokton48, on Flickr

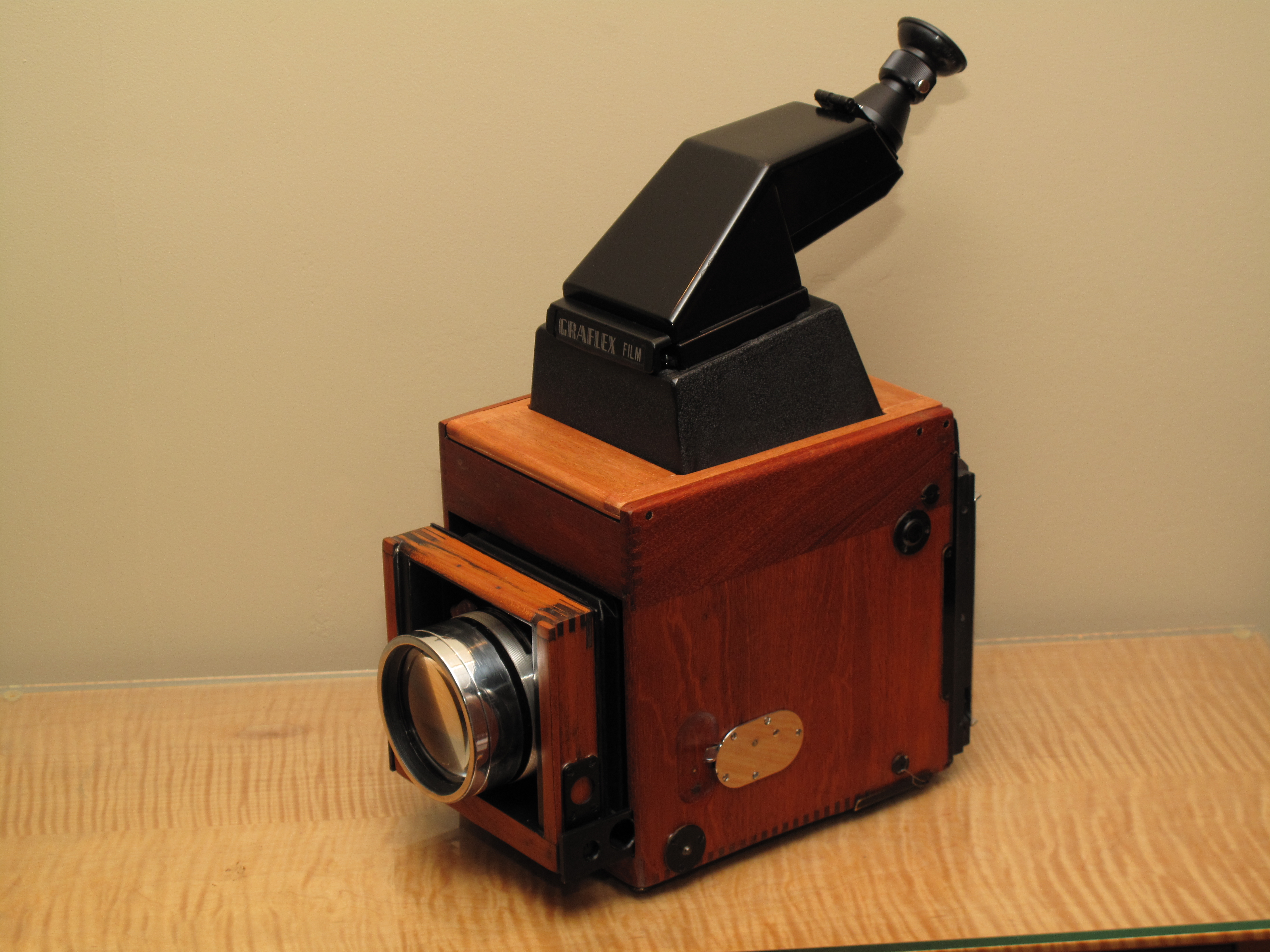

    Schneider 360mm F5.5 Tele-Arton adapted to Plaubel Makiflex with Pecoflex Adapter
    Shown with hacked Mamiya RB67 stovepipe finder (my choice to use most times).

  2. EdSawyer

    EdSawyer Member

    Messages:
    1,612
    Joined:
    Sep 3, 2008
    Shooter:
    Multi Format
    Thanks Nokton! Nice job with the tele arton too. I had a couple of those for a while, a huge chunk of glass! I later sold them and slowed down to the nikkor-t 360/8. The arton had a shorter flange focal distance though, I did like that part.

  3. Snowball Earth

    Snowball Earth Subscriber
    Ads Enabled

    Messages:
    67
    Joined:
    Jan 16, 2015
    Location:
    SW Florida
    Shooter:
    4x5 Format
    That thing is an absolute work of art! Brilliant.

  4. EdSawyer

    EdSawyer Member

    Messages:
    1,612
    Joined:
    Sep 3, 2008
    Shooter:
    Multi Format
    Thanks for the kind words!

  5. Snowball Earth

    Snowball Earth Subscriber
    Ads Enabled

    Messages:
    67
    Joined:
    Jan 16, 2015
    Location:
    SW Florida
    Shooter:
    4x5 Format

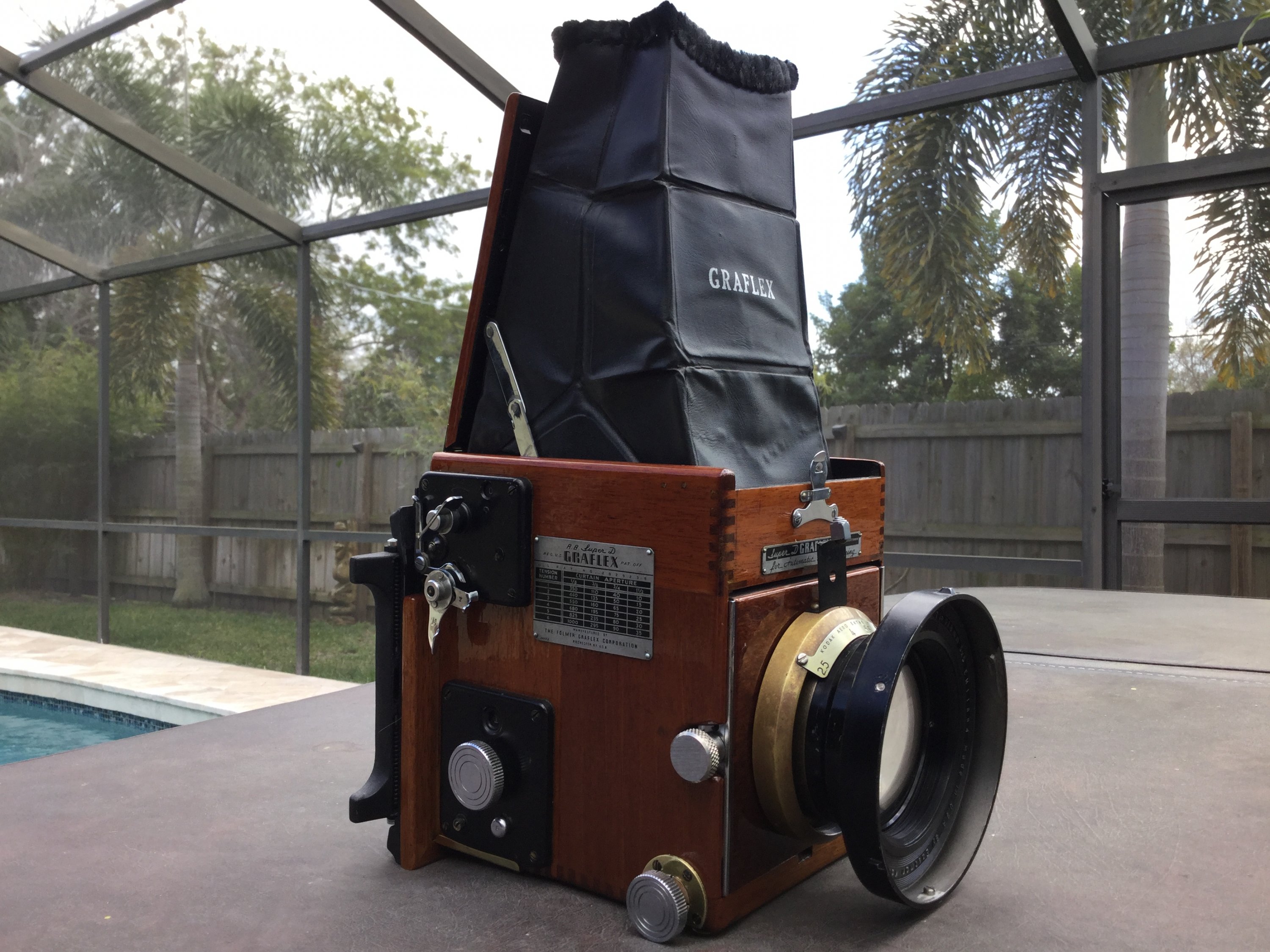

    Here's my finished Super D AE combo. My hat goes off to anyone who has done this before because it's pretty intense, at least for me it was. It's got nine coats of varnish on it. I haven't taken a photo with it yet but I will soon. I think I have the graflok and the GG in perfect agreement, but if I'm off a little somewhere in the frame I won't be surprised considering how thin the depth of field is with this lens. I still have to calibrate the shutter speeds yet.
    I have a 3x4 series d I'm going to do next. I'm on the hunt for a revolving back at a decent price to go on it.
    I'm planing on putting a 8" pentac or a heliar in it. Interesting thing about the series d is that the shutter has no open setting so technically after I get the focus calibrated I won't even need a GG in the back at all.
    Thanks to the people who gave me advice on how to get through this, I appreciate it.
    Dwayne


    Attached Files:

  6. EdSawyer

    EdSawyer Member

    Messages:
    1,612
    Joined:
    Sep 3, 2008
    Shooter:
    Multi Format
    Looking good! I have a spare Cambo revolving back I could happily part with if you want. It's new in box, lacking the ground glass but I can help with that. May have a pentac to part with too, I still have to sort that out (have 4, need at least 3).

    are you getting full 4 x 4.5" coverage with the back horizontal? I will be interested to see what negative size you get,

    nice work,
    -Ed

  7. Snowball Earth

    Snowball Earth Subscriber
    Ads Enabled

    Messages:
    67
    Joined:
    Jan 16, 2015
    Location:
    SW Florida
    Shooter:
    4x5 Format
    I'm curious to see how big the negative will be myself.
    I'll message you about the goodies you have for sale.
    Dwayne

  8. Dan Fromm

    Dan Fromm Member

    Messages:
    5,035
    Joined:
    Mar 23, 2005
    Shooter:
    Multi Format
    Y'r images don't load for me. I'm not sure whether the problem is at my end (Firefox 51.0.1) or at the APUG end.

    Interesting. I always thought that the Ser. D had a revolving back, also that all Graflex reflexes except the very earliest had single-curtain shutters with a large slit that exposed the entire gate. And of course, as reflexes they didn't need a GG in the back. What am I missing?
    51.0.1

  9. Snowball Earth

    Snowball Earth Subscriber
    Ads Enabled

    Messages:
    67
    Joined:
    Jan 16, 2015
    Location:
    SW Florida
    Shooter:
    4x5 Format
    Not sure about the images, I'll post again.
    The series d I have does have a revolving back, just no fully open slit. It has times from 1/35-1/1000 though.

  10. Snowball Earth

    Snowball Earth Subscriber
    Ads Enabled

    Messages:
    67
    Joined:
    Jan 16, 2015
    Location:
    SW Florida
    Shooter:
    4x5 Format

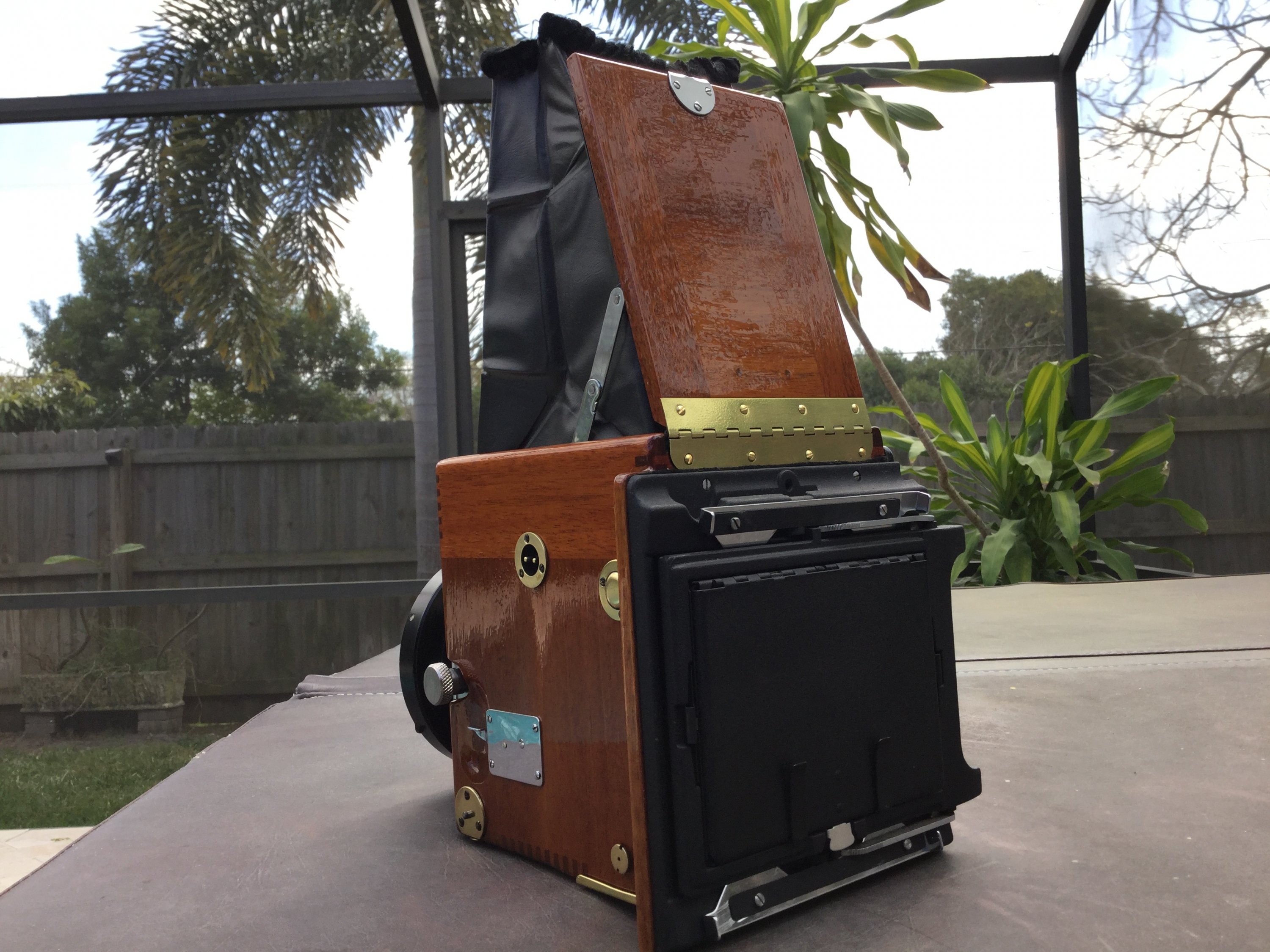

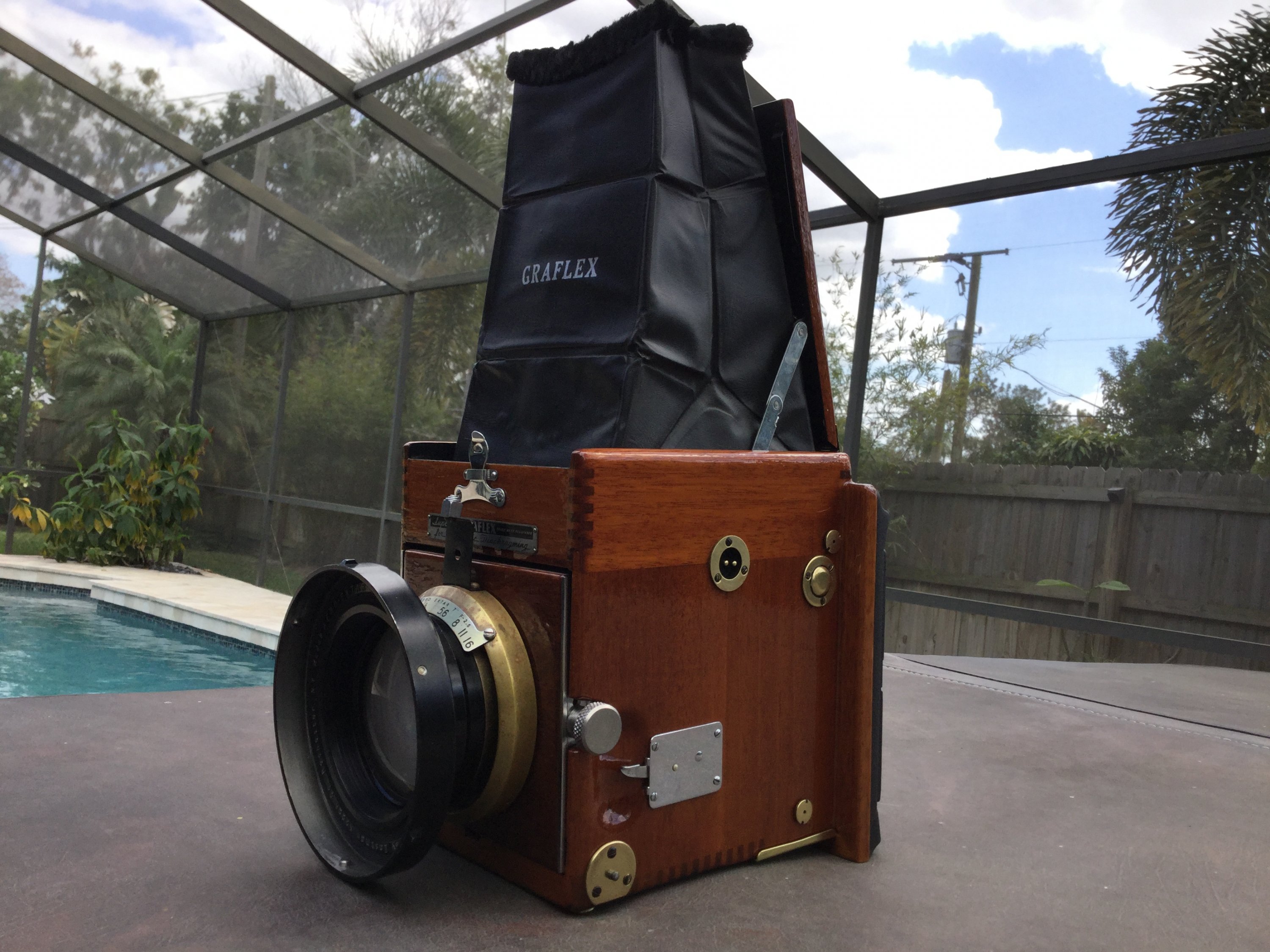

    IMG_0816.jpg IMG_0817.jpg IMG_0818.jpg

  11. Robin Guymer

    Robin Guymer Subscriber
    Ads Enabled

    Messages:
    144
    Joined:
    Mar 27, 2017
    Location:
    Melbourne Australia
    Shooter:
    35mm

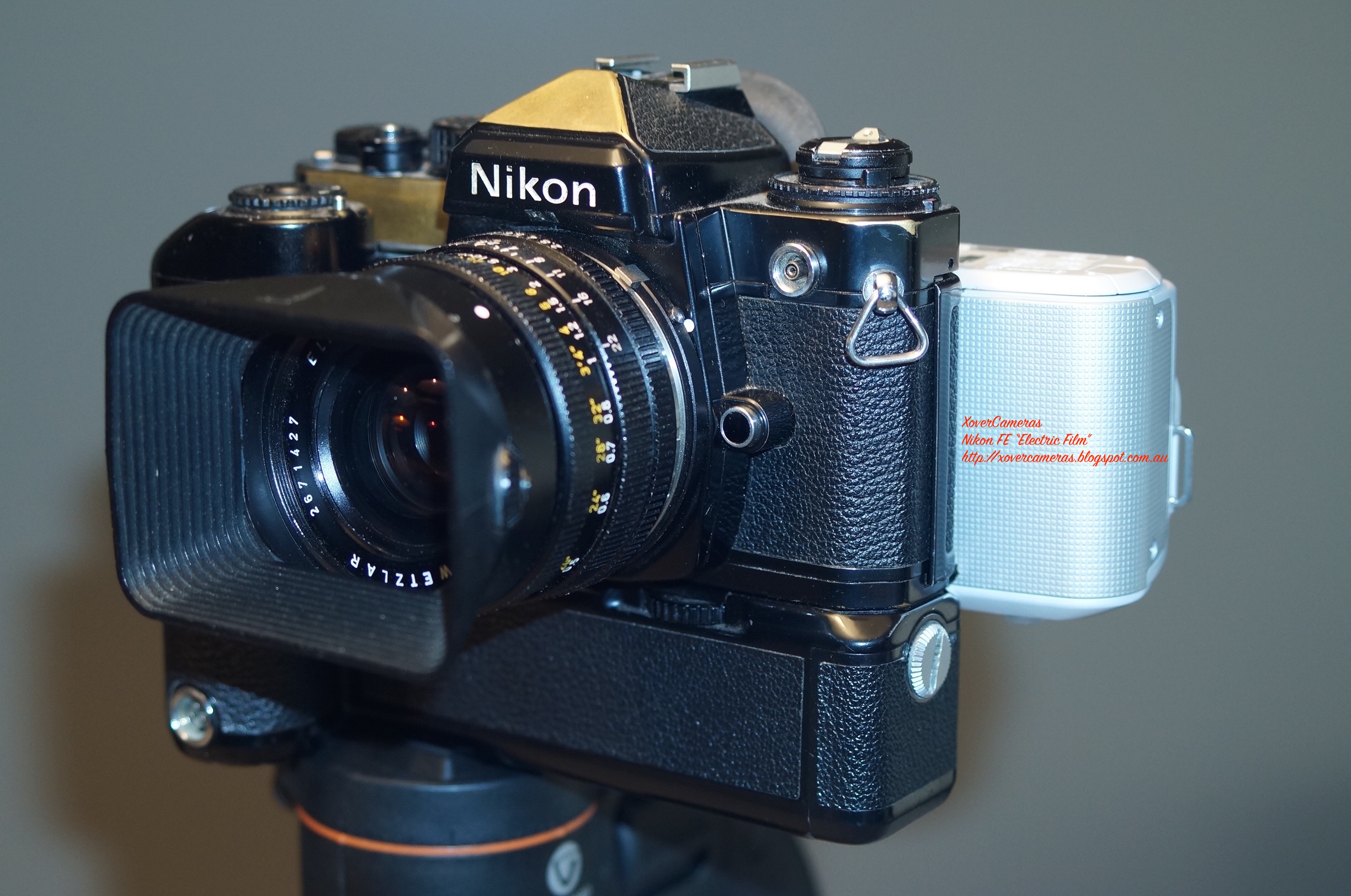

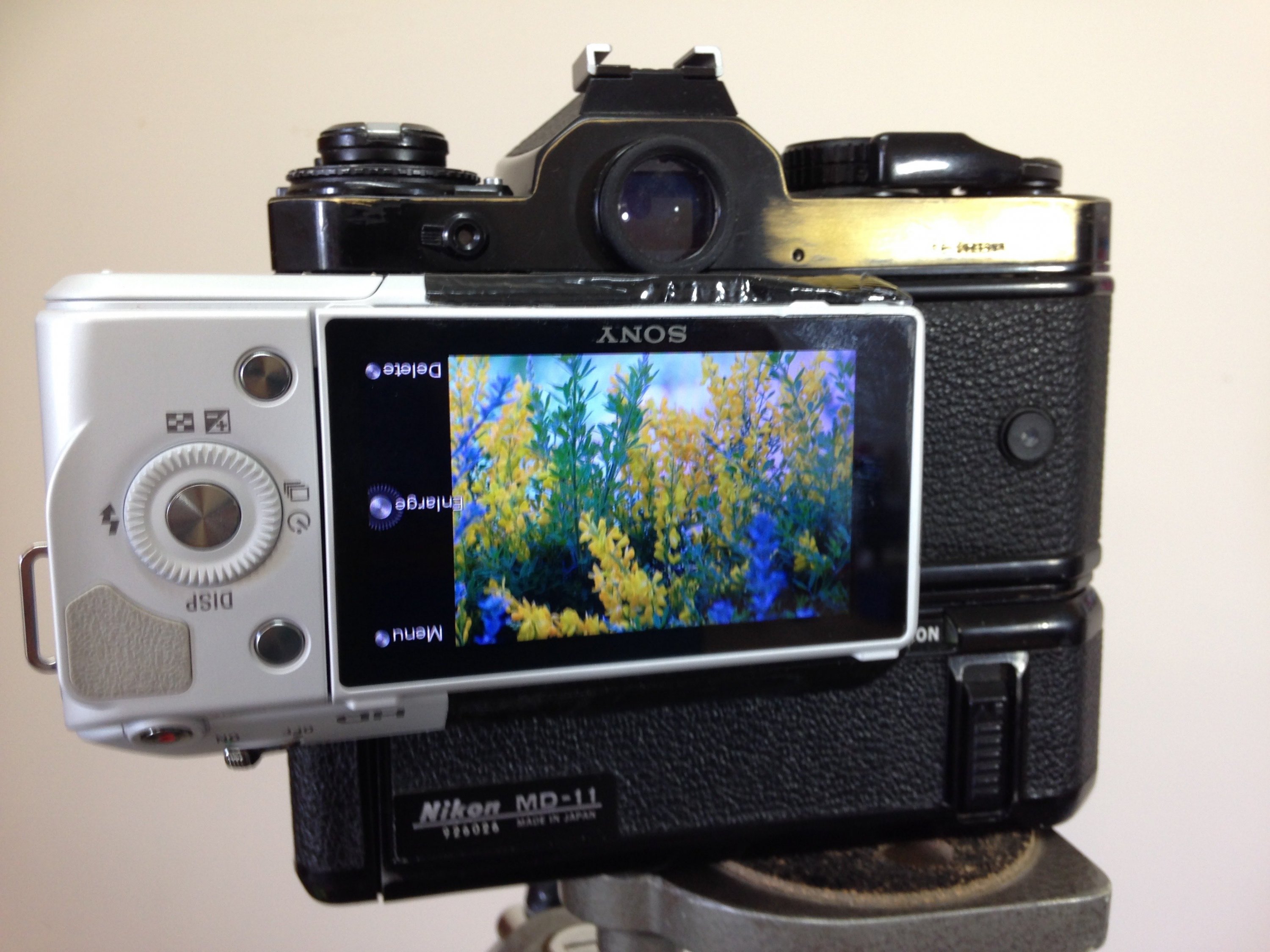

    Nikon FE Digital.jpg Nikon rear.jpg

    A well used Nikon FE that can shoot film or digital. My first prototype looks a bit rough but works very well. I mainly use it for infra red landscapes as the filter is easily removed to use just the bare sensor. It is my go to camera if I need to use digital as I prefer the simplicity of the Nikon FE and it takes comparable photos to our Canon DSLR. Where it is really handy is for testing light meter and shutter speed exposures on my collection of Nikon FA's, FE's and FE2 as they all use the same back. Not that hard to build if you are handy with DIY fabrication and the donor Sony Nex 3 can be purchased for under $100. How to details and videos here. http://xovercameras.blogspot.com.au

    Front yard.jpg Coast IR.jpg Some infra red B&W from this camera.

  12. spacecadet

    spacecadet Member

    Messages:
    19
    Joined:
    May 16, 2016
    Location:
    San Francisco
    Shooter:
    Multi Format
    Super cool! So you use bulb to hold the shutter open and fire the sony off?

  13. Robin Guymer

    Robin Guymer Subscriber
    Ads Enabled

    Messages:
    144
    Joined:
    Mar 27, 2017
    Location:
    Melbourne Australia
    Shooter:
    35mm
    Other way around. The Sony is set to say 3 seconds or more and in that time the Nikon takes the photo according to it's light meter settings in Auto or manual speed & aperture. The Sony is just electric film for want of a better description.

  14. Sponsored Ad
  15. R Paul

    R Paul Member

    Messages:
    129
    Joined:
    Oct 15, 2010
    Location:
    wonderful ne
    Shooter:
    Medium Format
    well, here's my latest creation. It is a 16x20 camera made for wetplate. it has a ground glass back , mostly constructed from red oak ,and uses a 22in beseler projecror lens with foam sheet stops. for the film back I used 1\2 in garolite since it resists warping and silver nitrate. It does fold up , but that only makes it a baby elephant ..
    I do have an air camera lens with shutter which I want to try with xray film
    It does take wonderful pictures though, unfortunately even the photos of the plates are too big to upload


  16. LAG

    LAG Member
    Ads Enabled

    Messages:
    1,004
    Joined:
    Aug 8, 2016
    Location:
    The moon
    Shooter:
    Multi Format
    Awesome! now it's time for you to think about a better tripod (or two). Congratulations!

  17. AgX

    AgX Member

    Messages:
    18,207
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    For the extensions you used drawers rails. First time I see that, though not far to seek.

  18. Dan Fromm

    Dan Fromm Member

    Messages:
    5,035
    Joined:
    Mar 23, 2005
    Shooter:
    Multi Format
    You must have longer arms than appears in the picture. How do you focus? I don't see a leadscrew or cable arrangement.

    And, re the drawer slides, how do you lock focus?

    I see how you lock front rise. Whatever works, works. Again, your arms seem to be too short to reach around the camera to set rise. How do you adjust rise?

  19. R Paul

    R Paul Member

    Messages:
    129
    Joined:
    Oct 15, 2010
    Location:
    wonderful ne
    Shooter:
    Medium Format
    Yes there is a lead screw that hooks on the botton of the panel where the front standard is mounted. It comes out the back where a handle will be.
    The screw runs thru a split nut mounted in a qwick clamp attached to the panel so I can unhook the front standard from the screw so I can pull the front to a rough focus, tighten the clamp and fine it down with the handle.
    Rise is handled by looking thru the glass, guesstimating the amount ,moving the rod, and going back for another look
    The back standard is also mounted on its own set of slides, so this can be slid back and forth about 6inches and locked down.
    As for a tripods, I was thinking of a old fashioned wheeled camera stand

  20. NedL

    NedL Subscriber
    Ads Enabled

    Messages:
    2,706
    Joined:
    Aug 23, 2012
    Location:
    Sonoma County, California
    Shooter:
    Multi Format
    Groups:
    Wow, Apuggers are doing some wild and creative stuff. The cameras on this page are very imaginative. You don't get the sense from reading the forums that stuff like this is going on in the background!! Very cool.

  21. AgX

    AgX Member

    Messages:
    18,207
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Could you post a photo of that split-nut/clamp arrangement? It seems very interesting. I assume it is a tinkerer's version, not something off the shelves.

  22. R Paul

    R Paul Member

    Messages:
    129
    Joined:
    Oct 15, 2010
    Location:
    wonderful ne
    Shooter:
    Medium Format

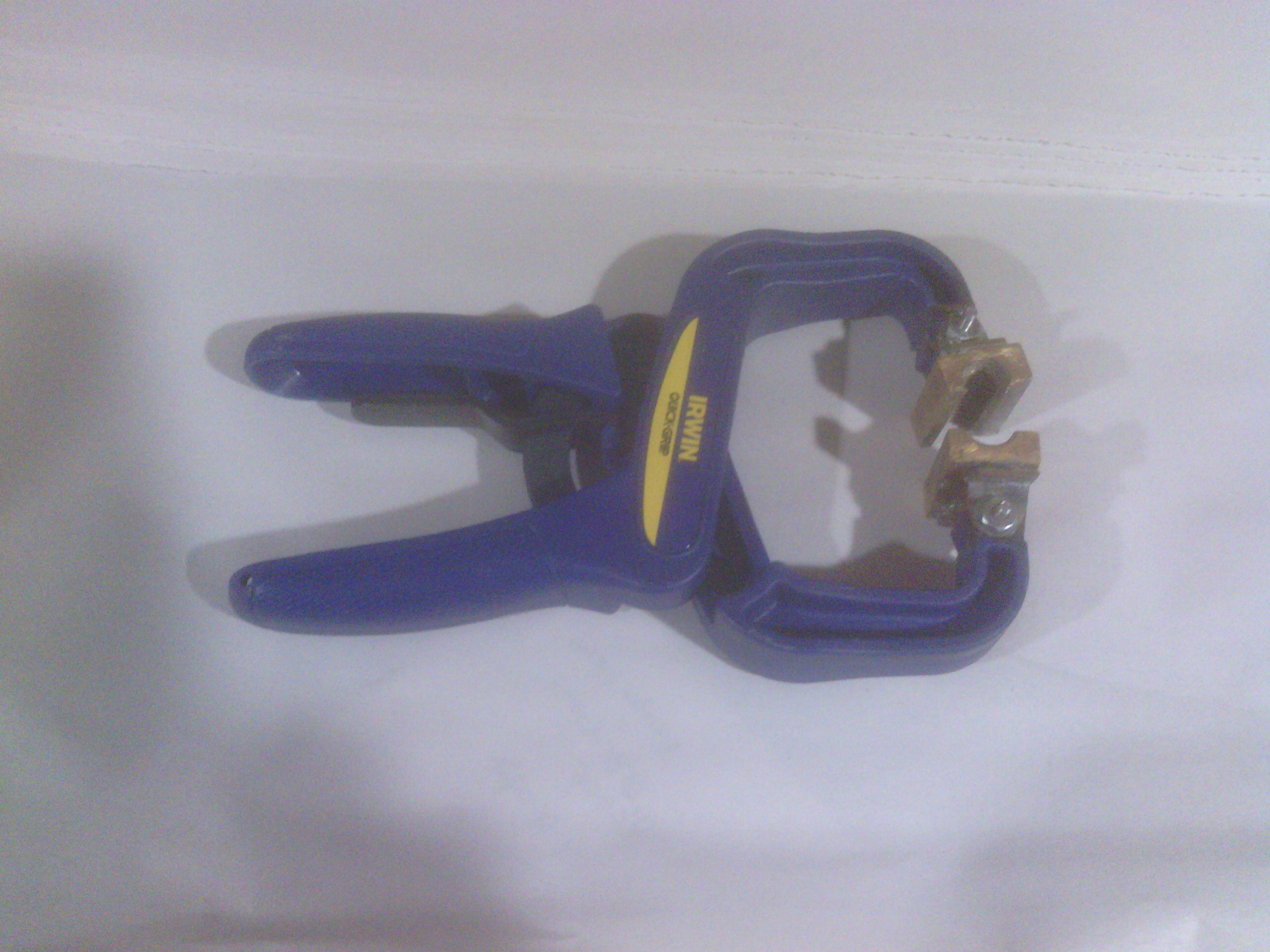

    here you are. it also helps stop the bellows from sagging when it is in place. The pads are brass threaded for 1/2 inch NC .
    • The awkwardness of the camera and its plates are are noticably more than 8x10. Especially in a low ceilinged basement with some exposed pipes
      .

  23. jon.oman

    jon.oman Member
    Ads Enabled

    Messages:
    249
    Joined:
    Nov 7, 2008
    Shooter:
    Multi Format
    Now, that is a great idea!

  24. Arklatexian

    Arklatexian Subscriber
    Ads Enabled

    Messages:
    1,364
    Joined:
    Jul 28, 2014
    Location:
    Shreveport,
    Shooter:
    Multi Format
    I have not seen this done before. Was that a late model Super "D" Graflex? Very pretty......Regards!

  25. 75suzuki

    75suzuki Member

    Messages:
    33
    Joined:
    Jun 10, 2017
    Location:
    Tacoma Washington
    Shooter:
    Medium Format

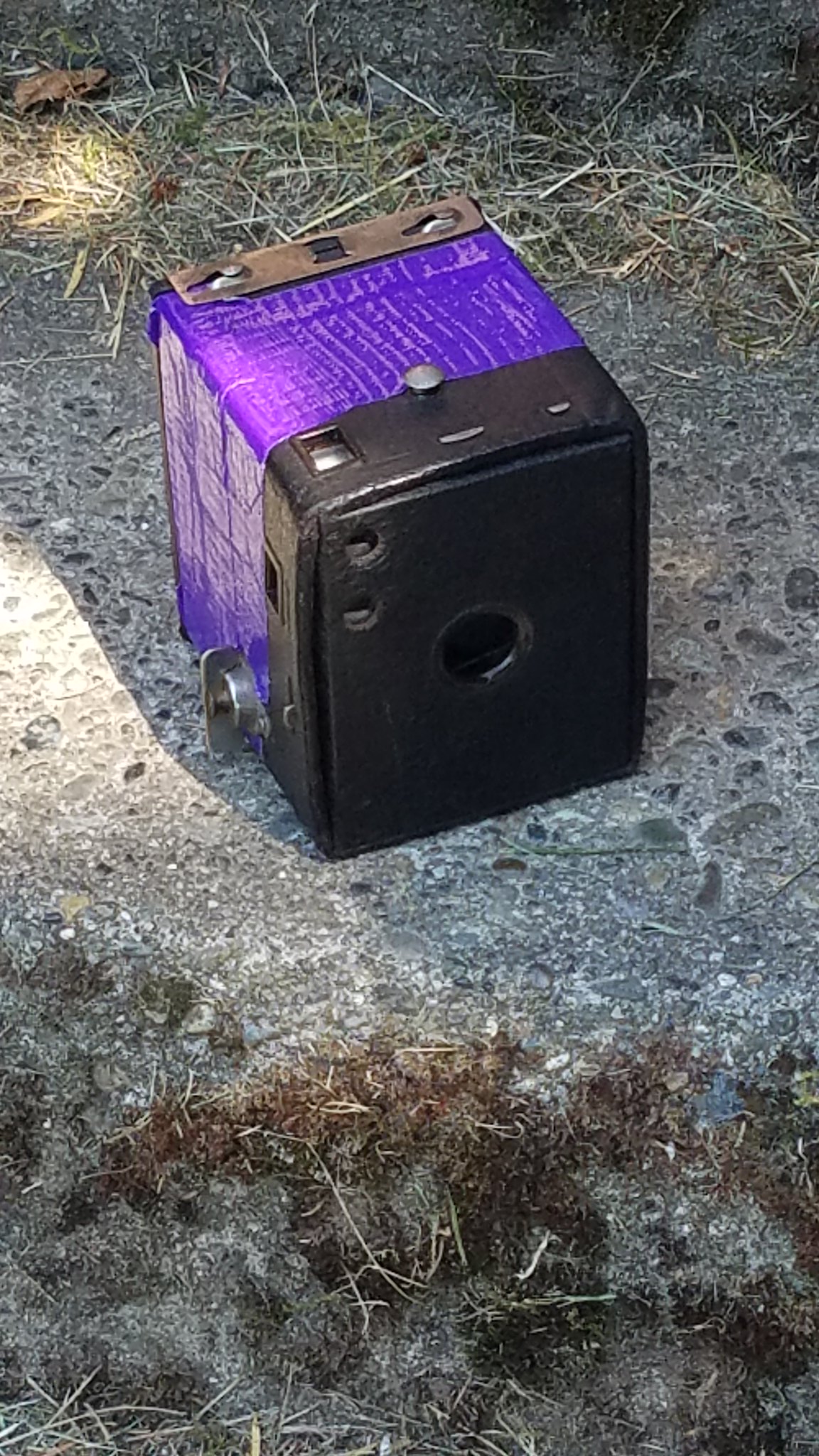

    So what would you do with a crushed cardboard Kodak 2A?

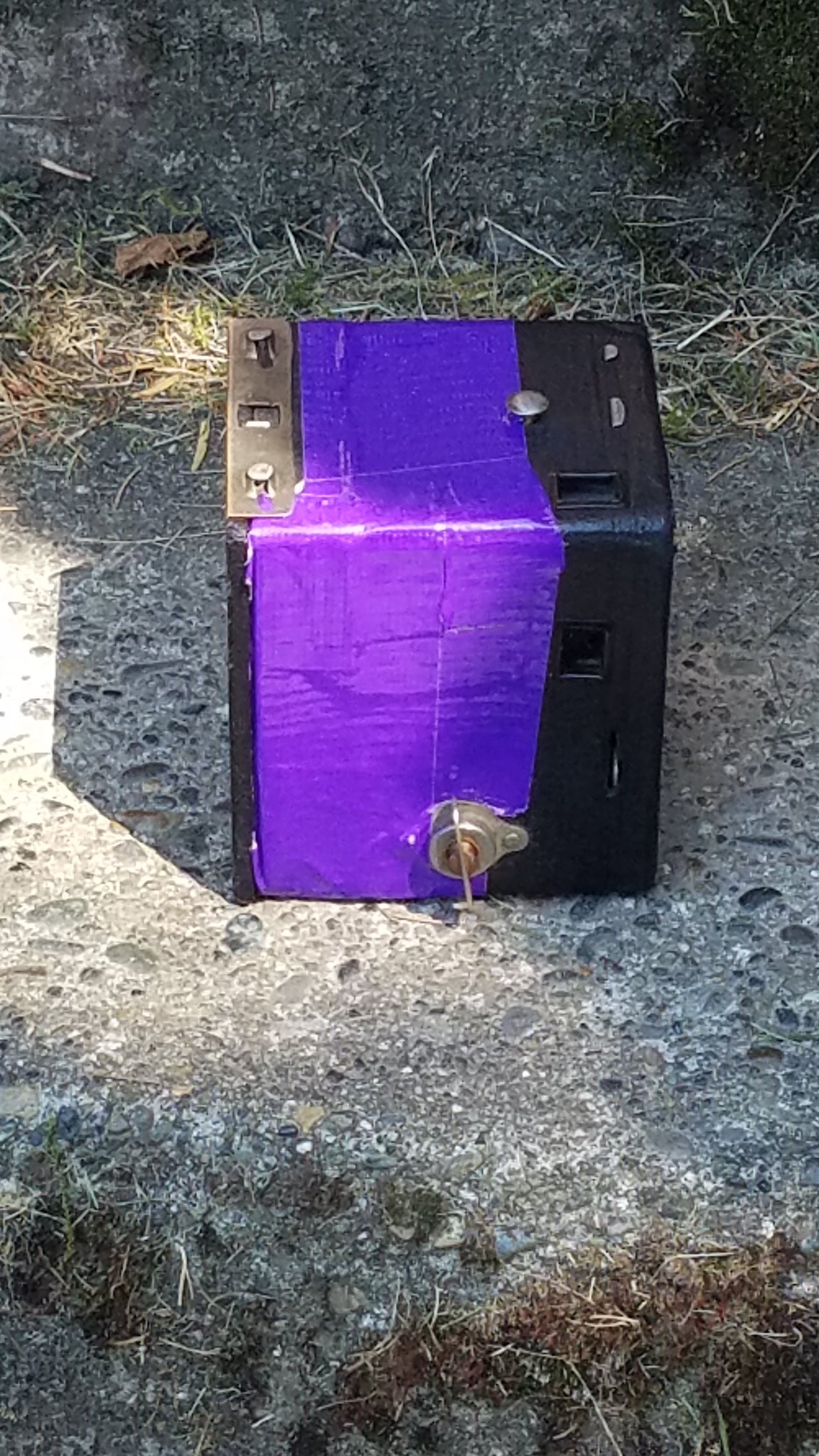

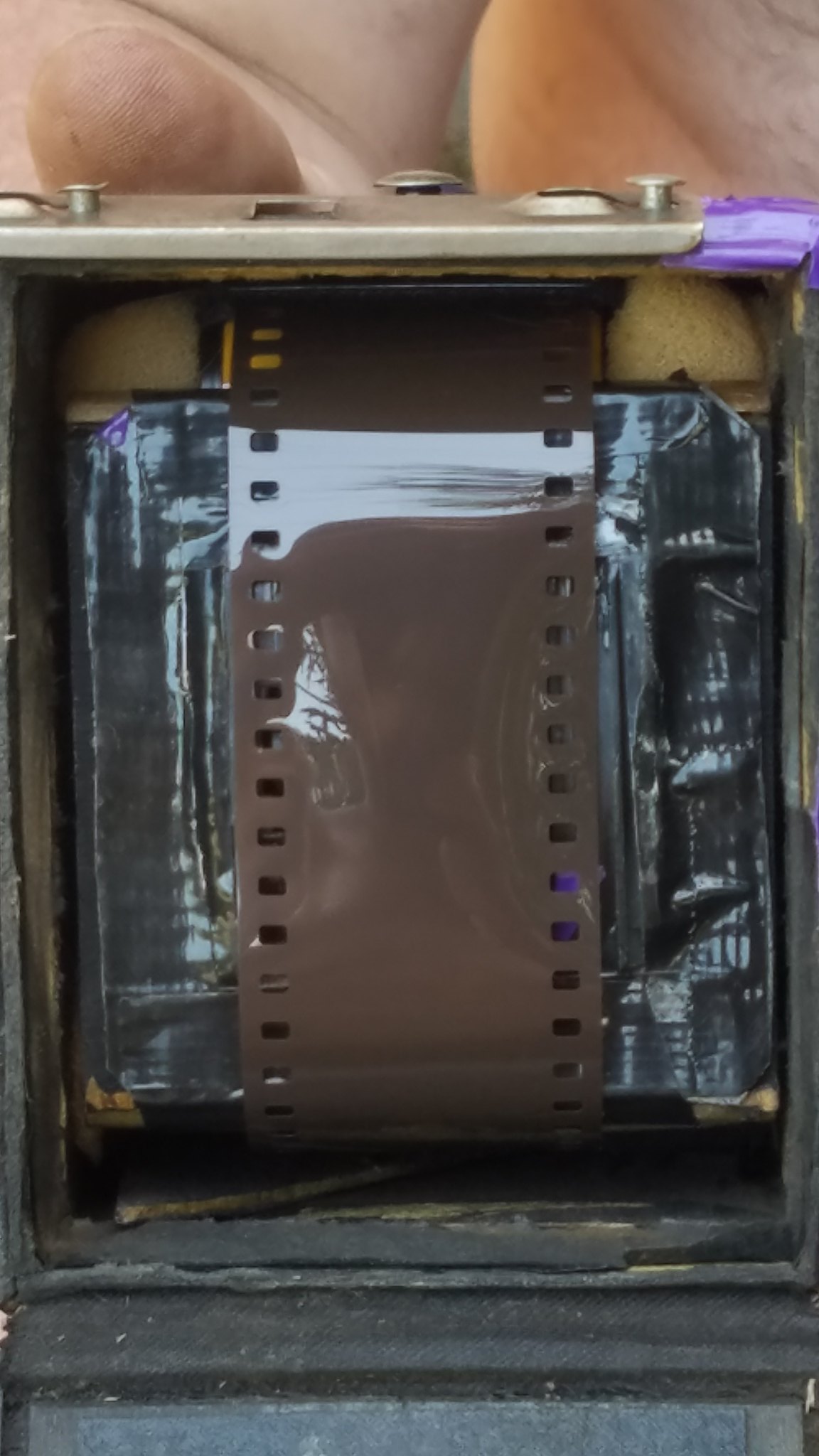

    I shortened mine, duct taped it back together and modified it to work with 35mm. I cut up a broken 35mm Kalimar for the mask. Eventually ill pick up some nice 1/4" wood and build a new case for it.

    [​IMG]20170630_113107 by , on Flickr

    [​IMG]20170630_113113 by , on Flickr

    [​IMG]20170630_113124 by , on Flickr

    Last edited: Jun 30, 2017
  26. Topsy

    Topsy Member

    Messages:
    31
    Joined:
    Apr 1, 2017
    Location:
    Berne
    Shooter:
    Med. Format RF

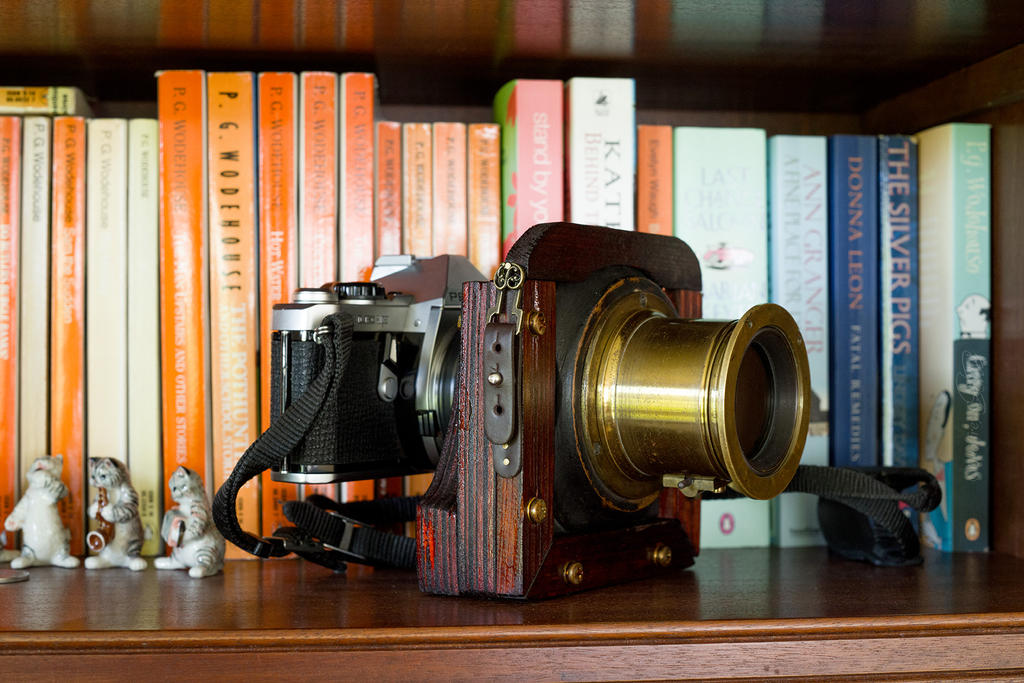

    Posted in the thread where I asked about the lens a few weeks ago. I now have a few results on film and it's everything I wanted it to be. :D

    [​IMG]

    Here are two examples shop on FP4 Plus

    [​IMG]Shrubbery by Geoffrey's Creations, on Flickr

    [​IMG]Victorian Timemachine by Geoffrey's Creations, on Flickr


    I did a few posts about building the lens adapter on my blog if anyone is interested, but I think most people here will have it figured out pretty fast by looking at it. :smile:
