Pix of your home-built cams, mods and creations here please (part 2)

[stormy_weather]

www.meinezersaegtenkameras.de

I have put together a small website showing my camera DIY projects, including my latest toy, a roll film camera with Canon EF mount, to use the Canon TS-E 4/17 tilt shift lens on film:

Please have a look, if you like:

http://www.meinezersaegtenkameras.de/Ehome.html

Regards,

Sven



[StoneNYC]

I have put together a small website showing my camera DIY projects, including my latest toy, a roll film camera with Canon EF mount, to use the Canon TS-E 4/17 tilt shift lens on film:

Please have a look, if you like:

http://www.meinezersaegtenkameras.de/Ehome.html

Regards,

Sven

Oh I like the one of the cathedral doors and the woods (one of the 6x14's) I didn't see any Canon links.

Why 6x14 and not 6x12 like most manufacturers?

Thanks.


~Stone

The Important Ones - Mamiya: 7 II, RZ67 Pro II / Canon: 1V, AE-1 / Kodak: No 1 Pocket Autographic, No 1A Pocket Autographic

Sent from my iPad using Tapatalk



[stormy_weather]

The "Canon" is the "Kiev EF" (http://www.meinezersaegtenkameras.de/Ekiev ef.html), a Kiev with a Canon EF mount.

As for 6x12 or 6x14, the plan was to use up the image circle of the Super Angulon as much as possible, which led to the 6x14 format. In hindsight this maybe wasn't a good decision, a) because of the vignetting and b) because the format sits somewhat between "just wide" and real panoramas, neither fish nor fowl.

Regards,

Sven



[StoneNYC]

The "Canon" is the "Kiev EF" (http://www.meinezersaegtenkameras.de/Ekiev ef.html), a Kiev with a Canon EF mount.

As for 6x12 or 6x14, the plan was to use up the image circle of the Super Angulon as much as possible, which led to the 6x14 format. In hindsight this maybe wasn't a good decision, a) because of the vignetting and b) because the format sits somewhat between "just wide" and real panoramas, neither fish nor fowl.

Regards,

Sven

Oh! That looks sweet!! Make me one please!

And isn't 6x12 the standard medium format panorama anyway? Just as 24mm x 64mm is the standard 135 format pano? Or is the medium formst 6x17 for visual reasons? I forget now... Haha all I know is scanners that scan pano film strips only accommodate for 6x12.

My Mamiya 7 has a "true panoramic" 35mm insert that creates the 64mm wide x 24mm high image on 35mm film, that's why I assumed 6x12 was pano since its the same proportions. Or is it? I'm tired and my brain doesn't want to do the math ratio (even if I know it's simple) Gnight for now, feel free to respond with mockery... Lol


~Stone

The Noteworthy Ones - Mamiya: 7 II, RZ67 Pro II / Canon: 1V, AE-1 / Kodak: No 1 Pocket Autographic, No 1A Pocket Autographic

Sent from my iPhone using Tapatalk



[Steve Smith]

My Mamiya 7 has a "true panoramic" 35mm insert that creates the 64mm wide x 24mm high image on 35mm film, that's why I assumed 6x12 was pano since its the same proportions. Or is it?

No. 6x12 is twice as wide as it is high or a ratio of 2:1

64x24 is just over 2.5:1


Steve.



[StoneNYC]

No. 6x12 is twice as wide as it is high or a ratio of 2:1

64x24 is just over 2.5:1


Steve.

Yes, I somehow am losing it, I think my instruction booklet for my mamiya 7 35mm pano insert was for the mamiya 6 and I'm just recalling the 2:1 ratio mentioned in the booklet for the 6 even though I have a 7, I think that's where my confusion lies.

In other news, here's a mod for a 70mm daylight tank for 15 feet of film at a time...

Yup, that's a single roll of film hanging in the shower...

The tank has a bit of light leak, if anyone has a REAL daylight tank I'll buy! Lol


~Stone

The Important Ones - Mamiya: 7 II, RZ67 Pro II / Canon: 1V, AE-1 / Kodak: No 1 Pocket Autographic, No 1A Pocket Autographic

Sent from my iPad using Tapatalk



[SMBooth]

Even in practice nothing is standard anyway, my 6x12 Holga is 50mm x 120mm, the DaYi roll back is 56mm x 115mm.....

Oh! That looks sweet!! Make me one please!

And isn't 6x12 the standard medium format panorama anyway? Just as 24mm x 64mm is the standard 135 format pano? Or is the medium formst 6x17 for visual reasons? I forget now... Haha all I know is scanners that scan pano film strips only accommodate for 6x12.

My Mamiya 7 has a "true panoramic" 35mm insert that creates the 64mm wide x 24mm high image on 35mm film, that's why I assumed 6x12 was pano since its the same proportions. Or is it? I'm tired and my brain doesn't want to do the math ratio (even if I know it's simple) Gnight for now, feel free to respond with mockery... Lol


~Stone

The Noteworthy Ones - Mamiya: 7 II, RZ67 Pro II / Canon: 1V, AE-1 / Kodak: No 1 Pocket Autographic, No 1A Pocket Autographic

Sent from my iPhone using Tapatalk



[Ezzie]

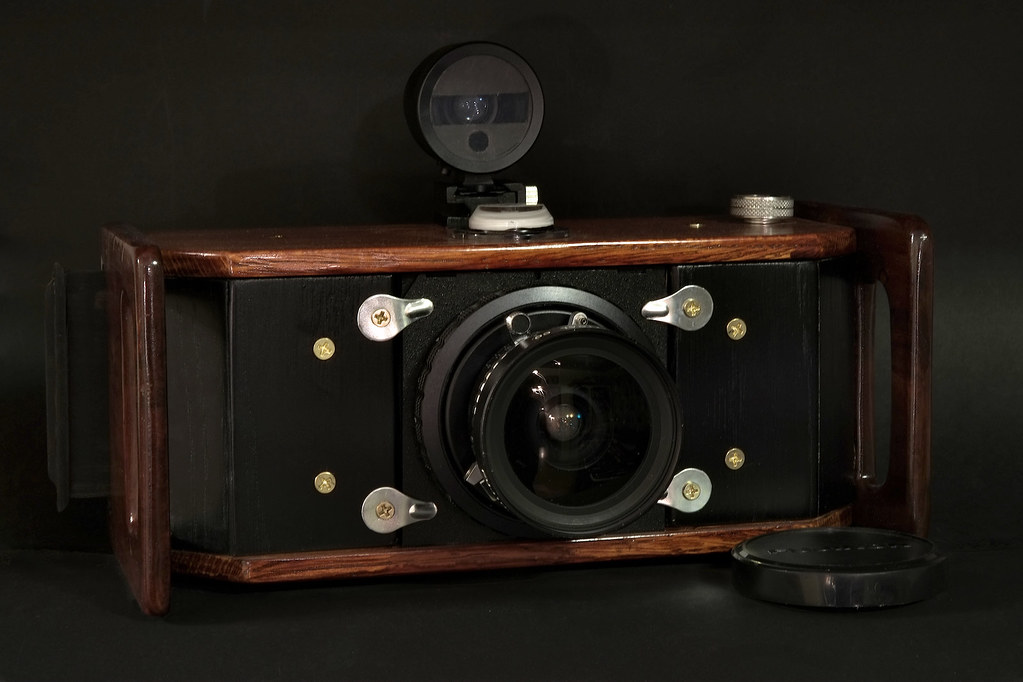

Same 6x17 as before. But now with modified finder mask and a level. Also done up cosmetically. And this time I put a little effort in taking a good picture of it.


I Adore by Eirik0304, on Flickr



[Steve Smith]

Nice.

What are you using for lens board clips?


Steve.



[bobwysiwyg]

I 'm amazed at many of these home built cam's. How do you determine the film advance distance for roll film designs?



[NormanV]

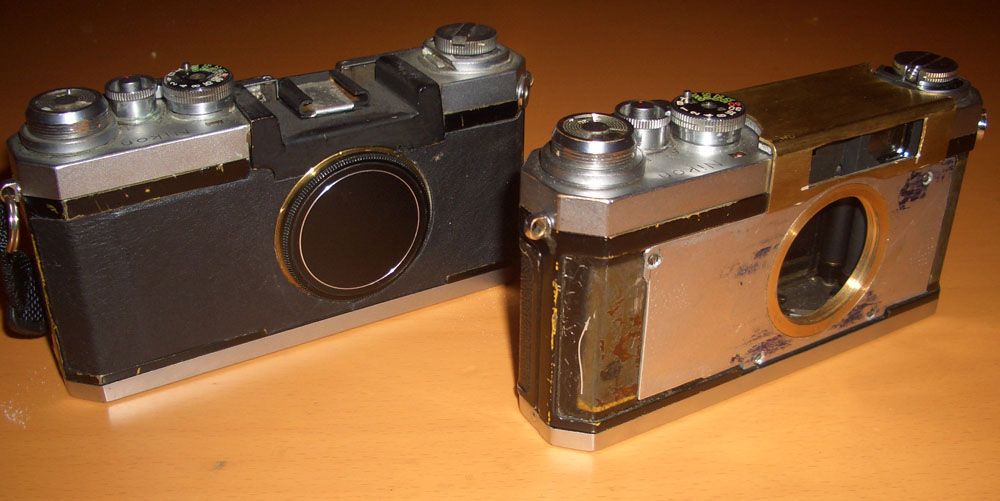

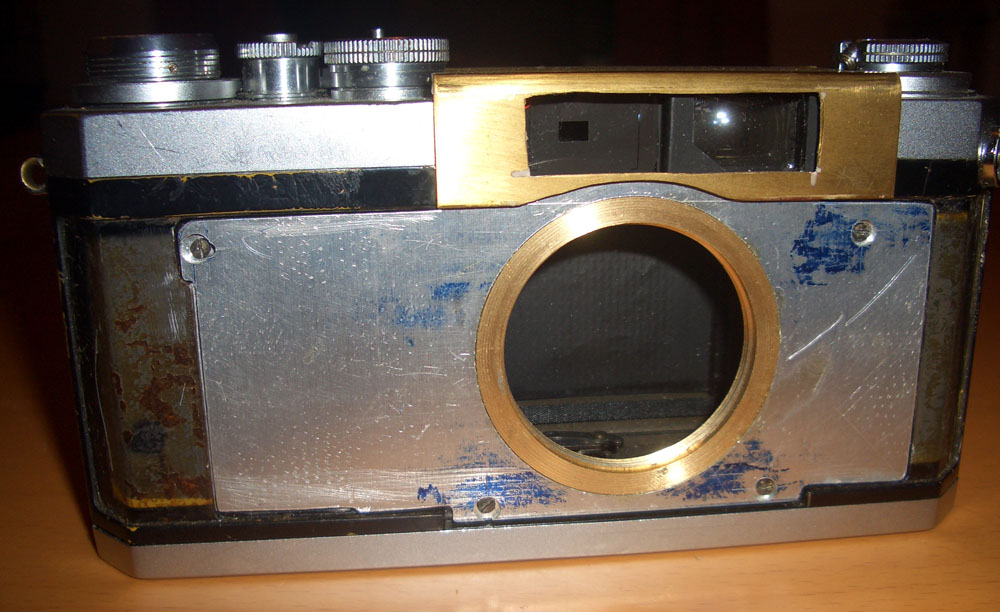

Here are my two modified Nikon Fs. The left hand one has had the mirror box removed and has a leica thread mount. It is used with an external viewfinder with my 15mm Heliar. It is entirely successful and is quieter than my Bessa L. The right hand one is being converted to coupled rangefinder. The rangefinder that I am using is from a Konica Auto S3. I hope to finish it soon.
Norman



[Ian Grant]

Here are my two modified Nikon Fs. The left hand one has had the mirror box removed and has a leica thread mount. It is used with an external viewfinder with my 15mm Heliar. It is entirely successful and is quieter than my Bessa L. The right hand one is being converted to coupled rangefinder. The rangefinder that I am using is from a Konica Auto S3. I hope to finish it soon.
Norman

Well all the Cosina made rangefinder cameras Bessa, Zeiss Ikon, Epson etc are based on an SLR with the mirror box removed, and the Zenit C is a Leica copy rangefinder body witha mirror box so it's not an unknown concept After all the Nikon F isn't that different to the Nikon SP.

So interesting projects good luck.

Ian



[Ezzie]

Nice.

What are you using for lens board clips?


Steve.

Hooks to hang pictures, cut off at the bend.



[NormanV]

Thanks Ian, when I was first thinking about doing it I asked for suggestions on a couple of other forums and the consensus was that I was daft to try.

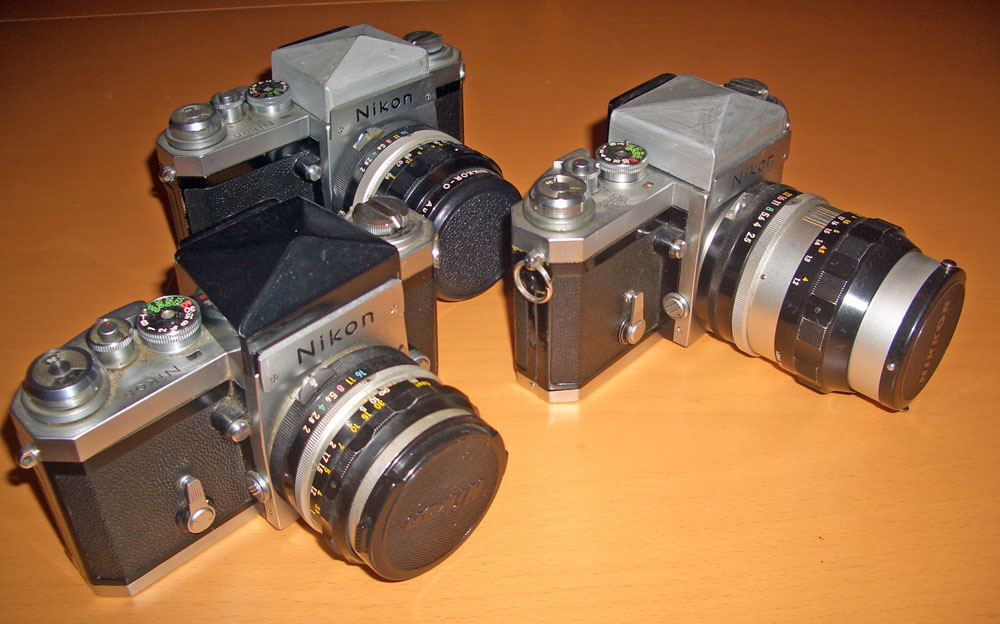

I have also modified Nikon Photomic prisms by removing all the electrics, cutting down the chassis and making a new top to produce my own version of a standard prism for a cost of £20 instead of £120 that they sell for. As you can see they are not as pretty as the Nikon original but they do the job.
Norman



[Steve Smith]

the consensus was that I was daft to try

That's quite often all the encouragement I need!


Steve.



[SMBooth]

Bob, most DIY roll film cameras use the film counter numbers imprinted on the backing paper, and a hole with a sliding cover to see the number as it come around. The position of the hole depends on weather your shoot 6x45, 6x6 or 6x9. If you want to shoot 6x7 your out of luck..



[bobwysiwyg]

Bob, most DIY roll film cameras use the film counter numbers imprinted on the backing paper, and a hole with a sliding cover to see the number as it come around. The position of the hole depends on weather your shoot 6x45, 6x6 or 6x9. If you want to shoot 6x7 your out of luck..

So how would the advance distance be figured for example the 6x17 below? Guess I could ask the builder, eh?



[SMBooth]

use frame number 1 - 3 - 5 - 7 on the 6x9 frame counters. My counter hole for a 6x17 is in the middle of the camera. 2 6x9 frames leave a nice space between images.



[bobwysiwyg]

Makes sense. Thanks.



[stormy_weather]

On my 6x14 I use the Graflex film back counter plus an individual add on turning angle of the knob, which I have established beforehand (and put on a small table on the camera). So frame 2 is at counter position 2 plus 1 and 1/4 turns of the knob, frame 3 is at counter position 4 plus half a turn, and so on. To make this more accurate, I have "engraved" a kind of a windscale on the knob.

Regards,

Sven



[stormy_weather]

Cosina Stereo K

I have meanwhile added another camera to my camera DIY site, a stereo SLR with Pentax K mount: http://www.meinezersaegtenkameras.de/Ecosina stereo.html
Regards,

Sven



[Steve Smith]

Nothing much to show here other than me managing to get my CNC router to cut brass today!




Steve.



[Stephanie Brim]

Nothing much to show here other than me managing to get my CNC router to cut brass today!

View attachment 60389


Steve.

Yeah, this would be exciting to me. The metal pieces that hold the lens board onto my Speed Graphic have gone walkabout. In addition, the bottom piece for the same on my Burke & James. I'm taping boards to my cameras. Heh.



[nsurit]

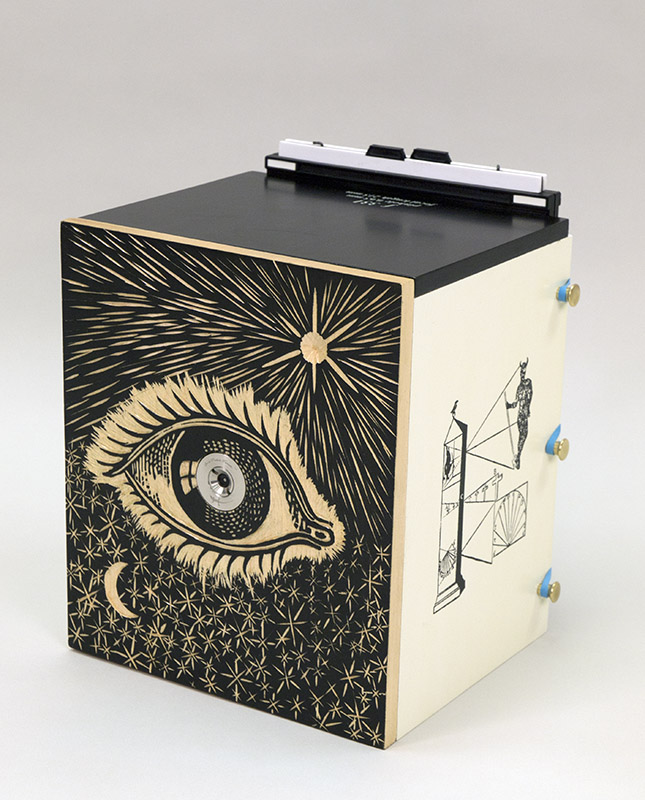

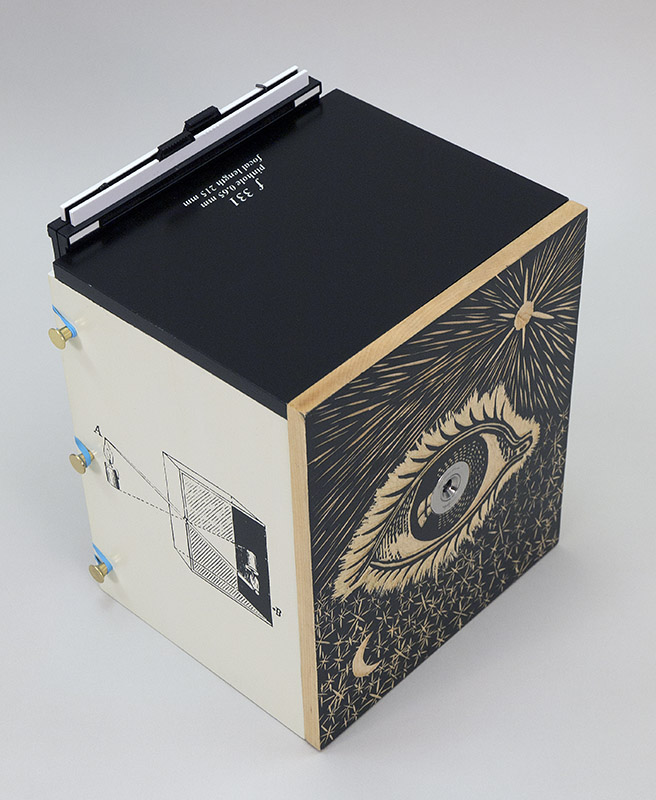

DIY 8 X 10 camera complete

Finished my first home built camera this morning, using two store bought pieces from Skink (the pinhole and the tripod socket). Now if I can just complete the next two weeks of school and spend a little time with the camera. Plan a project next semester with this camera and making contact Ziatype prints and perhaps some others. It was a fun project with some help from folks here at APUG. John Goodman supplied the light seal material. Bill Barber



[m1tch]

nsurit that looks amazing and probably works out cheaper than one of those Ilford pinehole cameras lol
