Kodak Medalist unusual out of focus areas on negative

[Hunter_Compton]

One last thing to check- the hinge pins. Are both pins on each side seating, sliding to the outer edge? Sometimes a pin will not seat. This could leave the back canted slightly (very slightly). The back is actually part of the spool positioning, as you can see by the small wear marks from the edge of the spools. So maybe the back wasn't quite seated, and maybe this would let the spool wobble a bit and spread some uneven tension into the film?

Pure speculation.

Both pins on each side are locking properly and the pressure plate seems normal.

I'm not in doubt it most likely had to do something with my re-spooling of the film, it's just a matter of determining what exactly and how to avoid it in the future.

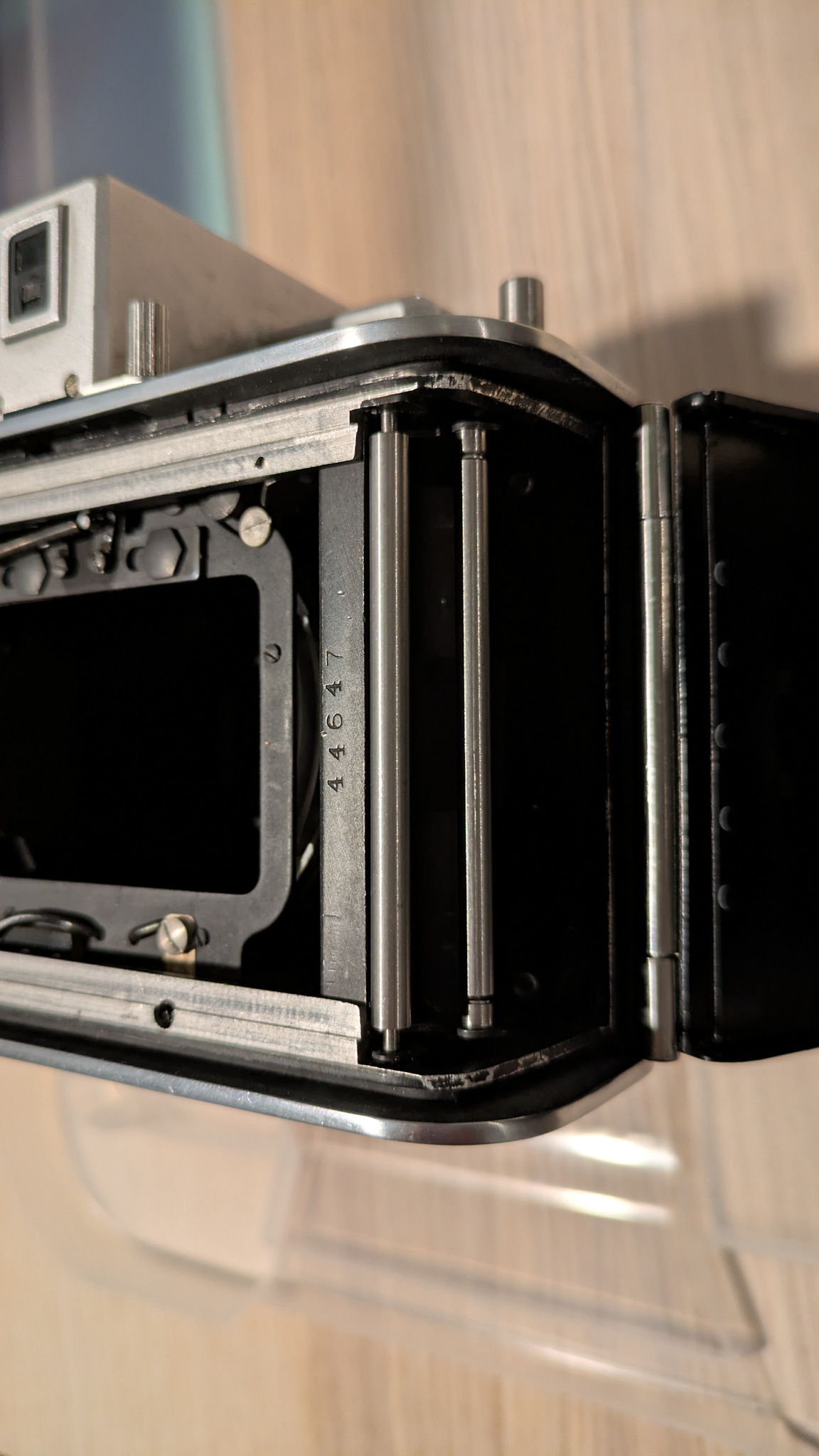

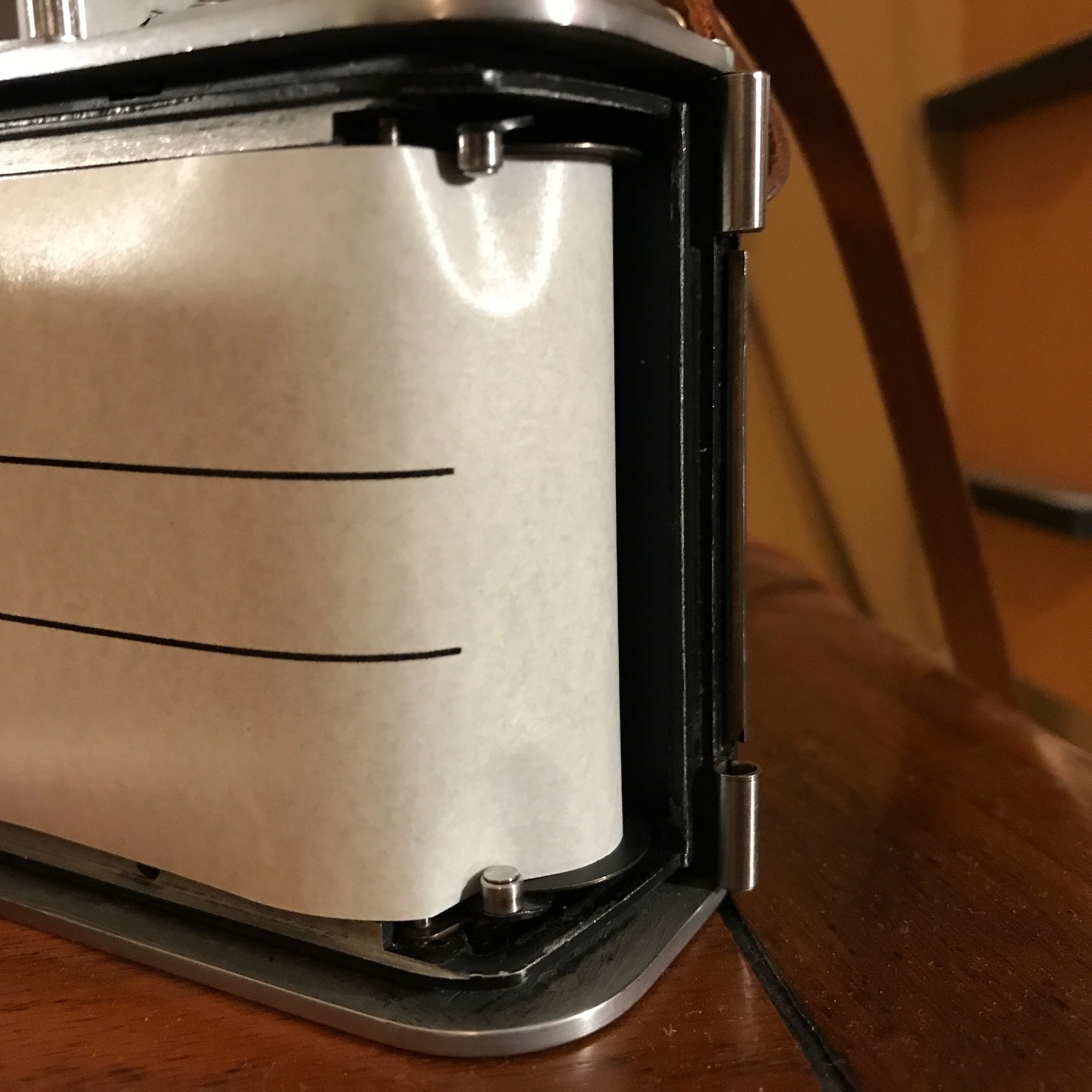

Also, while I have the group's attention, I figured I'd ask a question I've never been certain about. I have always assumed that the correct way to load the film is over the two small rollers that hold the supply spool in place, as seen here:

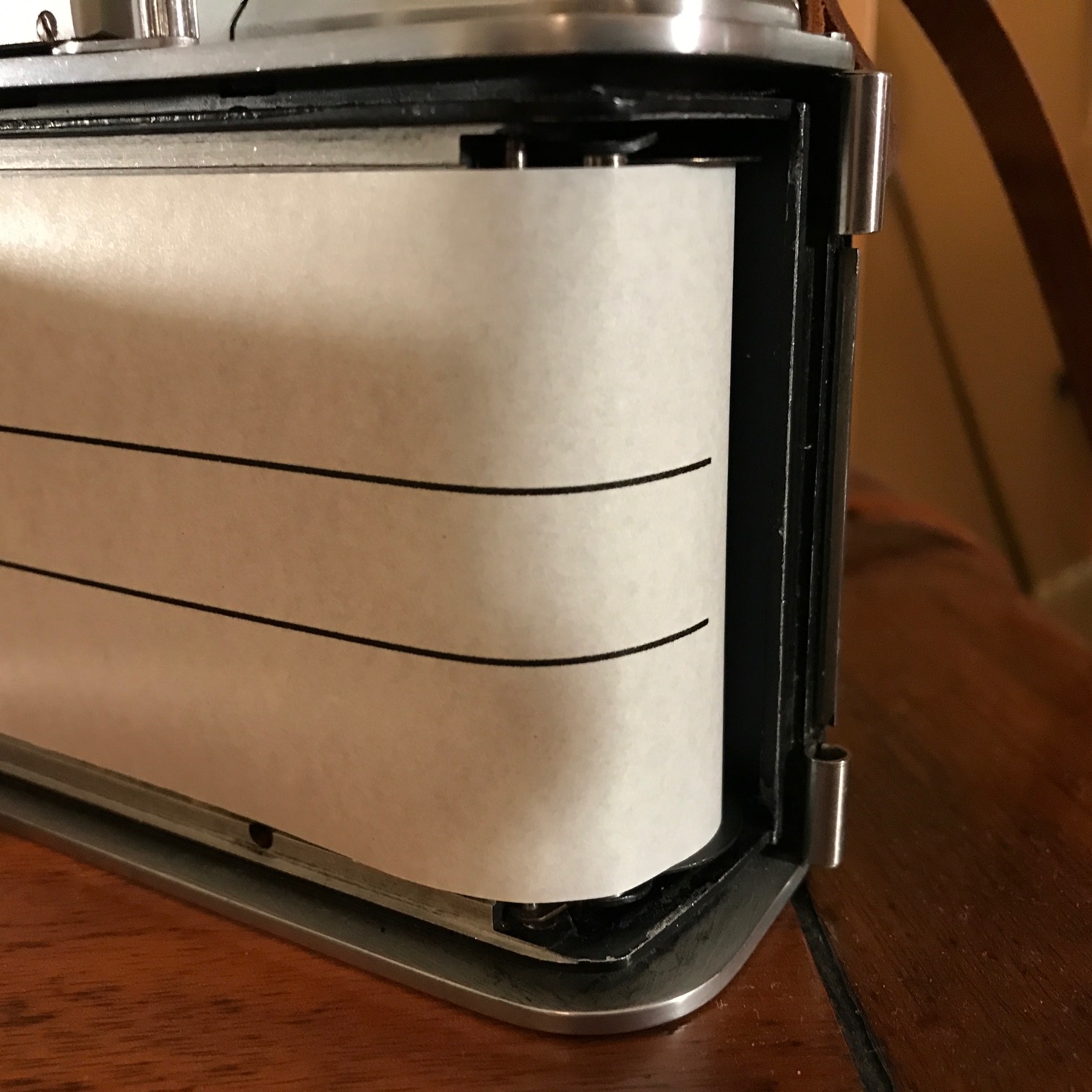

You could in theory run it under these, as below, but that seems like it would distort the film more than anything, so I assume this is wrong.

None of the Kodak manuals are specific on this point, they say to thread the paper over the rollers, but it isn't clear if that means all of them, or just those adjacent to the film gate, nor do they illustrate this part.

In any case, it would seem even when loaded the first way, the film/backing paper having only the outer edges on these small rollers would pose the most likely chance of the film distorting, and I do notice that the Medalist II changed this so that it was an additional solid roller rather than two, one on each end. Any thoughts?



[blee1996]

My Medalist II looks very different on the supply side from yours. Is it remotely possible that you are missing one roller?

P.S. I just saw your comments about differences between model I and II. But from my understanding the improvements were made on the take up side to make frame counting more reliable.



[Mr Bill]

My Medalist II looks very different on the supply side from yours. Is it remotely possible that you are missing one roller?

Looks to me like you're right.



[koraks]

If your idea that the uneven tension would just naturally pull a ripple in the center of the film was correct, then wouldn't all 35mm cameras do the same thing?

135 is narrower, which makes a difference in this regard. The base is generally also slightly thicker.



[Hunter_Compton]

Unless it’s a part that’s easily broken or lost, I’m fairly certain it’s a design change as you see the split rollers on Medalist I cameras and then the solid design comes late in Medalist I production or during the changeover to Medalist II.

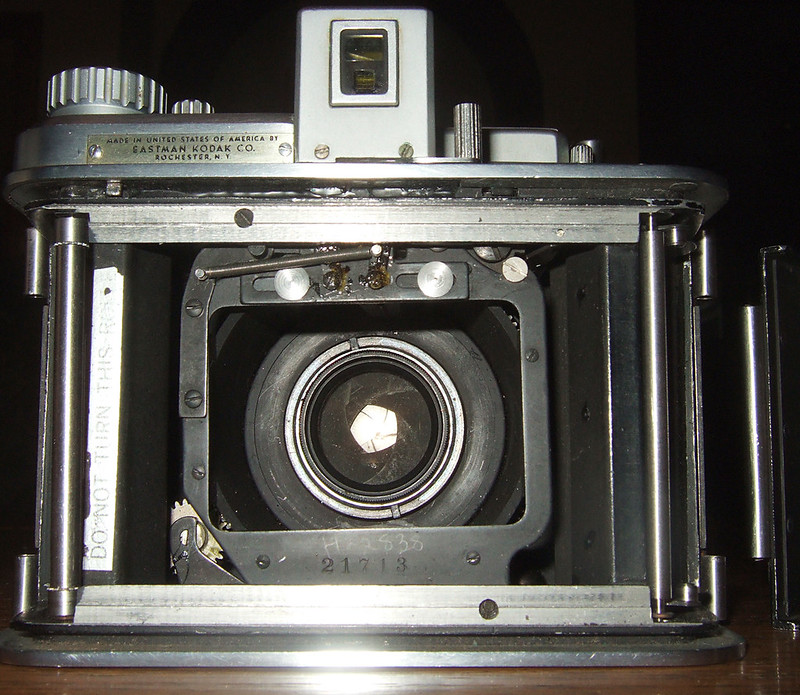

Here’s another one from the web with split feed rollers.



[Mr Bill]

135 is narrower, which makes a difference in this regard. The base is generally also slightly thicker.

I don't know what you're talking about. Wasn't I clear that that the specific long-roll film we were using WAS 35mm perforated film?? And no, it was not fundamentally different from the film that pros might buy over the counter.

You're just plain wrong about this. What else can I say?

But back to the main topic of this thread: I've offered a relatively simple yet very effective test to see if the surface of the film is flat or not. It requires some setup, but then is a quick visual check. I fail to grasp why there's no interest in this. I can only surmise that people don't quite believe me. (Cuz I think they DO want to solve this.)



[Mr Bill]

Unless it’s a part that’s easily broken or lost, I’m fairly certain it’s a design change...

I couldn't really say for sure; I don't have any real knowledge of the Medalist guts, and haven't used one since late 1960s(?). So I'm strictly guessing.

But to me... it seems odd to have those two little stubs there (per your photo in post #26) that COULD allow someone to stick the sides of the film under em. And I always look at things like this as WHY would the designer(s) do this? When I saw blee1996's photo (post #27) my first thought was, "ahh, an intermediate roller in the middle, possibly with pin tips that fit into the 'stubs'. And IF one of those pin ends SHEARED off..." Total speculation on my part, though.



[koraks]

I don't know what you're talking about. Wasn't I clear that that the specific long-roll film we were using WAS 35mm perforated film??

I'm referring to the Medalist in this thread, which consumes 120 film. We're looking at a phenomenon that appears to consist of a ripple/bulge emerging in the frame. The mechanism you offered based on your experience seemed to fit and I expanded on that thought. I don't really see the need for your aggressive response, to be honest.



[Harry Callahan]

Yes, that's what the teeth do here too. Though it still poses the question as to why it's causing an issue here, and hasn't in the past. I think I'm going to check dimensions on the width of both the film and backing paper of this roll of Kentmere 200 in comparison to prior Ilford and Kodak rolls and see if there's any discrepancy.

I think these teeth can cause this problem. The harder this roller (and the frame counter it is driving) turns, the more tension has to be exerted on the take-up spool to advance the film. The more tension there is between take-up spool and frame-counter-roller, the more likely it is for the film edges to be lifted by the teeth and the middle of the film to have contact to the middle of the roller.
I mean the teeth always have contact to the film, but the middle of the film should not have contact to the middle of the roller. If tension on the take-up-spool is increased, the film could make contact to the middle of the roller.
Then there is a bulge at the frame-counter-roller, which could provoke a bulge in the image area.

With such a camera you`re not advancing the film the same way every frame. It`s possible that you`re sometimes winding harder and sometimes gentler, which would explain why the effect occurs sometimes - independent of time passed or camera-shake during transport.

Now this roller does drive the frame counter which could become sticky. Depending on when the camera has been serviced last time, you may run into a sticky mechanism now - though you didn`t suffer this some time ago.
...

The re-spooled film also could be a problem, but both (possible) problems also could add up. Therefore i`d check the roller for stickiness - as i think this could produce that problem.
...

This does look bad and wouldn`t make sense to me. It is better for the film not to make any tight turns when going from the spool to the film gate. If there is a tight turn like this and the film is sitting in the camera for some time, the film would curl on that spot and have poorer flatness once advanced to the film gate.
These short rollers must be meant to avoid a tight turn - when the spool is almost empty. Then the diameter of the spool is smaller producing a tighter turn at the end of the roll than at the beginning. These short rollers must be meant to preserve good flatness towards the end of the roll.



[Dan Daniel]

I'm not in doubt it most likely had to do something with my re-spooling of the film, it's just a matter of determining what exactly and how to avoid it in the future.

I think you should shoot another roll. Check the Kentmere film to other emulsions, and run another roll of an emulsion that has not had problems. Most likely it was a re-spooling problem.

You could in theory run it under these, as below, but that seems like it would distort the film more than anything, so I assume this is wrong. View attachment 401107

Uh.. yeah, that's a no



[Mr Bill]

The mechanism you offered based on your experience seemed to fit and I expanded on that thought. I don't really see the need for your aggressive response, to be honest.

No, no, I am not trying to offer "this mechanism," from our portrait camera as a possible explanation for the Medalist problem. (I did not actually explain the mechanism behind our portrait camera problem.) I am offering a TEST METHOD to check for film flatness. I only brought up the portrait camera issue as demonstration about the effectiveness of the "flatness check" method.

Ps, until you revealed that you had switched the topic from (my) portrait camera back to the Medalist, it looks exactly like you were telling me that I didn't know what size film I'd been working with for years. I reread things carefully and decided that things had to be made clear. I get now what happened; I don't think any apologies are called for.

FWIW I deliberately avoided describing the test method as it might seem too unbelievable (and/or complicated) to the casual reader here. So I prefer that someone be interested enough to actually try it out, in which case they'll come back and say "OMG, that's almost unbelievable how well it works!"

The test method is somewhat akin to something those "paintless dent removal" people do when repairing hail damage to a car. They need a way to judge the effectiveness of their efforts. So they place a small light box with a dark grid pattern on the other side of the dent. Then while looking at the dent they see a distorted reflection of the grid, and minimizing this distortion is their guide while gradually removing the dent.

Here's a conceptual description of the film test method. One attaches a grid pattern to the front of a light box. Then set up the camera as if photographing the grid. (If the shutter is opened an image of the grid is projected onto the film, right?) Now for the tricky part(s): put a small mirror in front of the camera lens at a 45 deg angle, and turn the camera so as to again be photographing the illuminated grid. But... instead of a normal mirror, use a so called beamsplitter where, for example, it might reflect half the light and let the other half go through. (Window glass behave as a beamsplitter except that it reflects only about 10% whilst about 90% goes through.

To evaluate: we know that an image of the lit grid is being projected onto the film, via the beamsplitter, right? By looking into the front of the lens, through the beamsplitter, one can inspect the image being projected onto the film! If there are bulges or other distortions in the film surface they will show up as distortions in the grid. Does it work? Yep, works great!



[outwest]

I never wind on until I'm ready to shoot. No problems.



[F4U]

I haven't read the whole thread, but I too have tended to subscribe to the prevailing reasoning of the film "popping" out of flatness. But there is another possibility I'm not sure has been covered. These Kodak Medalists are very old now and have changed hands to new owners quite a few times. I submit the possibility that some unskilled hands may at one time disassembled the lens assembly and turned a lens element around backwards. The complaint certainly fits this explanation. I've seen it before, although not in this camera.



[koraks]

I haven't read the whole thread, but I too have tended to subscribe to the prevailing reasoning of the film "popping" out of flatness. But there is another possibility I'm not sure has been covered. These Kodak Medalists are very old now and have changed hands to new owners quite a few times. I submit the possibility that some unskilled hands may at one time disassembled the lens assembly and turned a lens element around backwards. The complaint certainly fits this explanation. I've seen it before, although not in this camera.

But then there's this:

[...] my (up to this point highly reliable) Kodak Medalist.
[...] frames 3, 4 and 5 had unusual and inconsistent out of focus regions towards the center of the frame. The other frames on the roll were tack sharp [...]

So probably not a case of flipped/swapped lens elements.



[Harry Callahan]

@Hunter_Compton:

Is spacing between frames even throughout the roll, or does spacing differ around the problematic frames?

EDIT:

Also, do the teeth of the frame-counter-roller leave markings on the emulsion? If so check markings for variations on the problematic frames.



[Hunter_Compton]

@Hunter_Compton:

Is spacing between frames even throughout the roll, or does spacing differ around the problematic frames?

EDIT:

Also, do the teeth of the frame-counter-roller leave markings on the emulsion? If so check markings for variations on the problematic frames.

Frame counter produces very even frame spacing. I'd include a photo but I've already cut the negatives.

And yes, the teeth on the roller leave a row of small indentations along the sides of the film outside the image area. I can see no difference between those in the problem area, and those not. Seems very even and regular.



[F4U]

Now that I took the time to read the entire thread, the complaint was a happy camera owner till he used Kentmere film. Without actually having the camera in my hands, I'm afraid I'm at a loss to offer a constructive suggestion. The only common denominator is the brand of film. If it were as simple as that, the solution would be obvious. Use Kodak film only, and be very attentive to the quality of the hand respooling to 620. After several rolls with no problems, the cause was located. This problem should not be happening. Yet it is happening. The reason may never be known, at least to absolute satisfaction. Sometimes things work out that way. Not very constructive of a post I'll admit.



[Harry Callahan]

Frame counter produces very even frame spacing. I'd include a photo but I've already cut the negatives.

And yes, the teeth on the roller leave a row of small indentations along the sides of the film outside the image area. I can see no difference between those in the problem area, and those not. Seems very even and regular.

I see.
Still i bet on a camera-problem, as the bulge of the film is that massive and always in the same area. I cannot imagine how this could happen by miss-spooling...



[MattKing]

Now that I took the time to read the entire thread, the complaint was a happy camera owner till he used Kentmere film. Without actually having the camera in my hands, I'm afraid I'm at a loss to offer a constructive suggestion. The only common denominator is the brand of film. If it were as simple as that, the solution would be obvious. Use Kodak film only, and be very attentive to the quality of the hand respooling to 620. After several rolls with no problems, the cause was located. This problem should not be happening. Yet it is happening. The reason may never be known, at least to absolute satisfaction. Sometimes things work out that way. Not very constructive of a post I'll admit.

As a lifelong Kodak user, who undoubtedly tends to defend things Kodak too often on this forum, and who has had contact with many people at Kodak, including those who had design and quality control responsibilities, I can confidently assure you of the response that any of those people would have had to this assertion:
"Why would we design or manufacture 120 film to withstand hand re-rolling on to 620 spools?!! And why would we particularly care?!!"
I expect you would get a similar response from the people at Harman - just with a slightly different accent .



[F4U]

The OP's problem is that he is respooling to 620. All well and good. But not pulling up the tape when unrolling it from the 120 spool, and SLIGHTLY sticking it back down before completely unrolling it. Upon re-rolling from the tails-out end onto the 620 spool, by the time you get back up to the tape there is a lump. You're supposed to pull the tape back up and re-stick it. In other words, the film has 'walked" or crept up 1/8 to 1/4 inch or so. As you shoot and advance the roll, that "lump" walks back down the roll and can cause a problem anywhere.



[Hunter_Compton]

I've had the lump occur when spooling from 120 -> 120 -> 620 spools, but not with 120 -> 620 -> 620

My understanding and experience has been that the lump or bulge in the film is caused by the differential in core diameter, and when using two 620 spools, there is no lump for which to pull the tape up and reset.



[Harry Callahan]

Also, if there was a lump it would be pressed to the beginning of the roll where the film is attached by the tape. You spool the film tight on the feeding spool, so the lump moves to the beginning. You could feel this and see this on the spool.
When you then thread the film into the camera, the lump cannot go anywhere but the film gate. The feeding spool is wound tight, the tape-up-spool is wound tight, the lump is trapped on the film gate so every picture should have a bulge - maybe the last picture may not have it, but only if the end of the film no longer is held by the feeding spool.

But Hunter_Comptons pictures show that there sometimes is a bulge, sometimes not, sometimes the bulge is bigger, sometimes it is smaller, it is not on the first frames but in the middle of the film, then it does disappear again...
...which is why i suspect a camera problem. BAC1967 also had this, not as bad, but with a different film...



[Saganich]

As someone who respooled triX for awhile and now has a 120 conversion (thank you dan!) all is well in Medalist land. I opted for the conversion precisely because of respooling issues...this sounds like one...(other than the roller looks like its missing, but I have a Medalist I so IDK about that). Has anyone mentioned that the Kentmere film base seems thin? At least compared to TriX...I would wager that wouldn't help matters.



[Hunter_Compton]

Had time to test the camera again, this time with Kodak Tri-X re-spooled in exactly the same manner. No trace of out of focus regions, exactly as I would expect. So either, I'm too variable in my re-spooling efforts, or there is something dimensionally different about the Kentmere 200 roll I used that makes it more susceptible to issues when re-spooling like a thinner film base or difference in backing paper.



[koraks]

It's comforting to know the camera is OK in any case!
