I saw that you followed up with that you read again and saw that it was Tessar, but you probably read Carl Zeiss Jena the first time so it's worth to mention that the Novar wasn't a Carl Zeiss lens. Novar was originally a Hüttig trademark, and Hüttig was later absorbed into ICA, and ICA together with other camera makers later merged into Zeiss Ikon on the initiative of Carl Zeiss. Zeiss Ikon was an independent company, but of course related to Carl Zeiss. Novar and Nettar lenses were bought in from various lens makers, so they are not marked Zeiss. A few Zeiss Ikon cameras in the years after the war even used lenses from the Zeiss rival Schneider-Kreuznach.


absalom1951

Subscriber
Joined
Nov 7, 2008
Messages
284
Location
Iowa
Format
Multi Format
I have only seen that type with the focus lever on pictures. How is it to use? :smile:[/QUOTE]

The lever does the job very smoothly . Maybe the lever did not go over well with consumers so it wasn't around long ? It really doesn't take getting used to , you can go either up or down.

I have an Ikoflex with the Novar lens but it needs a lot of attention.

Not sure how to reply with quote , I'm not the brightest bulb on the string :}


GRHazelton

Subscriber
Joined
May 26, 2006
Messages
2,248
Location
Jonesboro, G
Format
Multi Format
I have only seen that type with the focus lever on pictures. How is it to use? :smile:

The lever does the job very smoothly . Maybe the lever did not go over well with consumers so it wasn't around long ? It really doesn't take getting used to , you can go either up or down.

I have an Ikoflex with the Novar lens but it needs a lot of attention.

Not sure how to reply with quote , I'm not the brightest bulb on the string :}[/QUOTE]
I didn't know that there was an IkoFlex with a focusing lever! Decades ago my Brother had a Ricoh Diacord with two focusing levers, one on either side. Very convenient. I have a Minolta AutoCord with a focusing lever under the lens board. I find it more convenient than the knobs on my IkoFlex and YashicaMat.


choiliefan

Member
Joined
Dec 27, 2013
Messages
1,311
Format
Medium Format
The original Ikoflex "coffee-can" TLR has lever focus on the left side of the lensboard and is very easy to focus.

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
I have the same lens on a Rolleiflex Automat MXV and it's excellent. My gut feeling with such a low early serial number is it's an Ikoflex 1 850/16 Lps with a Prontor-S shutter. The Compur factory was badly damaged during the war and it was sometime before volume production resumed.

Ian


Attachments

  • WIN_20190610_17_44_47_Pro.jpg
    185.1 KB · Views: 96
  • WIN_20190610_17_45_06_Pro.jpg
    161.2 KB · Views: 104
  • WIN_20190610_17_45_15_Pro.jpg
    171.7 KB · Views: 106
OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
My IKOFLEX arrived today and already poses a problem,the shutter is jammed. It doesn't have the knurled wheel to reset the film counter,it needs to be checked through the red window. I had it working but might have set aperture or cocked shutter in wrong order. Anyone know how to get it working again?

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
My IKOFLEX arrived today and already poses a problem,the shutter is jammed. It doesn't have the knurled wheel to reset the film counter,it needs to be checked through the red window. I had it working but might have set aperture or cocked shutter in wrong order. Anyone know how to get it working again?
Crisis averted! I had removed the viewing hood to clean the ground glass and apparently did not realign it correctly,shutter is working.

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
Crisis averted! I had removed the viewing hood to clean the ground glass and apparently did not realign it correctly,shutter is working.
Crisis averted! I had removed the viewing hood to clean the ground glass and apparently did not realign it correctly,shutter is working.
Why would this camera have no film counter window or is it hidden somewhere on the body? As far as I can determine by he lens serial number 21499 it was made around 1951. My earlier model ll/lll has a film reset dial as well as a film counter window so this is very puzzling.

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
Why would this camera have no film counter window or is it hidden somewhere on the body? As far as I can determine by he lens serial number 21499 it was made around 1951. My earlier model ll/lll has a film reset dial as well as a film counter window so this is very puzzling.
Correction it was made between 1946 - 1951


JPD

Member
Joined
Mar 24, 2007
Messages
2,155
Location
Sweden
Format
Medium Format
Why would this camera have no film counter window or is it hidden somewhere on the body? As far as I can determine by he lens serial number 21499 it was made around 1951. My earlier model ll/lll has a film reset dial as well as a film counter window so this is very puzzling.

It doesn't have a mechanical counter, so you use the red window when you advance the film. This was one of the things that made the camera cheaper than the more advanced models.

Here is the instructions manual: http://www.cameramanuals.org/zeiss_ikon/zeiss_ikon_ikoflex_i.pdf

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
JPD,again I thank you for useful information
I had seen the manual but it was a bit confusing. It only mentions using the red window in order to start the film but does not explain that it is necessary for every exposure. I knew this had to be done however ZEISS could have been more explicit.


choiliefan

Member
Joined
Dec 27, 2013
Messages
1,311
Format
Medium Format
Do you have any pictures of your camera you can post here?
Might be useful for future reference.


JPD

Member
Joined
Mar 24, 2007
Messages
2,155
Location
Sweden
Format
Medium Format
I had seen the manual but it was a bit confusing. It only mentions using the red window in order to start the film but does not explain that it is necessary for every exposure. I knew this had to be done however ZEISS could have been more explicit.

It says on page 12: "After exposing, the fiIm must at once be turned on by means of the knob (5) until the next higher number appears in the red window (22)"

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
It says on page 12: "After exposing, the fiIm must at once be turned on by means of the knob (5) until the next higher number appears in the red window (22)"

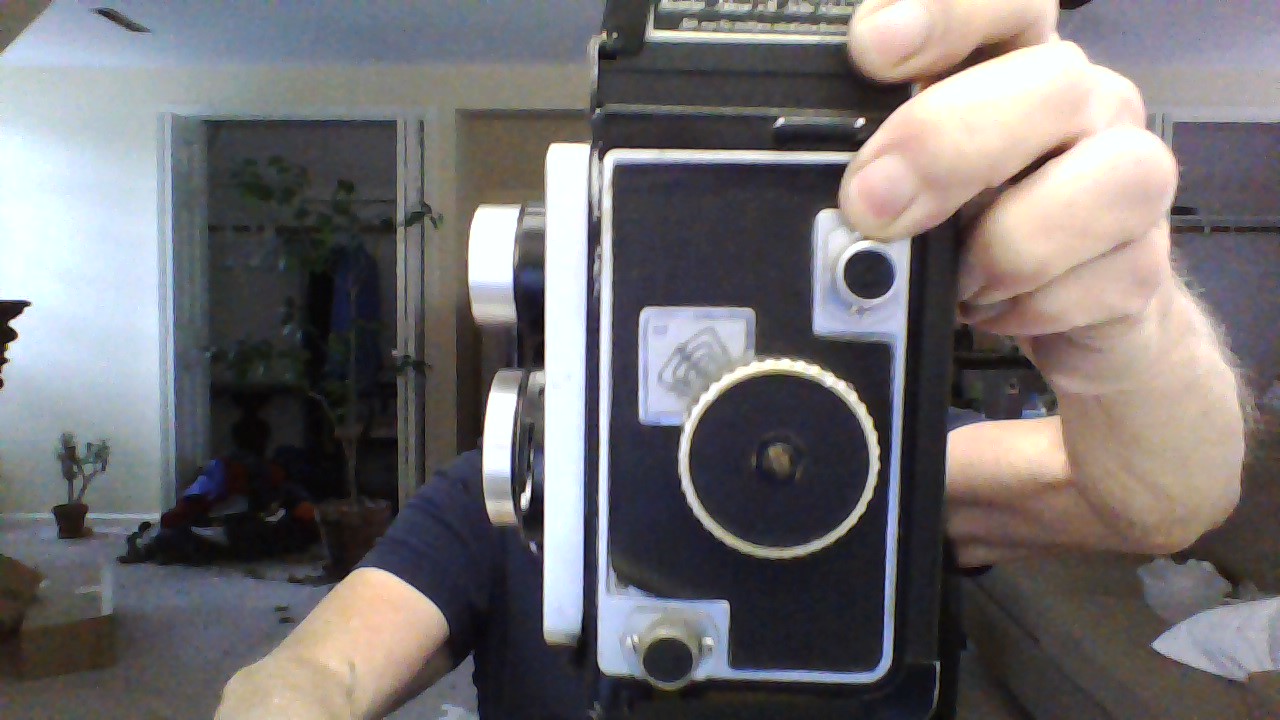

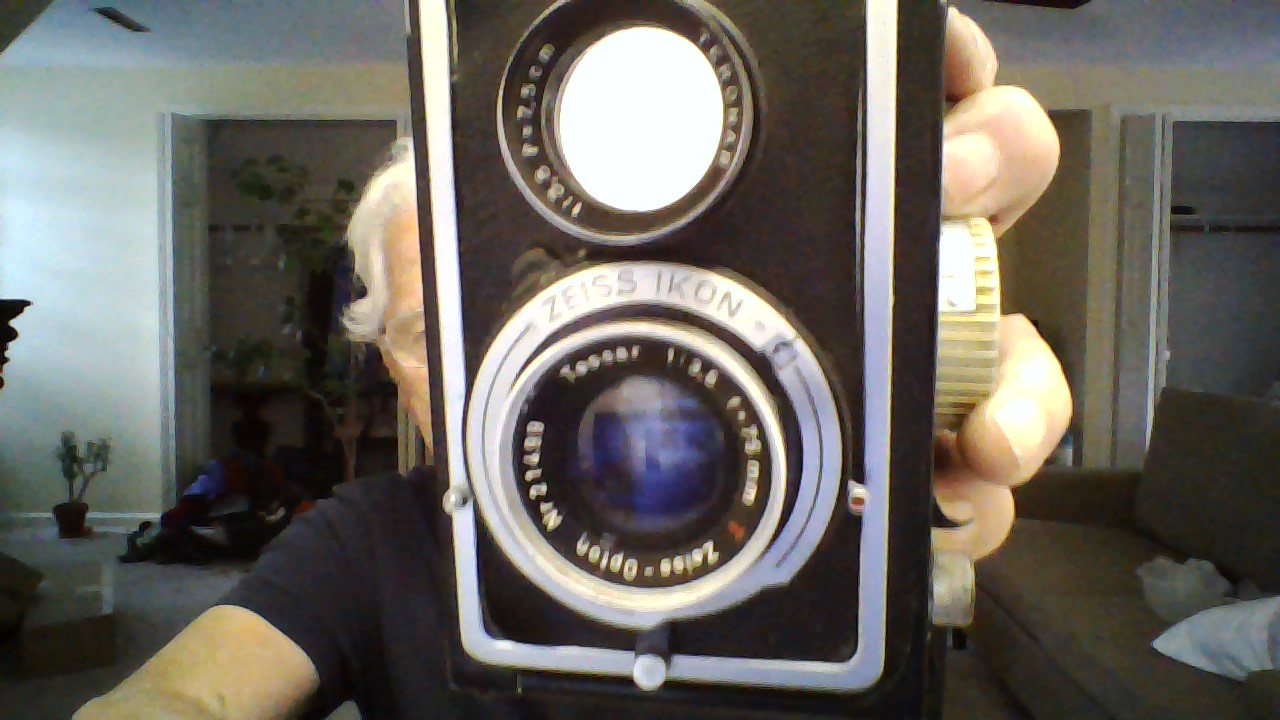

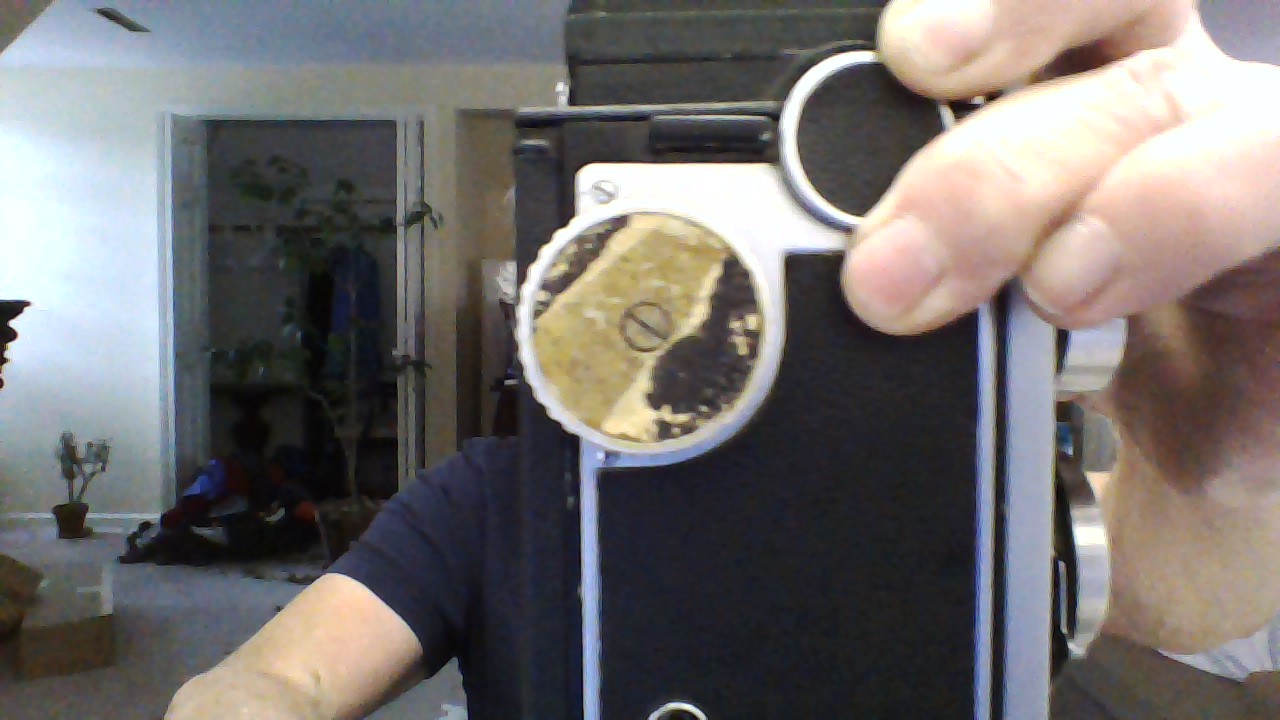

JPD, I thank you once again. When I downloaded the manual I got only to page 15 and could not get further pages.There is no doubt a way to get more pages but at age 79 I am not super computer savvy.Here are photos that choiliefan requested


Attachments

  • WIN_20190610_17_44_47_Pro.jpg
    185.1 KB · Views: 66
  • WIN_20190610_17_45_06_Pro.jpg
    161.2 KB · Views: 65
  • WIN_20190610_17_45_15_Pro.jpg
    171.7 KB · Views: 74
OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
Here‘s some more info on the Ikoflex line:

http://www.tlr-cameras.com/German/Ikoflex.html

They sometimes have their model number stamped into the letherette somewhere around the taking lens.
There also are some transitional models as with all camera makers that worked before and after the war.
I have a transitional model ll/lll with a 75MM 3.5 TESSAR in fine working order but unfortunately with the dreaded ZEISS bumps

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
I have purchased an AGFA BILLY COMPUR 105 4.5 SOLINAR lens serial number 50792 and have no idea the year made. Can anyone help?


choiliefan

Member
Joined
Dec 27, 2013
Messages
1,311
Format
Medium Format
The Compur shutter serial number will date it if the lens doesn't.

OP
OP

anthonym3

Member
Joined
May 26, 2019
Messages
361
Location
cheshire,ct
Format
Multi Format
I used the lighter fluid flush on the ikoflex 1,every shutter speed now works properly except for 1/10.It mostly fires closer to 1/50 except for about every 15 to 20 firing then it is still not firing at 1/10. Does anyone know why this is happening/


Dan Daniel

Subscriber
Joined
Jul 4, 2009
Messages
2,883
Location
upstate New York
Format
Medium Format
There is a pin that sets the escapement engagement. This pin can be bent back and forth a slight amount to fine tune the slow shutter speeds- 1/2, 1/5 and 1/10. It doesn't take much change in the position of this pin to throw the slow speeds seriously off. And when it is off, it is off for 1/10 most obviously. This is the first thing that I would check.

(The pin is not engaged for 1 second; this speed is set by moving the whole escapement.)

When you say that 1/2 and 1/5 are ok, is this from a speed checker or by ear?
