Dating my Kodak 2D 8x10

On The Mound

A
On The Mound

  • 4
  • 0
  • 35
Sinclair Lewis

A
Sinclair Lewis

  • 5
  • 1
  • 45
Street Art

A
Street Art

  • 2
  • 5
  • 95
Time a Traveler

A
Time a Traveler

  • 6
  • 2
  • 90
Flowering Chives

H
Flowering Chives

  • 4
  • 0
  • 88

Recent Classifieds

Forum statistics

Threads
198,223
Messages
2,771,287
Members
99,578
Latest member
williechandor
Recent bookmarks
0

John Jarosz

Member
Joined
May 17, 2006
Messages
145
Location
Fairfax Iowa
Format
ULarge Format
I have had 4 pass thru my hands & I researched the dates. They must be somewhere on the web, but I did not write down my source. I don't know why I didn't write it down, I do everything else. Anyway,
These were all 8x10:

135000 -- 1923 to 1924
144860 -- 1924 to 1925
189999 -- 1932 to 1937
442899 -- 1946 to 1948


RPippin

Subscriber
Joined
Apr 28, 2008
Messages
286
Location
Staunton VA
Format
Multi Format
I know this is an old thread, but I thought I'd drop in and see if anyone can help date my 8X10 2D. It is a "made for" model from Folmer Graflex and has a stamped plate on top that has 161-USN-266407 on it. Could this be a U.S.Navy model from WW11? This could fit in with the date, but it is a mystery. It's a great old beast thats been lovingly restored by a good friend and camera shop owner, with new bellows and ground glass. I worked the wood with Fornbys and polished up the brass a bit and have shot my first few sheets of film with it. Any help on the USN and date part would be great.


Fotoguy20d

Subscriber
Joined
Jan 23, 2008
Messages
1,252
Location
NJ
Format
4x5 Format
The six digit serial number is stamped on the left side of the rear standard, facing up, as you face the ground glass. It is hard to see because the rear of the camera/ bellows frame is directly above it .

Huh? Little help, please. I couldn't find it - I don't know if I'm looking in the wrong place or if it got wiped out by the refinisher.

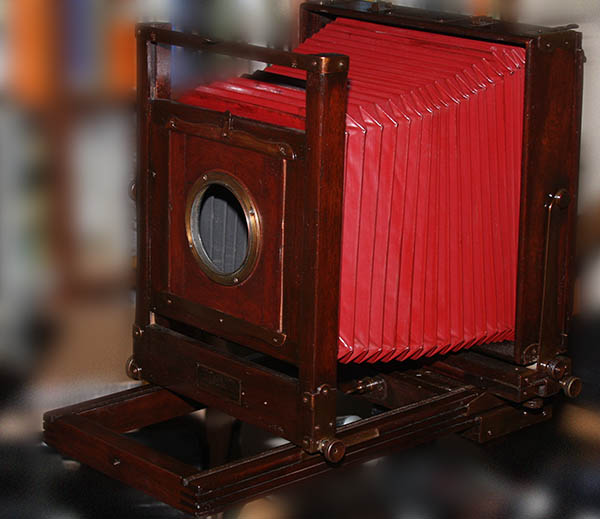

I just picked up the 8x10 2-D shown this morning from someone local on craigslist. From the C-1 plate, I'm guessing it's from 1941 but I should be able to confirm that from the graflex serial number.

It's a nice camera overall but needs a ground glass - any suggestions on the best/cheapest way to pick one up?

Thanks,
Dan


Attachments

  • IMG_5885.JPG
    123.4 KB · Views: 289
  • IMG_5882.JPG
    95.1 KB · Views: 280
  • IMG_5887.JPG
    63.1 KB · Views: 276

schrollphoto

Subscriber
Joined
Feb 22, 2009
Messages
73
Location
West Central
Format
Multi Format

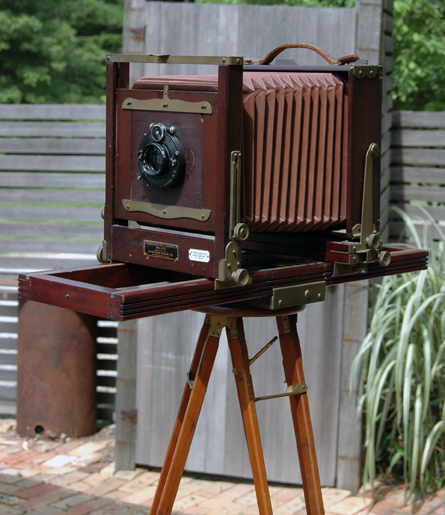

5x7 Eastman View 2-D

2D_4.jpg 2D_3.jpg 2D_2.jpg

I was recently gifted this fine piece (including tripod). Its serial number is 121082. It didn't come with film holders but, that shouldn't be an issue. The shutter still works on the high end which surprised me. The glass was also amazingly clean once I removed the layer of dust! Not sure if this lens came with it or not, the board looks a little different from the body. From reading this post, it must have been from the 1920's (if the numbers apply to all formats, not just the 8x10's). The bellows looked good (just the sunlight test, not film) and with a little TLC should make a come back. I've been shooting 4x5 for the last 25 years so this will be a fun jump up.


E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,197
Location
Adirondacks
Format
Multi Format
If that's a 7 inch lens, you'll need something longer. Nice gift!

Wat a minute, that's not an 8x10. The lens should cover 5x7 just fine.


mlbraun

Member
Joined
Jul 5, 2014
Messages
2
Format
8x10 Format

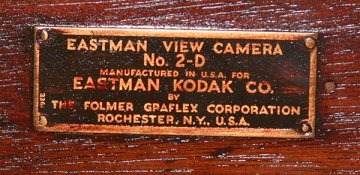

image.jpg My 2d must be an early one. It makes no mention of the Graflex company, and the serial number is only in the 16,000's. 16195, to be exact. Any idea what year that may have been?


Attachments

  • image.jpg
    688.7 KB · Views: 247
Last edited by a moderator:

Jon Shiu

Subscriber
Joined
Dec 2, 2003
Messages
3,291
Location
Mendocino, California
Format
Plastic Cameras
View attachment 90612 My 2d must be an early one. It makes no mention of the Graflex company, and the serial number is only in the 16,000's. 16195, to be exact. Any idea what year that may have been?

The serial number is located on top surface of the base of the rear standard. Looking from the back, it is on the left side.

Jon


shutterfinger

Member
Joined
Feb 25, 2013
Messages
5,020
Location
San Jose, Ca.
Format
4x5 Format
Using " A History of the Rochester, NY Camera and Lens Companies by Rudolf Kingslake, http://www.nwmangum.com/Kodak/Rochester.html ,
Century Camera Company- founded in 1900; purchased by George Eastman in 1903; 1907 became the Century Division of Eastman Kodak, merged with Folmer and Schwing.
Folmer and Schwing Manufacturing Company incorporated in April 1890; April 1905 purchased by George Eastman; 1907 became the Folmer and Schwing Division of Eastman Kodak; 1917 became the Folmer-Century Division; 1926 became the Folmer Graflex Company; 1945 Graflex Corp.
From many post in http://www.graflex.org/helpboard/ Folmer and Schwing put a serial number on each camera built but kept no record of those serial numbers. In 1907 it is assumed Mr. Schwing, the accountant of Folmer and Schwing, went out and purchased a single entry ledger. In that ledger was listed the work order number, the quantity, camera type, beginning serial number and ending serial number. In July 1922 they started listing the date the entry was made in the ledger. This ledger continued in use until 1962 when a second book was introduced. In 1973 a long time administrator took the serial number books with him as the door was closed for the last time. The book(s) were scanned and copies given to a few people with the understanding that it would never be made public, but that does not mean a holder of a copy cannot tell someone when their camera was made.
There is no way to know when a given camera was actually made as there may be a few days to two years between entries for a given model.
If the first entry was for 500 cameras those 500 serial numbers were assigned in sequence to that model. If the next entry was for 25 cameras then the next 25 serial numbers were assigned in sequence to that camera model. This pattern continued until 1947 or 1948 when a large block of numbers were set aside for Pacemaker Crowns and Pacemaker Speeds in each of their 3 formats. Some serial numbers were used two times by accident in the late 1950's or early 1960's. In 1960 Graflex started stamping a letter, number, letter date code on their products.

Now from the first serial number book:
16195-NA
121082- entry made 7-28-1922, 5 x 7 2D; #232 of 250.
135000- assigned to 2 1/4 x 3 1/4 RB Series B; 135400 5x7 2D; 136000 6 1/2 x 8 1/2 2D, all early 1924.
135865- assigned 1-9-1924, 5 x 7 2D; #365 of 500.
144860- assigned 4-23-1924, 8 x 10 2D; #10 of 400.
160268- assigned 2-15-1928, 8 x 10 2D; #277 of 500.
189999- assigned 11-20-1935, 5 x 7 2D, #85 of 150.
333745- in a batch of numbers skipped, assumed to be a military order, 1943-1944.
407056- assigned 9-23-1946, 8 x 10 2D; #283 of 300.
442899- assigned 8-16-1947, 8 x 10 2D; #128 of 300.
452499- assigned 12-8-1947, 8 x 10 2D; #169 of 300.

Cameras were built according to demand.

Last edited by a moderator:

mlbraun

Member
Joined
Jul 5, 2014
Messages
2
Format
8x10 Format
Oh, I believe it is 145011, which might place it somewhere around 1924. Thanks so much!


Attachments

  • image.jpg
    181.1 KB · Views: 198

underbyte

Member
Joined
May 24, 2006
Messages
3
Location
Minneapolis,
Format
8x10 Format

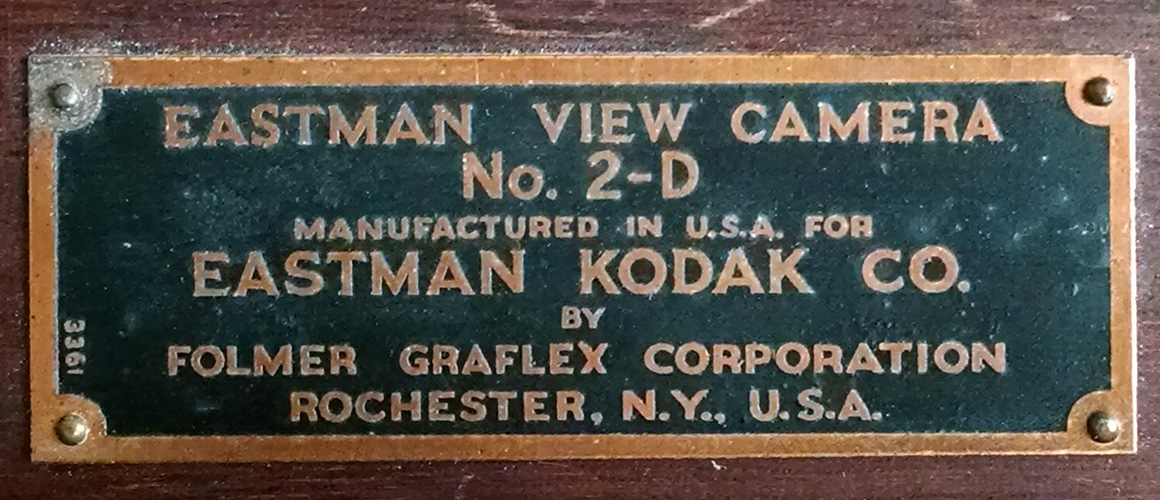

another 2-D for the record

Serial 174725
Eastman View Camera
No. 2-D
Manufactured in the USA for
Eastman Kodak co.
by
Folmer Graflex Corporation

Last edited by a moderator:

mhcfires

Member
Joined
May 18, 2008
Messages
593
Location
El Cajon, CA
Format
Multi Format
I have a 5x7 2D: Serial # 161257 and an 8x10 Serial # 191257. What are the dates on these cameras?

Thank you,

m


mhcfires

Member
Joined
May 18, 2008
Messages
593
Location
El Cajon, CA
Format
Multi Format
Thank you for the information. I hadn't noticed that the 8x10 is an Eastman View, but that is what it says on the nameplate.


m



161257 listed as a #2D 5x7 in the middle of a batch of 250 made in 1928.
191257 listed as a 8x10 Eastman View, last one of a batch of 7 end of March 1936. There is a work order for #2D 8x10 listed in April.
Your 8x10 is an Eastman View.


BlackKnight

Member
Joined
Jul 17, 2015
Messages
5
Format
Large Format
Date please for a 2D. wood is stamped 191 in several areas. SN is 124,623. "Made by". Leather strap says EASTMAN VIEW.
Small brass plate says " Detroit Camera Shop" below "Eastman" plate on lower rail. Glass plate measures roughly 4x5? So is this a 5x7 camera? 30 cm lens German

Thank you in advance


BlackKnight

Member
Joined
Jul 17, 2015
Messages
5
Format
Large Format
attachment.php
attachment.php
Thank you so very much. I appreciate the info shutterfinger. I recently got this camera that my dad used in his studio when I was a very young child. He passed away 13 years ago and my mom gave me this beautiful camera. It really is a work of art!

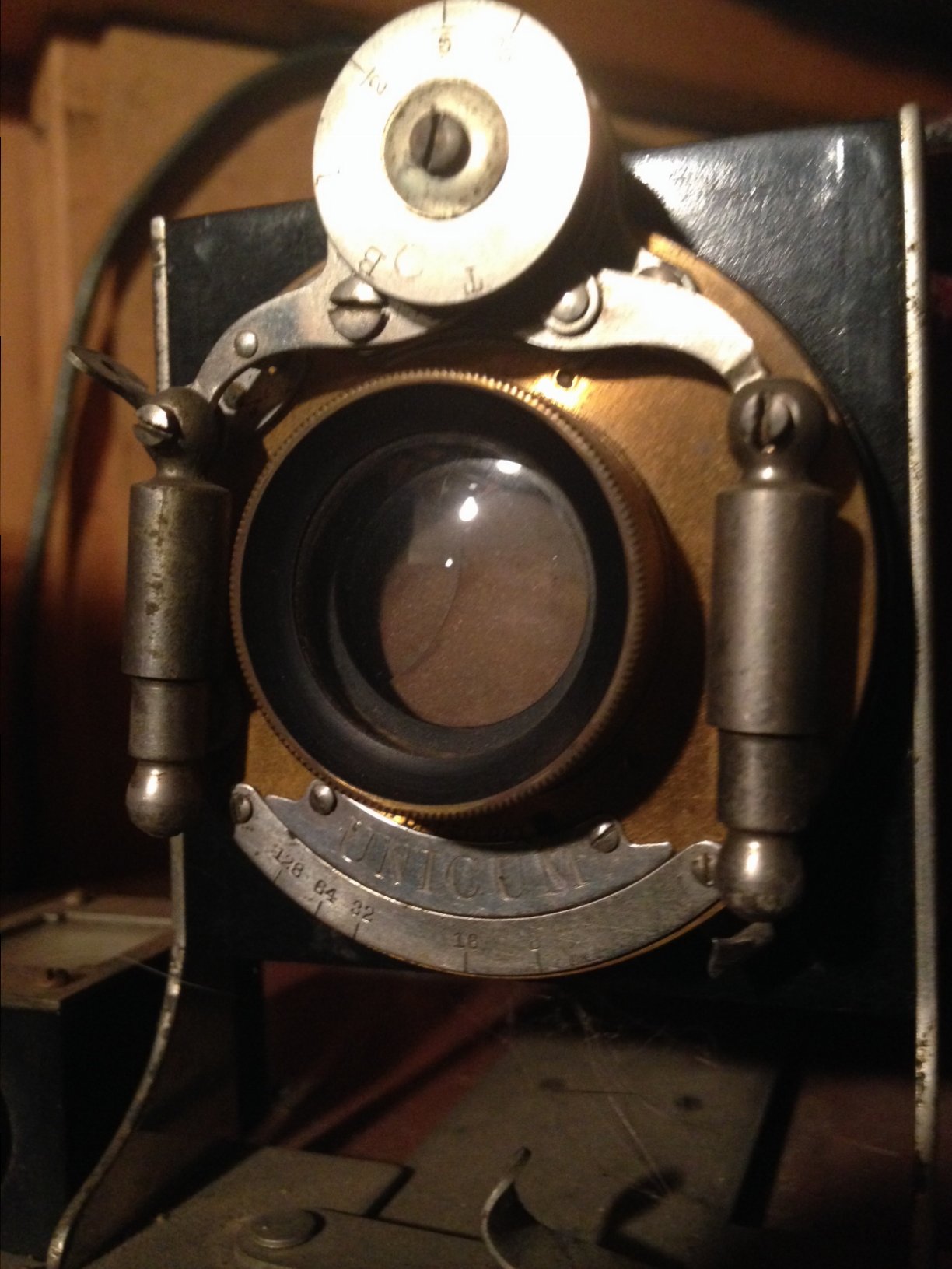

I have another camera that I am trying to I.D. but can't seem to find a picture of online. It has a unicum lens F8. Folding camera. Red bellows. leather case outside. It has a black lens mounting plate. In the back the top open and there are metal film plates? Any Ideas what it might be? or where to find markings?


Attachments

  • photo 2-1.JPG
    photo 2-1.JPG
    223.4 KB · Views: 497
  • photo 1-1.JPG
    photo 1-1.JPG
    254.2 KB · Views: 473

BlackKnight

Member
Joined
Jul 17, 2015
Messages
5
Format
Large Format
Thanks for the info and links. Lots of great fun information. Appreciate your knowledge


lifein2x3

Member
Joined
Jul 31, 2006
Messages
65
Location
Richmond, VA
Format
Multi Format
I've just recently picked up a 2D 8x10", the serial number is either 128593 or 123593, I can't tell. I'm pretty sure the third digit is a 3, though. Any idea when it was made?
