Ic-racer the darkroom setup looks awesome I love Durst CLS 2000's. Are you only doing Black and White work or Colour as well?
Darkroom portraits
-
A
- Thread starter argentic
- Start date
Recent Classifieds
-
For Sale Nikon AI 28 f/3.5
- Started by MCB18
-
For Sale Nikon 28mm 2.8 ais and 20mm 2.8 ais
- Started by Gram Nylén
-
For Sale FS: Beseler Printmaker 35 lamp housing and partial neg carrier
- Started by dirkfletcher
-
For Sale FS: Nagaoka 4x5 Pinhole Camera
- Started by B.S.Kumar
-
For Sale Sinar Grip & Cable Release for Sinar Handy 4x5 - Hard to Find - EX++++
- Started by pdccamerqs
Forum statistics
- Status
All 4 of my enlargers have dichroic heads, primarily to use multigrade B&W material.
ic-racer,
The other enlargers are 4x5" Omega models?
Tom
The other enlargers are 4x5" Omega models?
Tom
- Joined
- Aug 16, 2006
- Messages
- 198
- Format
- Multi Format
Henry Alive new Darkroom

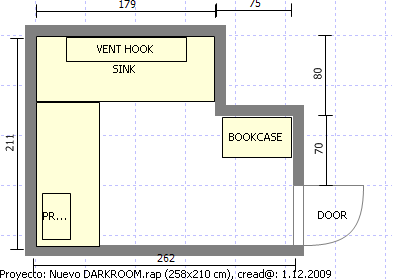

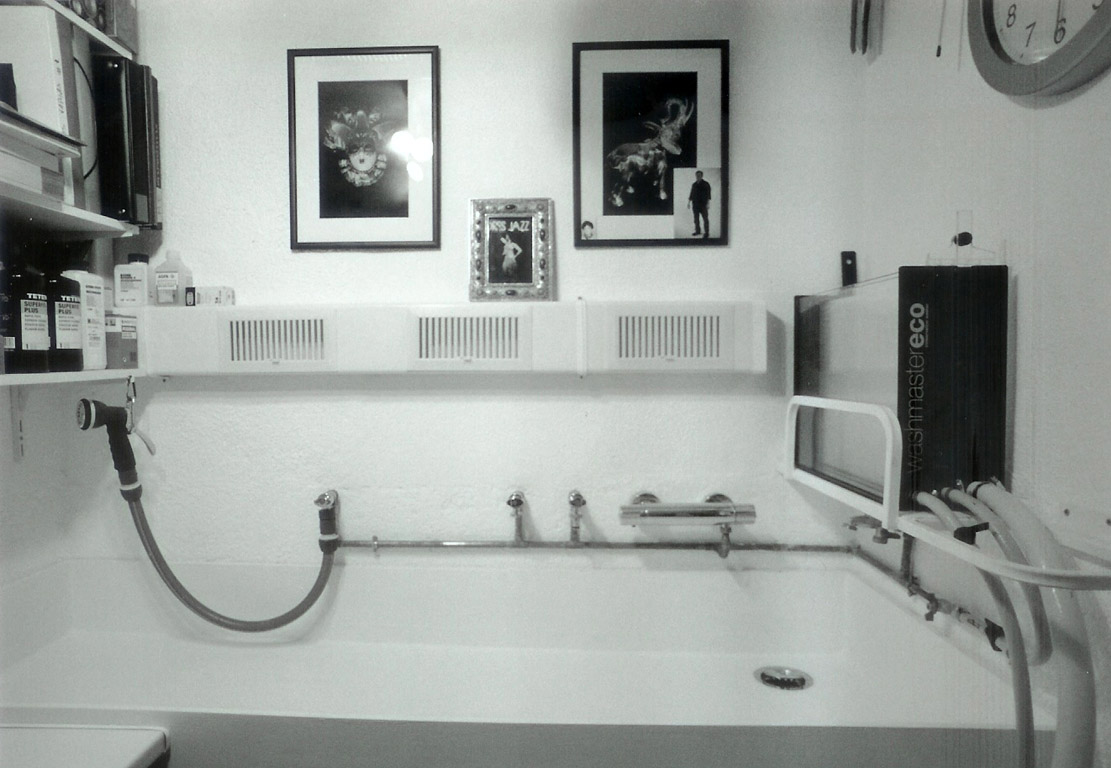

This is my new darkroom, and even though the area is exactly the same than always, I have introduced some improvements. First of all, I have put a wood sink that my brother Saver made for me. It is 1.75 m x 0.65 m x 0.20 m. It has a lot of special resin layers and it has been reinforced with fibber glass. Second, I bought the 12x16 Nova Washmaster-ECO Archival Print Washer and I put it on a metal support above the sink, just at the right hand. Notice that the water do not drain trough the sink, as the hoses go directly to the drain pipe. In third place, I have put a ventilation system. I used a vent that can move more than twenty times per hour the total volume of the darkroom (Just in case, this is the vent I bought: Soler & Palau TD-350/125 SILENT). The air is exhausted trough plastic pipes directly to the backyard. I also bought a 12x12 Doran Heavy Duty Darkroom Light Tight Louvers in Adorama, and I put it at the door.
I keep the rest of the equipment: Meopta Opemus 6 printer, RH Designs Analyser Pro, etc.
Now, I am able to print both RC and Fiber Paper. My Meopta can print as big as12x16, and I can put four trays inside the sink, so I can work with two fixer baths when I make 12x16 baryta base printers.

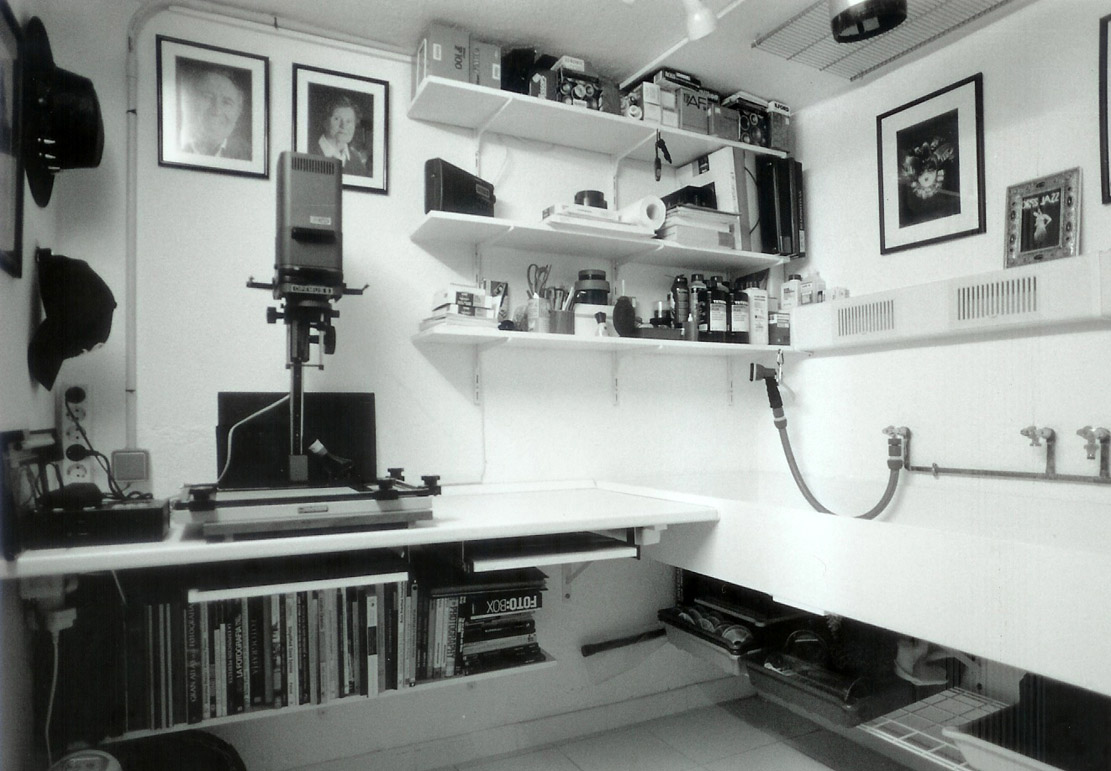

I am annexing some pictures in order to show you how my new darkroom looks like. They are not very good, but you can see how the sink looks like, the dry side and the wet side, the washer support, the ventilation system, and what things are located just under the sink.
Finally, I want to thank all of you that gave me ideas about how to ventilate my room when I asked for help to the forum, and mainly to my brother Saver, who made the wood sink and help me to put everything in its place.
This is my new darkroom, and even though the area is exactly the same than always, I have introduced some improvements. First of all, I have put a wood sink that my brother Saver made for me. It is 1.75 m x 0.65 m x 0.20 m. It has a lot of special resin layers and it has been reinforced with fibber glass. Second, I bought the 12x16 Nova Washmaster-ECO Archival Print Washer and I put it on a metal support above the sink, just at the right hand. Notice that the water do not drain trough the sink, as the hoses go directly to the drain pipe. In third place, I have put a ventilation system. I used a vent that can move more than twenty times per hour the total volume of the darkroom (Just in case, this is the vent I bought: Soler & Palau TD-350/125 SILENT). The air is exhausted trough plastic pipes directly to the backyard. I also bought a 12x12 Doran Heavy Duty Darkroom Light Tight Louvers in Adorama, and I put it at the door.
I keep the rest of the equipment: Meopta Opemus 6 printer, RH Designs Analyser Pro, etc.
Now, I am able to print both RC and Fiber Paper. My Meopta can print as big as12x16, and I can put four trays inside the sink, so I can work with two fixer baths when I make 12x16 baryta base printers.
I am annexing some pictures in order to show you how my new darkroom looks like. They are not very good, but you can see how the sink looks like, the dry side and the wet side, the washer support, the ventilation system, and what things are located just under the sink.
Finally, I want to thank all of you that gave me ideas about how to ventilate my room when I asked for help to the forum, and mainly to my brother Saver, who made the wood sink and help me to put everything in its place.
Attachments
Yes, there are two D5500. Boy those looked big until I got the Durst. Now they look small
. On is set up for minox through 35mm. The other is set up for 6x6cm through 4x5in.
Also, there is a Minolta 6x7 enlarger I set up for my kids.
That is a nice darkroom Henry.
I like the photos on the wall. Nice touch.
I think I'd like to get a cork board on the wall to tack photos on.
Photos in a darkroom create a good mood and act as inspiration, IMHO.
I think I'd like to get a cork board on the wall to tack photos on.
Photos in a darkroom create a good mood and act as inspiration, IMHO.
I like the photos on the wall. Nice touch.
I think I'd like to get a cork board on the wall to tack photos on.
Photos in a darkroom create a good mood and act as inspiration, IMHO.
More importantly, they provide a "point of reference". When working a print you can compare your wet work print to the reference prints on the wall to make sure that your eyes aren't deceiving you and you end up with a too dark or too light print. There should be one reference print of each style of image (portrait, high-key, low-key, straight landscape, street scene, etc.) on the wall near your development trays. They don't need to be the world's best photos, but they do need to have the representative tones you are seeking in your work.
Once you have your wet work print matching your reference print, then just dial in your drydown compensation for the final print.
A few of us did a print exchange recently which I'm impressed with the tonalities of several of the prints--tonalities which I'm wanting to mimick in some of my own work, so those prints will be going up on the wall in my new darkroom.
I've known of photographers to keep a binder with reference prints in, but that just seems to take away from the glance up and down ease of prints on the wall.
I have finished the construction phase of my new darkroom. I am now starting to install the equipment.

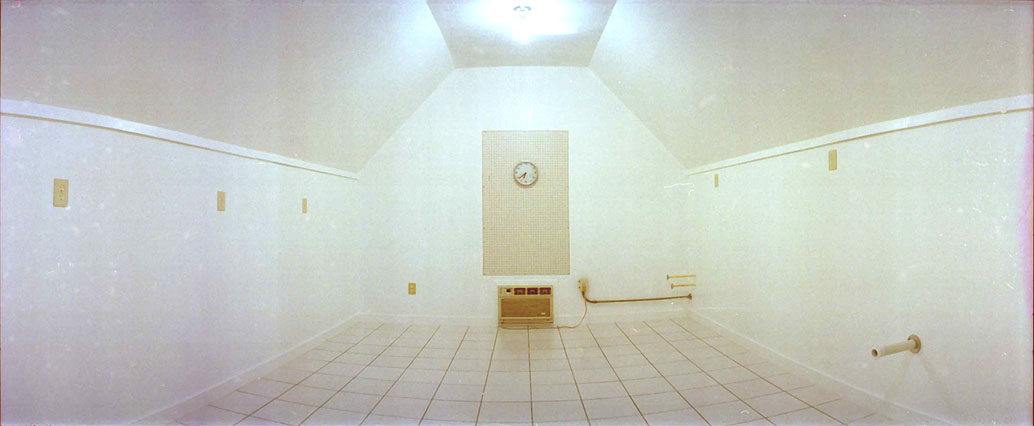

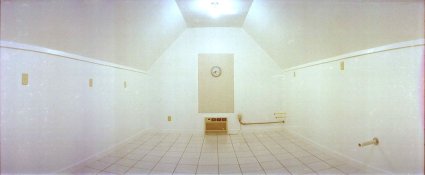

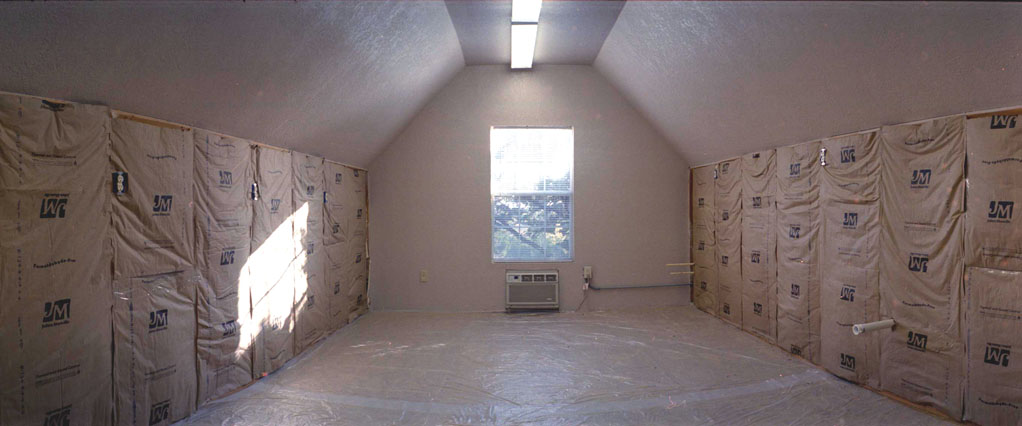

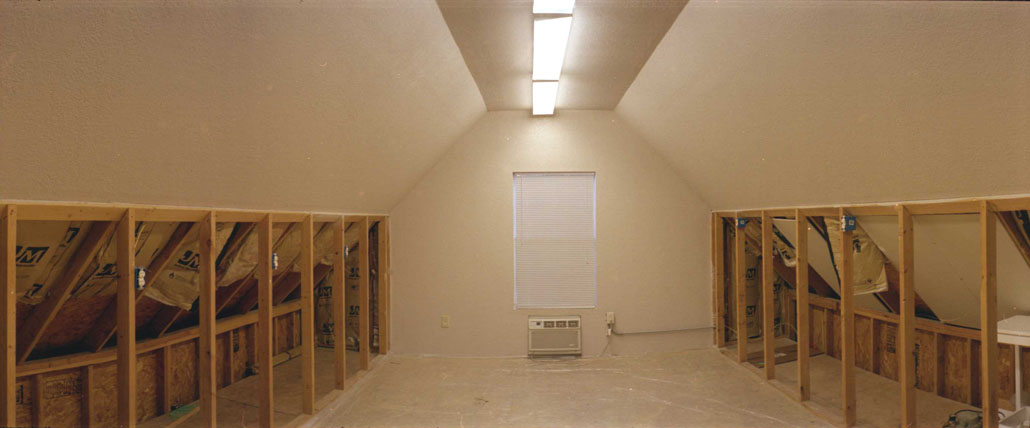

I own a swing-lens panoramic camera. I had never shot color film before with this camera until I decided to do some documentation of the darkroom construction. I had to wait until I finished up the roll and then got it processed. I am just not very practiced at scanning and I am afraid that the results are disappointing. Never mind the color balance from the different lighting. But here they are anyway to show some before and after. My analog printing is much better and that is why I'm building the darkroom!
All this is being documented in painfully boring detail in the blog in my signature.
I own a swing-lens panoramic camera. I had never shot color film before with this camera until I decided to do some documentation of the darkroom construction. I had to wait until I finished up the roll and then got it processed. I am just not very practiced at scanning and I am afraid that the results are disappointing. Never mind the color balance from the different lighting. But here they are anyway to show some before and after. My analog printing is much better and that is why I'm building the darkroom!
All this is being documented in painfully boring detail in the blog in my signature.
Attachments
David, that is God's darkroom. Massive.
Well, the swing-lens makes it look even bigger! The actual floor dimensions are 12x18 feet.
David,
Do you have a floor plan design yet? I'd be interested to know how you intend to use the space.
Tom
Do you have a floor plan design yet? I'd be interested to know how you intend to use the space.
Tom
If I posted pics of my dark room, you would all have nightmares for a week. It's been around for as long as I've been alive, and I'm still using the same trays, tongs, and table that I learned on. My wet, and dry are on the same table, so I need to be more careful. Yeah it's ugly, but It's mine, and I do get some pretty good, and saleable work. My only dream is to have a Dark room that is on the gound floor, and not the basement.
OK so now we really want to see your darkroom. And what's wrong with the basement seems much better for nightmares.
Roger

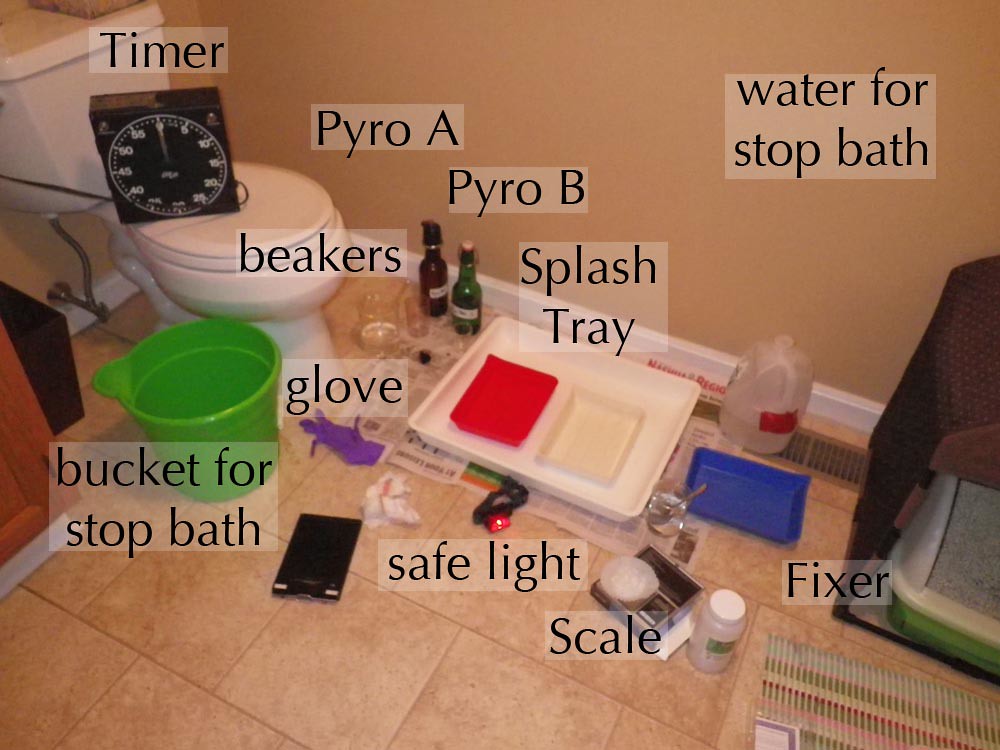

This is my 'darkroom's film/plate developing area. Just out of sight is the emulsion making area, which sometimes is used for doing laundry. Also out of sight is the double trashbag tucked into the window light proofing.
Do I get bonus points for running water AND built in toilet?
Dear alexhill,
Awesome. I can stop whining to myself about my own setup now. ;>)
Neal Wydra
Awesome. I can stop whining to myself about my own setup now. ;>)
Neal Wydra
Brilliant! This is how I started too. In the family bathroom, many's the time when an irate sibling would pound on the door pleading to use the loo just as print entered the developer.
Brilliant! This is how I started too. In the family bathroom, many's the time when an irate sibling would pound on the door pleading to use the loo just as print entered the developer.
Haha
just the cats in my case. We have another bathroom that my parents use when i've holed up

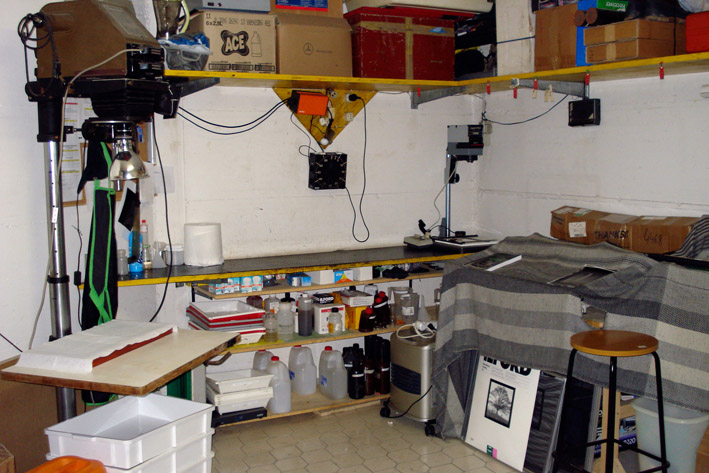

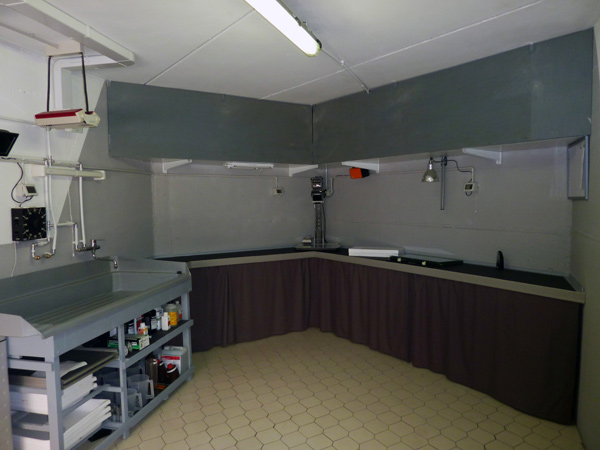

After six-seven months I finished update of my darkroom, in the first photos the darkroom yesterday other photos are the new set up.

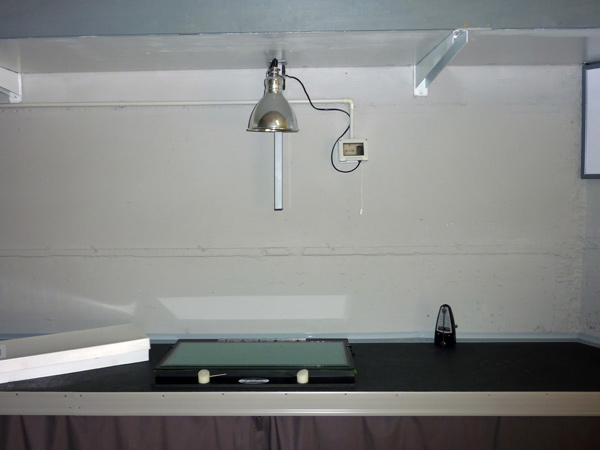

The third photos is my contact print exposing with my new Inglis 8x20" contact printer, very useful and well made.

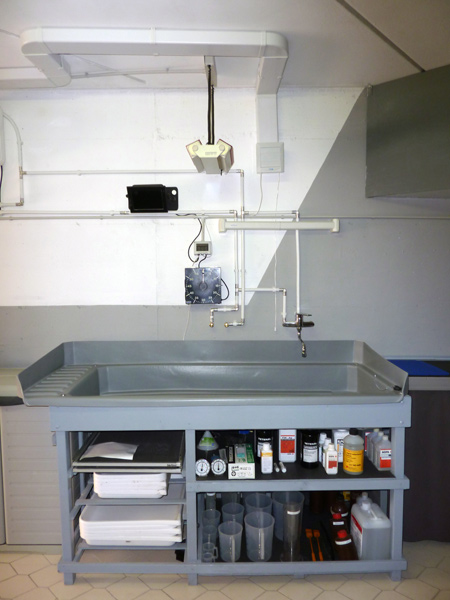

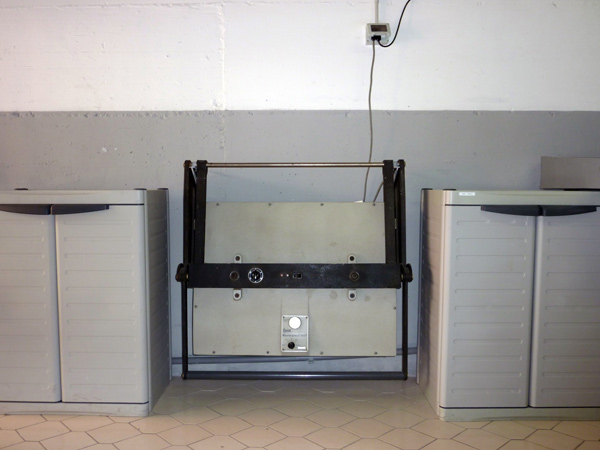

The fifth photos is the wet place, and the sixth photos is my press mounting on the wall to save space, now a my friend has almost finished the mechanism to up the press only by a finger.

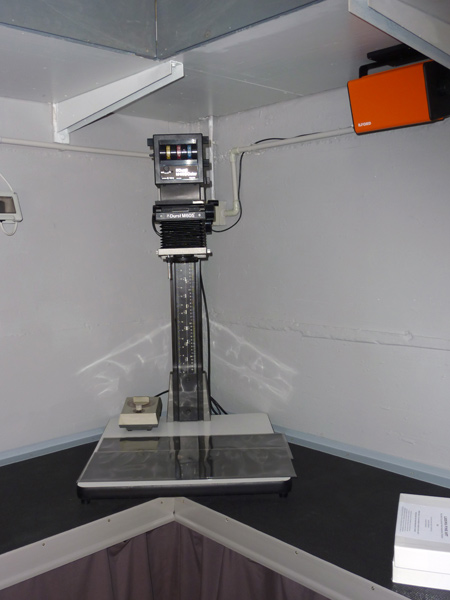

I have also an enlarger, a durst m605 colour, sometimes I have to print old negatives, even if now all my work is done by 8x10 and 8x20 and contact prints.
Stefano
The third photos is my contact print exposing with my new Inglis 8x20" contact printer, very useful and well made.
The fifth photos is the wet place, and the sixth photos is my press mounting on the wall to save space, now a my friend has almost finished the mechanism to up the press only by a finger.
I have also an enlarger, a durst m605 colour, sometimes I have to print old negatives, even if now all my work is done by 8x10 and 8x20 and contact prints.
Stefano
Attachments
Last edited by a moderator:
photo8x10 that is beautiful. So clean and tidy I bet its a joy to play in
I bet its a joy to play in
Yes Alex, I love playing in it... before was a messy now planning well everythings is become clean and tidy.. and works perfectely!!!! I'm so happy!
photo8x10,
What contact process are you using?
Tom
What contact process are you using?
Tom
Hi Tom,
I print all my work on silver-chloride paper like Azo and Lodima.
Sometimes but not often(particolar project), I print some 5x7" in platinum/Palladium, and I cand do easily, putting my light at the minor distance from the contact printer and changing the bulb with a black lamp(power enough), and work properly.
Stefano
I print all my work on silver-chloride paper like Azo and Lodima.
Sometimes but not often(particolar project), I print some 5x7" in platinum/Palladium, and I cand do easily, putting my light at the minor distance from the contact printer and changing the bulb with a black lamp(power enough), and work properly.
Stefano
