Adox CMS II 20 tips? Experience stories?

Discussion in 'B&W: Film, Paper, Chemistry' started by ChrisBCS, Mar 16, 2017.

  1. OP
    OP
    ChrisBCS

    ChrisBCS Member

    Messages:
    142
    Joined:
    Mar 14, 2017
    Location:
    College Station, TX
    Shooter:
    Medium Format
    Thanks darkosaric! I imagine with 120 film, you could make some truly monstrous prints before grain became even a slight issue.

  2. Tor-Einar Jarnbjo

    Tor-Einar Jarnbjo Member
    Ads Enabled

    Messages:
    133
    Joined:
    Mar 21, 2017
    Location:
    Germany
    Shooter:
    Medium Format
    ChrisBCS: Depending on how you develop and how monstrous the prints are, you can make huge prints from many brands of 120 film without having any issues with grain. What kind of camera and lenses do you have? If you are not very experienced with film photography, you might actually be better off with a more traditional film with a higher exposure latitude.

    And when it comes to colour filters: The Adox CMS II will behave similar to most other b&w films, but due to its very slow speed, you will soon reach exposure times outside the safe hand-held range if you also add any filter. Also, if you really want to take advantage of the film's resolution, I would be hesistant to put anything more than necessary, not even a colour filter, into the optical system.

    Last edited: Mar 21, 2017
  3. pentaxuser

    pentaxuser Subscriber

    Messages:
    10,258
    Joined:
    May 9, 2005
    Location:
    Daventry, No
    Shooter:
    35mm
    Can our two German contributors expand on "easily printable" and "no problem with the contrast" by saying what grade was used? I take it that it wasn't the case of needing to print on grade 1, for instance?

    Thanks

    pentaxuser

  4. Tor-Einar Jarnbjo

    Tor-Einar Jarnbjo Member
    Ads Enabled

    Messages:
    133
    Joined:
    Mar 21, 2017
    Location:
    Germany
    Shooter:
    Medium Format
    There is no definitive standard for the paper grade numbers. I usually print with my Durst enlarger on variocontrast paper without any colour filtering. On the Ilford grade scale (ranging from 00 to 5), this corresponds to grade 2. If I need any contrast adjustment, the negative is usually too flat, so I have to go up to grade 3 or on rare occasions grade 3½.

  5. darkosaric

    darkosaric Subscriber

    Messages:
    3,776
    Joined:
    Apr 15, 2008
    Location:
    Hamburg, DE
    Shooter:
    Multi Format
    I have used Fotokemika Emaks grade 2, Fomabrom normal N grade, and Ilford Multigrade without filters. I did not need to make any dodging or burning with CMS 20 negatives developed in Adotech or Technidol.

    Last edited: Mar 21, 2017
  6. pentaxuser

    pentaxuser Subscriber

    Messages:
    10,258
    Joined:
    May 9, 2005
    Location:
    Daventry, No
    Shooter:
    35mm
    Thanks, both, for the replies. Based on your experiences it would seem that properly exposed and processed negatives in Adotech do not suffer from excessive contrast.

    pentaxuser

  7. OP
    OP
    ChrisBCS

    ChrisBCS Member

    Messages:
    142
    Joined:
    Mar 14, 2017
    Location:
    College Station, TX
    Shooter:
    Medium Format
    Thank you! My experience with film photography is twelve years old (as in, I haven't done it in more than a decade). I have not been in a darkroom since college, and even then it was not very frequently. I was working on film most during my high school years. I've been shooting digital since, and am just now returning to full analog. I have put together a V system with a Hasselblad 500 C (1967) and a 1975-vintage 80mm planar. My long term goal is final prints with sizes that require using the enlarger on the darkroom wall. One of the myriad reasons I am getting back into film is the size capability.

  8. Gerald C Koch

    Gerald C Koch Member

    Messages:
    8,262
    Joined:
    Jul 12, 2010
    Location:
    Southern USA
    Shooter:
    Multi Format
    If you can mix your own and wish to experiment you could try either H&W Control developer (Bluefire HR) or Perfection XR-1. Both were designed for use with microfilm to produce a continuous tone negative. They would certainly produce better results than using a conventional developer.

  9. Alan Johnson

    Alan Johnson Subscriber
    Ads Enabled

    Messages:
    1,949
    Joined:
    Nov 16, 2004
    (there was a url link here which no longer exists)
    Post 19 gives some results. In the past I used a few rolls but it seems a bit like hard work.

  10. Tor-Einar Jarnbjo

    Tor-Einar Jarnbjo Member
    Ads Enabled

    Messages:
    133
    Joined:
    Mar 21, 2017
    Location:
    Germany
    Shooter:
    Medium Format
    I don't want to ruin your enthusiasm, but I think that you might be overestimating whatever you call 'size capability' here. I assume that you mean the 80mm Zeiss planar, and even though it is a more than decent lens, it is not really top-notch when it comes to sharpness and contrast and I would be very surprised if you are able to distinguish prints from Fuji Acros (or many other 'regular' films) or Adox CMS II of images taken with this lens based on sharpness and resolution alone.

    If it is inevitable for you to prevent grain (or image noise in general) at any cost, why don't you use a DSLR instead?

  11. OP
    OP
    ChrisBCS

    ChrisBCS Member

    Messages:
    142
    Joined:
    Mar 14, 2017
    Location:
    College Station, TX
    Shooter:
    Medium Format
    Good to know! Thanks!

    See my intro thread.

  12. piu58

    piu58 Member
    Ads Enabled

    Messages:
    1,036
    Joined:
    May 29, 2006
    Location:
    Leipzig, Ger
    Shooter:
    Medium Format
    Dear photographers,
    I know that is an old thread. But I have something to contribute to the CM 20 / Orthopan UR films (which is Agfa High Definition Pan, a document film).

    From time to time I tried to get a normal contrasty negative form it, without the usage of the very good but expansive Adotech developer. Now I found a solution. It consists of mixing Rodinal with a tiny amount of fixing solutions. I explained (in German) how and why it works:
    https://aphog.de/forum/index.php/Th...CMS-20-weichklopfen-mit-Hausmitteln-Wirklich/

    The recipe:
    - 3 ml of ready to use fixingsolution. I used Adofix Plus 1+4
    - a tiny amount of NaOH which can be got form drain cleaner. It serves for neutralizing the acid in the fix. If you use neutral fixer, you don't need that.
    - water to 500 ml, 20 deg Celsius
    - 7 ml Rodinal

    Expose for 6-12 ASA. Develop 15 mins with continuous agitation. You get negatives which are easy to print. In comparison to Adotech you sacrifice one stop and get a slightly higher contrast of 0.75 instead of around 0.65.

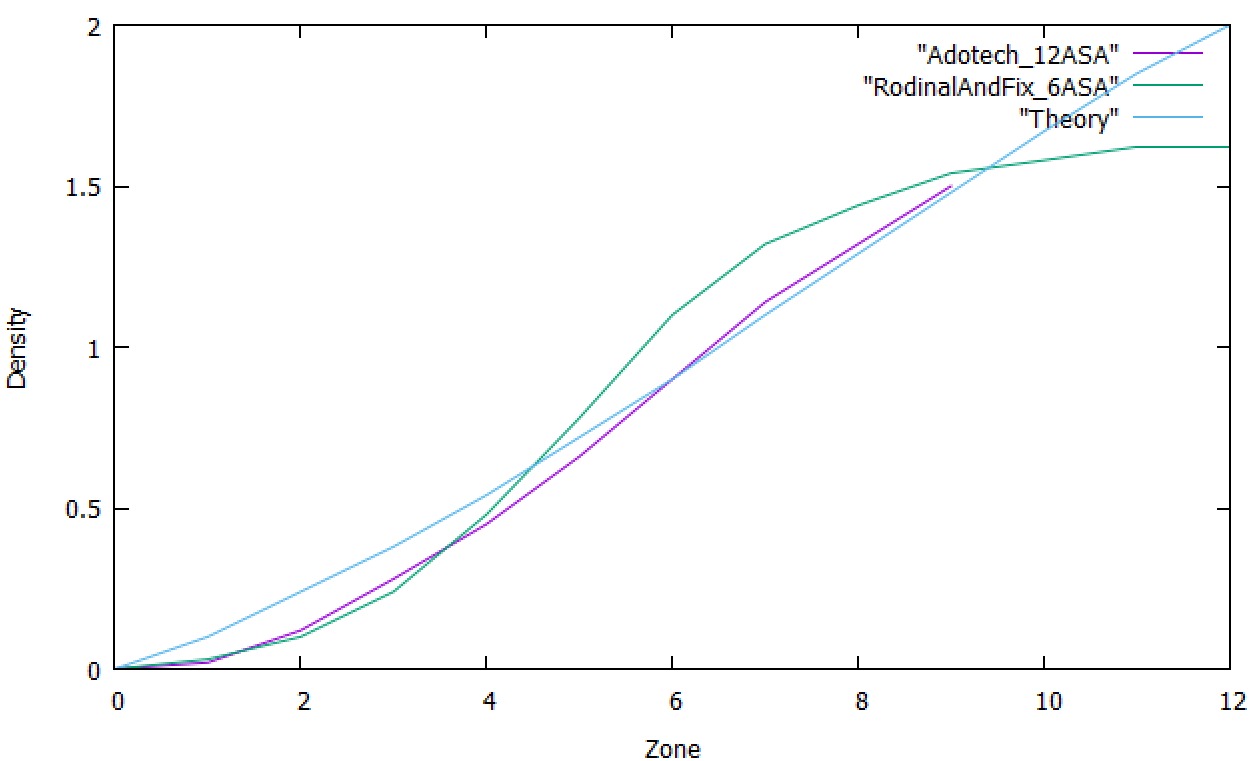

    The image shows a comparison of the characteristic curves of the film i Adotech (thought having 12 ASA) with my Rodinal formula (thought having 6 ASA). rodinalFixEn.jpg

  13. darkosaric

    darkosaric Subscriber

    Messages:
    3,776
    Joined:
    Apr 15, 2008
    Location:
    Hamburg, DE
    Shooter:
    Multi Format
    Moin Uwe,

    Interesting approach, I will try it next year :smile:.

    Regards,
    Darko

  14. Sponsored Ad
  15. Pioneer

    Pioneer Subscriber
    Ads Enabled

    Messages:
    2,562
    Joined:
    May 29, 2010
    Location:
    Elko, Nevada
    Shooter:
    Multi Format
    Interesting. I'll give this a try.

  16. Pat Erson

    Pat Erson Member

    Messages:
    252
    Joined:
    Dec 5, 2008
    Shooter:
    35mm RF
    Gerald would you please share some of your knowledge on Perfection XR-1? The info I found online is rather confusing (for me anyway!)

  17. ITKI

    ITKI Member

    Messages:
    67
    Joined:
    Mar 13, 2016
    Location:
    Berlin
    Shooter:
    Multi Format


    This is how Adox (35mm) CMS II looked over here developed in Diafine @ 22°C / 3:3.

    Ignore the vignetting, this stems from an improper lens shade,
    but as you can see it's very very contrasty (Acros gets very contrasty as well but that's a story for a different thread).

    I decided to shoot this film and develop it in Diafine after seing the remarkable results here and here
    this is the first version of the CMS film though so things might have changed now - would love to see others' results with CMS (II) in Diafine.

    Cheers.

  18. locutus

    locutus Member

    Messages:
    447
    Joined:
    Jun 9, 2009
    Location:
    Finland
    Shooter:
    Multi Format
    With what colour filter did you shoot that? i guess you used a deep orange or red filter to keep the definition in the sky?

  19. trendland

    trendland Member
    Ads Enabled

    Messages:
    2,310
    Joined:
    Mar 16, 2012
    Shooter:
    Medium Format
    I would agree with your statement regarding tonals.
    From own experience I can also follow what you mentioned about alternate developers.
    I can't say if I have over one dozent formulas (it seams to me it is nearly a dozent) but with little more research - as you obviously have made - you are also right concerning this (many formulations)
    With different dillution methods and different two part/ three part conceptions - it is a quite interisting experience.
    My intention was just to avoid the expensive modern (recomanded) developers.
    But Gerald (you may beat me for this following I have to state) these "microfilms" in modern use (in post cold war period) - are to use for photographical issues via gradation diffraction/to bend the gradation from special designed devellopers.
    Todays chemist can't reinvent the wheel - of cause.
    And to whom I am telling this - sure you are well knowing all issues about.
    And with older formulations from different kind it should work also - but my experience is same as yours.
    In regard of nice tonals one would merily
    blunt ones theeth. ....:cry:..!
    Because it is the wrong approach.
    Microfilms aren't designed to use in photographical way's - but from special devellopers it is POSSIBLE.
    The wrong approach is if your focus is to tonals - just forget it - you will never be thrilled from these films.
    Therefore you may find a resolution (from small grain - compared with extreme sharpness) - you can't find with many other emulsions.

    with regards

  20. ITKI

    ITKI Member

    Messages:
    67
    Joined:
    Mar 13, 2016
    Location:
    Berlin
    Shooter:
    Multi Format
    Y-52

  21. trendland

    trendland Member
    Ads Enabled

    Messages:
    2,310
    Joined:
    Mar 16, 2012
    Shooter:
    Medium Format
    I did it in the same way. If you can live with a tonal range from this film, most others are bored from - I would give you following hint : To have the smalest grain you may reach PULL WITH PERCEPTOL !
    Of course you can't follow a speed boat race then - but if your tripod is nice why not shot a High resolution landscape ?
    The impact with landscape is much to often on/with tonals. But there is no law not to proceed alternate.
    THEN YOU WILL HAVE E.I. ISO 6 - 8 and you should shorten perceptol developing time 1/3 (not the 1/2 - but make your own experience).
    with regards

  22. trendland

    trendland Member
    Ads Enabled

    Messages:
    2,310
    Joined:
    Mar 16, 2012
    Shooter:
    Medium Format
    I would not blame this 80 C T*/planar so much.
    Look at the new Zeiss Lenses / they have best characteristics with open lens - year!
    Therefore the 1975 Planar can't reach the same (with open lens).
    But haven't we all learned to use 5,6/8 ?
    .....:cool:

    with regards

  23. locutus

    locutus Member

    Messages:
    447
    Joined:
    Jun 9, 2009
    Location:
    Finland
    Shooter:
    Multi Format
    Thanks!

    I guess that kinda confirms to stick to just light yellow filtration and nothing to strong...

  24. piu58

    piu58 Member
    Ads Enabled

    Messages:
    1,036
    Joined:
    May 29, 2006
    Location:
    Leipzig, Ger
    Shooter:
    Medium Format
    Today I made a few shots with CM2 and my Rodinal-Fix formula. I exposed for 9 ASA. I show you a print form one of the negatives. Paper is Ilford multigrade without filtering. As you can see, the print may be slightly less contrasty. But it is far away from other trials with standard developers.
    I did not use a tripod and used my lens rather wide open. Apparently it has field curvature, which can be seen in the edges.


    Attached Files:

    • cm20.jpg
      File size:
      120.8 KB
      Views:
      70
  25. ITKI

    ITKI Member

    Messages:
    67
    Joined:
    Mar 13, 2016
    Location:
    Berlin
    Shooter:
    Multi Format
    ..looking rather good @piu58 - thanks for sharing!

  26. Old-N-Feeble

    Old-N-Feeble Subscriber
    Ads Enabled

    Messages:
    6,398
    Joined:
    Feb 22, 2012
    Location:
    South Texas
    Shooter:
    Multi Format
    After reading many references to this film, I've come to the conclusion, it's best use is for low contrast subjects in flat lighting. It seems this film really shines at accentuating textural detail in those scenarios.
