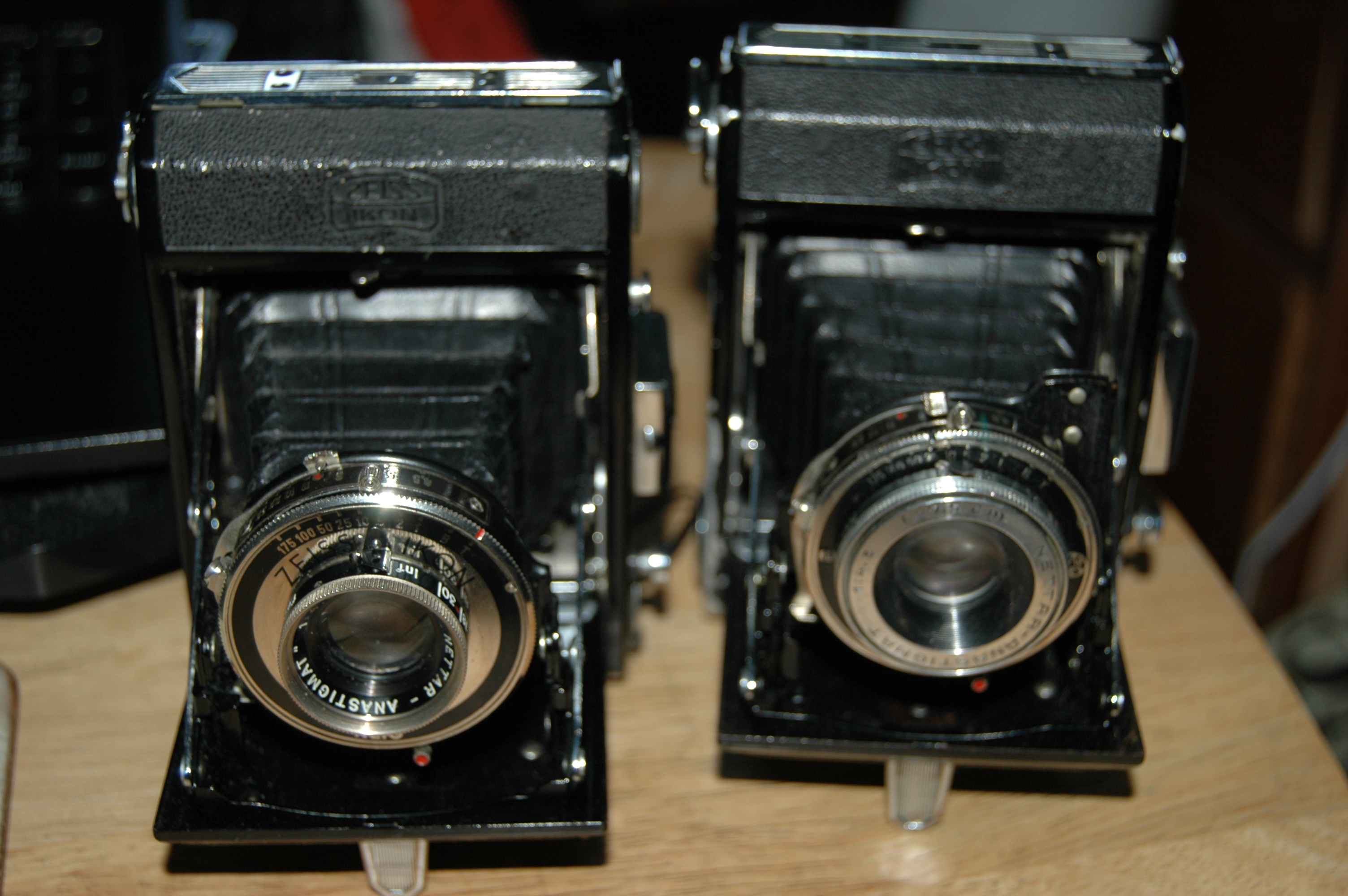

I have 2 Nettar 515's by Zeiss, one is working well at all speeds, the other, slow speeds under 1/25 are sluggish, which is no problem.

Both are 120 film, taking 6x4.5 negatives.

They entered this world sometime in 1937, but how long was this model produced for? Until WW2, or after?

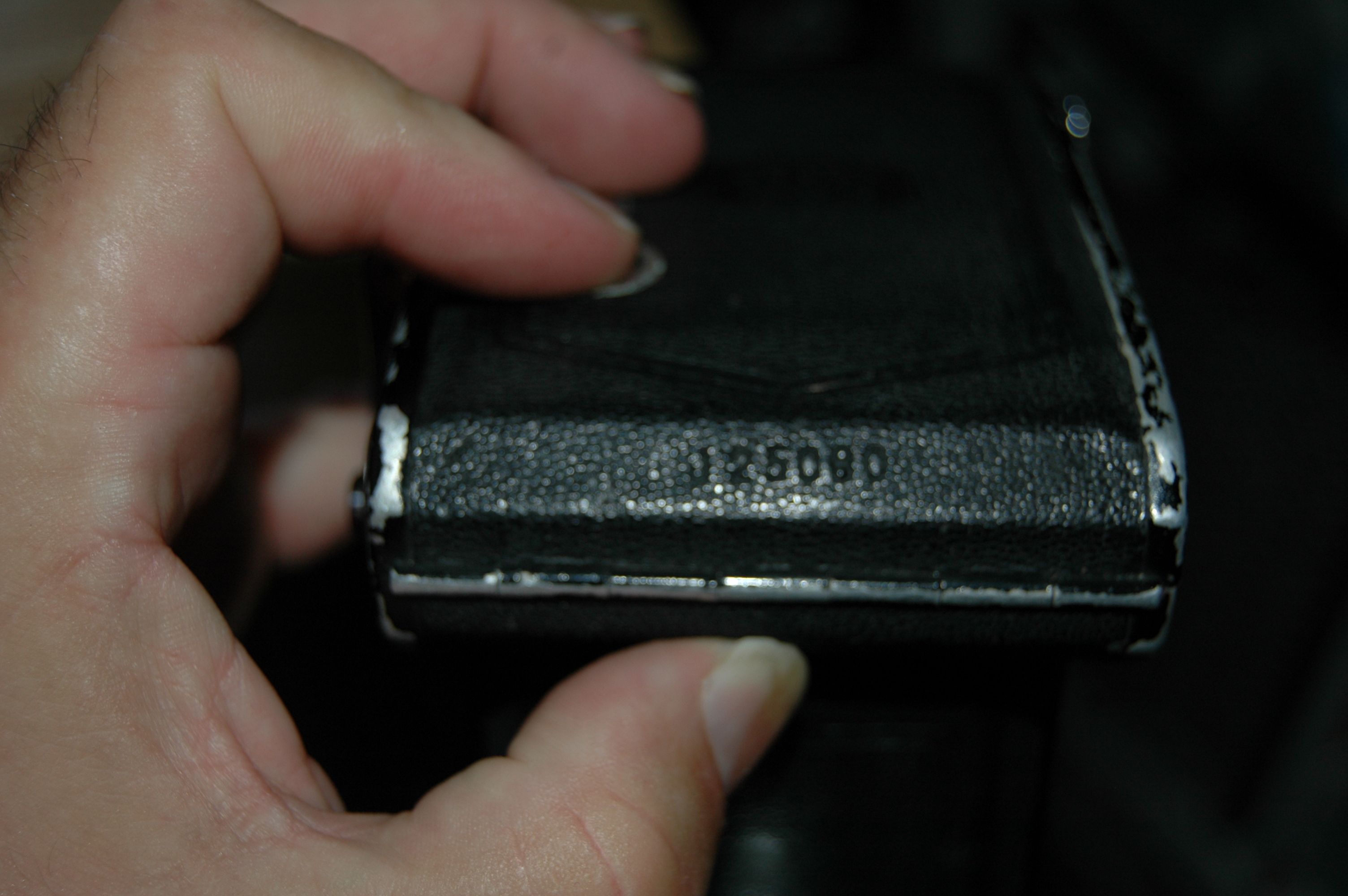

I ask because, one has a serial number on the rear of the camera (At the bottom - J25080 but the other doesn't). The same one also has, as part of the lens mount, what appears to be a holder (?) sticking out for a viewfinder attachment. (Again, the other one doesn't).

Subtle differences, I know, but would be heldful to know about them.......

Thanks


Attachments

  • DSC_2168.JPG
    1.5 MB · Views: 41
  • DSC_2174.JPG
    1.5 MB · Views: 41
Last edited:

John Will

Member
Joined
Feb 17, 2018
Messages
88
Location
Melbourne, Australia
Shooter
Multi Format
I believe the Nettar was made, in various versions (6x9, 6x6, 6x4.5), from 1937 until 1943-44. Your model with prefix 'J' indicate manufacture 1938-39. Some models had serial numbers stamped inside the film chamber.

OP
OP
marcusverger

marcusverger

Member
Joined
Oct 20, 2010
Messages
66
Shooter
Analog
I believe the Nettar was made, in various versions (6x9, 6x6, 6x4.5), from 1937 until 1943-44. Your model with prefix 'J' indicate manufacture 1938-39. Some models had serial numbers stamped inside the film chamber.

Many thanks for the information John, Greatly appreciated.

At least I can date it to a couple of years !

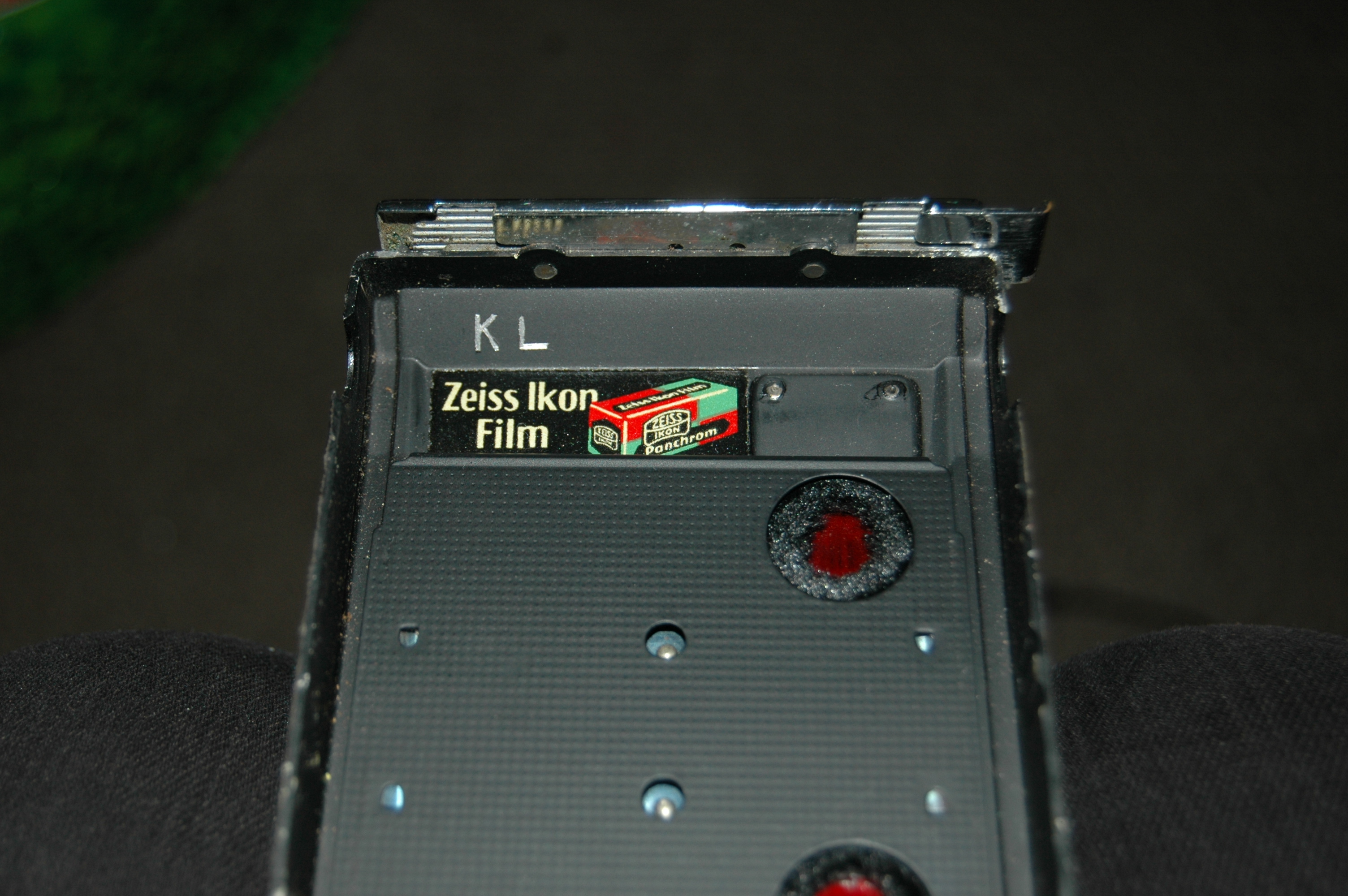

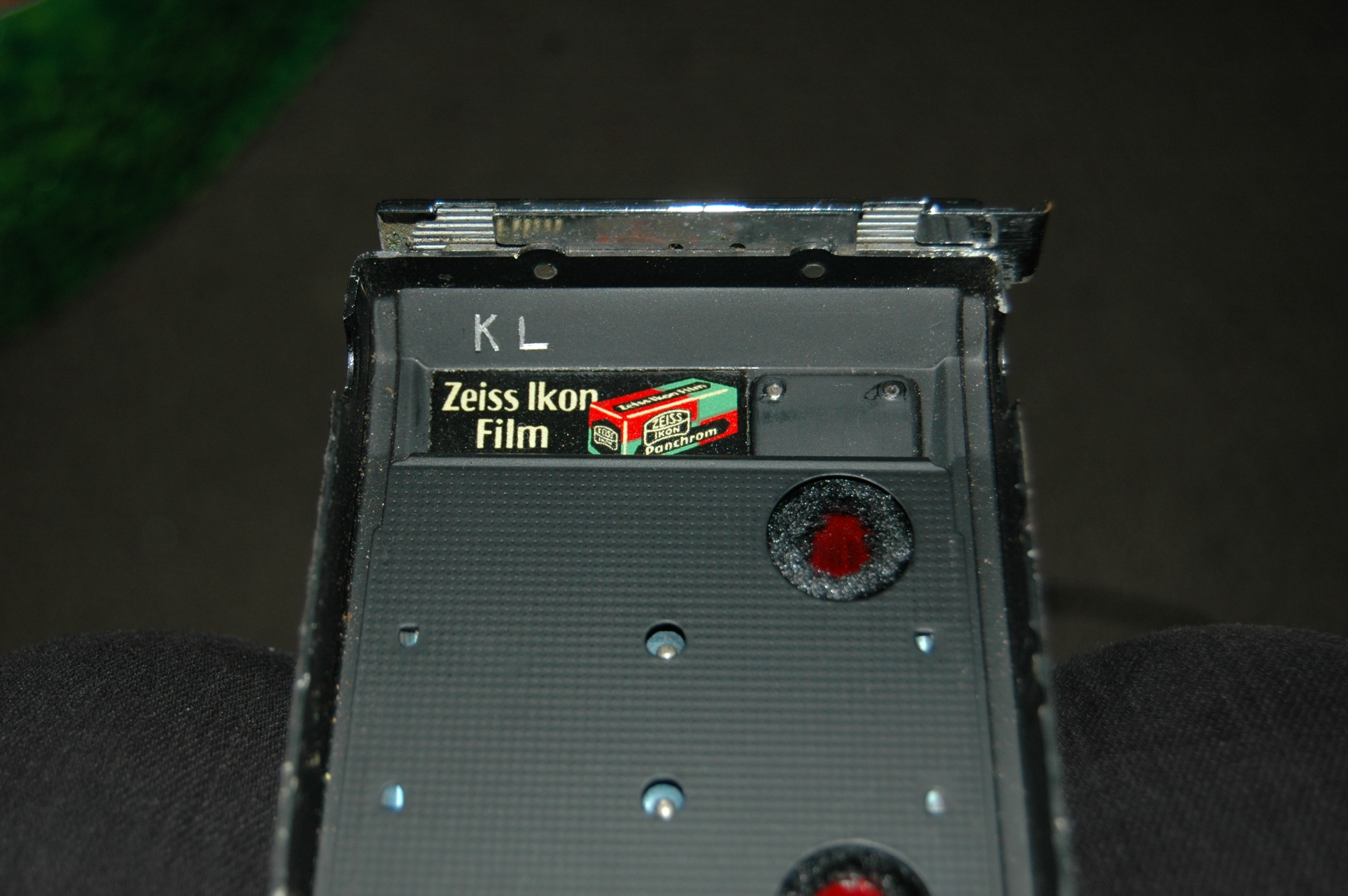

I have just noticed in the same camera, the letters 'KL' stamped into the back door near the latch. Does this help with dating in any way ?? Have attached photo.

The other camera has absolutely nothing, anywhere at all !! All I can guess is that it is of slightly later date, 1940/44 ?? Who knows?

By the way, can I ask as to where you found this information? Am curious.... !!

Thanks Again for your help.

Marcus


Attachments

  • DSC_2225.JPG
    1.5 MB · Views: 32
  • DSC_2225.JPG
    1.5 MB · Views: 32

John Will

Member
Joined
Feb 17, 2018
Messages
88
Location
Melbourne, Australia
Shooter
Multi Format
Hi Marcus, the information came from the camera-wiki site on Zeiss Ikon serial numbers http://camera-wiki.org/wiki/Zeiss_Ikon_serial_numbers

The KL stamp is interesting as it is mentioned that extra letters mean the camera was sent back to the factory for repair or modification. So the KL would indicate the camera went back to the factory in 1939 for some reason.

I'm sure the other camera has the serial number somewhere but Zeiss Ikon did not seem to have a standard position, I believe some had the serial number on the lens shutter assembly.

If you have the time 'Google' Zeiss Ikon and Nettar 515, there is heaps of information available. You might find out something to help date the other camera.

Good luck, John W.


JPD

Member
Joined
Mar 24, 2007
Messages
1,584
Location
Sweden
Shooter
Medium Format
The KL stamp is interesting as it is mentioned that extra letters mean the camera was sent back to the factory for repair or modification. So the KL would indicate the camera went back to the factory in 1939 for some reason.

I'm sure the other camera has the serial number somewhere but Zeiss Ikon did not seem to have a standard position, I believe some had the serial number on the lens shutter assembly.

The "KL" isn't stamped, but scratched in the paint, and wasn't added to the serial number. Both K and L separately stand for 1939, so why use both? I believe they are just the initials of a previous owner.


momus

Subscriber
Joined
Jun 14, 2009
Messages
5,107
Location
Lower Earth
Shooter
Medium Format
On a couple of Zeiss folders, I never could find their serial numbers. As mentioned, you can usually find the number on the shutter, but not always. The 3 element lenses make great images stopped down, I wished only for higher shutter speeds. This was HP5 in my old Nettar, probably D76 stock for the developer.


Last edited:
OP
OP
marcusverger

marcusverger

Member
Joined
Oct 20, 2010
Messages
66
Shooter
Analog
Thanks John for the link to serial numbers - really helpful & useful too !!

I think it fair to say 1939 seems to be the year of manufacture (Although may just accept 1938 as a possibility).

I can make out some numbers on the rear of the shutter just visible as the shutter joins the bellows/lens mount bracket.

It seems to be a 5 digit number - X33 19. I cannot make out what 'X' is in the number. But because of the bellows/lens mount have a fixture for attaching a viewfinder (See original photo's), I cannot make out the full number unless I remove the whole shutter away from the camera, which I'd rather not do at the moment.

The other camera, which we cannot seem to date at the moment, has the number '233 89' as it is not obstructed by anything, so I am able to just make it out.

Does this number make sense? I take it these numbers be a shutter serial number, as opposed to camera serial number??


JPD Thanks for your comment.

Momus, Thanks for the photo. It's good to see what these cameras are capable of. Will hopefully try my 2 cameras very soon!

Last edited:

John Will

Member
Joined
Feb 17, 2018
Messages
88
Location
Melbourne, Australia
Shooter
Multi Format
Does this number make sense? I take it these numbers be a shutter serial number, as opposed to camera serial number??

Yes, this is most likely. As best I can tell there are three possible serial numbers (camera, shutter, lens} and cameras can have all or just one or two numbers depending on model, lens or shutter type. I'm sure there are lists somewhere ?


Molli

Member
Joined
Dec 28, 2009
Messages
865
Location
Victoria, Australia
Shooter
Multi Format
Hi Marcus, I have a Nettar 510 which I always believed to be without serial number. Your thread and the responses you've received piqued my curiosity so I went and had another look.
As it turns out, checking the outside with the back closed, yielded nothing and, once open, I was only looking everywhere INSIDE.

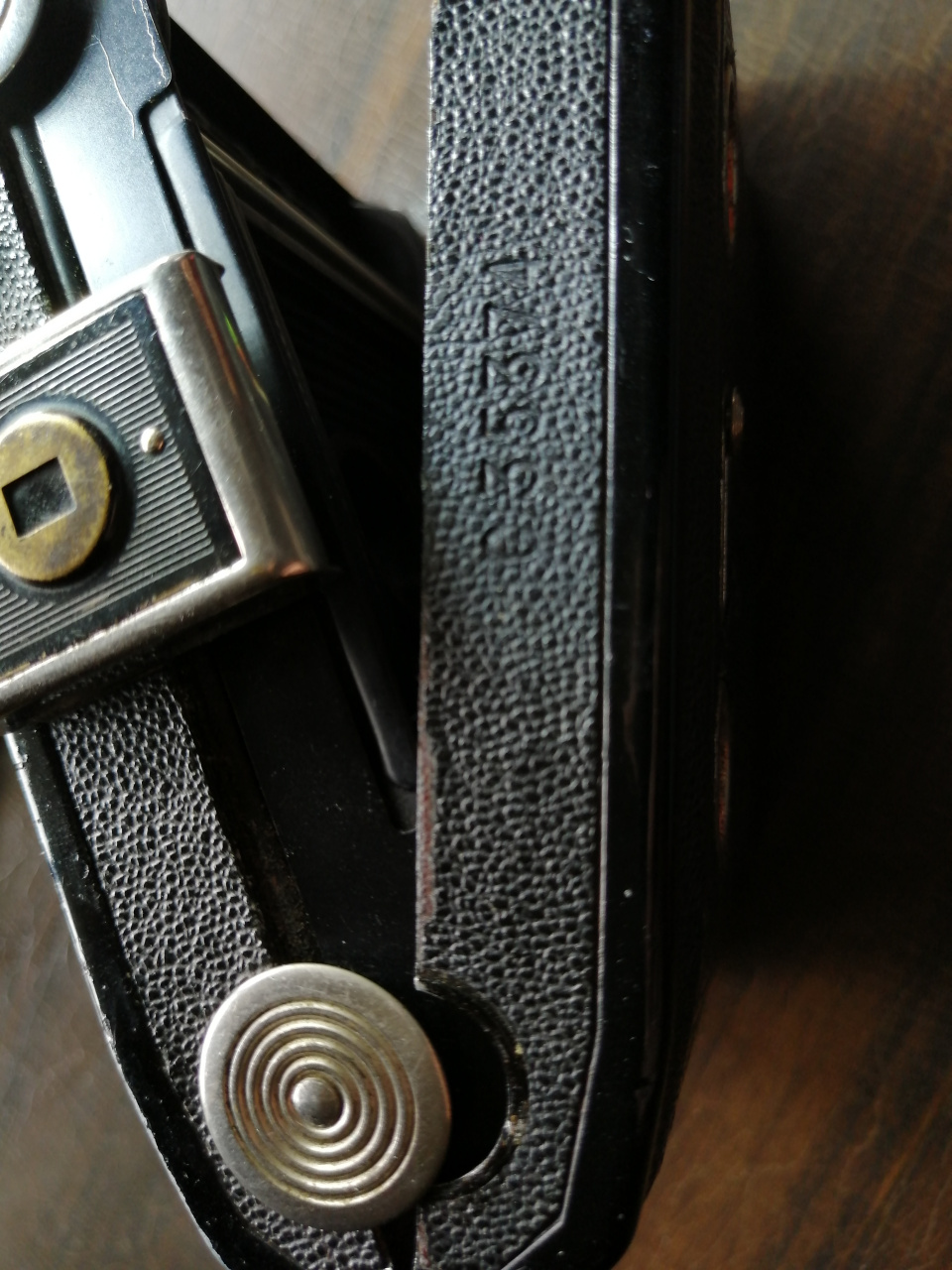

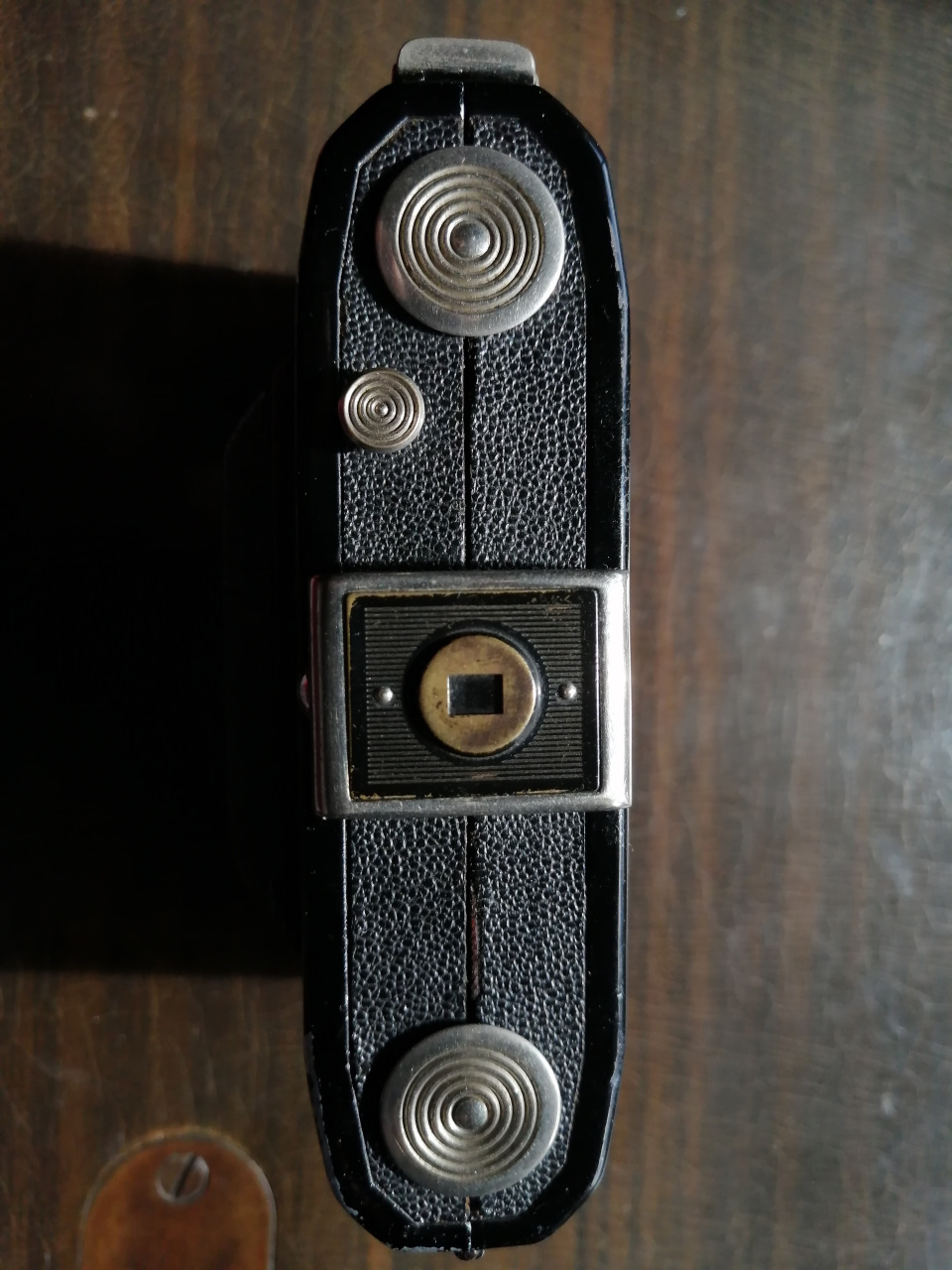

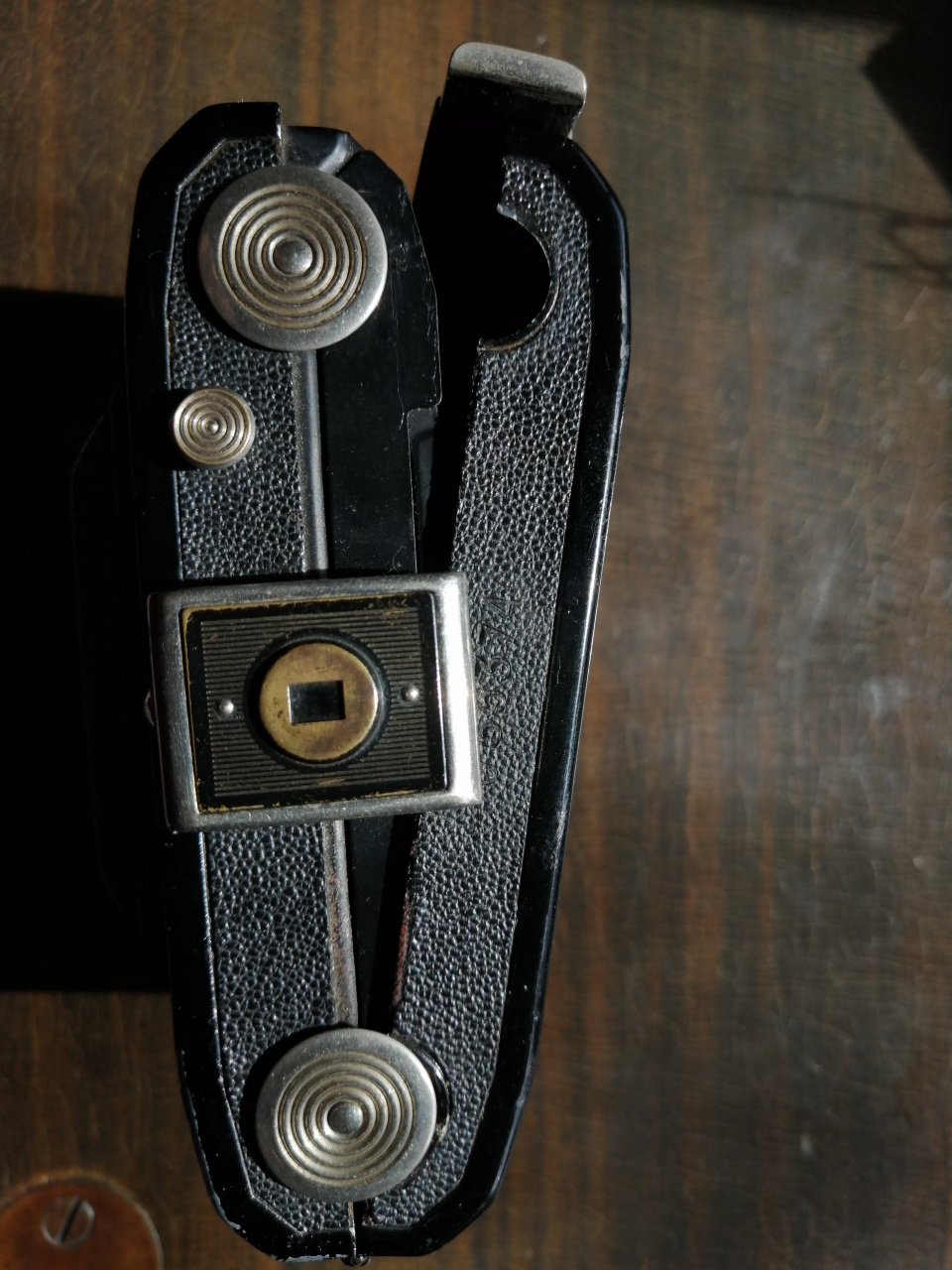

However, opening the back and checking the outside again revealed my Nettar's secret... The serial number was hidden all along beneath the viewfinder!
I hope the attached photos show where I mean and that you, also, find a secret revealed there on your Nettar.


Attachments

  • IMG_20220816_115701_LR.jpg
    363.6 KB · Views: 33
  • IMG_20220816_115727_LR.jpg
    417.8 KB · Views: 33
  • IMG_20220816_120018_1_LR.jpg
    406.8 KB · Views: 33
OP
OP
marcusverger

marcusverger

Member
Joined
Oct 20, 2010
Messages
66
Shooter
Analog
Molli - you are a genius !! I found it exactly where you said it might be - on the side of the back door underneath the viewfinder!! Took my a while to find & read it, too... but I did find it.

The serial number on mine is - D 49364, which dates it to 1937, the year it first appeared on the market.

Have just found a webpage that states both my cameras are the more expensive model produced, as it has a Nettar Anastigmat f4.5/7.5cm lens in a Klio Shutter.

So, now I have 2 cameras that are made in 1937 & 1939 respectively and I am so glad to finally be able to date them both.

Thanks to everyone who has helped my in this quest......


Molli

Member
Joined
Dec 28, 2009
Messages
865
Location
Victoria, Australia
Shooter
Multi Format
A very late reply to you, sorry! I'm glad the serial number turned up in the same spot. Had it not been for your query, I'd never have taken another look at mine to find it. I just always assumed the earlier (and in my case, very basic) models didn't have one. So, thank YOU!
😀

OP
OP
marcusverger

marcusverger

Member
Joined
Oct 20, 2010
Messages
66
Shooter
Analog
A very late reply to you, sorry! I'm glad the serial number turned up in the same spot. Had it not been for your query, I'd never have taken another look at mine to find it. I just always assumed the earlier (and in my case, very basic) models didn't have one. So, thank YOU!
😀

Thanks Molli, for your reply....!!

I am so glad we can all, somehow, help each other, in some way or other.....

That's why we all post here !!
