Rollei 6000/SLX Lens Disassembly

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
Looks like there is no longer any factory service available for Rollei lenses (someone correct me if I am wrong).
I did not find much at all with an internet search for Rollei 6000/SLX lens repair information so I am posting this as a start. I think APUG has more popularity than the KYPhoto forum but maybe I'll post this there also http://www.kyphoto.com/cgi-bin/forum/discus.cgi .

I'll show how to open up an 80mm 2.8 Planar from the front and the rear.

From the rear:
Mark the bayonet for re-assembly (Sarpie marker comes off with isopropyl alcohol when finished).


Remove the silver screws around the perimeter of the bayonet ring (don't remove any of the black screws visible).


Last edited by a moderator:
OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format

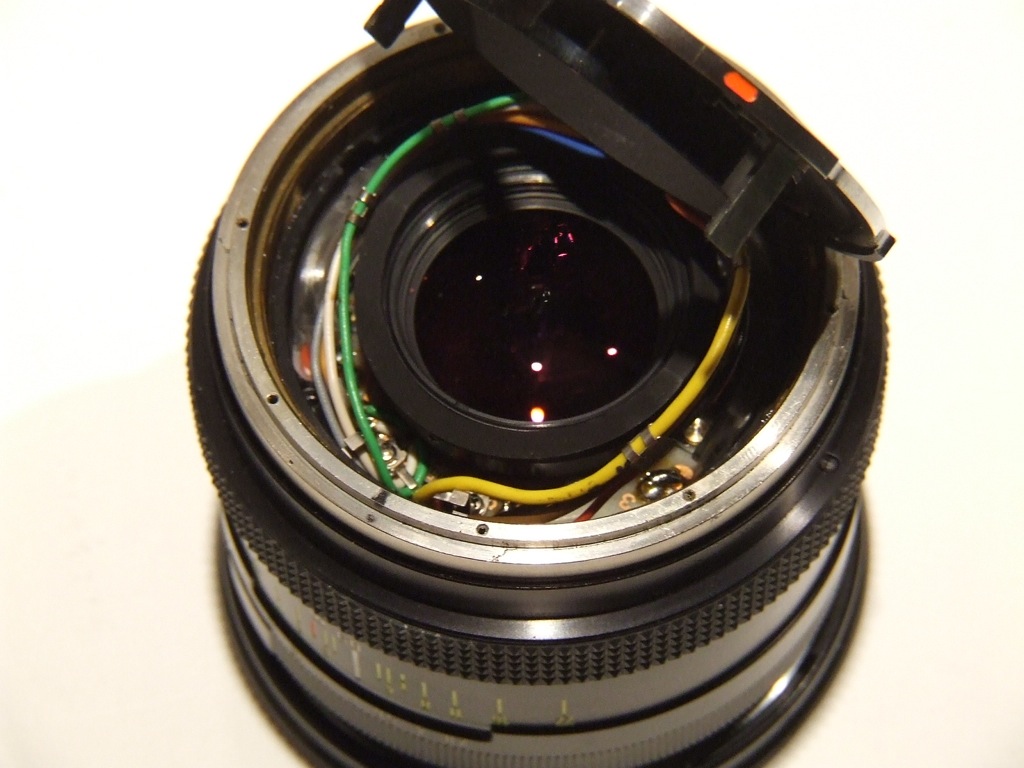

When you lift up the back you can see an additional set of black cross-head screws. Be careful working around these wires as the sharp edge of the flange can injure the insulation when separating the barrel.

View attachment 73423

OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format

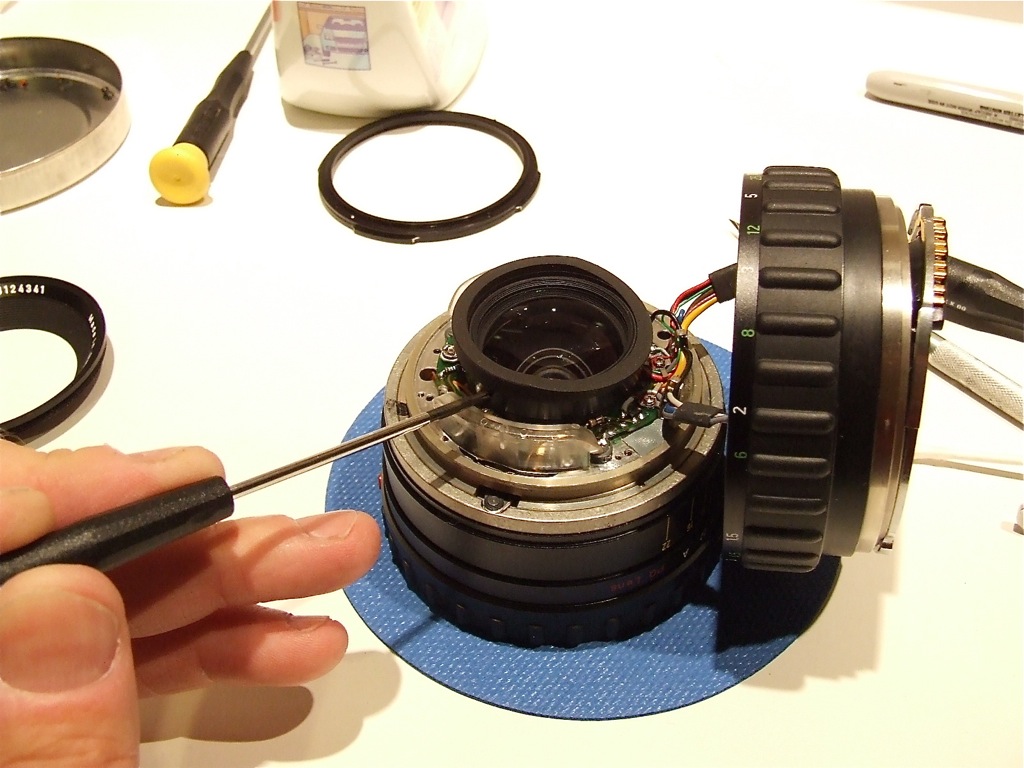

With the plastic ring removed, you may-or-may-not be able to unscrew the rear element. In this case it came off without a lens wrench.
View attachment 73428

OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
This lens had an oily foggy lens surface on the rear-most group of the front elements. Easy to get to and clean in this case. The rest of the lens surfaces were OK in this case.
View attachment 73429

OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
Disassembly from the FRONT:
The ring that says "Made in Germany by Rollei" will unscrew. I got this on off without a lens wrench using the rubber glove, therefore no marks.
View attachment 73431

OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
The screw-in ring holds the bayonet assembly in place. When removing the bayonet assembly there will be 4 small springs exposed. These springs hold tension on the bayonet locking balls around the perimeter of the front bayonet ring.
View attachment 73432View attachment 73433

OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
Five silver cross-head screws can be removed to remove the next flange. These screws have locking paint on them. When re-assembling too much torque on these screws made the aperture ring stiff, and I locked them with a dab of paint on re-assembly.

Last edited by a moderator:
OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
Next step would be to unscrew the rear cell group. In my case I only removed the rear lens with its own locking ring and cleaned that. I did not need to go any farther.


AgX

Member
Joined
Apr 5, 2007
Messages
29,990
Location
Germany
Format
Multi Format
ic-racer said:
Looks like there is no longer any factory service available for Rollei lenses (someone correct me if I am wrong).
Click to expand...

All products once manufactured by Rollei are still serviced by the successor of the camera plant in Germany, DHW.

Furthermore there are still independant service people around once authorized by Rollei.


AgX

Member
Joined
Apr 5, 2007
Messages
29,990
Location
Germany
Format
Multi Format
I guess few people know about that new company.


EricWHiss

Advertiser
Advertiser
Joined
Apr 4, 2009
Messages
20
Location
San Francisc
Format
Medium Format
AgX said:
I guess few people know about that new company.
Click to expand...

Yes, that's because I just started it this Summer. Thank you for finding and sharing the link. My site went live last week, and I'm still very busy adding products and as much information as I can. DHW-Fototechnik will be formally announcing me as a dealer soon. I've just taken delivery of my first order for inventory - mostly Hy6 Mod2's and AFD lenses, but I can have almost anything here within two weeks.

Regards,
Eric Hiss
Rolleiflex.us

Last edited by a moderator:

EricWHiss

Advertiser
Advertiser
Joined
Apr 4, 2009
Messages
20
Location
San Francisc
Format
Medium Format
ps. ic racer, nice job on the self repair!

Rollei Hensel in NJ (973) 244-9662 still repairs 6000 series stuff, though I have to admit my favorite technician Onick V has retired. Krikor at Krimar 201-796-0554 can do a lot as well. I've just added a tab on service to my site that has the DHW service address and contact as well of the others. Harry Fleenor at Oceanside for TLR stuff.

At the moment, I'm not able to offer repair service, however I plan to be trained at the factory for this next year.

OP
OP

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,483
Location
USA
Format
Multi Format
Thanks EricWHiss for chiming in and it is good to see some USA support for this nice equipment. I hope readers will appreciate that a simple 'lens cleaning' is quite involved in these lenses and most repairs would be best left to the pros.


lamestllama

Member
Joined
Apr 23, 2014
Messages
17
Format
Medium Format
ic-racer...if you find the lens doesn't unscrew easily because some form of glue has been used. What solvent would you use on the glue?
