Does anyone have an Orbital processor with the manual base? I just got one but without the base. It gets a bit tiring rotating it by hand for 15 mins :smile:

If someone gives me the dimensions, I can probably 3-D print one.

Thanks!


MattiS

Subscriber
Joined
Apr 29, 2016
Messages
191
Location
Germany
Shooter
Multi Format

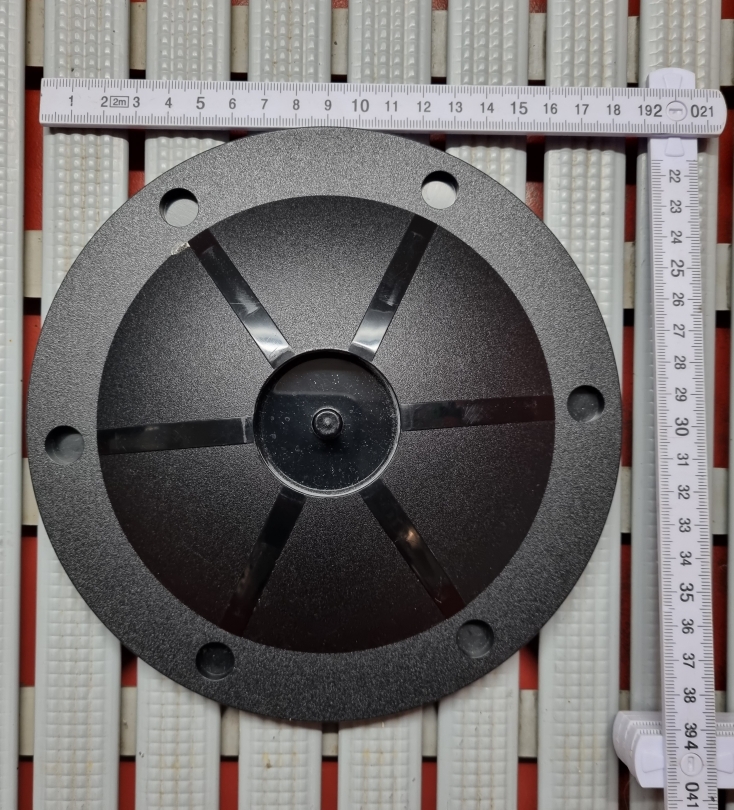

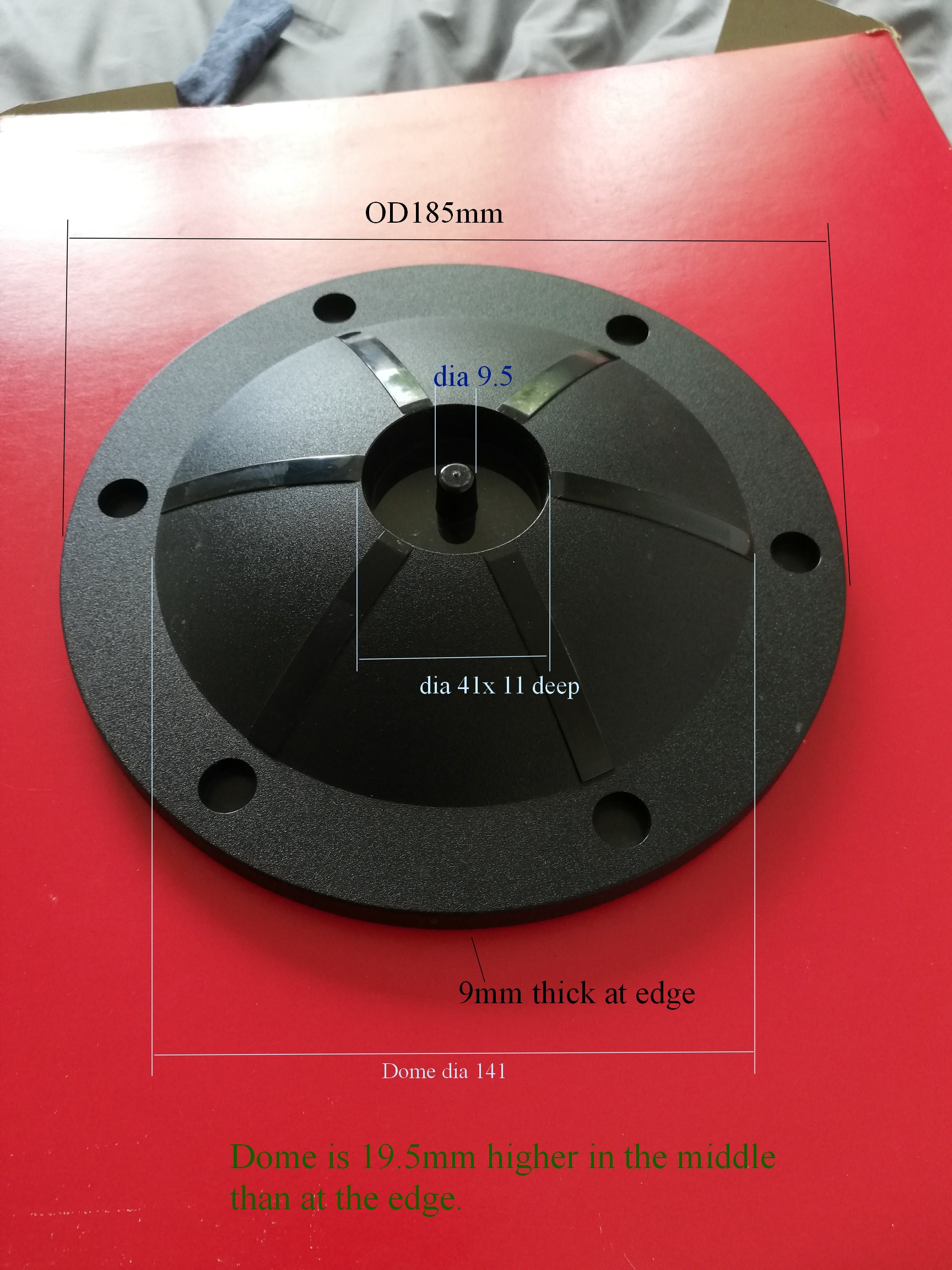

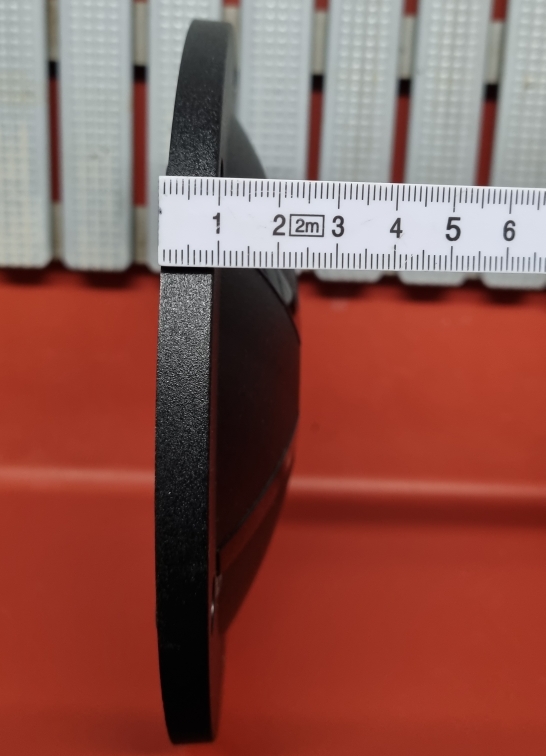

Here are the dimensions, but remember the resulting tilting angle is designed for the original amount of chemicals.
