Hi!

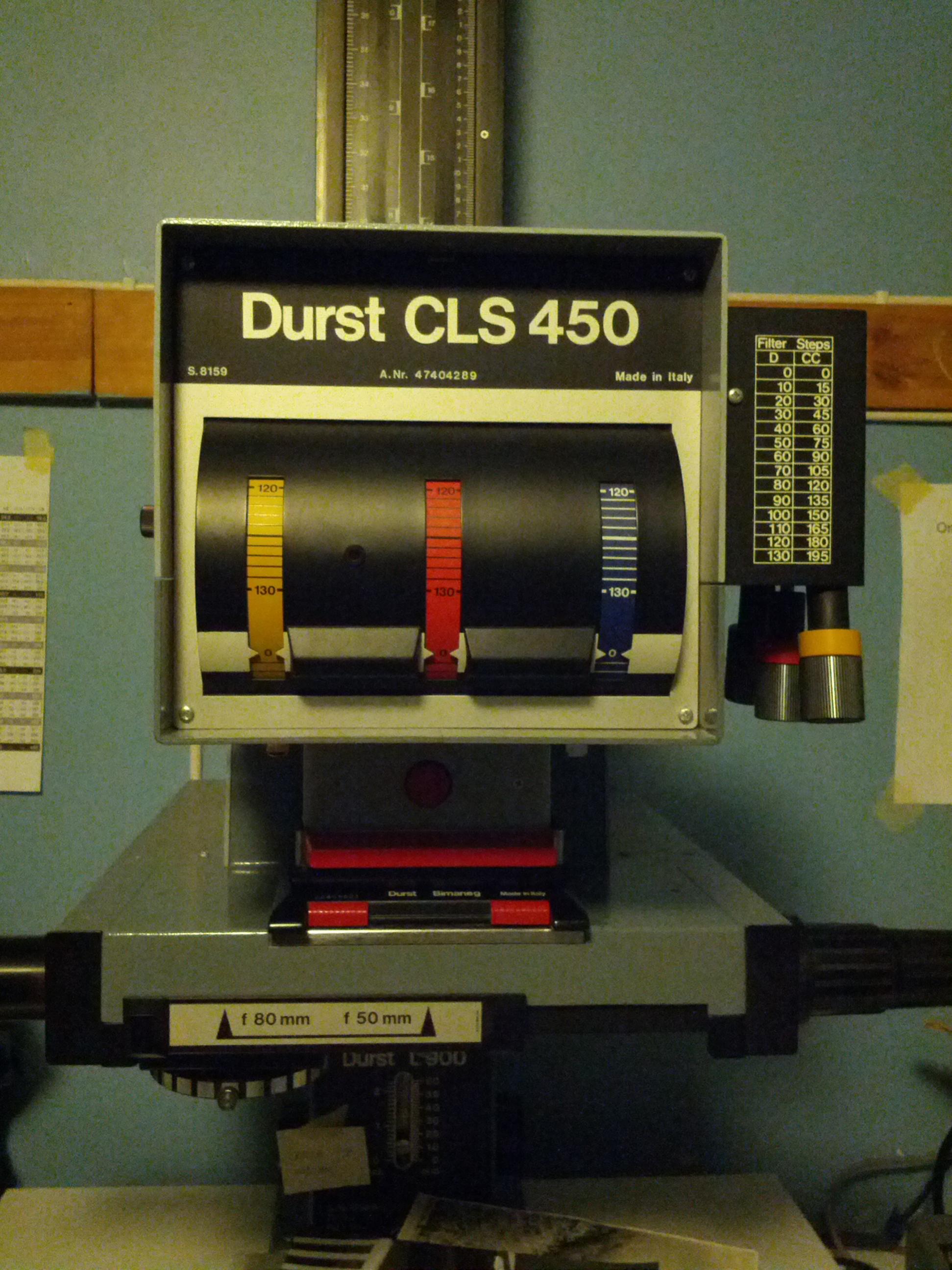

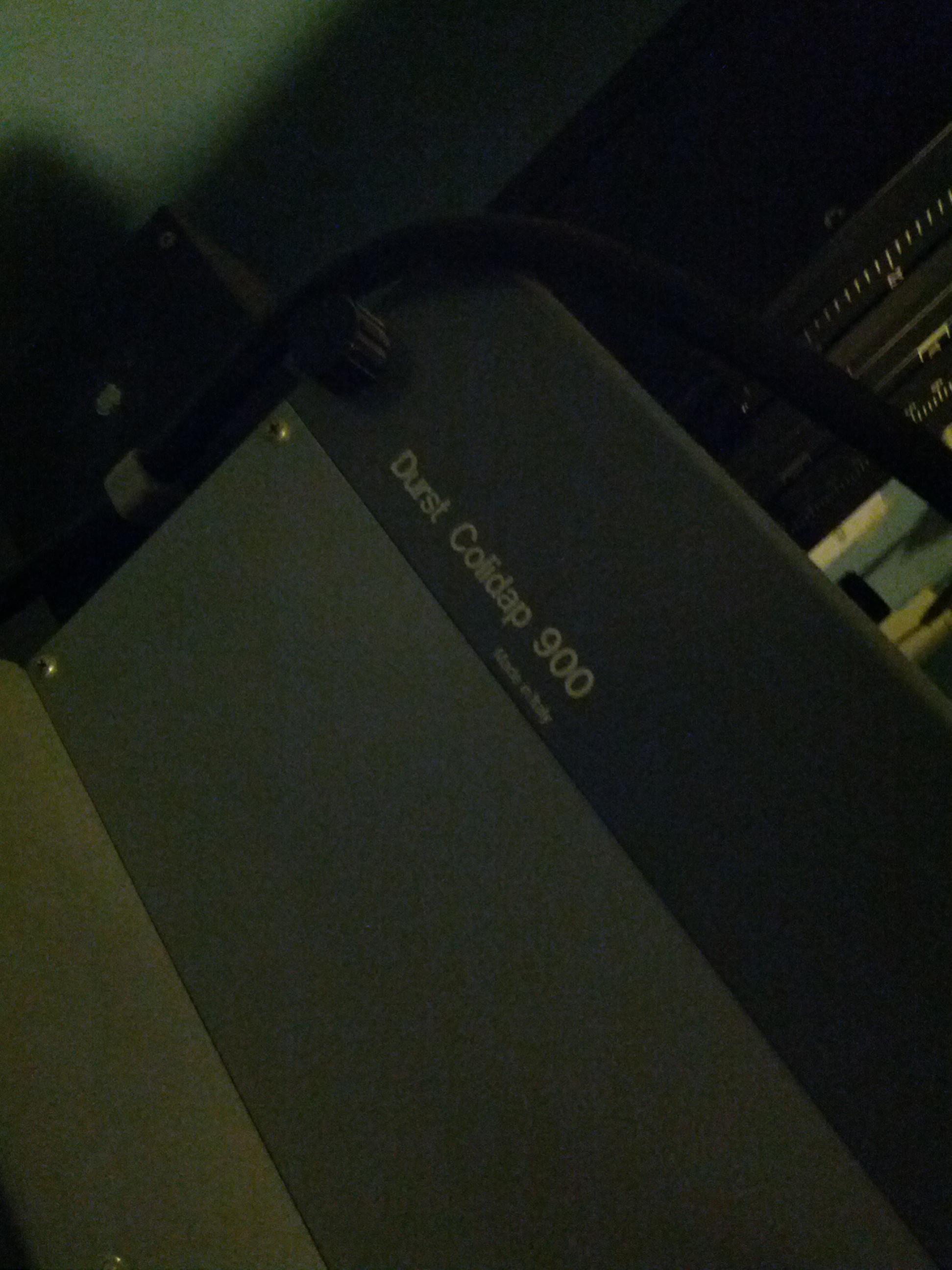

I'm trying to figure out which lamp should be used on a Durst CLS450 Laborator 900. I'm not sure of the exact model, so I've attached a few pictures to this post and hope it will help.

I've previously thought that a 250W 24V lamp should do it (as that was the previous lamp, I think) but after plugging in one to the enlarger tonight the lamp was fried (the smell was pretty offensive, so I unplugged it).

This was the lamp that was fried tonight:

http://www.macodirect.de/osram-displayoptic-lamp-24v250wbrbase-gx53-p-1815.html

Is this not a correct lamp for this enlarger? Or did I plug it in incorrectly?

I realize that I plugged in the enlarger straight into the wall socket, maybe this was the issue?

I'd love to use this enlarger (my current LPL C7700 is decent, but I'd like to have two working enlargers in the community darkroom) more but not if it keeps frying my lamps...


Attachments

  • IMG_20140108_204205.jpg
    526.9 KB · Views: 58
  • IMG_20140108_204458.jpg
    408.8 KB · Views: 66
  • IMG_20140108_204237.jpg
    475.3 KB · Views: 67

paul_c5x4

Subscriber
Joined
Apr 22, 2009
Messages
1,943
Location
Ye Olde England
Shooter
Large Format
ELC 250W 24V is the correct lamp - The one you link to appears to be the correct one.

You should have a thick cable going to a TR450 power supply - If you are missing this, do NOT plug the cable directly in to a wall socket.
The power supply also provides power to the fan and backlights behind the CMY dials.


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,037
Location
USA
Shooter
Multi Format
Can you post a picture of your power supply box? (TR450 or similar).

OP
OP
Oscar Carlsson
Joined
Oct 15, 2009
Messages
231
Location
Stockholm, Sweden
Shooter
Multi Format
The supply box is under the table so I didn't think of taking a picture of it. I'm 90% sure there's a thick cable going from the enlarger down to the box, but I'll verify next time I'm in the darkroom.


paul_c5x4

Subscriber
Joined
Apr 22, 2009
Messages
1,943
Location
Ye Olde England
Shooter
Large Format
That has cleared up one concern I had..

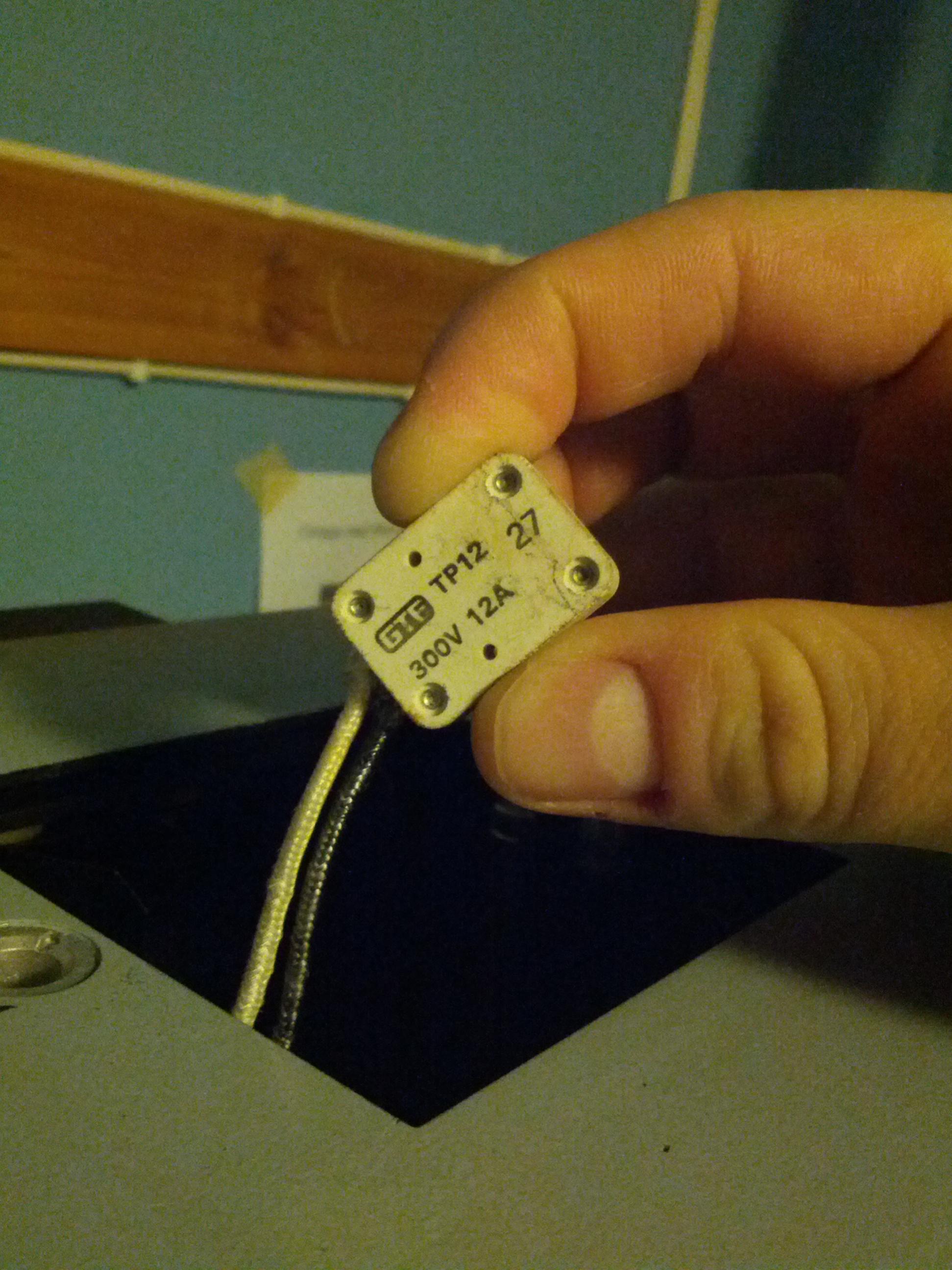

I would suggest replacing the ceramic block shown in your third image - You may need to partially dismantle the covers, but that would give you a chance to clean out dust.
The contacts inside the holder get burnt over time, and this could have been source of the smell - Look in the telephone directory and try to find an electrical wholesaler that stocks low voltage lights and fittings. You'll find them a lot cheaper than the likes of Clas Ohlson, and the staff will be better qualified & experienced in giving good advice.

If you can't find a suitable holder, I could source one in the UK and pop it in the post to (at cost).


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,037
Location
USA
Shooter
Multi Format
Some info on lamp socket replacement here: (there was a url link here which no longer exists)
