Has anyone developed AGFA Aviphot Dia C?

Discussion in 'Plate Cameras and Accessories' started by vesselingeorgieff, May 15, 2016.

  1. vesselingeorgieff

    vesselingeorgieff Member

    Messages:
    4
    Joined:
    Mar 15, 2015
    Shooter:
    35mm

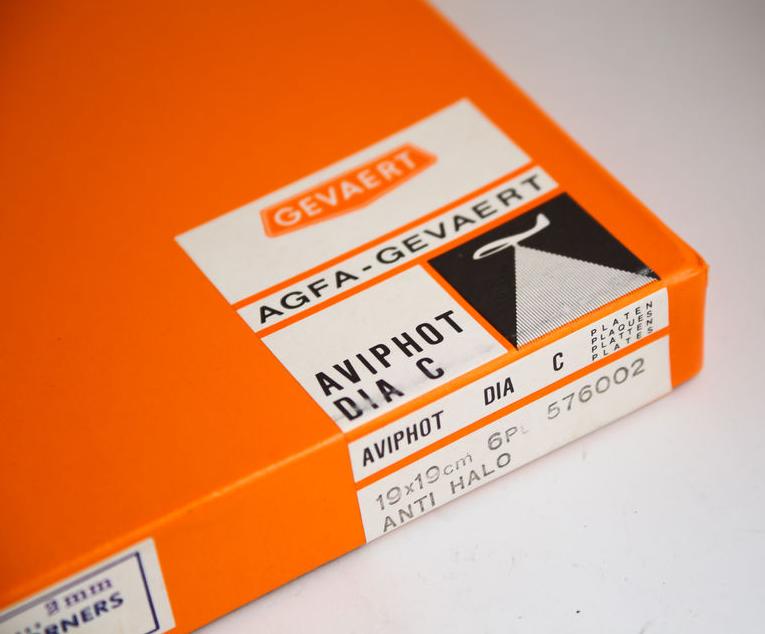

    Hello, I just got a pack of 19x19cm glass plates made by Agfa. The label just says Aviphot Dia C and no other information is available. I googled it and only understood that this is aerial photo material, possibly reversible.

    Has anyone have experience with this material -- exposure, development, etc.?

    Thank you,
    Vesselin
    dia c.jpg

  2. gorbas

    gorbas Subscriber

    Messages:
    624
    Joined:
    Dec 9, 2007
    Location:
    Vancouver, Canada
    Shooter:
    35mm Pan
    Yes, I did a few enlarged slides with it, maybe 25-30 years ago. Treated it as any regular enlarging paper, it was around grade 2. Processed it in then my regular positive developer ORWO N120. Used glass cutter in darkroom to cut smaller pieces for exposure tests.
    Beautifully crafted glass optical plates. Ideal for negative carriers, filters, contact printers etc. Most likely I have in my binders, sheet of paper with instruction that come with it.
    Have fun with it!

  3. OP
    OP
    vesselingeorgieff

    vesselingeorgieff Member

    Messages:
    4
    Joined:
    Mar 15, 2015
    Shooter:
    35mm
    Thank you very much, Gorbas! The glass seems to be very hard to cut, tried already to make it 6.5x9 cm and damaged one plate. What ISO shall I asume for starting point for test? 4 - 6 or higher?

  4. gorbas

    gorbas Subscriber

    Messages:
    624
    Joined:
    Dec 9, 2007
    Location:
    Vancouver, Canada
    Shooter:
    35mm Pan
    I just made a few pieces from it for the tests with out trying to be precise in size. I have no idea how sensitive it was or how long exposure was. It was very similar to any paper i tried before that. If you have plenty of them then just expose whole sheet. Bad one will be perfect for DYS project involving optical glass. By now that material is very, very old.

  5. OP
    OP
    vesselingeorgieff

    vesselingeorgieff Member

    Messages:
    4
    Joined:
    Mar 15, 2015
    Shooter:
    35mm
    Thanks, Gorbas! Will experiment and share, if any result.

  6. gorbas

    gorbas Subscriber

    Messages:
    624
    Joined:
    Dec 9, 2007
    Location:
    Vancouver, Canada
    Shooter:
    35mm Pan

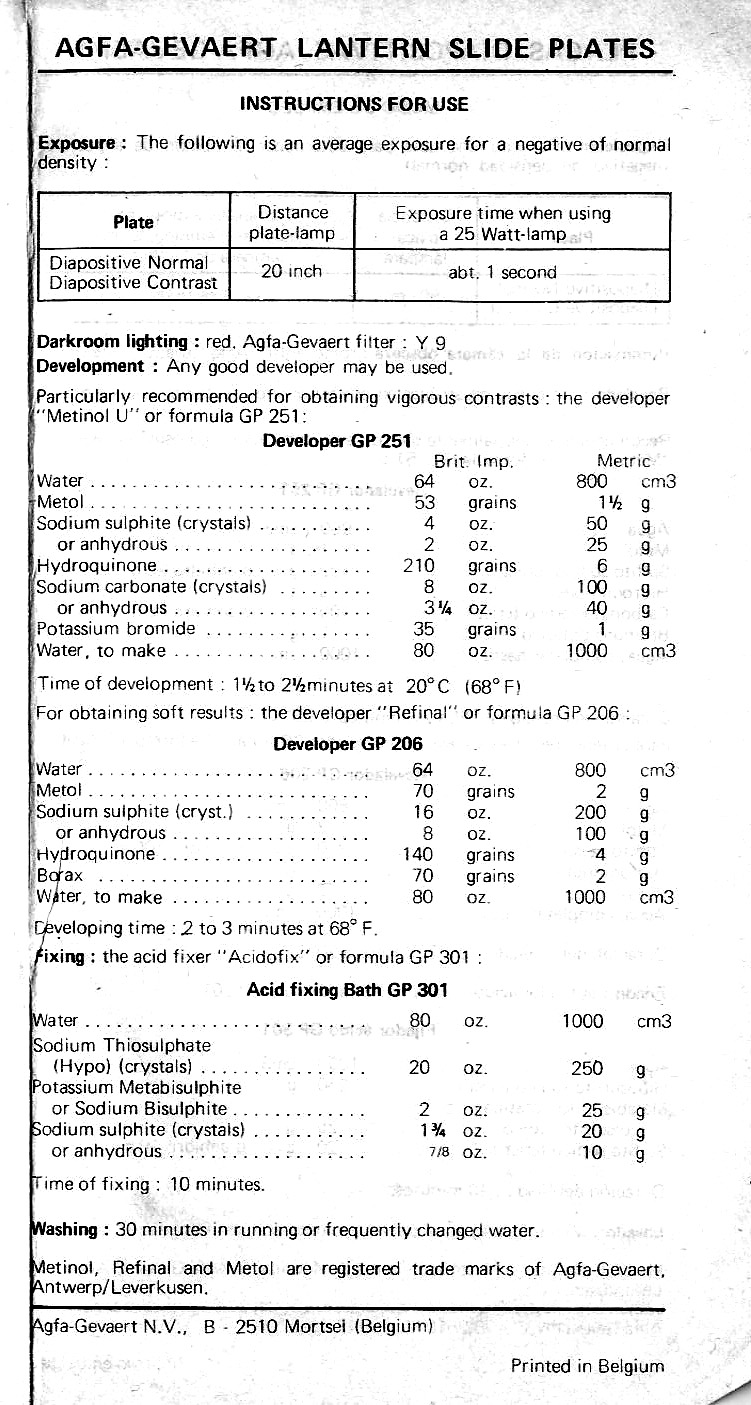

    Hi Vesselin, did you find this instruction inside the box

    Last edited: May 15, 2016
  7. OP
    OP
    vesselingeorgieff

    vesselingeorgieff Member

    Messages:
    4
    Joined:
    Mar 15, 2015
    Shooter:
    35mm
    At first - no, I did not know the safelight so I opened and worked in total darkness. Now I found it, thank you! Just exposed first two plates @ 12 and 6 ISO, will go for ORWO N-120. GP 251 looks easy to mix, will give it a try also. Thank you once again!
