Gossen Luna Pro Spot attachment and a Gossen Luna Lux SBC question

Recent Classifieds

Forum statistics

Threads
177,076
Messages
2,429,068
Members
94,123
Latest member
Munky
Recent bookmarks
0

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format

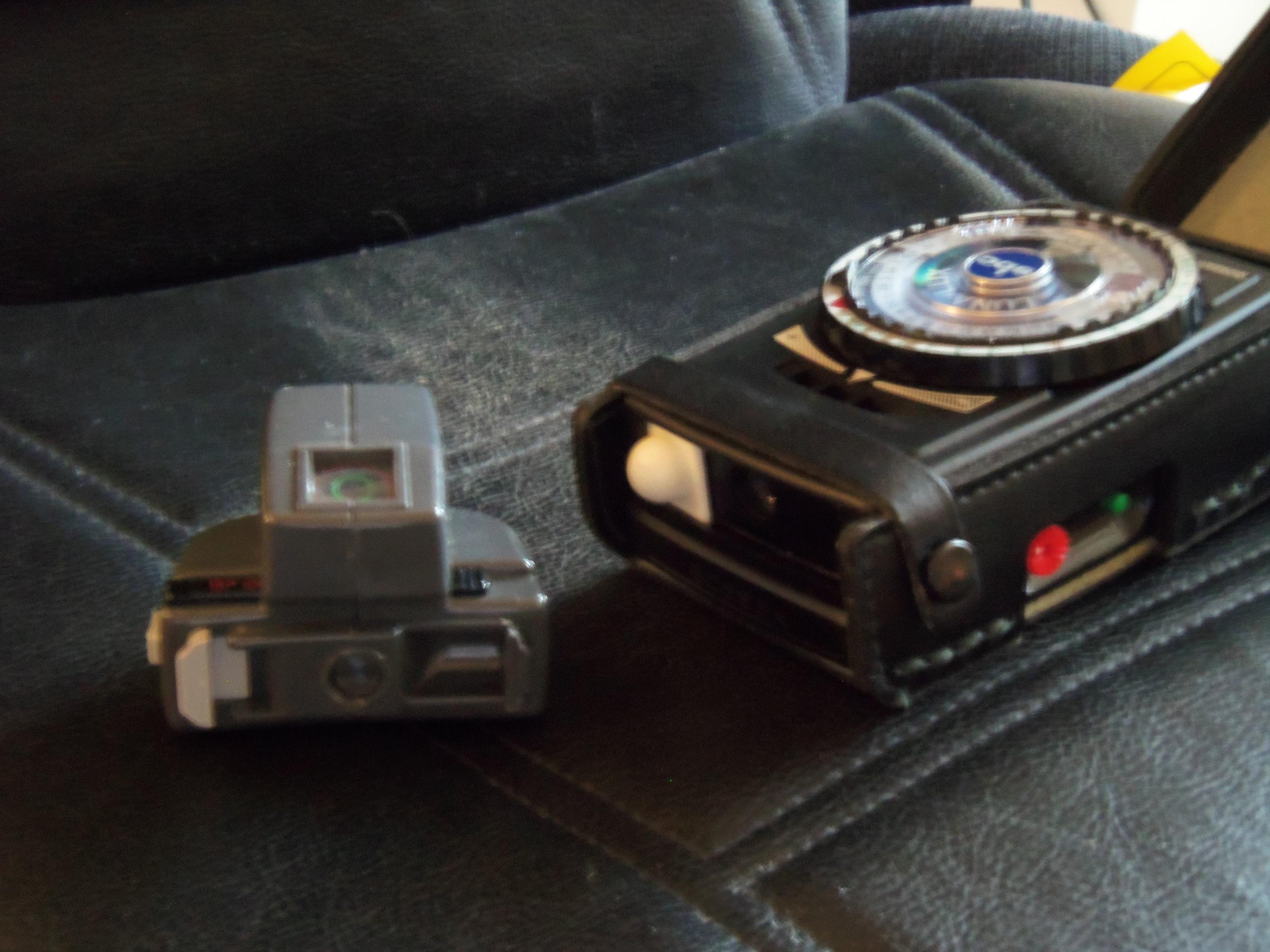

I just received a Gossen Luna Pro Spot Attachment. I also have a Luna Lux SBC which has a sliding incident light dome. The dome is in the way and I have to see if it can be removed and put back in without damage. Any ideas are welcome.


Attachments

  • 101_0142.jpg
    628.3 KB · Views: 230

BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
I wouldn't try removing the dome. Scary! I use that attachment on a Luna Pro (the old one, not SBC) and the dome needs to be positioned "just so" for the attachment to be attached. If slid all of the way to the end it seems not to fit but if slid just a bit back toward center it should fit -- at least mine does. I never use the attachment with the meter in the case, BTW.

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
Thanks Brian! I moved the dome away from the edge a little and then it attached! It even works correctly!


paul ron

Member
Joined
Jan 22, 2004
Messages
2,671
Location
NYC
Shooter
Medium Format
I use the same attachment for both sbc and regular luna pros.

It's been a long time since i used em but i think you have to compensate by one stop... Look up the instructios on the Gossen site.


r-brian

Member
Joined
Feb 25, 2003
Messages
701
Location
Albuquerque, NM
Shooter
DSLR
I don't know about the SBC but on the Luna Pro there are color coded marks (yellow and green triangles I think) to use for the different angle of view on the spot attachment, which is also color coded. It might be one stop for the 15 degree setting, 2 stops for the 7.5 degree setting.

Edit; After googling images for the SBC, I didn't see any color coded marks on it.

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
I have the SBC with the led lights. One group on the internet says to compensate +1 1/3 EV for 15° and +3 EV for 7.5°. The other group says that the meter automatically compensates for the attachment.


AgX

Member
Joined
Apr 5, 2007
Messages
28,347
Location
Germany
Shooter
Multi Format
On the attachment should be a sticker with those correction figures. On the Gossen site you'll find the manuals anyway.

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
I have the SBC with the led lights. One group on the internet says to compensate +1 1/3 EV for 15° and +3 EV for 7.5°. The other group says that the meter automatically compensates for the attachment.

Mark Twain said that there are two types of people. The first type divides people into two groups. The second type does not.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
37,800
Location
Delta, BC, Canada
Shooter
Multi Format
The Luna Lux SBC (the red LED one) is a different meter than the Luna Pro SBC (aka Profisix in most of the world), which is of course different from the old Luna Pro.

So one needs to be cautious about things one sees on the internet :smile:.

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
Luna Lux adjust + 1 1/3 EV for 15° and + 3 Ev for 7.5°
Luna Lux SBC with the red lights What do I do with this one?
Luna Pro SBC aka Profisix automatically adapts

Now that the model variations have been defined. What do I do with Luna Lux SBC with the red lights?

Last edited by a moderator:

AgX

Member
Joined
Apr 5, 2007
Messages
28,347
Location
Germany
Shooter
Multi Format
It's all in the manual.

The problem I got is that you are using the US designations which are unknown over here. (and which you have mistyped anyway).
Without having my comparative listing next to me it is a hassle looking up those designations

Last edited by a moderator:
OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
Moi missppell?!?

[If the ability to spell correctly by ones self was important, the G-d would not have put <control-L> on computer keyboards.]

View attachment 77652

Then the above post should read:
Luna Lux adjust + 1 1/3 EV for 15° and + 3 Ev for 7.5°
Luna Lux SBC with the red lights automatically adapts
Luna Pro SBC aka Profisix automatically adapts


Thanks!


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
Steve... isn't the meter that you are using the same meter as in the manual link (post #7)? Luna Lux SBC with nulling LEDs? If so, it appears that you need to offset the exposure correction dial by 1 1/3EV when using 15deg or 3 EV when using 7.5 deg readings. The normal offset is 1 (or no offset). Described on pages 28 and 11 of the manual. Then you meter "normally" to null. It seems VERY important to remember to re-set the exposure compensation before and after using the spot attachment or subsequent reading will be all wrong.

The "automatically adapts" is misleading. The meter only adapts after you specify the proper offset of the meter for the amount of light it is being provided: 30 deg reading acceptance angle = offset of 1; 15 deg acceptance angle = offset 1 1/3; and 7.5 deg acceptance angle = offset 3.

If you haven't done so already, look closely at the attachment and you will see that it creates the smaller acceptance angles by restricting the amount of light reaching the meter. Smaller hole for 15 deg and even smaller hole for 7.5 deg. It is ingenious, but by it's very design must involve some compensation at the meter for the smaller amount of light hitting the sensor. :smile:

Last edited by a moderator:

AgX

Member
Joined
Apr 5, 2007
Messages
28,347
Location
Germany
Shooter
Multi Format
Luna Pro SBC aka Profisix automatically adapts

No it does not. It even can not. As there is no linkage between the meter and that small spot attachment, aside of the attachment's feet that are just a fixture.

With those attachments that connect via electrical plugs there is a linkage, enabling automated compensation.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
... or to expand AgX's reply: the correction for the two settings on the spot attachment must be done on the dial calculator: set the light reading value to the yellow index mark for no spot attachment, green index mark for 15 deg spot reading, and red index mark for 7.5 deg spot reading. Nothing automatic there... purely manual. :smile:

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
BrianShaw and AgX I got it. Set the offset before taking the reading. Thanks.

It only took 18 posts to nail it down completely.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
It's not an easy concept to get. It took me quite a bit of puzzlement when I first got mine. After that, though... I really get a lot of value from using it.

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
The problem should have never been one. The adapter documentation about the exposure compensation is vague in its relationship to specific models of light meters which use the compensation. Furthermore the Luna Lux SBC light meter documentation mentions the adapter without discussing the exposure compensation.


AgX

Member
Joined
Apr 5, 2007
Messages
28,347
Location
Germany
Shooter
Multi Format
I have to admit, you are right that in no meter manual that compensating for that Tele-attachment is hinted at. But you find it in the manual of that attachment.
Keep in mind that the compensation varies for continuous- and flash-lighting.

The later, black, model, has got a sticker at its underside clearly indicating that compensation adjustment. I don't know about the earlier grey model, but I assume it got it too.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
The manuals seem to have be written for folks who already know what they are doing. Some help that is, eh? My grey spot attachment does not indicate the compensation because it was originally intended for use with the Luna Pro, which has color-coded index marks so knowing the compensation values is less important. So all one needs to remember is red circle in the viewfinder, red spot attachment setting, and red index mark on the meter... or green, green, green.

Last edited by a moderator:

AgX

Member
Joined
Apr 5, 2007
Messages
28,347
Location
Germany
Shooter
Multi Format
Seemingly Gossen did not want to set even more signs on the dial when they introduced the Profisix. And they introduced a new version Tele-attachment with an informative sticker.
Those who already owned that older attachment, that did not need such sticker, and took it to use with their new meter were already aware of that necessity for compensation.
So that issue of missing information only applied for the used market, and one hardly can blame Gossen for not caring for that.

OP
OP
Sirius Glass

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,556
Location
Southern California
Shooter
Multi Format
The gray version does not have any sticker and the Luna Lux does not have the green mark and the red indicates the unadjusted position.


AgX

Member
Joined
Apr 5, 2007
Messages
28,347
Location
Germany
Shooter
Multi Format
The Luna Lux (Lunalite) is a later model (kind of simplified Profisix) and then there already had been those black attachments with that sticker.
