For small increments, like 1/12 stop, there isn't much if any difference between a linear progression and a logarithmic progression. The smaller the stop increment the more linear the progression - the basis of differential calculus, really.

A 1/12 stop 5-strip test would start out at a 6% step and finish at a 7% step: 10 seconds, 10.6 seconds, 11.2 seconds, 11.9 seconds, 12.6 seconds. Without an f-Stop timer one might as well set the timer to 0.6 seconds (or 6% of the base exposure (though 5% / 10% are easier on the grey matter)) and be done with it.

A 1/12 of a stop change in print exposure is roughly equivalent to a 1/6 of a zone / stop change in negative exposure (midtones, regular development, #2 paper). Control over exposure can be far more precise when printing than when shooting. Printing can deliver what the Zone System only promises.

Did you (a few years back) sell a f stop overlay for the Gralab timers? That seems like the first time I recall seeing a f stop timer for printing.
My method seems to be make a lot of test prints. I use a Metrolux II timer for my cold light enlargers, this works nice but alas no f stop function, I have a phone app, my problem is I don't always know if a print is X fstops light or dark.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format
Did you (a few years back) sell a f stop overlay for the Gralab timers?

There is a template in the Support Files section of Nicholas' Darkroom Automations website.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format

RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
13,028
Location
K,Germany
Shooter
Medium Format
Mr Lambrect:

Did this modification help much? I have been just using a regular timer and 5 second intervals for my first "test strip" for a long time. When I learned the "close time" I then shortened my interval. My gray lab was broken after a long while and I just worked by intuition, it worked OK

it helped me understanding f/stop timing.


Attachments

  • TimingExposureEd2.pdf
    1.5 MB · Views: 25

RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
13,028
Location
K,Germany
Shooter
Medium Format

Attachments

  • TimingExposureEd2.pdf
    1.5 MB · Views: 24

pentaxuser

Subscriber
Joined
May 9, 2005
Messages
16,346
Location
Daventry, No
Shooter
35mm
Ralph, I do hope that lenshustle will look at your link and begin to re-think his attitude to fstop timing

pentaxuser


RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
13,028
Location
K,Germany
Shooter
Medium Format
Ralph, I do hope that lenshustle will look at your link and begin to re-think his attitude to fstop timing

pentaxuser
I do too.I was in the fortunate situation to have started with f/stop timing and needed no convincing.


Nicholas Lindan

Advertiser
Advertiser
Joined
Sep 2, 2006
Messages
3,331
Location
Cleveland, O
Shooter
Multi Format
But no illustrated introduction to those who are new to the subject (hint, hint).

Ralph has already done a wonderful job of this in Beyond Monochrome. Anything I did would just be a poor imitation of Ralph's book.

After reading Ralph's work is there any aspect that remains cryptic?

Much of my writing comes out sounding like an engineering textbook. Spend a lifetime writing engineering documents and look what happens to you - crippled for life.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format
Ralph has already done a wonderful job of this in Beyond Monochrome. Anything I did would just be a poor imitation of Ralph's book.

After reading Ralph's work is there any aspect that remains cryptic?

Much of my writing comes out sounding like an engineering textbook. Spend a lifetime writing engineering documents and look what happens to you - crippled for life.

Thanks, and I understand.
And thanks to Ralph for sharing!
I have and rely on the first version of his book, and recommend either version to everyone who asks.
But its nice to be able to refer people to a web resource as well.
Perhaps Ralph and his co-author would allow you to use a credited copy of the excerpt he uploaded on your site.


cliveh

Subscriber
Joined
Oct 9, 2010
Messages
6,482
Shooter
35mm RF
If you are doing f-stop printing, are you ignoring depth of focus?


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format
If you are doing f-stop printing, are you ignoring depth of focus?

They have nothing to do with each other.
Depth of focus is a function of the efficiency of the negative holder and the lens aperture used.
f/stop printing relates to exposure times (not lens aperture).


albada

Subscriber
Joined
Apr 10, 2008
Messages
1,466
Location
Escondido, C
Shooter
35mm RF
If you are doing f-stop printing, are you ignoring depth of focus?

The names "f-stop printing" or "f-stop timing" are poor because they imply that the lens-aperture is being changed, causing confusion.
That's why I would prefer that it be called "stop-based timing" or "geometric timing".


Pieter12

Member
Joined
Aug 20, 2017
Messages
3,866
Location
Magrathean's computer
Shooter
Super8
I don’t see much difference between stop an f-stop timing. But I do think the reference should be to timing rather than printing, since it is the time that is being changed in f-stop increments.


cliveh

Subscriber
Joined
Oct 9, 2010
Messages
6,482
Shooter
35mm RF
I seem to have mis-understood f/stop timing, so why give it this name if you are not changing f/stops?


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format
I seem to have mis-understood f/stop timing, so why give it this name if you are not changing f/stops?

Because:
1) the logarithmic progression of exposure times matches how the paper actually behaves; and
2) the common sequence of aperture f/stops happens to mirror almost exactly the sequence of 1/2 stop progressions of exposure times: 8, 11, 16, 22, 32, 45, 64, 90, 128 seconds etc.
So if you are working without a fancy f-stop timer, you can still easily make 1/2 stop adjustments.
And remember, f/stop actually means stop factors, which apply to both apertures and times.


albada

Subscriber
Joined
Apr 10, 2008
Messages
1,466
Location
Escondido, C
Shooter
35mm RF
I seem to have mis-understood f/stop timing, so why give it this name if you are not changing f/stops?

That is why "f/stop timing" is a bad name. Most photographers are not engineers, and to them it sounds like we're changing the aperture. Misleading.

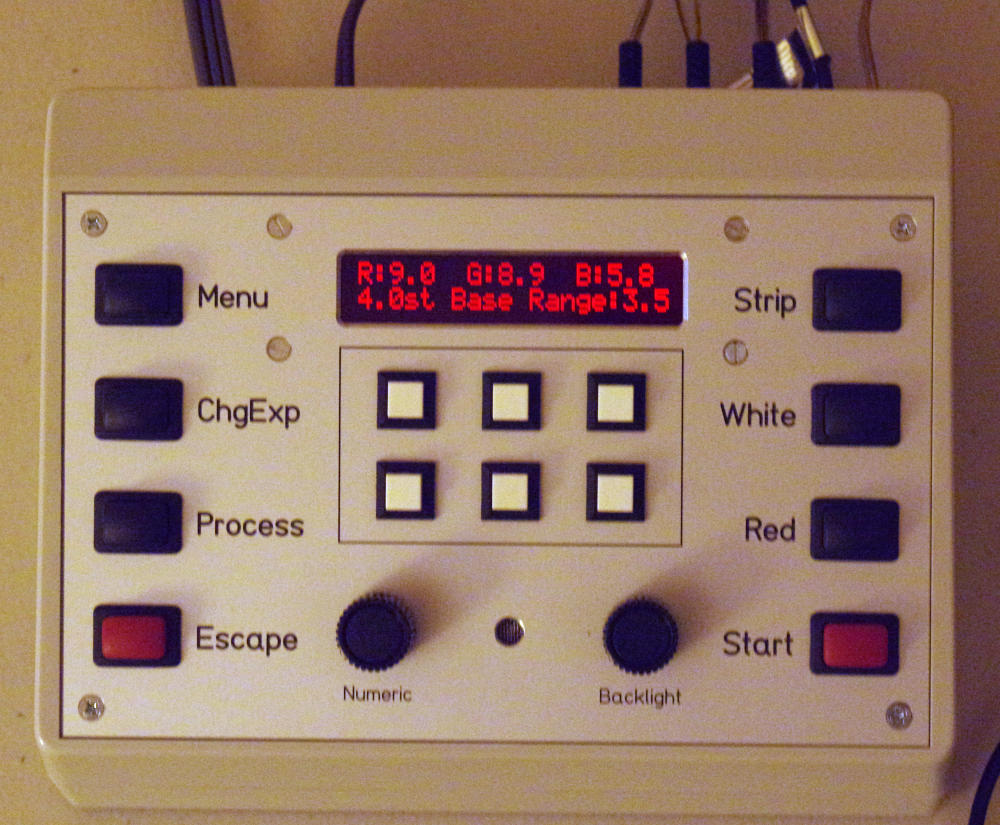

I used "stops" for time in my timer/controller for LEDs, abbreviated as "st" as the time "4.0st" illustrates below:

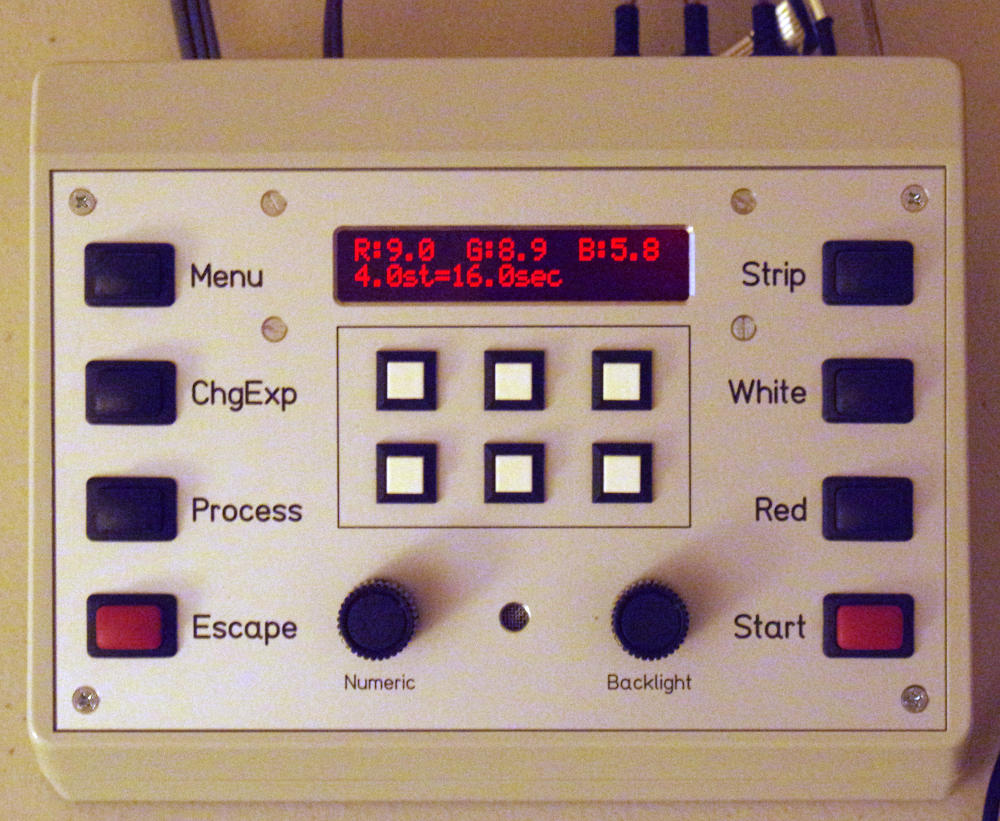

But when one selects and changes time, the controller also displays seconds:



For me, this is clear. It cannot be confused with f/stops (aperture) on the lens.

The LED-brightnesses on the top row of the display for red/green/blue are also in stops (10=max, 9=half bright, 8=quarter, ...). The steps in test strips (via the Strip button) progress in stops, not seconds. With everything in stops, it's easy to interchange settings, such as dimming the LEDs and exposing longer to compensate. Yesterday, Ralph Lambrecht posted a chapter from his book, Way Beyond Monochrome, detailing additional advantages of stop-based timing.


Pieter12

Member
Joined
Aug 20, 2017
Messages
3,866
Location
Magrathean's computer
Shooter
Super8
That is why "f/stop timing" is a bad name. Most photographers are not engineers, and to them it sounds like we're changing the aperture. Misleading.
I used "stops" for time in my timer/controller for LEDs, abbreviated as "st" as the time "4.0st" illustrates below:

View attachment 317030

But when one selects and changes time, the controller also displays seconds:

View attachment 317031

For me, this is clear. It cannot be confused with f/stops (aperture) on the lens.

The LED-brightnesses on the top row of the display for red/green/blue are also in stops (10=max, 9=half bright, 8=quarter, ...). The steps in test strips (via the Strip button) progress in stops, not seconds. With everything in stops, it's easy to interchange settings, such as dimming the LEDs and exposing longer to compensate. Yesterday, Ralph Lambrecht posted a chapter from his book, Way Beyond Monochrome, detailing additional advantages of stop-based timing.

Once you start using the method, you surely wouldn’t be confusing time and aperture. It is only those who don’t know what is involved who are unclear.


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
41,695
Location
Southern California
Shooter
Multi Format
Once you start using the method, you surely wouldn’t be confusing time and aperture. It is only those who don’t know what is involved who are unclear.

I agree, even as an engineer, it was not enough to only read about it, I had to work through it several times with one or two prints. Then the light went on, no paper fogged here, I understood it. When you were first taught about logarithms in Algebra II your teacher probably gave the same lesson every day for a week. Each day the light popped on in a few more students. A month later everyone in the class was using logarithms as thought they were as easy as counting with natural numbers [1, 2, 3, 4, ...].

Last edited:

mshchem

Subscriber
Joined
Nov 26, 2007
Messages
8,936
Location
Iowa City, Iowa USA
Shooter
Medium Format
I use an app or a chart. An f stop timer is probably one of the better investments a printer could make, that and a lab book for records.


mshchem

Subscriber
Joined
Nov 26, 2007
Messages
8,936
Location
Iowa City, Iowa USA
Shooter
Medium Format
Thanks, and I understand.
And thanks to Ralph for sharing!
I have and rely on the first version of his book, and recommend either version to everyone who asks.
But its nice to be able to refer people to a web resource as well.
Perhaps Ralph and his co-author would allow you to use a credited copy of the excerpt he uploaded on your site.

I have both editions. Great!!


RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
13,028
Location
K,Germany
Shooter
Medium Format
Thanks, and I understand.
And thanks to Ralph for sharing!
I have and rely on the first version of his book, and recommend either version to everyone who asks.
But its nice to be able to refer people to a web resource as well.
Perhaps Ralph and his co-author would allow you to use a credited copy of the excerpt he uploaded on your site.

I would


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
41,695
Location
Southern California
Shooter
Multi Format
I use an app or a chart. An f stop timer is probably one of the better investments a printer could make, that and a lab book for records.


I have a digital enlarger timer that works in seconds and seconds and tenths, so I do not know how an f/stop label will help me. I will stick to a chart.
