Color Bias in characteristic curve in negative films

Discussion in 'Color: Film, Paper, and Chemistry' started by Ted Baker, Nov 28, 2017.

  1. Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    Background, I am trying to create some scanning software for negative inversion.

    I am interested to hear from anyone involved in the design of color negative emulsions, or similar technical background, that could explain what the reason is for the different contrast index or gamma between each color layer, of a color negative emulsion?

    Tracing the physical process through to exposure onto color paper, it is clear to me at least that this bias is not removed by the corresponding individual characteristic curves of color RA-4 paper.

  2. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    The gamma of a magenta (green) curve is different in a single color exposure than in a neutral due to interimage effects which are there to correct for unwanted absorption in the dyes. This is therefore translated into a paper print as a corrected color image with true colors. An expanded explanation would take a textbook to write, but there is some information out there, just not very much in the private domain.

    PE

  3. markbarendt

    markbarendt Member

    Messages:
    9,196
    Joined:
    May 18, 2008
    Location:
    Beaverton, OR
    Shooter:
    Multi Format
    Just a thought Ted, it seems to me that your task is to replace what the paper does, not what the film does. The papers curves, etcetera, is your real world model for design.

  4. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    Very possible :smile: but I am trying to get a better picture of what really goes on for a number of reasons. There isn't really much that I have found in the public domain, in the glory days of film, I could see how it made sense for Kodak et all to keep it proprietary, but not so in the digital age.

    Don't you mean Yellow (Blue) curve?

    Is this unwanted absorption in the paper? or if it is the negative then how do the prepare the film before doing density measurements?

    Thanks PE for you help!

    I had thought it has something to do with Bezold-Brucke effect or some such effect, but it's not obvious.

    Last edited: Nov 28, 2017
  5. RPC

    RPC Member

    Messages:
    956
    Joined:
    Sep 7, 2006
    Shooter:
    Multi Format
    OP, there has been discussions on these matters (many involving PE) right here on this site, in this forum. All you have to do is look through the color archives and you can learn a lot, much of what is hard to find elsewhere. I'm not saying you can't ask questions here now, but consider the archives too.

  6. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    Ted, I used green as an example. Sorry that was not clear. It is actually true of all 3 layers. The single color exposures are higher in contrast than the neutral. As you flash a green single color with blue and red, the green contrast goes down as the blue and red flash goes up.

    PE

  7. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    I was hoping for more than a discussion, I was hoping for an answer :smile:

    PE I am still trying to digest what you meant by

    In particular I am trying to understand why the bias is a ^power function as opposed to a straight coefficient

  8. Mr Bill

    Mr Bill Member

    Messages:
    617
    Joined:
    Aug 22, 2006
    Shooter:
    Multi Format
    Historically, this has been the important part, but it was what the paper does AS SEEN BY THE EYE under given lighting conditions.

    An important part of this is, how does the paper "see" the film, raising the question (to Ted), where are you getting your info about the contrast of the film? If you are using characteristic curves, these are mostly made with a certain densitometer response (status M, I think, for color neg). These use a narrow spectral response, and almost certainly are not how a paper "sees" them - the results are usually broadly similar, but nothing like exact.

    Nowadays, with scanning, and perhaps no printing, it's probably better to bypass the print aspect, and to try to interpret the color negative directly compared to what's in the original scene. I've never dealt with doing this directly with film, but have done so with digital cameras - the film adds another layer of complexity.

    A general rule of thumb is that it is possible, working with "color spaces," to convert anything to anything else, by getting the data into a linear space, then multiply with a 3x3 matrix (getting the correct matrix is the tricky part, and is beyond me). The matrix allows all three "colors" to interact with each other in the calculations. With the scanners I have been (only slightly) involved with in a large lab operation, Kodak always supplied the proper matrices based on the known scanner respone (they were Kodak scanners) and the specific film (Kodak professional color neg films).

    Ted, roughly how much knowledge do you have in this general area?

  9. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    from the characteristic curve published in the tech sheet

    No I did not know that, but I had inferred it was something like that, however I also inferred that the measurements are taken using a complete piece of film i.e. all layers of the emulsion, which have been exposed to "daylight". I am now wondering if that assumption is correct?

    When I started roughly nil :smile: Though I have a fair amount of practical photographic experience and basic programming skills. Since then I invested a fair amount of time on the topic and put together a working prototype. I put a post up earlier requesting scans from others to see if I could move it forward. The knowledge definitely exists somewhere, I am certain someone at Kodak for example understands it very well... Once the problem and solution is clearly defined it can be put into software, It already is of of course in existing proprietary solutions.

    Last edited: Nov 28, 2017
  10. Mr Bill

    Mr Bill Member

    Messages:
    617
    Joined:
    Aug 22, 2006
    Shooter:
    Multi Format
    Yes, that is correct. The problem is that spectrally, in the general range from about 400 to 700 nm, roughly what the human eye sees, the spectral dye curves wiggle around a lot. Since the densitometer measures only a narrow spectral zone (I don't have any specs at hand) you can see that it could get different measurements depending on if it were at a peak or valley of the dye absorption. Now with photo paper or the human eye, the spectral sensitivities are much broader, so not that much affected by the wiggle in the curves.

    What I'm trying to imply is that a certain contrast that a densitometer measures is not necessarily exactly the same as the paper would see.

    A second implication is that two different scanners, depending on the spectral ranges they see, could give significantly different scan results for the same original scene color. So the software ideally corrects for this too.

  11. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    There is both Integral and Analytical Status M densitometry. Integral is what is read directly from the strip of film or seen by the eye. Analytical is a measure of how much of each dye is really present, without the added densities of the other dyes. Thus, when you see spectral curves of the dyes in film, you see that they overlap. Integral reads all of the dyes plus overlap, but analytical reads only the dye, no overlap.

    We read both multilayers and single color coatings, of which the latter may contain several layers itself. The multilayers give the best data, and in that case we read stepped and flashed exposures reading each density and comparing integral (the eye) and analytical (what is happening) and we do it with film and then print those exposures onto paper and read them. These are called single undercut or double undercut depending on the exposure.

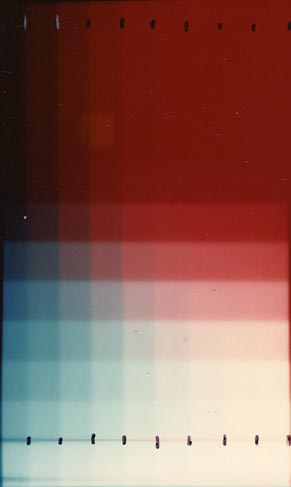

    There is a sample here of a double undercut print exposure of stepped cyan vs stepped red. The goal is to have a flat response of blue density in a yellow when cyan or magenta dye is increased. To do this in a cyan, you must create a positive image in magenta and yellow dye everywhere there is a negative image of cyan. This is done using DIR couplers and colored couplers. The DIR inhibits adjacent layers and the colored coupler creates the positive image while also creating a negative image.

    This is part one of about 1 million such posts as we move forward in color film building. :wink:

    PE


    Attached Files:

  12. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    PE, I inferred something similar on my own as one of the possibilities, regarding about what you meant earlier in your comment that said:

    Trying to put it all together, Does the published characteristic curve use and analytical measure or an integral measure?
    Or even if it is an integral measure does the bias exist because the measurement are narrow spectrally, and if the measurements were wide enough spectrally to take fully into account the overlap in the dyes the bias would disappear? This would also explain why bias is a power function not a simple co-efficient.

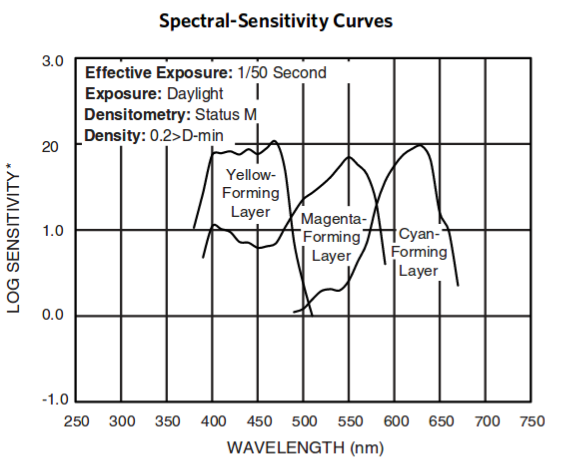

    Am on the right track or just talking gibberish? :smile: Looking carefully at the spectral curve for Porta 160 this does indeed make some sense.

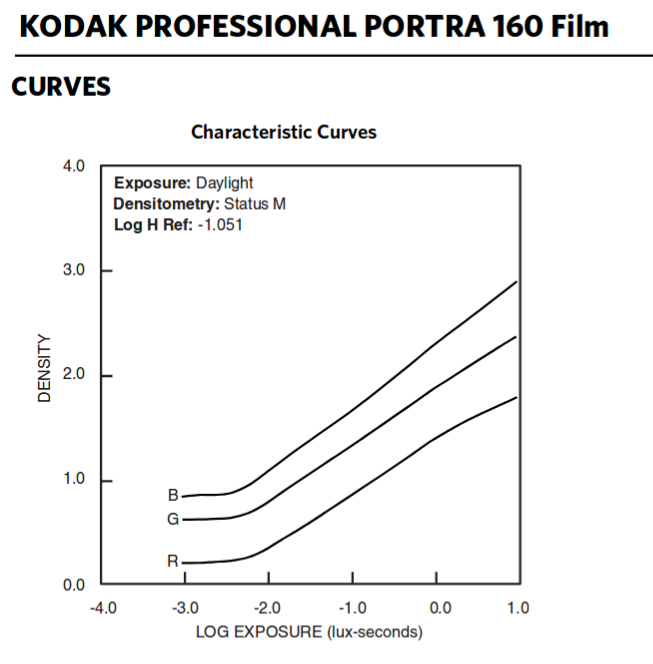

    Screenshot from 2017-11-10 21-22-34.png Screenshot from 2017-11-29 02-12-07.png
    [​IMG]

    Last edited: Nov 28, 2017
  13. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    If you include spectral sensitivity as above, it is gibberish! Spectral curves have nothing to do with dye curves produced during development. You need them to work from. They will be somewhat similar but will lead you to no conclusion that works.

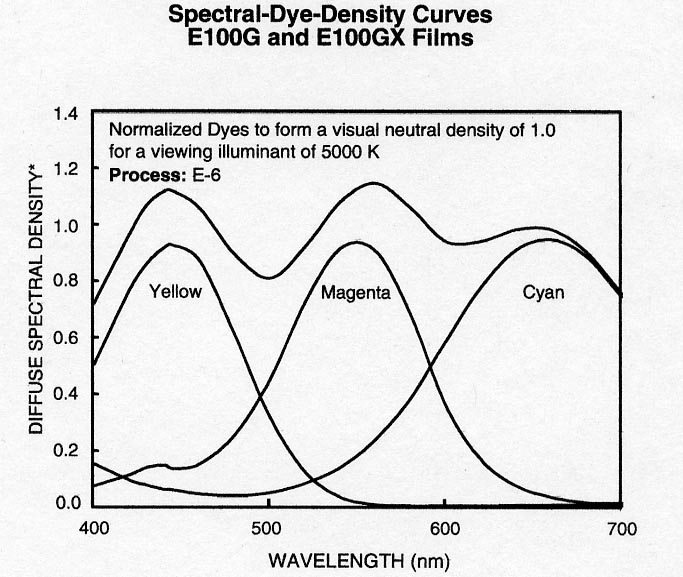

    OTOMH, all I could locate this late were these Ektachrome dye curves which shows the individual dyes and the unit neutral, which is the amount of each dye to form a gray or black image to the human eye.

    PE


    Attached Files:

  14. Sponsored Ad
  15. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    But not totally ? :happy: When I wrote it, I could see how it could turn out a number of different ways, as I don't have all the pieces of the puzzle.

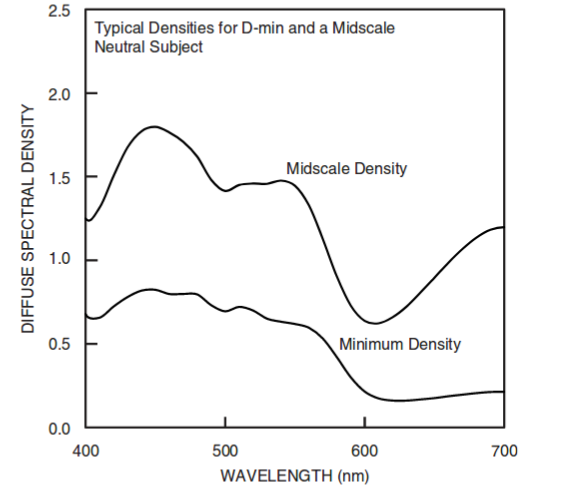

    Interestingly the dye curve published for portra 160 does not have the individual dyes like the ektachrome one you posted has.

    Screenshot from 2017-11-29 09-39-59.png

    Where could I find information on how these tests are actually carried out?

    I will take some time to digest what is here and see if I can put it together a coherent statement, on what the reason for the bias is. The penny is yet to drop, but maybe I am closer.

    Last edited: Nov 29, 2017
  16. Anon Ymous

    Anon Ymous Member

    Messages:
    1,952
    Joined:
    Feb 7, 2008
    Location:
    Greece
    Shooter:
    35mm
    Groups:
    Ted, are you sure that what you're trying to make makes sense? In theory, it seems to do, but reality is more complicated IMHO. It seems to me that you underestimate the effect development does. There's probably much variation caused by different formulations, underreplenished chemicals, unreplenished and reused chemicals and whatnot. Regardless of that, paper A differs from paper B, so what exactly is the "right" result? It's negative film, it is open to interpretation I guess. And we haven't even touched the technicalities and pitfalls that scanning involves.

  17. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    Am I sure that I will be successful? no. :smile: However the problem has already been solved, IT IS already very well "understood", at least in terms of existing software solutions, so It can be done!

    Last edited: Nov 29, 2017
  18. WilmarcoImaging

    WilmarcoImaging Member

    Messages:
    279
    Joined:
    Apr 2, 2017
    Shooter:
    Multi Format
    Ted, I think your goal seems to address a gap in the market for small/individual professionals and advanced amateurs or hobbyists. Do you think the technology behind the Fuji Frontier 350/370 equipment (analog film input to digital paper print) is similar to the technology you are striving for?

    Maybe some of the technology/philosophy/algorithms there are applicable.

  19. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    Ted, this set of curves is correct but leaves out individual dyes because of the masking. It is also why the curves drop in Dmax from 400 to 600 nm. That is the orange mask.

    What tests? We do flashed and step interimage as I showed above and read them with a densitometer. That's it. The actual data is reduced to readable images directly for integral and via matrix algebra for analytical.

    PE

  20. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    That IS the entire film market no? :smile: I perhaps foolish think it reasonably easy to make some improvements to the status quo.

  21. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    Possibly all three, but I think the details of how the characteristic curve are created is important:

    i.e. is it an integral measurement? I am now guessing it is, which would account for the bias in the gamma

    Basically I yet to form a clear picture of why the bias exists in the negative, and why it does not seem to exist in the paper. Though I am guessing that it is because the dyes in the paper are more saturated, and thus do not interfere with each other in the same ways the dyes in the film do.

  22. The bias is used to compensate for some color deficiencies by over compensating and then during printing not taking all of the over compensating out.

  23. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    Ted, a curve is created by means of a sensitometer. This exposes film to simulated daylight or tungsten light and creates a 21 step scale with 0.15 LogE increments. The film is then balanced to create a neutral to the desired light source. At the same time the interimage exposures are made to insure proper print quality using the method Sirius Glass described above. Everything is choreographed such that the film and the print give a neutral and colors which are reproduced as close to the original as possible. To do this we use a spectrometer which measures transmission or reflection density at wavelengths from 400 to 700 nm. This is what creates the curves you posted for negative color film.

    We often use Munsell charts to verify different colors and we use special CIE graphs to check our colors.

    PE

  24. OP
    OP
    Ted Baker

    Ted Baker Member

    Messages:
    79
    Joined:
    Sep 18, 2017
    Location:
    London
    Shooter:
    Medium Format
    PE, thanks for your help, however I think now my question has gotten a little lost, with no clear demonstrable answer.

    It may help if take a step back and prepare simple transform of simulated daylight exposures of a white card, tracing it through the intensities of the original scene, through to the density on the negative, through to the final densities on the paper. It is not yet clear to me from looking at the graphs where the bias disappears.

  25. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,725
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    There is a clear answer, but it takes much study and much math.

    PE

  26. alanrockwood

    alanrockwood Member

    Messages:
    1,001
    Joined:
    Oct 11, 2006
    Shooter:
    Multi Format
    I wonder if a spectrometer might be useful to help characterize films. Something I learned a few days ago is that one can use a compact disc as a grating to separate light into a spectrum. From this knowledge one can build a spectrometer. There are several pages on the internet that discuss this.
