Can you recognise this negative carrier?

Recent Classifieds

Forum statistics

Threads
179,438
Messages
2,470,427
Members
94,814
Latest member
Anthony_
Recent bookmarks
0

gorbas

Subscriber
Joined
Dec 9, 2007
Messages
1,082
Location
Vancouver, Canada
Shooter
35mm Pan

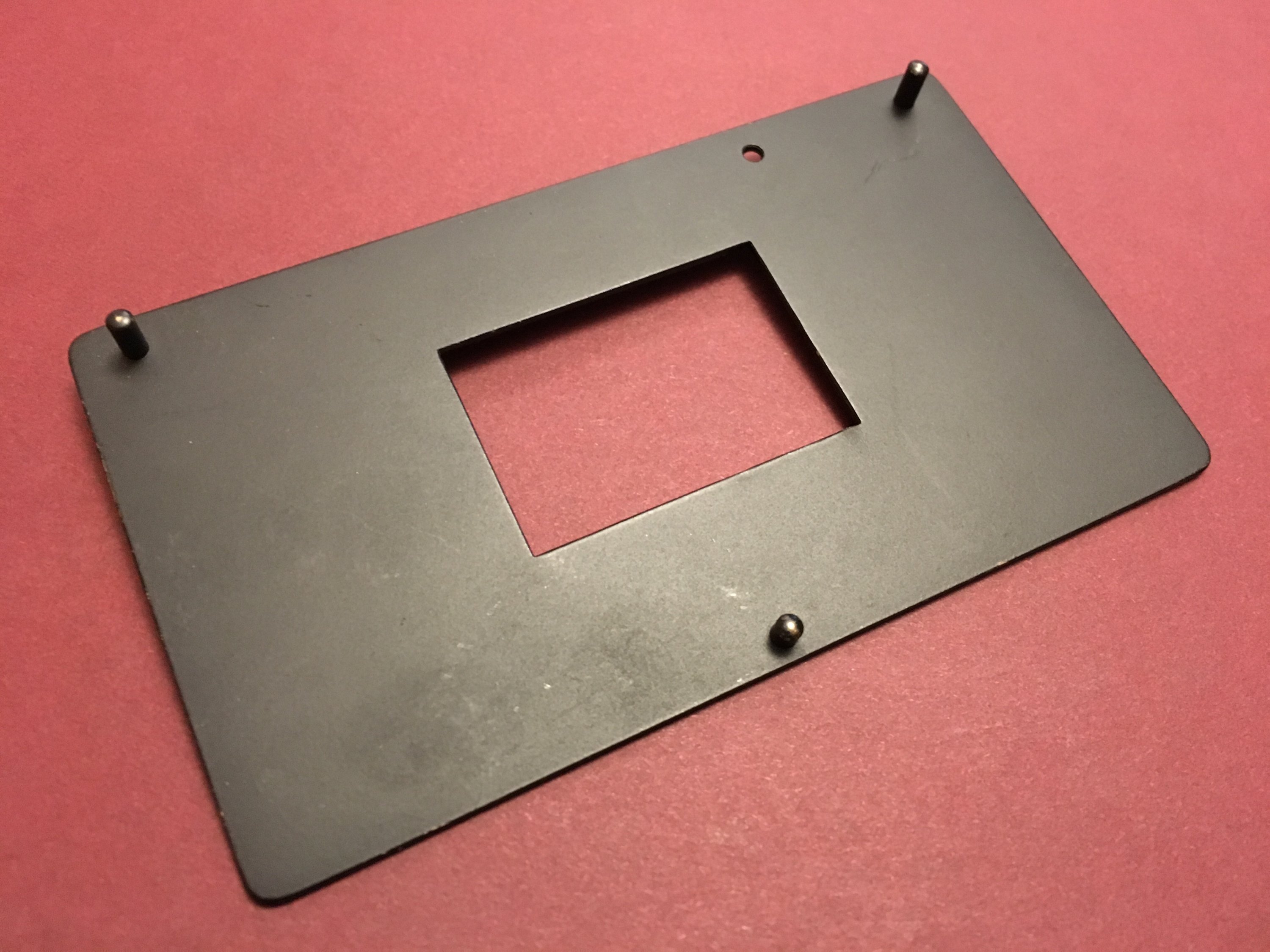

Hi Guys, This glassless negative carrier has outside dimensions 99.8 x 57mm, inside 23.5 x 35.5mm. 2 pins on one side and 3 on other. Just one piece. Nicely made. Is it Focomat negative carrier? Or?? Thank you in advance!

Joined
May 9, 2013
Messages
87
Location
Brooklyn. NY
Shooter
Medium Format
Looks just like the one that came with my Valloy II; I;m pretty sure the Focomat is the same. I can't check because I gave away the Valloy last year.


Trask

Subscriber
Joined
Oct 23, 2005
Messages
1,810
Location
Virginia (northern)
Shooter
35mm RF

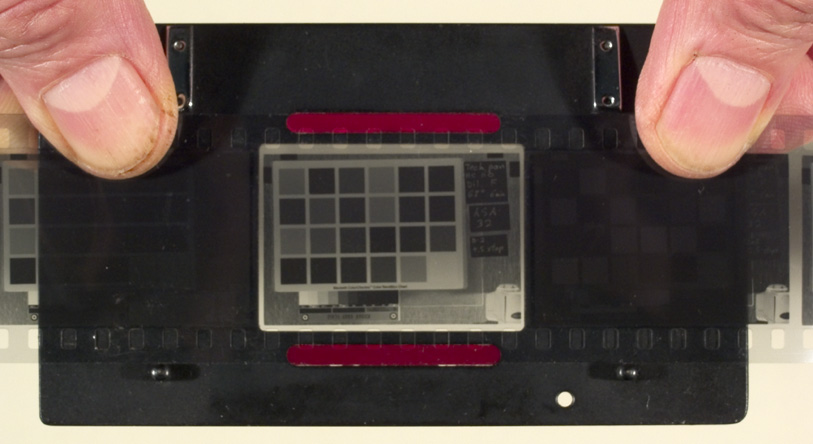

Looks similar to a Focomat negative carrier, but it’s missing the silver “ramps” (by the thumbs — not mine!) that the film bumps up against, and it lacks the red slots that show the frame numbers. I’d guess a carrier either made by a talented metal worker or a carrier made to fit an enlarger that mimics the Focomat design. (Or maybe the Focomat mimics another manufacturer’s design...)



MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,539
Location
Delta, BC, Canada
Shooter
Multi Format
It could be from anything - including a machine printer.


Hilo

Subscriber
Joined
Apr 19, 2011
Messages
728
Shooter
35mm
I am quite sure this was made for the Focomat Ic and the Valoy II. Perhaps by Kienzle who have made different sized negative carriers for these enlargers. Some to include the negative borders. And perhaps they made this one to exclude the negative borders.

The size you give is precisely that of a Leitz made negative holder

It can also be a special order made by Leitz. That was not unusual. For instance I have a baseboard for the Reprovit II that was prepared for the Focomat Ic (the holes for the column and the wiring). This baseboard is quite large and has landscape proportions, which made sense to who it was made for.

Are you using this carrier?


Saganich

Subscriber
Joined
Nov 21, 2004
Messages
987
Location
Brooklyn
Shooter
35mm RF
For Focomat IC. There are many interesting versions for who knows what purpose. I have a bunch.


~andi

Member
Joined
Mar 11, 2011
Messages
196
Location
here
Shooter
Multi Format
Hello,

Hilo is correct, this is a Focomat Ic / Valoy 2 negative carrier that is meant to be used with two glass plates hinged together by a piece of tape and sandwiching the neg to form a dual-glassed negative carrier. Hence missing the silver guide rails, they would hinder sliding in the glass-neg-sandwich. As far as I can tell this is an original Leitz part. That is, i've never seen a thrid party made of this type, so the statement might be considered conjecture. The holder and glass plates are shown in some of the Ic manuals floating around on the web and possibly in the '68 catalogue posted here a while ago. You'll probably find this using the search function.

I believe those where standard issue with the very late grey Ics. I've seen 3 or 4 of those 80s grey ones which came with this carrier. Those late ones also seem to have a silver (not hammertone laquered) knob to fasten the parallelogram on the column. But that's another topic.

I've been using this holder without glass sheets and I prefer it to the older (hammered and laquered) ones as the surface is totally smooth and I've more freedom positioning the filmstrip. It is much lighter than the older ones, something I'm not too fond of. At any rate it works fine with a Ic and Valoy II.

Cheers
Andi

Last edited:

Hilo

Subscriber
Joined
Apr 19, 2011
Messages
728
Shooter
35mm
Nice going Andi !

It crossed my mind this holder looks too Leitz not to be true !


~andi

Member
Joined
Mar 11, 2011
Messages
196
Location
here
Shooter
Multi Format
Thanks Hilo.

Yep, its too well made. And it looks too good for being used. The third party parts by the mentioned maker are usually only painted until first use :wink:
