The negative is so tiny you need a finer grain fine (see the SUBCLUB for details). When I want finer grain, I use Delta 100 or even slower film. Many submini camera users like MICROFILM. VERY fine grain and available in unperforated 16mm. Again, see the SUBCLUB for details.
-
Welcome to Photrio!Registration is fast and free. Join today to unlock search, see fewer ads, and access all forum features.Click here to sign up
Best way to cut 35mm film to 2 x 16mm film?
-
A
- Thread starter cannotShootStraight
- Start date
Recent Classifieds
-
For Sale Rodenstock Apo Sironar N 300mm RARE
- Started by x.rasenas
-
For Sale Leica M9 not working sensor _ for repair
- Started by Manual Camera
-
Want to Buy WTB: 4x4 Resin 81B Filter
- Started by NortheastPhotographic
-
For Sale LINHOF SUPER TECHNIKA III VERSION 5 with Raptar 135, film holders and FP4
- Started by Simon Benton
-
For Sale LINHOF TECHNIKA III ver 5 LENSBOARDS
- Started by Simon Benton
Forum statistics
The negative is so tiny you need a finer grain fine (see the SUBCLUB for details). When I want finer grain, I use Delta 100 or even slower film. Many submini camera users like MICROFILM. VERY fine grain and available in unperforated 16mm. Again, see the SUBCLUB for details.
cannotShootStraight
Allowing Ads
Yes it was. But I figured maybe not exact enough at some areas. Kinda unreliable this process which I don't like. I would never trust it for important photos I feel like.
The other possibilities are a warped cassette -- is yours a one-piece or two? Is it metal or plastic? Is it genuine?
Another issue is loading the film in the cassette. It has to be taped in straight. If not, it gets jammed. Try loading some film with the lights on and then advancing the film by hand -- OUTSIDE of the camera. Maybe the camera advance gear is messed up.
These cameras are usually very easy to reload and use.
And EXACTLY what film are you using?
Another issue is loading the film in the cassette. It has to be taped in straight. If not, it gets jammed. Try loading some film with the lights on and then advancing the film by hand -- OUTSIDE of the camera. Maybe the camera advance gear is messed up.
These cameras are usually very easy to reload and use.
And EXACTLY what film are you using?
cannotShootStraight
Allowing Ads
Don't think so as it worked fine before using Double-X. My guess still is that my setup using the match box and two blades is not accurate enough.
Ilford HP5 in 35mm.
So you are slitting 35mm down to 16mm? or some other width. Is your slitter producing 16mm wide film? Have you measured it? The problem may be your slitter or how you are using it.
Dustin McAmera
Allowing Ads
I made a cutter myself for 127. It's the body of a dead folding camera, and I made a metal plate with a knife-blade mounted on it, which sits in the film gate and cuts the film and the backing paper as I wind it through. I have to wind the cut-down film onto a 127 spool afterwards, in a black bag. I also swithc the film to a backing paper with my own frame-numbers on it. IIRC, for the 4x6cm size I can just about make one set of the existing numbers work, but for the 3x4cm size they overlap in pairs by a little, so it's worth marking my own numbers. For a TLR, I also have to cut the film down for length as well; even if I left more film, the camera won't shoot past frame 12.
There was another complication: with some of my cameras I can get away with keeping the whole length of the 120 film; but then it doesn't fit in my Hewes stainless 127 reel. I can use a Paterson one, but in the end I cut a few mm out of each 'leg' of a 120 reel: I did a terrible job, but it works well enough unless I drop it on the floor.
I put up some photos of my device in the 127 group at flickr: https://www.flickr.com/photos/century_graphic/albums/72157594255549742
I quite enjoyed all the tinkering this took to get right. The main benefit is being able to use HP5.
Just a thought: if film cut down from 35mm isn't behaving itself, maybe it's stiffer (because thicker) than the 'real' 16mm stuff, and resisting curling up in the takeup side of the cassette? In that case, maybe it would be worth trying cutting from 120.
Good thought, but I've used a wide variety of 35mm films -- cut to 16mm -- in lots of 16mm cameras without any problems due to thickness (and Minox & Hit cameras too!)
cannotShootStraight
Allowing Ads
Do you mean something like FUJI Microfilm Super HR-21?
I haven't seen it being available in reasonable quantities if at all. The site on sub club dates back to 1996.
There's lots of microfilm floating around from Kodak, Fuji and others. For pictorial use, you have to expose it and develop it differently. Specifically test it -- which will give you a low ISO (ex. 10-100) and lower contrast (microfilm is high contrast film).
Goathill sells it.
Goathill sells it.
guangong
Allowing Ads
- Joined
- Sep 10, 2009
- Messages
- 3,588
- Format
- Medium Format
The design without blades is superior. Blades become dull.
I think it was pushed at least two stops. If you use the readings of a built-in light meter with a selenium cell, be aware that they are very limited in low light and give erroneous readings.
cannotShootStraight
Allowing Ads
How do you come to that conclusion?
CineStill D96 Dev Chart
D96 is a low-contrast motion picture film developer. Development to a recommended gamma of 0.65 to 0.70 takes 5-8 minutes for most films exposed at their native ISO. Contrast can be controlled by shortening development times, and increasing the development time will result in added contrast...
cinestillfilm.com
Okay even if that's true, both pictures were shot during daylight. Actually around f/8.0 at 1/200 (something around that).
At least at first glance, the large graininess in your examples points me there. True, the frame is small and emphasizes the grain, but still...
cannotShootStraight
Allowing Ads
I mean that's what I have been saying.
In the early 1980s I make a jig with some nails and about 2 feet of 5/8" aluminum to cut 16mm from 35mm. I only needed 2 feet at a time to load Minolta cartridges. In the dark I used a blade to cut on either side of the aluminum piece.
Dustin McAmera
Allowing Ads
A little bit ad hom there; with this guide, he can cut for width and length in one fell swoop.
I cut a wooden rail with a step along one edge, with the idea of using it to cut 127 film to length for my baby TLRs. I guess it's about the same length: I cut it to match the length of a 'real' 127 film, whatever that is.
If I cut a 120 roll down for width, there's a lot more length than on a 'real' 127 roll. The extra-long roll is too fat for some cameras; and my TLRs won't shoot beyond frame 12 anyway. So I made this rail; but I don't really have a dark space, other than my black bag, and I found it quite awkward in the confined space. In the end I settled for using the backing paper as my guide for length. This involves making a brave cut with scissors in the black bag.
I also found a bulk roll of 127-width colour film, and I cut that down the same way.
I talk about this in the present tense; it's years since I did this; I must dig the stuff out and do some more. I bet I'll get some interesting colours on what's left of that colour stuff...
I cut a wooden rail with a step along one edge, with the idea of using it to cut 127 film to length for my baby TLRs. I guess it's about the same length: I cut it to match the length of a 'real' 127 film, whatever that is.
If I cut a 120 roll down for width, there's a lot more length than on a 'real' 127 roll. The extra-long roll is too fat for some cameras; and my TLRs won't shoot beyond frame 12 anyway. So I made this rail; but I don't really have a dark space, other than my black bag, and I found it quite awkward in the confined space. In the end I settled for using the backing paper as my guide for length. This involves making a brave cut with scissors in the black bag.
I also found a bulk roll of 127-width colour film, and I cut that down the same way.
I talk about this in the present tense; it's years since I did this; I must dig the stuff out and do some more. I bet I'll get some interesting colours on what's left of that colour stuff...
Dustin McAmera
Allowing Ads
Where did you get three foot from? And when you cut any of these formats, how do you cut to length?
MattKing
Moderator
The guide and measuring jig that ic-racer made is two feel long - the length of film he wanted.
I know plenty of people who have made very simple film cutters using a piece of 2x4 with markers & holders to use it in the dark. These can make sense for occasional short strips of submini film. HIT cameras, for example, only need about a foot of film, so this approach can make some sense, but cutting long rolls, such as127 film from 120 film, using this approach is another story. A film slitter the size of a pack of cigarettes is all you need.
Dustin McAmera
Allowing Ads
My cutter, described earlier, is in a light-proof camera body, so I can do the winding in daylight, and the cut film is on a spool, and convenient to transfer to a proper 127 spool in the black bag.
But you still didn't explain what you do about cutting the film to length, which is so much better than a strip of wood or aluminium.
But you still didn't explain what you do about cutting the film to length, which is so much better than a strip of wood or aluminium.
cannotShootStraight
Allowing Ads

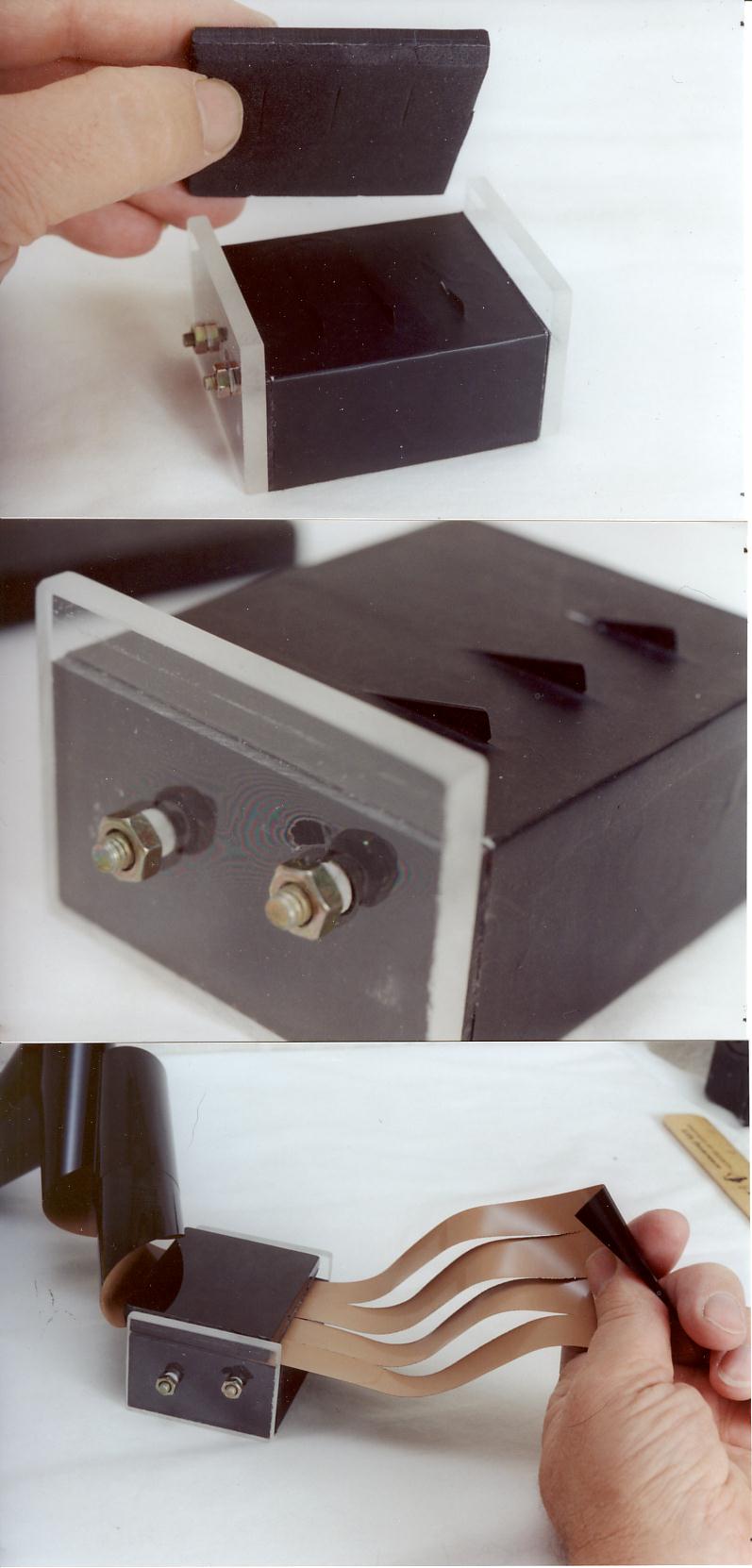

I am not sure how to operate this slitter. What is the purpose of the screws on the side? Are they just holding the blades?
And to slice a film roll you first lay the film ontop of the blades, then press the black plate from the top and pull the film through?
I know it sounds impossible, but that's all there is too it.
