For Sale 8x10 " conversion durst 138s / G139

Trader history for claudius (0)

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
18x24 ( 8x10") conversion durst 138S / G139

all parts needed for the set up are included !

1 x light head with 53 pcs 3 w leds with 2 x led 240V drivers atatched
110 volt drivers on request - same price
1 x pyramidal stub (?) on stainless mounting plate
1 x negative holder for up to 8x10 neg.,double glass book type
1 x adapter plate to replace original 5x7 neg. holder
1 x light seal to replace 8x10 filmholder
(when you use original 5x7 holder for smaller formats)
4 x bolts for assembling
spare bulbs,

conversion is made for 240mm lens,
that makes vertical enlargemants over 1 x 1 meter on the board
no need for a noisy cooling fan.
all parts of lazer cut steel and stainless material,
finished in grey paint

you need a screwdriver and a 10mm spanner , a hack saw for small adjustment
and 1 hour for first time assembly
thereafter it only takes few minutes ( 4 x 6 mm bolts !) to change back to original enlargerhead if desired.

if you have any questions, please ask me.

asking price 440 euro for one unit ( two units 1200 euro - it takes me a lot of work and i do it for fun !!! )

klaus lundsgaard
nibe
denmark
ph 0045 - 2442 0096 evening


Last edited:

Luis-F-S

Member
Joined
Sep 19, 2013
Messages
774
Location
Madisonville
Format
8x10 Format
Is the LED light set up to print with VC filters? I have a Durst SM 183 and this would make it an 8x10 enlarger for B&W.


swchris

Subscriber
Joined
Mar 22, 2010
Messages
257
Location
Bavaria
Format
Multi Format
Do I understand it correctly? You'd send me the pieces to convert a 138 to 8x10 (along with instructions for the conversion)?

regards,
chris


JeroenBouman

Member
Joined
Oct 31, 2010
Messages
26
Location
The Hague, Netherlands
Format
Med Format Digital
I bought a set from Claudius, it works perfectly. The LED's produce a lot of light! It's very easy to assemble if you can handle a screwdriver & hacksaw. @Luis: VC-filters work fine. I use a Rodagon 240mm, if I'm not mistaken Claudius has a (or some) suitable enlarging lense(s) for sale as well.


alentine

Subscriber
Joined
Nov 4, 2006
Messages
200
Format
Multi Format
That's great for durst 138S / G139 owners.
Thanks indeed klaus.

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
hello Jeroen,
how nice to be hearing from you again, and thank you for answering most of the questions from other members.
also glad that i can add yet another happy user of my conversion to my list.

swchris,
yes you get all parts you need for converting your durst 138 / 139 into a full working 8x10 enlarger.
i am also giving you info on how to assemble - is actually very, very easy, like jeromen just said.
and the price is 440 euro, i had to raise it a little due to highter expences to the new, and far better, producer of the parts for the conv.
i belive postage to Germany is around 30 euro
klaus


Dan McGuire

Member
Joined
Aug 15, 2019
Messages
60
Location
Beautiful BC
Format
Large Format
Would you be able to look into what shipping to Canada would be
If you need a Postal Code you can use L7R2W5
Thank you


Pontarou

Member
Joined
Sep 4, 2019
Messages
2
Location
Nagoya Japan
Format
Large Format


Pontarou

Member
Joined
Sep 4, 2019
Messages
2
Location
Nagoya Japan
Format
Large Format
Hello,I am sending this message from Japan. I am very interested in your item. I have Durst G139 for 5x7. I want to enlarge 8x10 format with your item. Can you ship to Japan.If so,how much should I pay. Please let me know the total amount. In Japan.the voltage is 100V. Do I need some adapter to convert the power? And what enlarger lens for 8x10. I have 210mm Nikkor Enlarger Lens. Do you have the manual for setting up?

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
hi pontarou
thank you or the interst in my 8x10 conversion.

in the moment i am out of converters that works from 90 V and up to 250v.
i have 230 volt in stock, if you are in ahurry, you can eventually convert it to 100v ?!
time of delivery for coverter is around 6 weeks.

the lens is 240 mm
210 mm will give a very large enlargment but you get fall off in the corners, ok for center of negative.
(postage to tokyo is less than 100 euro) - i can not say exactly until i am making the paperwork, and i need your postcode too.
very easy installation,, you get the info with the kit.


by the way, i have just finished a new 8x10conversion for Beseler 45 (4x5")
comming for sale after proper testing this summer.

for further messages, please use my mail:
claudius123@gmail.com

klaus
denmark

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
hi boon
i am not familiar with the 184 model, but there is a chance for making an adapter board for the 184 as well.
looking at photos it seems that the under part on which the head rests, is of similar construction as the 183S / G139.
i need some more informations , please send me message.

what type of light head do you have now ?
if the bulb , the fan, the heat - - is the problem, i have made a LED conversion instead of the
two 1000W halogen tubes i have in my BWL 300 light head with the same light output as 2000W halo - extremly bright and no heat and silent fans.
i got tired of the noise from the double fan and the heat in my darkroom.
if you have a light head of CLA 300 type ( or BWL 300) with reflector lamps on a flat plate that slides in two rails , my led conversion will fit nicely after disconnecting the original wire.
just a thought.

kindly
klaus
claudius123@gmail.com


2014268

Subscriber
Joined
Aug 25, 2011
Messages
25
Location
Singapore
Format
4x5 Format
hi claudius,
The 1500W lamp is not working on my L184
I have dismantled it and removed the light bulb and heavy box above the condensers.

What is left is a gaping hole above the 380 condensers. Dimension for adapting cold light source on top of condensers is 329mm x 295mm

Do you need more info?
Thank you
boon

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
hi boon
it is quite difficult for me at distance to make a reasonable lightbox for you, as i said, i am not familiar with your L184 and have no acces to one.
if you can make the box yourself, i can ship the light panel to you.
my standard panel is 5mm alu plate at 240x280 mm in size and works on seperate led driver,
if this is not working for you i can make one in size for you.
i think it is possible to convert one of the condensors into a light box, but then i need you to send me two without the lens.
i have seen it done in fora. the condensor is not necessary as the light is diffused from a separate diffuser in the lower condenser slot.

klaus


Saus

Member
Joined
Jul 13, 2013
Messages
14
Format
Multi Format
How do you use VC filters with this? Below the lens? Would a filter drawer right below the LED be possible?


Dan McGuire

Member
Joined
Aug 15, 2019
Messages
60
Location
Beautiful BC
Format
Large Format
Saus said:
How do you use VC filters with this? Below the lens? Would a filter drawer right below the LED be possible?
Click to expand...
Hello
Funny you should post this question
I just spent yesterday and today putting together a DIY contrast filter solution for the Beseler 4x5 to 8x10 conversion enlarger by our friend Cladius
In place of the normal negative carrier I put in a drawer
I then clam shelled the contrast filters between some cardboard
and there you go, a filter drawer for the 8x10 conversion enlarger

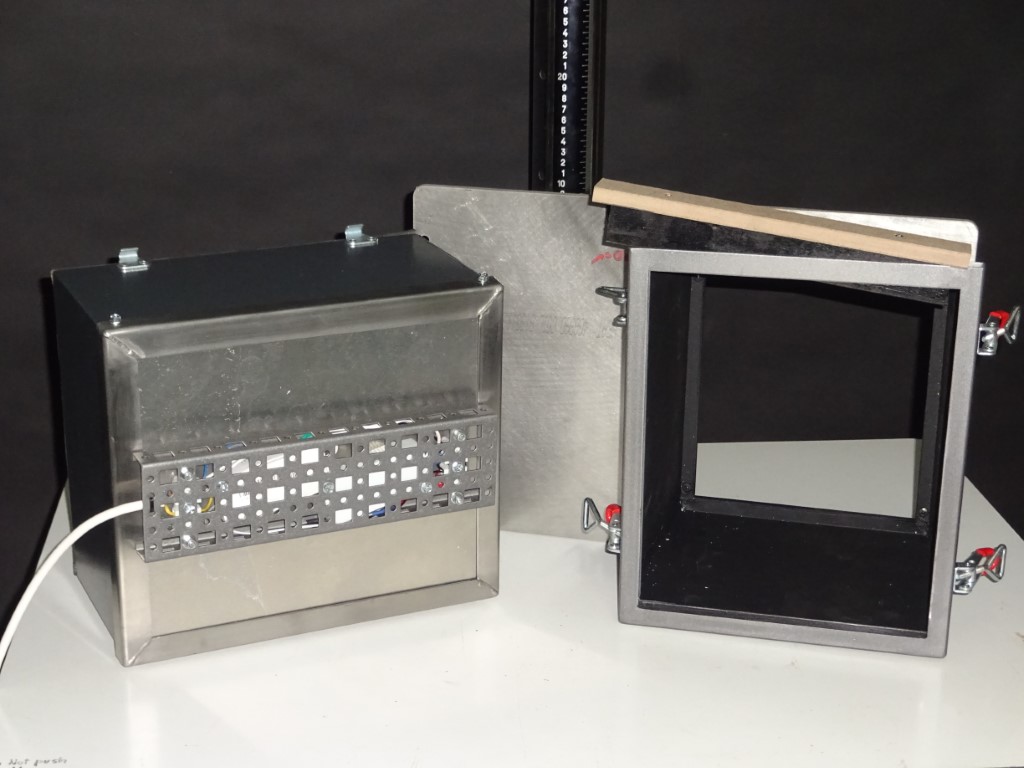

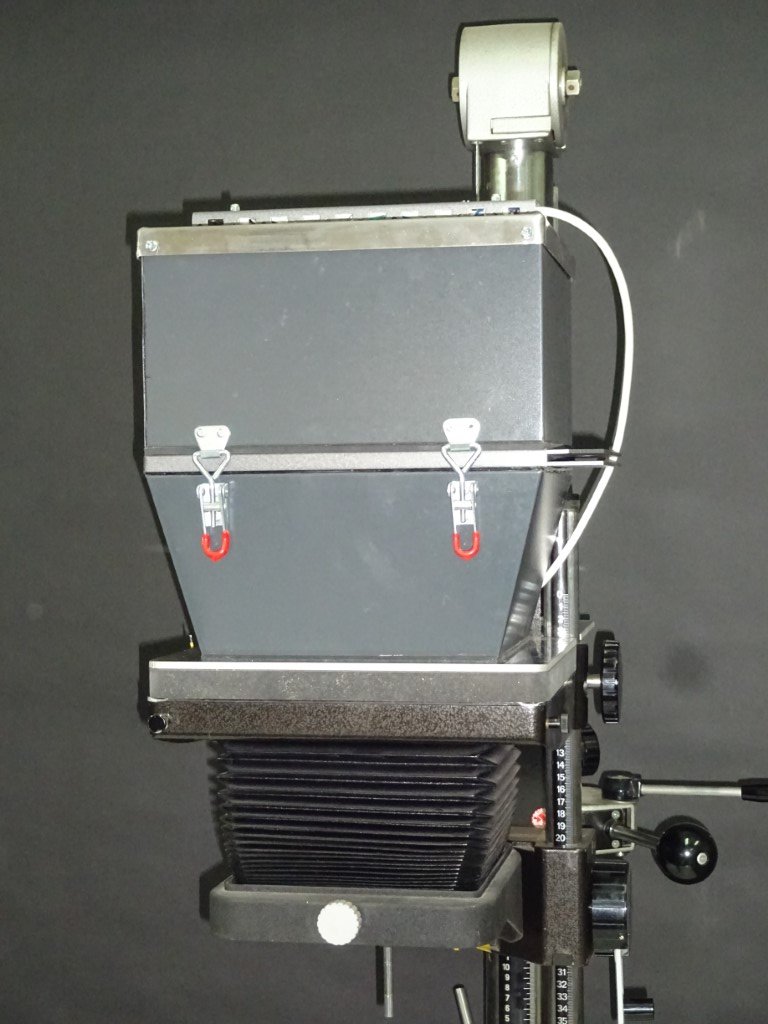

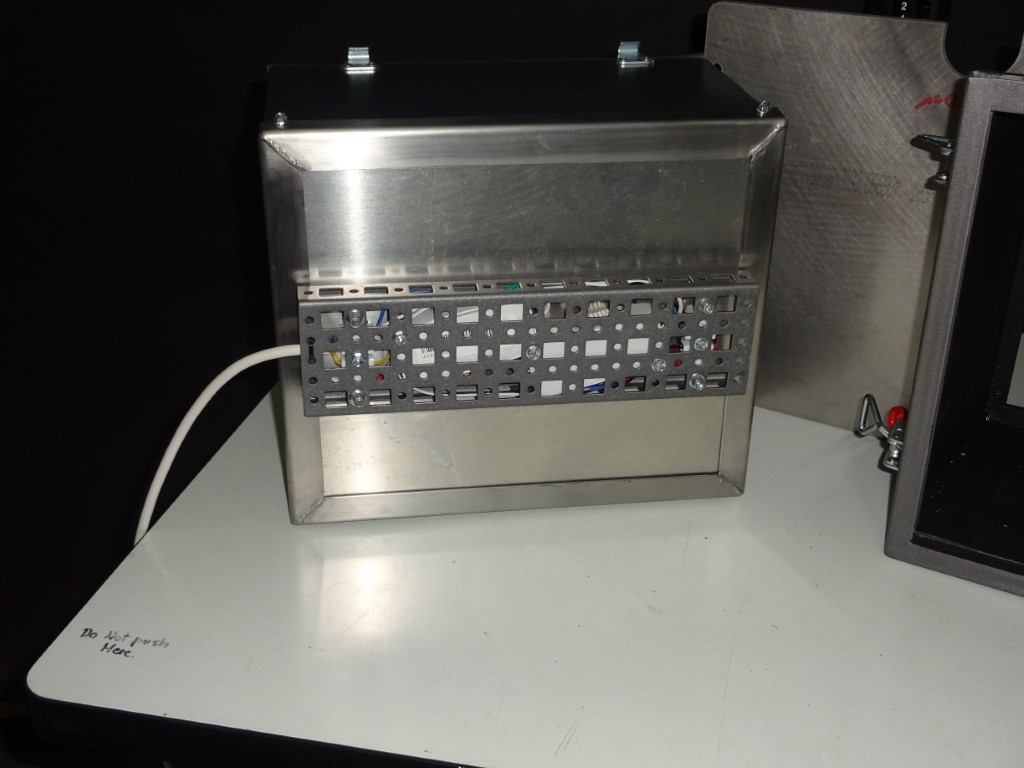

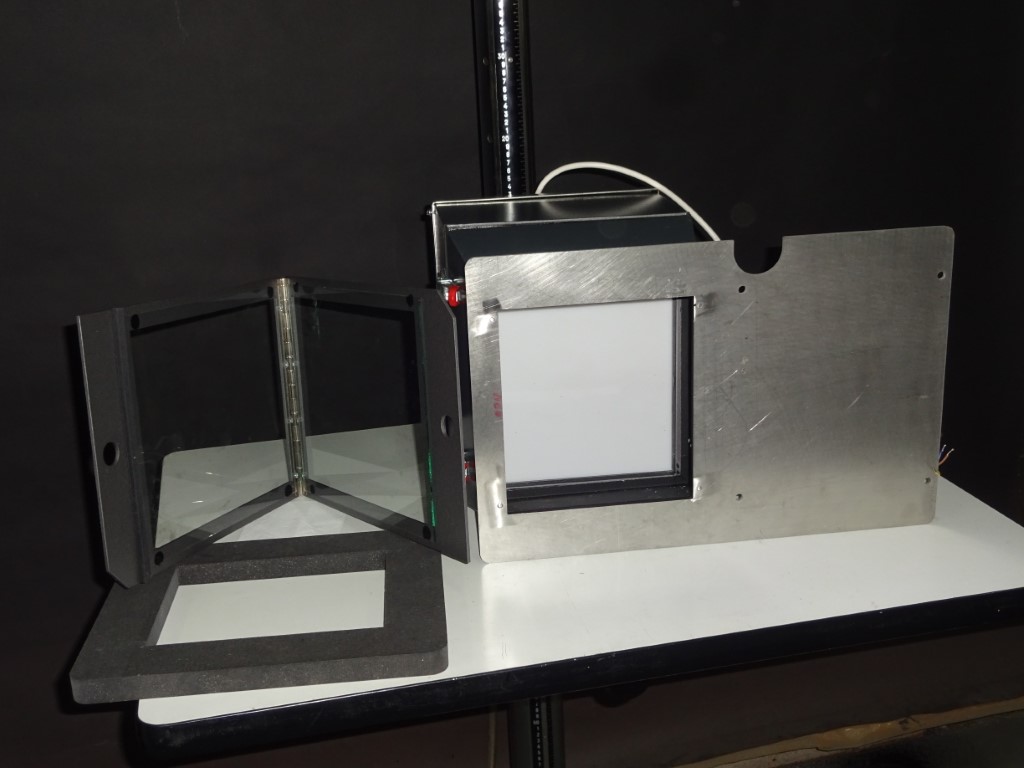

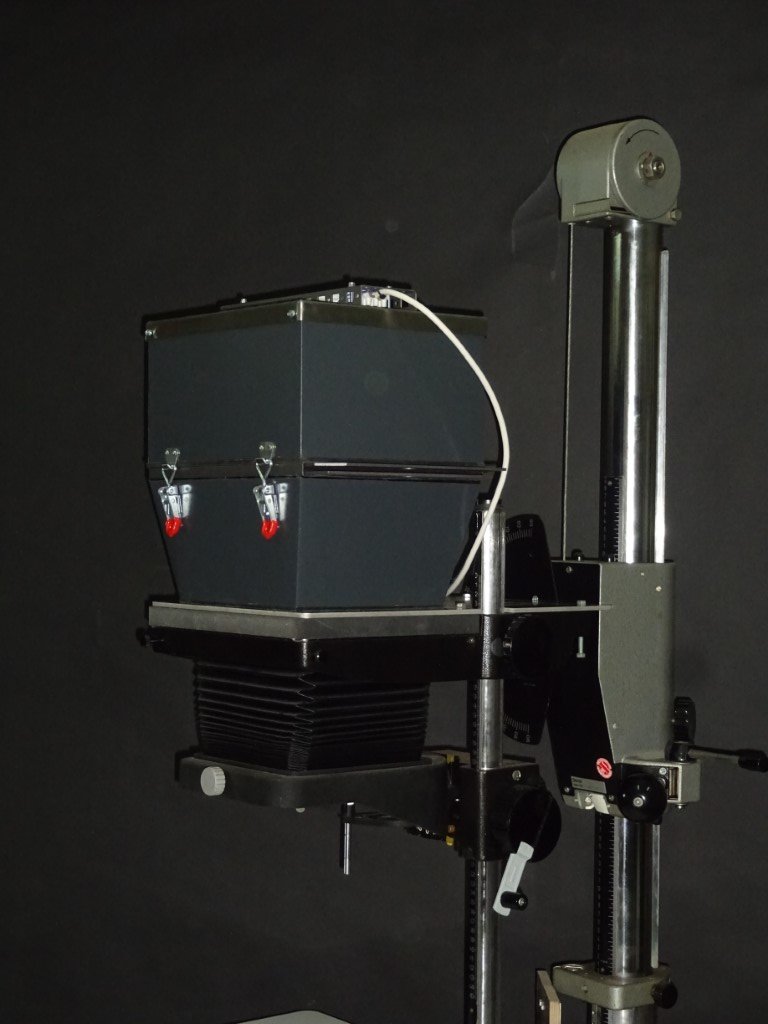

Are are some pictures that hopefully show what I am talking about

Dan -- Happy user of the Beseler 4x5 to 8x10 conversion



Saus

Member
Joined
Jul 13, 2013
Messages
14
Format
Multi Format
I just received my kit. Is ANR glass not needed? Assembled on the enlarger, just the soldering left. Looks great and feels good quality. There is some flex in the base plate however, will use clamps as a temporary solution.

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
i have had a email conversation with saus.
for information if anybody else has same issue:
occasionally the durst film holder bay is not in line ( parrallel) to the head carrier ( where the 8x10 kit is mounted)
simply place a suitable "O" ring under the carrier ( the large stainless plate ) and adjust until the carrier rest flat on the black19mm / 3/4" fiber adapter plate.

i had the problem with my old 138S and this little trick makes the job.

klaus


Saus

Member
Joined
Jul 13, 2013
Messages
14
Format
Multi Format
Can confirm. This solved the problem.


Jon Stuart

Member
Joined
Jul 10, 2017
Messages
28
Location
Canada
Format
Multi Format
Dan McGuire said:
Would you be able to look into what shipping to Canada would be
If you need a Postal Code you can use L7R2W5
Thank you
Click to expand...
Hey Dan

Did you buy the conversion head? Interested in hearing how it went? I'm up in Ottawa

Jon

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
hi jon

thank you for your mail, but you have to re direct it to Dan.
kindly
klaus

OP
OP

claudius

Subscriber
Joined
Oct 17, 2012
Messages
209
Location
nibe denmark
Format
Multi Format
may 2021
i am sold out of the kits right now, but a new batch will be ready this spring / summer.
klauis
