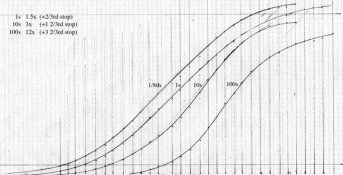

Incase anyone who uses x-ray film particularly CSX green latitude, here are some curves showing the effect of long exposures.

The 1/8th sec curve represents normal. Some development compensation will most likely be needed as well, starting at the 10 second mark.


Attachments

  • Xray-Reciprocity-Graph1.jpg
    43.2 KB · Views: 833
Last edited by a moderator:

Vaughn

Subscriber
Joined
Dec 13, 2006
Messages
9,771
Location
Humboldt Co.
Format
Large Format
Nice curves, but how does the rate of failure relate to conventional films and TMax films? Just so that I can wrap my poor brain arounf it!

Vaughn

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
Compared to X-Ray film:

HP5+: 1s give 1/3rd stop more; 10s give 1.5x; 100s give 4x more exposure
No development compensation required.


TMY-2: 1s no compensation; 10s give 1.2x (1/3rd stop); 100s 4x more.
No development compensation required.

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
Here is a rough tonal/colour sensitivity comparison between X-ray and TMY-2.
Green does appear slightly lighter and darker for yellow and beyond.
Tonally, TMY-2 is much much nicer. With the use of filters (#58 green filter for example) one could pretty much get it to look like the x-ray films colour response. Just with much nicer tonalities and sharpness.
I do not have a film scanner, so please excuse the poor quality.


Attachments

  • Comparison.jpg
    33.2 KB · Views: 549
OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
After playing around with this film some more, it will not become my main film. I'll stick with HP5 and Timmy-2. I like smooth tonalities, sharpness, decent reciprocity characteristics, and a film that won't scratch so easily.

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
Four years later, and I'm still using x-ray film both double-side green and single-sided blue. If you are careful, you can avoid scratches, even with flat-bottomed trays (which I prefer to use). Not my main film, but nice to have in certain situations.

This was exposed on double-sided green latitude, unstripped. I prefer not to as a stripped neg's tones are mushy. Yes, the stripped neg is a tad sharper, but grain is more noticeable. To my eye, unstripped looks great and you only notice the softness in side-by-side comparisons. All of this is my opinion, of course!


Attachments

  • MIssionAbbey.jpg
    827.3 KB · Views: 417

BetterSense

Member
Joined
Aug 16, 2008
Messages
3,153
Location
North Caroli
Format
35mm
Under incandescent lighting, with exposures of 5-30 seconds, I found Green Latitude to be significantly faster than Foma 100. Like several stops faster. Foma 100 has legendarily bad reciprocity failure, but I find it interesting that even Xray film is better!


Toffle

Member
Joined
Mar 27, 2007
Messages
1,930
Location
Point Pelee,
Format
Multi Format
Thanks for this, Andrew. I've been cutting Fuji HR-T Green 8x10 down to 4x5 for the last year or so with some really good results. It's good to have some clue about reciprocity performance on really long exposures. It seems to go very well with my pinhole work, but I've had a couple of longer exposures that fell off the chart, so to speak. On the other end of the scale, I've had difficulty with exposures under bright blue skies. I generally get good results at ISO 50, but under high UV situations, it appears much faster. Do you have any insights into the characteristics of this film?

Cheers,
Tom


Dr Croubie

Member
Joined
Mar 21, 2013
Messages
1,987
Location
rAdelaide
Format
Multi Format
On the other end of the scale, I've had difficulty with exposures under bright blue skies. I generally get good results at ISO 50, but under high UV situations, it appears much faster.

Is that with or without a UV filter (or any other filters) in place?


Toffle

Member
Joined
Mar 27, 2007
Messages
1,930
Location
Point Pelee,
Format
Multi Format
Is that with or without a UV filter (or any other filters) in place?

No filters in place. I guess technically I could use filters with my pinhole camera, but I've never tried.


SawyerK

Member
Joined
Nov 17, 2015
Messages
2
Format
Pinhole
Thanks for the curves. I've been building large pinhole cameras and shooting CXS green sensitive xray film but my exposures are so long, reciprocity was about to beat me. As far as developing, have you had better luck tray processing or tank processing. I'm shooting 14x17" sheets so tray processing is better for me, but I can't figure out how to control streaking. My film looks more like tye dye than else. I've been using GBX developer and replenisher and Sprint but I can't figure it out, have you ahd any luck with Sprint/d76?

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
You are very welcome! I prefer flat-bottomed trays for both 8x10 and 14x17. I've never had problems with streaking or mottling. I've not used those developers for x-ray, so I cannot comment. I have used D-76 in the past on conventional films, and I'm quite certain it would work with x-ray, diluted more than usual. I always give quite vigorous agitation, for the first 30 seconds, then 5 sec every minute. Make sure the film is completely covered with developer in the tray. My rule is as deep as the first knuckle on my middle finger...which is about an inch.

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
Still working with this stuff. Switched over to D-23 diluted 1+2. Very nice, clean negatives that print well in carbon. Green latitude xray. EI 100. Almost always with a yellow #15 filter or green if I remember to bring it!


Cholentpot

Subscriber
Joined
Oct 26, 2015
Messages
6,344
Format
35mm
I've been using Min-R in rodinal 1:100. Scratch it up every time I use it. It's cheap and fun to use though and I don't worry about wasting film.

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
I've been using Min-R in rodinal 1:100. Scratch it up every time I use it. It's cheap and fun to use though and I don't worry about wasting film.

I use double-sided xray in a flat-bottomed tray. No scratches. Starting out with this stuff back in 2008, scratching was a major issue. I tried ribbed trays with glass on the bottom. Ziplock bag technique. Film hangers (hated them as they introduced awful surge marks along the edges). Gentle agitation in flat-bottomed tray was the answer. I also use single-sided Ektascan, developed in BTZS tube. This stuff is razor sharp...but I prefer the look of the double-sided green, especially in the rainforest.


Cholentpot

Subscriber
Joined
Oct 26, 2015
Messages
6,344
Format
35mm
I use double-sided xray in a flat-bottomed tray. No scratches. Starting out with this stuff back in 2008, scratching was a major issue. I tried ribbed trays with glass on the bottom. Ziplock bag technique. Film hangers (hated them as they introduced awful surge marks along the edges). Gentle agitation in flat-bottomed tray was the answer. I also use single-sided Ektascan, developed in BTZS tube. This stuff is razor sharp...but I prefer the look of the double-sided green, especially in the rainforest.

I don't have a proper darkroom. Stearman Press or taco method is what I'm limited to right now.

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
I don't have a proper darkroom. Stearman Press or taco method is what I'm limited to right now.

No clue what Stearman Press is. I would only do the taco method with single sided x-ray.


laser

Advertiser
Advertiser
Joined
Jun 16, 2005
Messages
887
Format
4x5 Format
Reciprocity Log Failure (RLF) is only considered in the design of x-ray films from 1/50th of a second to about 1 second. Most x-ray exposures are based on relatively short exposure time. Even in prolonged procedures when a grain is exposed on the film, the duration of that exposure is quite short. There is a relationship between silver grain sensitivity to physical pressure and reciprocity characteristics. Minimization of reciprocity effects results in grains that are sensitive to physical pressure. Due to the nature of how x-ray films are handled most manufacturers will opt to improve the physical abuse resistance in favor of increased RLF.

http://www.makingKODAKfilm.com

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
Reciprocity Log Failure (RLF) is only considered in the design of x-ray films from 1/50th of a second to about 1 second. Most x-ray exposures are based on relatively short exposure time. Even in prolonged procedures when a grain is exposed on the film, the duration of that exposure is quite short. There is a relationship between silver grain sensitivity to physical pressure and reciprocity characteristics. Minimization of reciprocity effects results in grains that are sensitive to physical pressure. Due to the nature of how x-ray films are handled most manufacturers will opt to improve the physical abuse resistance in favor of increased RLF.

http://www.makingKODAKfilm.com

Very interesting. Since we use this film for pictorial use, we cannot ignore reciprocity effect. I've been using this film for a while, and had a love/hate relationship... until recently. I quite like this stuff. It's fantastic for alt processes! Love it in D-23 1+1.


ic-racer

Member
Joined
Feb 25, 2007
Messages
14,819
Location
USA
Format
Multi Format
Did not see the OP in 2010, but what is the Y axis? Or are there 4 different Y axes because you raised the enlarger head each time to decrease intensity by mathematical calculation or incident or reflected meter or white channel of color analyzer or counting clicks on the lens aperture? I'd like to make some similar graphs for Shanghai and wanted to use the same methodology.

Or have you ever tested Shanghai?

OP
OP
Andrew O'Neill

Andrew O'Neill

Moderator
Joined
Jan 16, 2004
Messages
10,148
Location
Coquitlam,BC Canada
Format
Multi Format
Did not see the OP in 2010, but what is the Y axis? Or are there 4 different Y axes because you raised the enlarger head each time to decrease intensity by mathematical calculation or incident or reflected meter or white channel of color analyzer or counting clicks on the lens aperture? I'd like to make some similar graphs for Shanghai and wanted to use the same methodology.

Or have you ever tested Shanghai?

Enlarger head stayed at the same height. I used ND filters for 10 sec and 100 sec exposures. I have characteristic curves I made for Shanghai, but never bothered testing it for reciprocity. I do have an excellent chart though, from Shanghai that I have tested in the field. I also have reciprocity data I generated years ago for HP5, TMY, and Acros (my data for Acros matches Fuji's).
