what would you do with this lens?

Discussion in 'Large Format Cameras and Accessories' started by chris77, Dec 14, 2017.

  1. chris77

    chris77 Subscriber
    Ads Enabled

    Messages:
    531
    Joined:
    Jan 11, 2015
    Location:
    Paris
    Shooter:
    Medium Format

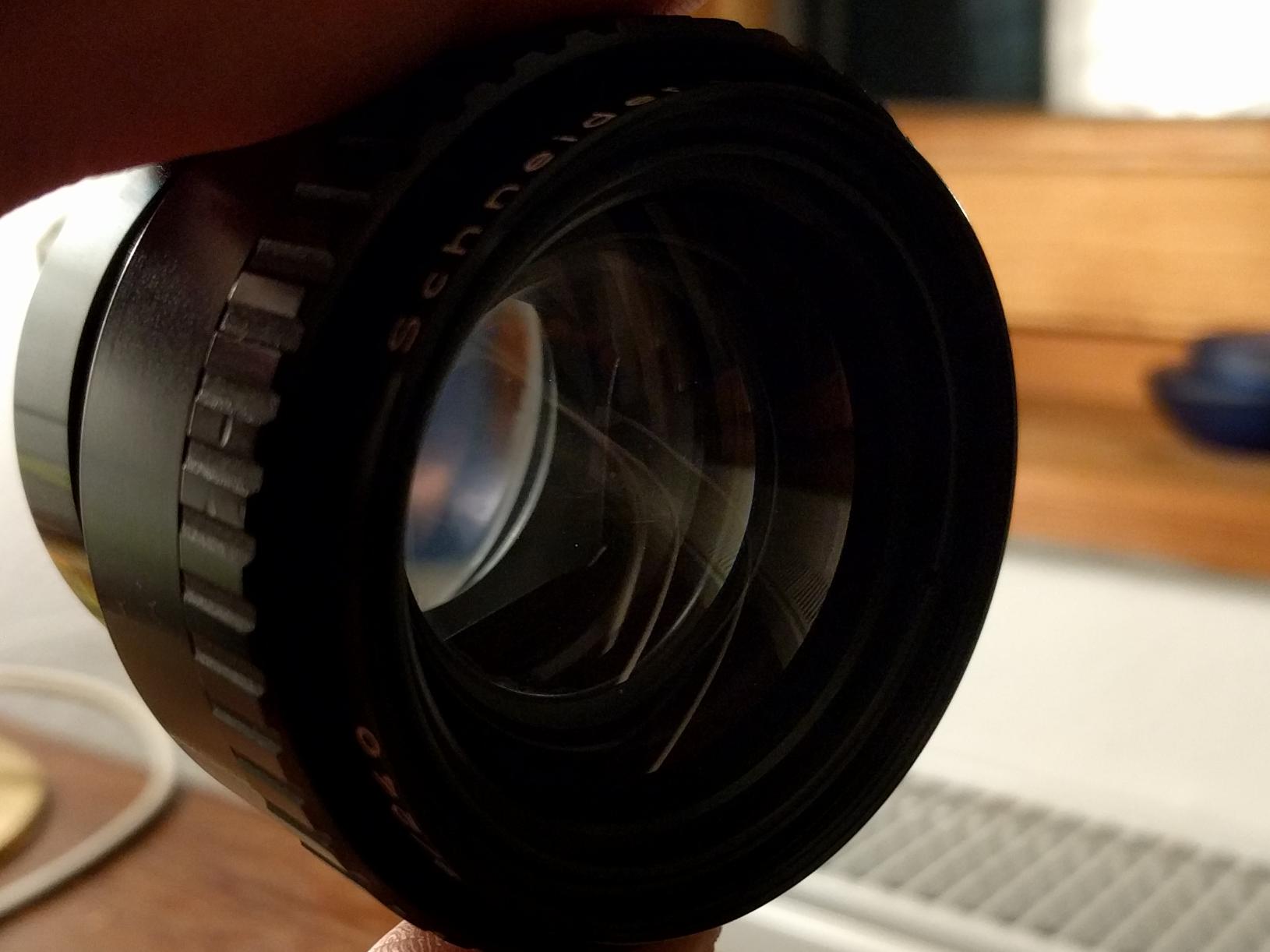

    hello, good evening.
    bought this lens on ebay. surfaces where ugly at first, but cleaned up to perfection with moist breath and microfibre. flawless glass.

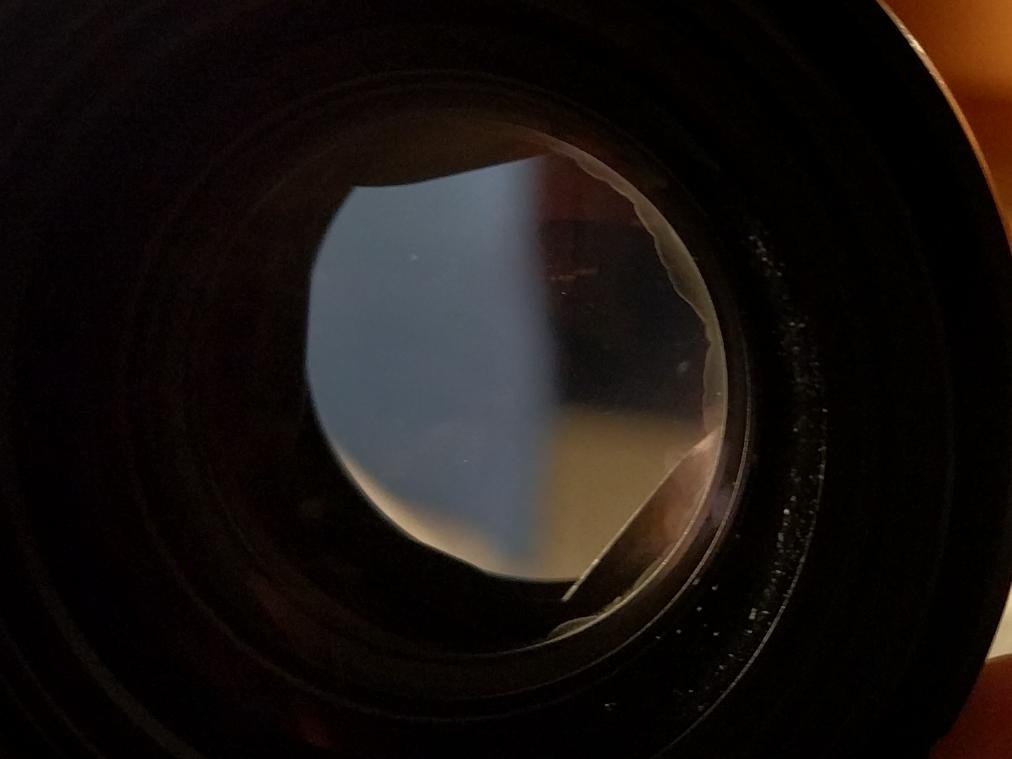

    but the interior lens (front group) has this edge situation. it doesnt look like fungus to me, and it is only at the edge,
    other then that a perfect 240 g-claron, not a single scratch..

    would u use it as is, surveillance only.
    or would u open it anyway (no dust at all inside, guess it has never been opened until now) ?
    it certainly doesnt affect image quality, just looking for a second opinion.

    thanks

    IMG_20171214_223523_1513287441824.jpg IMG_20171214_223338_1513287570742.jpg

  2. chip j

    chip j Member
    Ads Enabled

    Messages:
    1,965
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    Use it normally.

  3. jnanian

    jnanian Advertiser Advertiser
    Ads Enabled

    Messages:
    25,445
    Joined:
    Jun 21, 2003
    Location:
    paswonquitte
    Shooter:
    Multi Format
    id use it as it, and if it doesn't render an image to your satisfaction,
    maybe then open it up, and take a cellphone snapshot of each thing you
    remove ( so youcan put it back together and have it work ) and .. soak the
    glass in a solution of peroxide and water ( look up posts by jim galli either here or
    on largeformatphoto to see the exact concentration ) and then dry them carefully
    and re-assemble the glass might clean up really nice-nice..
    but i'd use it before doing anything .. it might not be anything to worry a bout

  4. OP
    OP
    chris77

    chris77 Subscriber
    Ads Enabled

    Messages:
    531
    Joined:
    Jan 11, 2015
    Location:
    Paris
    Shooter:
    Medium Format
    thank. i was thinking the same. meanwhile i have quite some experience opening lenses and cleaning them. but then, when a lens is still factory assembled and so nice with only a little imperfection i prefer to leave it be.
    as in surgery, opening the (lens)body always involves risk.
    cheers.
    chris

  5. shutterfinger

    shutterfinger Subscriber

    Messages:
    3,143
    Joined:
    Feb 25, 2013
    Location:
    San Francisco Peninsul
    Shooter:
    4x5 Format
    Edge delamination, use as is, fungus looks much different.

  6. Old-N-Feeble

    Old-N-Feeble Subscriber
    Ads Enabled

    Messages:
    6,457
    Joined:
    Feb 22, 2012
    Location:
    South Texas
    Shooter:
    Multi Format
    Closed down one stop (or two stops), as should be done anyway, you'll never know the delamination is there. However, it depends on the item description regarding whether or not you should return it. Was the seller honest?

  7. OP
    OP
    chris77

    chris77 Subscriber
    Ads Enabled

    Messages:
    531
    Joined:
    Jan 11, 2015
    Location:
    Paris
    Shooter:
    Medium Format
    the seller was honest, yes. its a beautiful lens. sharp
    thanks!

  8. EdSawyer

    EdSawyer Member
    Ads Enabled

    Messages:
    1,607
    Joined:
    Sep 3, 2008
    Shooter:
    Multi Format
    as long as stopping down a couple stops, that part of the glass won't be in the image-making path. It's definitely separation. Could be cured, but may not be worth it. 240 g-claron is sharp even wide open, and even better @ f/16.

  9. nusproizvodjac

    nusproizvodjac Member
    Ads Enabled

    Messages:
    215
    Joined:
    Jun 15, 2017
    Location:
    Serbia
    Shooter:
    35mm
    I have a similar situation, well not similar, a lot worse, on my Flexaret rear lens elemet. The separation has spread to about 1/3rd of the lens, but l haven't noticed any loss of contrast or sharpness, it just became flare-prone (l posted some photos l took with it). In your case it is really insignificant, so just use it as is.

  10. E. von Hoegh

    E. von Hoegh Member
    Ads Enabled

    Messages:
    6,021
    Joined:
    Sep 14, 2011
    Location:
    Adirondacks
    Shooter:
    Multi Format
    Use it with an efficient shade, stopped down one stop, you'll likely never know the issue exists from the results.
    I used to use a Leitz Summitar with awful looking separation in the front cemented pair, as long as I used the SOOPD barndoor shade it didn't do much harm.

  11. DC Lohenstein

    DC Lohenstein Member

    Messages:
    15
    Joined:
    Dec 15, 2017
    Location:
    Switzerland
    Shooter:
    4x5 Format
    Hello,

    yesterday I used this lens in our local botanical garden (orchids) where it is wet and warm, where you got moisture and mildew. I wouldn't take my beloved Fujinon A 9/180 with its Copal shutter in there.

    Edge delamination will not be your problem when stopping down.

    Its perfect to get some 1:2 to 1:1 macro shots. It has the perfect stay-away distance to the plants. You get exposure times of 2-3 min when using films with low ISO, e.g. Rollei Ortho 25.

  12. OP
    OP
    chris77

    chris77 Subscriber
    Ads Enabled

    Messages:
    531
    Joined:
    Jan 11, 2015
    Location:
    Paris
    Shooter:
    Medium Format
    which film format are you shooting it with?

  13. Rick A

    Rick A Subscriber
    Ads Enabled

    Messages:
    8,211
    Joined:
    Mar 31, 2009
    Location:
    Pa.
    Shooter:
    Large Format
    What would I do with it................ set it on a fence post and hurl a 240 grain .455 diameter pill at it at about 840 fps. I love target shooting almost as much as shooting camera gear, this would be combining the two.

  14. OP
    OP
    chris77

    chris77 Subscriber
    Ads Enabled

    Messages:
    531
    Joined:
    Jan 11, 2015
    Location:
    Paris
    Shooter:
    Medium Format
    no no, better find your own toys to play with!
    i know what your dog looks like..

  15. E. von Hoegh

    E. von Hoegh Member
    Ads Enabled

    Messages:
    6,021
    Joined:
    Sep 14, 2011
    Location:
    Adirondacks
    Shooter:
    Multi Format
    Which model Webley do you have?

  16. Rick A

    Rick A Subscriber
    Ads Enabled

    Messages:
    8,211
    Joined:
    Mar 31, 2009
    Location:
    Pa.
    Shooter:
    Large Format
    Colt mark IV, series 70, Gov't model with mods. I used to have a Gold Cup, didn't like the sights.

  17. Rick A

    Rick A Subscriber
    Ads Enabled

    Messages:
    8,211
    Joined:
    Mar 31, 2009
    Location:
    Pa.
    Shooter:
    Large Format
    That dog'll eat yer leg off from the ankle down before you could get a shot off.......

  18. E. von Hoegh

    E. von Hoegh Member
    Ads Enabled

    Messages:
    6,021
    Joined:
    Sep 14, 2011
    Location:
    Adirondacks
    Shooter:
    Multi Format
    Ah. In which case the nominal bullet diameter is .451.
    My old black powder single action Ruger slugs .458 and shoots best with soft bullets sized to .459. Revolvers are strange, black powder more so.

    When you said .455 I thought you might be shooting a British Webley.

  19. Rick A

    Rick A Subscriber
    Ads Enabled

    Messages:
    8,211
    Joined:
    Mar 31, 2009
    Location:
    Pa.
    Shooter:
    Large Format
    My old business partner had a .455 Webley, among other oddities. He was a former SAS from Liverpool. And you are correct on bullet diameter, my fingers work separately from my aging brain.

  20. DC Lohenstein

    DC Lohenstein Member

    Messages:
    15
    Joined:
    Dec 15, 2017
    Location:
    Switzerland
    Shooter:
    4x5 Format
    6x7, 6x9, 4x5.

    With 4x5, you need a bellows extensxion of 36 cm to get magnifition 1:2, and 48 cm to get 1:1.

    I normally had a bellows extension of 38-42 cm on "The Brand 17".

    Aperture normally was f 22 - f32, with exposure times from 2 min - 7 min, on Rollei Ortho 25@16 with a dark yellow filter to keep the green tones slightly darker than normal (orthochromatic film lightens up green).

    Exposure was determined by lens cap.

  21. E. von Hoegh

    E. von Hoegh Member
    Ads Enabled

    Messages:
    6,021
    Joined:
    Sep 14, 2011
    Location:
    Adirondacks
    Shooter:
    Multi Format
    It doesn't help that caliber nomenclature and actual groove diameter don't always match i.e. 38 caliber is actually .357".
