How can I remove the film advance lever on my Minolta SRT 101 without damaging it. Mine is all beat up by someone trying to remove it. I want to swap but do I need a tool or something. I can not really get a good grip. Can it be un screweed?
Thanks

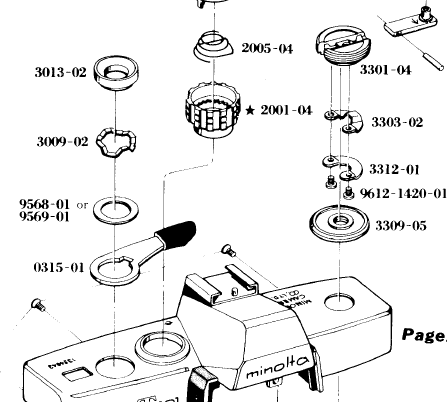

Here is what I need to do.


Attachments

  • minolt6.gif
    16.8 KB · Views: 540

clayne

Member
Joined
Sep 4, 2008
Messages
2,764
Location
San Francisc
Format
Multi Format
This:

Dead Link Removed

Alternatively you can try a latex glove or dental dam (which MT also sells).


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
A improvised tool at least for non-lacquered surfaces might be attaching a lever by means of hot melt glue.


ath

Member
Joined
Aug 29, 2006
Messages
844
Location
Germany
Format
35mm
You need to unscrew 3013-02. Slip a piece of rubber hose over a plier and have a go. If 3013-02 is already damaged skip the hose.


sangetsu

Member
Joined
Apr 28, 2009
Messages
214
Location
東京
Format
4x5 Format
Removal is easy, simple pliers will work. Use a rubber stopper or rubber something to tighten on the new nut. I have repaired many of these SRT cameras, they are quite easy to work on.


Jon Goodman

Member
Joined
Jul 22, 2005
Messages
689
Location
Dallas, TX
Format
35mm

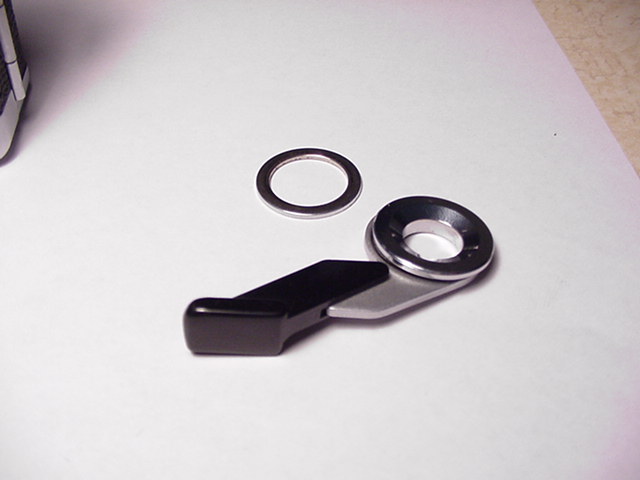

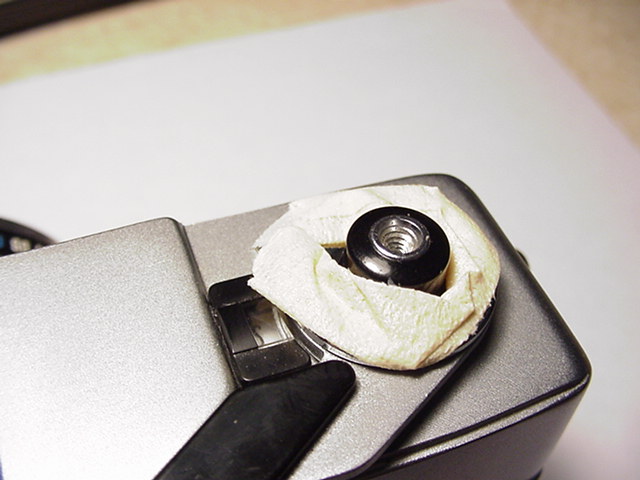

I always use masking tape...it works every time and never risks scratching or destroying your camera. Roll a piece of tape which is about 2.5 inches long inside out so that you make a roll which is sticky on all exposed sides. Then stick this on the ring and grip and unscrew. I do the same thing with Canonets. If you want to see images, please see below (taken from the Canonet re-sealing instructions I've written).
Jon


Attachments

  • MVC-002F.JPG
    43.5 KB · Views: 497
  • MVC-003F.JPG
    42.3 KB · Views: 500
  • MVC-004F.JPG
    53.7 KB · Views: 597
  • MVC-005F.JPG
    33.4 KB · Views: 514
