What camera mount is on this lens

Discussion in '35mm Cameras and Accessories' started by tonyowen, Nov 28, 2018.

  1. tonyowen

    tonyowen Member
    Ads Enabled

    Messages:
    69
    Joined:
    Nov 21, 2015
    Location:
    Anglesey, UK
    Shooter:
    4x5 Format
    The attached image shows two lenses. The one on the right is a Canon EF mount. The one on the left is a Sigma 28-200mm zoom, ( sigmamounts.jpg f3.8 - f5.6) but I do not know what the mount is.
    It has 7 electronic contacts as per the Canon, but the bayonet is about 10mm smaller in diameter [40mm ish versus 50mm ish]
    There is a 'white button' aligned with the red dot on the mounting flange.
    The lens body has 'SAF' near to the white 'zero' oblong .
    I can not see any 'camera name' marked on the body or flange of this lens.
    The s/n is 1041386.
    regards

  2. Sirius Glass

    Sirius Glass Subscriber
    Ads Enabled

    Messages:
    28,076
    Joined:
    Jan 18, 2007
    Location:
    Southern California
    Shooter:
    Multi Format
    Groups:
    Can you post a photograph straight at the end of the mount?

  3. John Will

    John Will Member

    Messages:
    7
    Joined:
    Feb 17, 2018
    Location:
    Melbourne, Australia
    Shooter:
    Multi Format
    Sigma AF Mount.

  4. macfred

    macfred Subscriber
    Ads Enabled

    Messages:
    1,921
    Joined:
    Nov 6, 2014
    Location:
    Germany
    Shooter:
    Multi Format
  5. OP
    OP
    tonyowen

    tonyowen Member
    Ads Enabled

    Messages:
    69
    Joined:
    Nov 21, 2015
    Location:
    Anglesey, UK
    Shooter:
    4x5 Format

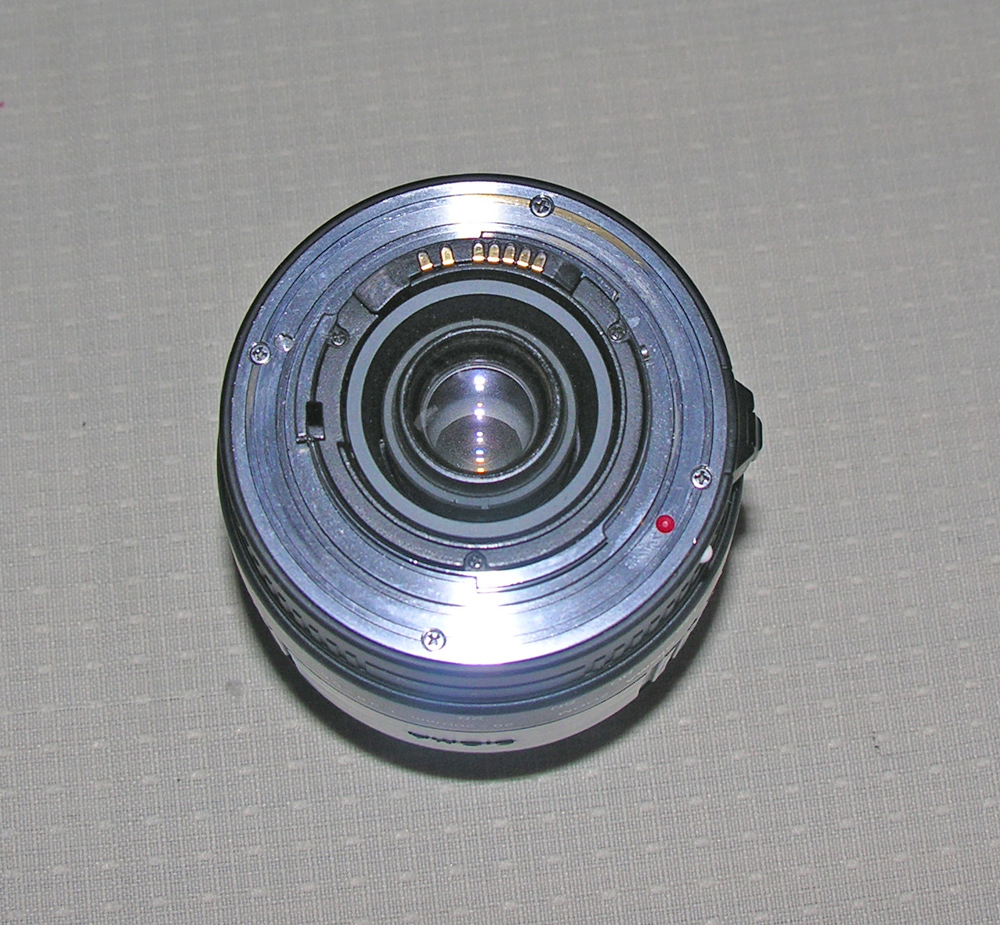

    image attached

    Yes, but for what camera?
    regards sigmalens.jpg

  6. macfred

    macfred Subscriber
    Ads Enabled

    Messages:
    1,921
    Joined:
    Nov 6, 2014
    Location:
    Germany
    Shooter:
    Multi Format
    SD9, SD10, SD 14 ?

  7. John Will

    John Will Member

    Messages:
    7
    Joined:
    Feb 17, 2018
    Location:
    Melbourne, Australia
    Shooter:
    Multi Format
    Yes, but for what camera?

    As macfred said, SD9, SD10, SD14. and all Sigma SA mount cameras.

    Sigma film cameras - SA-300 series, SA-5, SA-7, SA-9, SA-7N

    Sigma Digital cameras - SD9, SD10, SD14, SD15, SD1, SD1 Merrill, SD Quattro, SD Quattro H

    Newer SA mount lenses can be mounted on Sony 7 series, 5000 and 6000 series cameras with Sigma adapters.
