I've had a search on other threads to see if this has been asked previously, but couldn't find anything helpful regarding older sheet film notch identification and was hoping someone here might have table/s that relate to older sheet film. I have a list of sheet film notches from 1950 onwards, but haven't been able to find any that are dated earlier, which hampers research on vintage films considerably.

This particular film dates from the early 1920s, and I'm fairly certain it is *not* Kodak, as it doesn't have Kodak printed anywhere along the edges and the notches don't match; their Nitrate films have a V notch on the RHS. The information I have been able to find elsewhere, doesn't match this particular notch code, so I'm beginning to wonder if it may be Ilford (I haven't been able to l locate a chart for their film).

It was shot in South Australia, so could possibly be Ansco, but again, the codes I have found don't match. The photographer has shot quite a bit of this brand of film in 5x4 as well - this sheet though is 5x7.

Any ideas where I might find such tables? Older almanacs, books etc? For the record, it is cellulose nitrate film, which may narrow down the manufacturer, but for now, I'm stumped.



richyd

Member
Joined
Jul 24, 2012
Messages
200
Location
London UK
Format
Medium Format

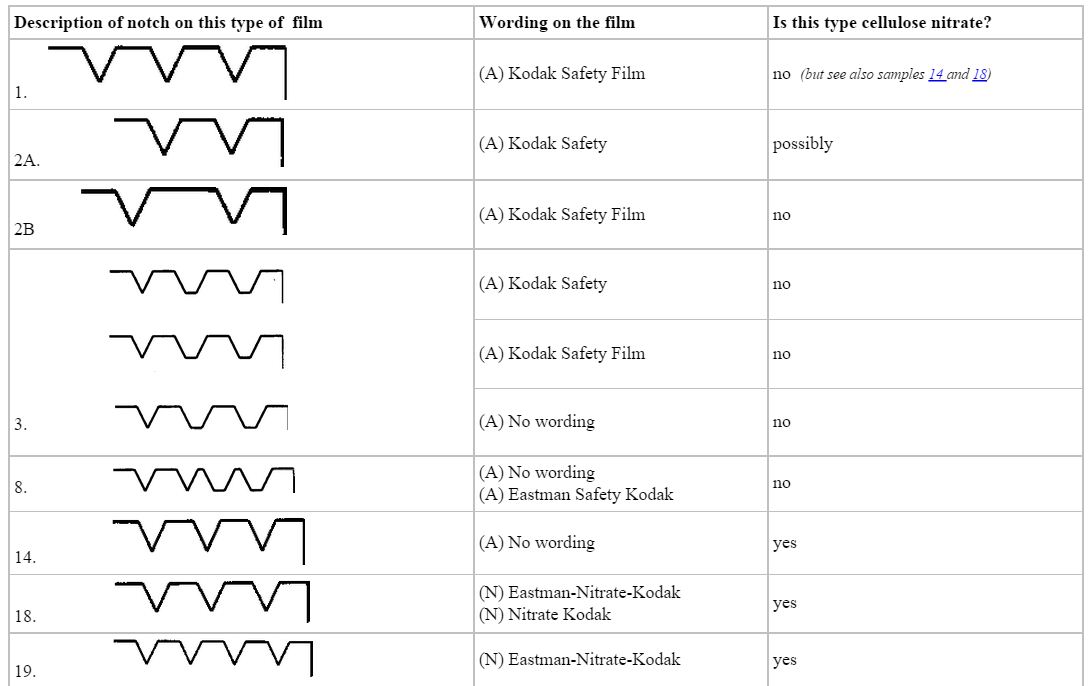

Quick search came up with this link from which you may be able to delve into further references.



laser

Advertiser
Advertiser
Joined
Jun 16, 2005
Messages
1,041
Format
4x5 Format

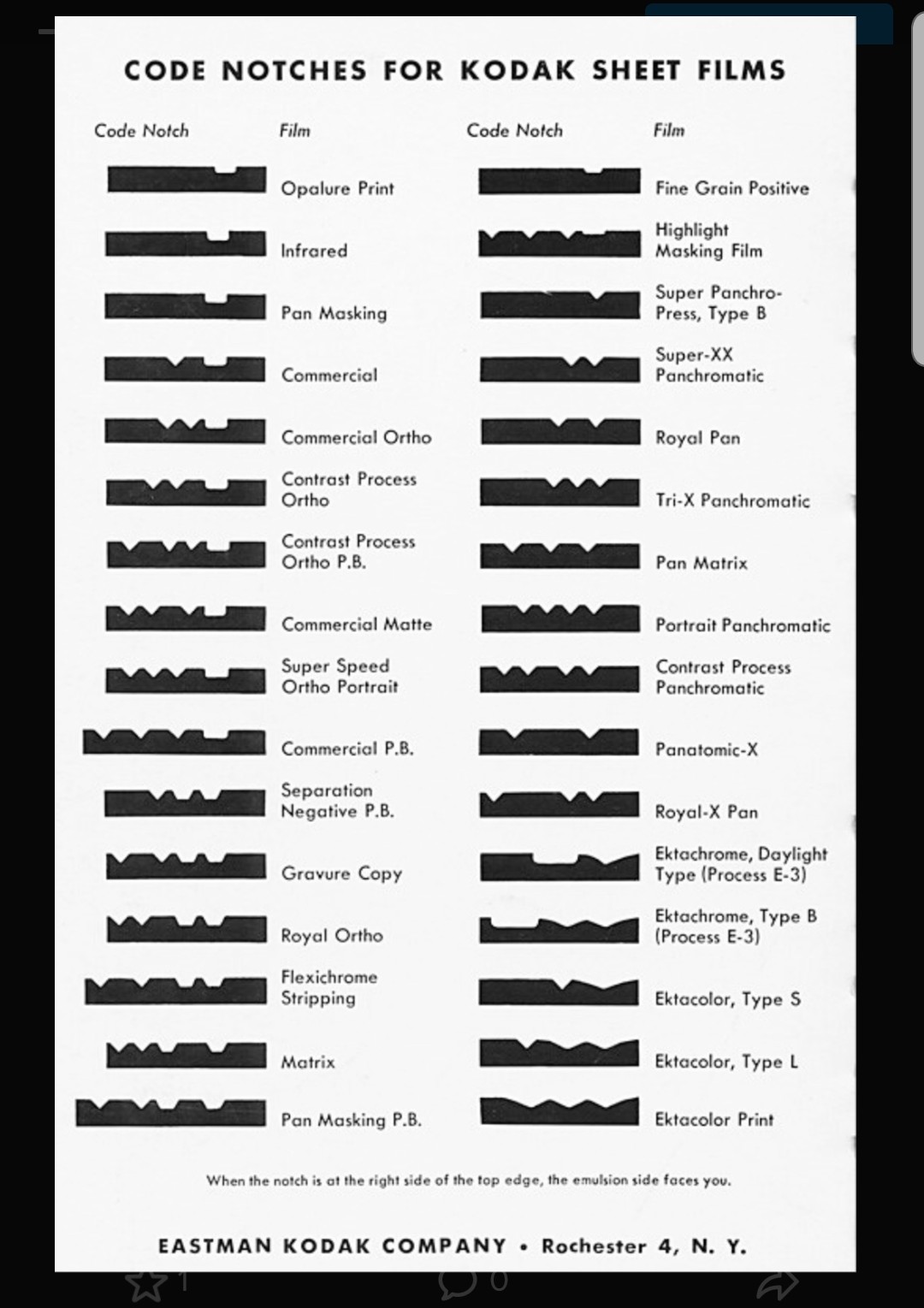

I can help you with information on Kodak notch codes. Send you email address to: makingKODAKfilm@yahoo.com

I have a three copies for sale of the 1st edition. I don't plan on printing any more. 2nd edition is sold out.

Kodak never used a notch like you are showing.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
52,227
Location
Delta, BC Canada
Format
Medium Format
Maybe just help everyone for posterity? (I.e., just put the useful information in this thread.)

If the source for the answer is a big pdf file, it often can't be uploaded here due to file size restrictions, so it may need to be emailed. But otherwise I agree

OP
OP
ozphoto

ozphoto

Subscriber
Joined
Apr 2, 2006
Messages
1,917
Location
Adelaide, SA, Australia
Format
Multi Format
I can help you with information on Kodak notch codes. Send you email address to: makingKODAKfilm@yahoo.com

I have a three copies for sale of the 1st edition. I don't plan on printing any more. 2nd edition is sold out.

Kodak never used a notch like you are showing.

Agree - it's definitely *not* a Kodak notch code. I can't seem to find anything pre 1950 relating to sheet film, and sadly, the ones posted here I have already checked (and printed out for future reference.)

OP
OP
ozphoto

ozphoto

Subscriber
Joined
Apr 2, 2006
Messages
1,917
Location
Adelaide, SA, Australia
Format
Multi Format
Quick search came up with this link from which you may be able to delve into further references.


Thanks, I checked these out too - and no joy, sadly. However, I have also saved this page and printed out for future reference too.

Given the dead ends I keep hitting, and the fact that none of the information I've found mentions Ilford, I am beginning to wonder if it is Ilford or some other film not as well used in the 1920s.

If I could narrow down an almanac to check that would be ideal - unfortunately the ones on archive.org don't show film notch codes. :sad:


Don_ih

Member
Joined
Jan 24, 2021
Messages
7,449
Location
Ontario
Format
35mm RF
There's the remote possibility of it being printed on the exterior of a box. It seems both Ansco and Kodak did that in at least the 40s.
Is it possible the film was from some now-forgotten company in Australia itself or in Asia somewhere?

OP
OP
ozphoto

ozphoto

Subscriber
Joined
Apr 2, 2006
Messages
1,917
Location
Adelaide, SA, Australia
Format
Multi Format
There's the remote possibility of it being printed on the exterior of a box. It seems both Ansco and Kodak did that in at least the 40s.
Is it possible the film was from some now-forgotten company in Australia itself or in Asia somewhere?

AFAIK only Kodak products were produced here in Australia; Australian Kodak Limited was formed in 1908, and remained here for many years making film (including Kodachrome). Ilford had an Australian branch but that didn't appear until 1950, and I'm not sure they produced film here.

Sadly the sheet film has been donated in packets of glassine envelopes - as a commercial photographer he filed them in boxes, numbered to follow his system, so there are no sheet film boxes to view at all.

Looking at the history of Ilford to confirm if they produced film here in Australia, I see that "Selo Limited formed incorporating Ilford, Imperial, Gem and Amalgamated Photographic Manufacturers" in 1920, so perhaps it is Selochrome film.

It is a mystery, and possibly not one that can be solved.
