Vertical overexposed areas, help please (Canon 7s)

Joined
Jan 29, 2018
Messages
25
Location
90550
Format
Multi Format
Hello all

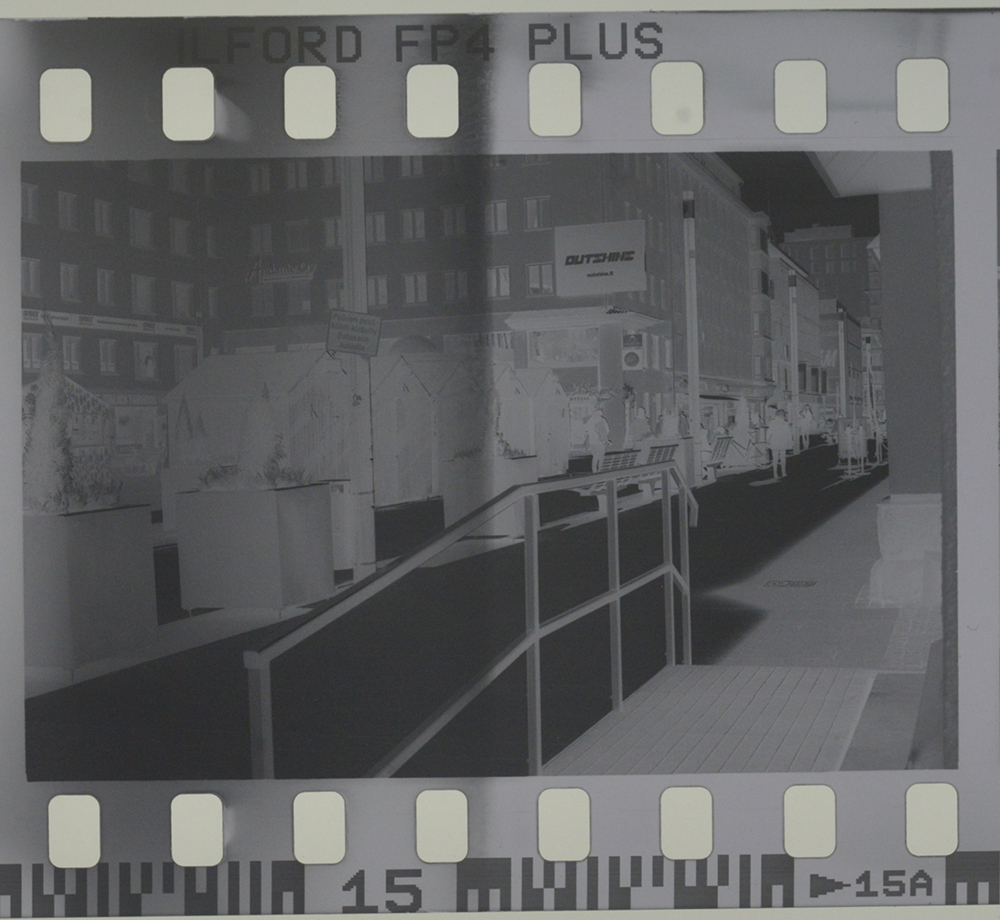

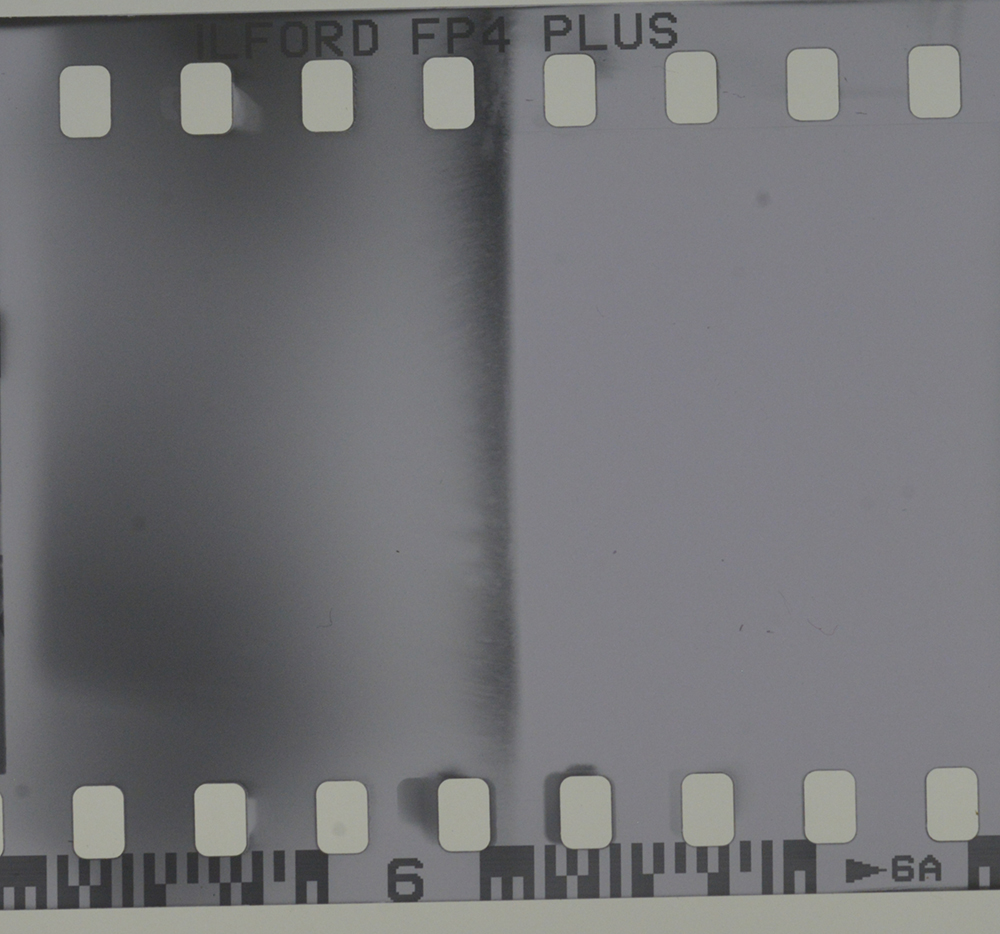

I got an Canon 7s, but in a roll of film there are six or seven images with vertical overexposure as shown. First I thought that the shutter is faulty somehow. But that can not be, because the overexposure goe all the way up and down in the negative. Faulty shutter would expose only the image area, right? Also, because the frames do not overlap, the culprit can not be film transport. So, am I left with light leak or leaks? Is there any other alternative? I can handle light leaks, but not a faulty shutter

Thank You for taking time to read this. Canon 7s is a lovely camera and I would dearly like use it

Yours

Väinö Louekari


Attachments

  • c701.jpg
    562 KB · Views: 62
  • c702.jpg
    544.3 KB · Views: 59
  • c703.jpg
    497.8 KB · Views: 58

Sanug

Subscriber
Joined
Sep 27, 2023
Messages
286
Location
Duesseldorf
Format
35mm Pan
Check the light seal. This looks like a heavy light leak from the door hinge.



Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
50,490
Location
Southern California
Format
Multi Format
It looks like a shutter problem because it goes from one side of the film to the other mid frame.

OP
OP
Joined
Jan 29, 2018
Messages
25
Location
90550
Format
Multi Format
Thank You all, and particulary Sanug. Yes, just an ordinary light leak. I added a light baffle on the hinge side as in Sanug's picture. Now the negatives come out just fine, clean and crisp What a lovely camera 7s is, and we are finally getting some taste of spring here in northern Finland


Sanug

Subscriber
Joined
Sep 27, 2023
Messages
286
Location
Duesseldorf
Format
35mm Pan
I am very happy that my suggestion helped you to solve the problem. Enjoy your camera, the Canon 7s is a joy to use!
