For Sale Vari-focus Camera Obscura Lens

[Reinhold]

For Sale…
Vari-focus Camera Obscura Lens for vertical type “bell” shape dark tents.

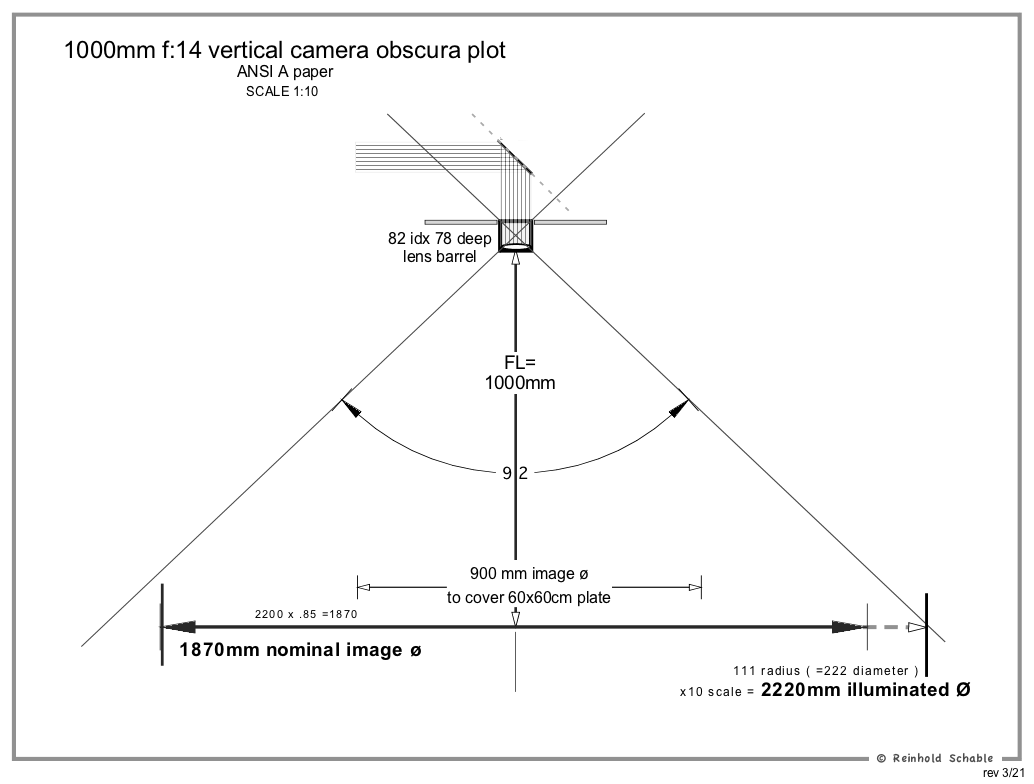

1000mm f:14 lens. Nominal image: 1870mm in a 92 degree 2220mm illuminated circle.

Most lenses for this application are fixed focus, typically about 1 meter (1000mm, 40”) long.
A horizontal mirror on top of the tent deflects the image down into the lens.
They’re generally fix focused at infinity for a full landscape vie
The image falls on a surface about 3’~ 4’ below the lens.

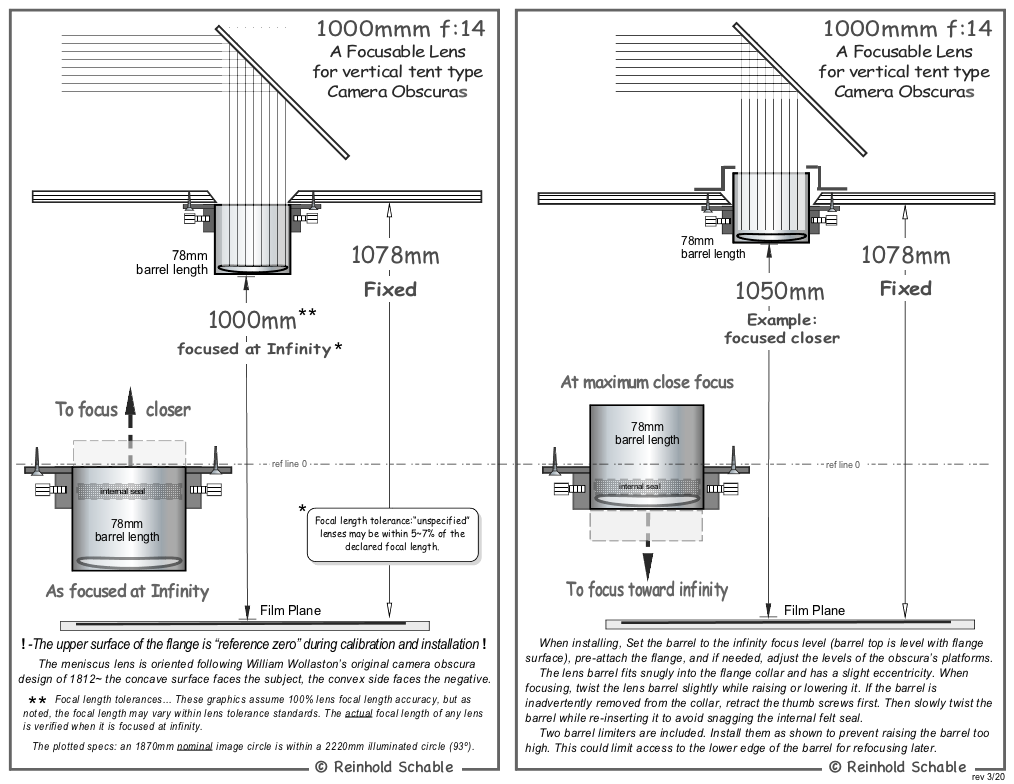

This lens is focus-able, objects closer than your backyard trees can be selectively focused.
Extending the lens tube forward is the same as racking your 4x5 lens forward for a close-up portrait.
With your sketch pad on the table, a cut film holder, a collodion wet plate, a direct positive paper easel, or…

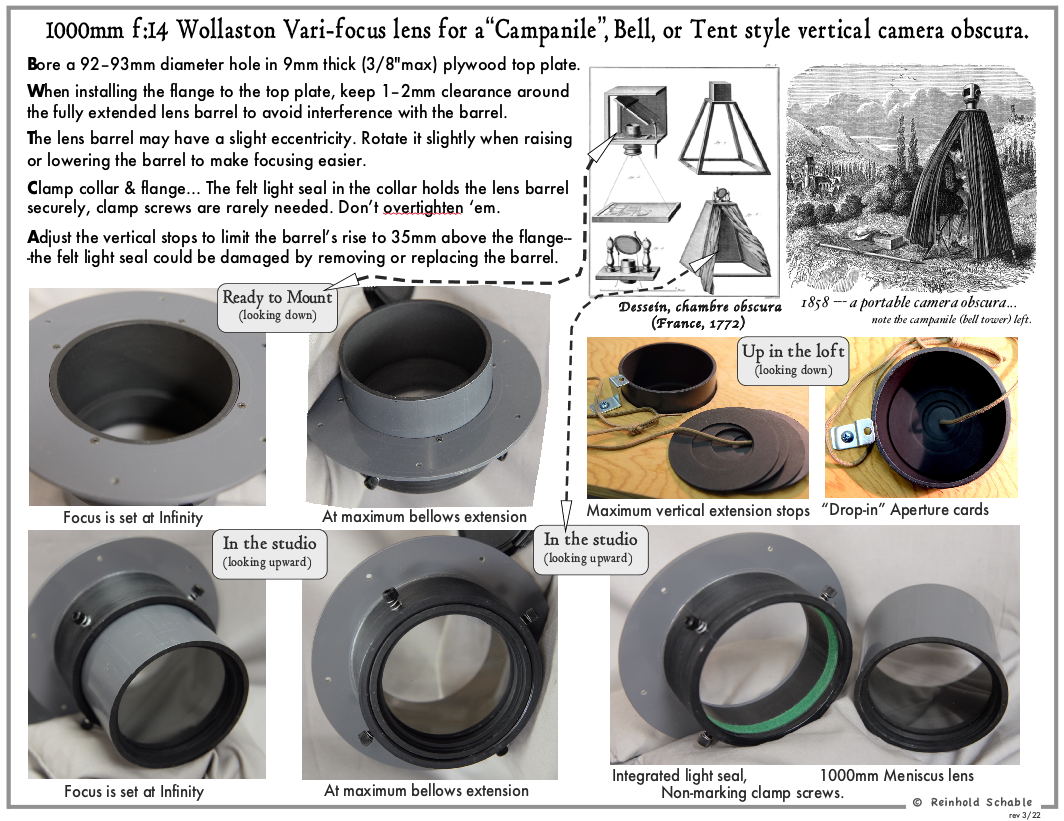

The package includes…
~ A 1000mm f:14 Wollaston soft focus meniscus lens in a 50mm extendable barrel…
~ in a light sealed clamping collar on a 145mm diameter flange…
~ includes four aperture “stop” cards, a lens cap, some brackets and screws…
~ ready to install…

~ $ 285 + shipping

This was a fun project,
Even at 88 I can still have something useful to do…
Reinhold

Re-Invented Photo Equipment



[FeS2]

Most interesting---
-- this could be a fun project--

fg.



[Reinhold]

Oooops, It's been sold since last month–
Sorry for not changing the "for sale" banner.
Reinhold
