unknown enalrger lens

Discussion in 'Darkroom Equipment' started by mbelsis, Dec 5, 2017.

  1. mbelsis

    mbelsis Member

    Messages:
    6
    Joined:
    Dec 5, 2017
    Location:
    Athens
    Shooter:
    35mm
    Hi Forum ,

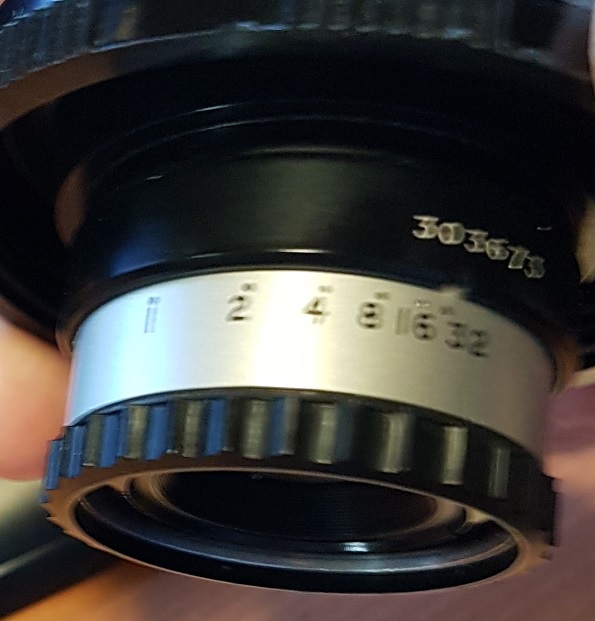

    When I bought my Vivitar Vi enlarger I also received an enlarger lens. The Lens is on a holder box that says minolta , but the lens itself does not have any brand , mm, or any other information.

    Strangely (at least for me) is that the aperture values are 1,2,4,8,16,32

    Any information would be most welcomed, See also the Screenshot ...


    thx


    Attached Files:

  2. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    It is an arithmetical scale with the figures representing x -1 .

    Thus 1 , 1/2 , 1/4 ...


    Such scale is more intuitive for a beginner.

  3. OP
    OP
    mbelsis

    mbelsis Member

    Messages:
    6
    Joined:
    Dec 5, 2017
    Location:
    Athens
    Shooter:
    35mm
    Hi,

    Thank you for the answer... have you seen this lens before ? any idea of the brand?

    BR

  4. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    No, I already googled it, in the belief to find it within minutes. In vain...
    Actually I found no lens at all with such scale.

    Still I assume it is a beginner lens of the triplet design.

  5. gary in nj

    gary in nj Member

    Messages:
    62
    Joined:
    Jan 15, 2017
    Location:
    United States
    Shooter:
    35mm
  6. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    But the author did not realize that unique scale...


    EDIT:
    At downloading that page I realized that I already got it in my archive. The above thus applies for me too...

    Last edited: Dec 6, 2017
  7. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    I found at least two different Wray lenses with such scaling.

    51mm and 108mm

    Last edited: Dec 6, 2017
  8. OP
    OP
    mbelsis

    mbelsis Member

    Messages:
    6
    Joined:
    Dec 5, 2017
    Location:
    Athens
    Shooter:
    35mm
    Thank you!!!!!! it would be interested to try it.!!!!

  9. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
  10. jjphoto

    jjphoto Member
    Ads Enabled

    Messages:
    329
    Joined:
    Oct 9, 2010
    Location:
    Melbourne, A
    Shooter:
    Multi Format
    Ross and Taylor Hobson used this aperture scale, probably other British ELs too.

  11. BMbikerider

    BMbikerider Member
    Ads Enabled

    Messages:
    1,670
    Joined:
    Jul 24, 2012
    Location:
    County Durham, UK
    Shooter:
    35mm
    I will go along with a Wray lens. I had a 50/4.5 when I first started out with developing and enlarging and I still have the original box whit curiously enough almost the same image as yours. It was a mediocre lens (actually awful) and soon replaced.

  12. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    As I said, I guess it were only triplet lenses that got this type of scale.

  13. Ian Grant

    Ian Grant Subscriber
    Ads Enabled

    Messages:
    20,061
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    Yes my Dallmeyer 6" f4.5 Dallcoated enlarger lens uses the same scale, as does another Supar. It makes sense as you really don't need a conventionally marked on an enlarger lens but you do need a scale for relative exposure. aperture.

    Ian

  14. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    But used in the UK on various types of enlarger lenses or as I guessed only on beginners lenses?

  15. Saganich

    Saganich Subscriber
    Ads Enabled

    Messages:
    742
    Joined:
    Nov 21, 2004
    Location:
    Brooklyn
    Shooter:
    35mm RF
    My old Leitz Varob has same scale as well; 1 - 10

  16. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Not the same. Leitz Varob:

    1 2 3 4 6 10

    But what does THAT mean ?

  17. AgX

    AgX Member

    Messages:
    18,187
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Nobody got an idea?

  18. youngrichard

    youngrichard Member

    Messages:
    147
    Joined:
    Jul 13, 2007
    Location:
    London, Engl
    Shooter:
    35mm
    I too had a Wray Supar 50mm f4.5 when I started wet photography aged 13 in 1955. I thought it was the bee's knees; it certainly wasn't awful. I must have used it for at least15 years. I just went to check it but I think I must have let it go when I sold a surplus enlarger a few months ago.
    Richard
