The 1980s project: Shedding light on the inner workings of the electronic control systems in electromechanical SLRs

[Andreas Thaler]

Thanks to various service and repair projects at PHOTRIO (Canon T90, Minolta 9000 AF, Nikon F3, etc.), we have a good understanding of the inner workings and basic principles of electromechanical SLRs from the 1980ies.

What’s missing, however, is information about the heart of these hybrid SLRs—namely, their electronic control systems.

From a service and repair perspective, you don’t need to know the exact structure and internal workings of the electronics. It is sufficient to identify and fix faults based on instructions—either by resolving contact issues or replacing defective electronic components.

But it is unsatisfying to view the main part of these SLRs as a black box and, at best, merely observe the gold-colored contacts, multi-pin ICs, and artfully shaped FPCs (flexible printed circuits) without knowing what they are for or how they work.

Light on the matter

I would therefore like to invite all the electronics and digital technology experts gathered here to shed light on the matter together.

My goal is to analyze the circuitry of an electromechanical SLR using the available technical documentation and present it in a way that even interested laypeople can understand.

Why am I not trying to do this on my own?

My qualifications are as follows:

• Distance learning courses in analog and digital electronics,
• hands-on repair experience,
• a college degree in Communications/PR,
• and 26 years of professional experience in communications.

This should allow me to understand the basics of these circuits and to write about in an understandable manner, but I don't have any in-depth knowledge of microprocessor-controlled circuits.

So I'm counting on our experts here.

Minolta X-700

A well-documented electromechanical SLR is the Minolta X-700.

So I would review the available technical documentation (Minolta Repair Manual, SPT Journal, and C & C Guide) and put together an initial overview.

In the next step, I’ll use AI to analyze the circuitry, then compare the results with the documentation and overview and post a draft here for discussion.

From there, I’ll write up a text that I hope will be accepted and understandable to everyone.

Why use AI?

As we have seen in this discussion, AI is capable of generating useful overviews for the circuits of electromechanical SLRs, even for experts. This is particularly true when the AI has access to relevant documentation. However, these overviews must be verified by experts.

---

See also

Minolta X-700 electronics: A closer look

I'd like to take a closer look at the X-700's electronics in the coming days. On the one hand, I would like to understand how the circuit basically works, and on the other hand, I am interested in details that can be seen on the flexible circuit board. It's always fascinating to me what...

www.photrio.com

---

Before I begin, I’d like to ask you what you think of this project and how it’s planned being carried out.



[lumoStoria]

Is the intention to bring the freely available knowledge into a form that is more "digestable" for laymen or is the intention to extend the knowledge on the inner workings of the ICs? The former might to a certain extend be possible by summarization (even using AI), the latter might require experimenting and analyzing the circuits in "real life". Also consider that only a part of the "secrets" of the circuitry lies in the static connection of their components. The main part is in their dynamic interaction where a lot of things occur in parallel and the components send parallel or serial signals to each other, following a well-defined choreography.

Maybe as a proof-of-concept: How would you present the flow charts of the Canon A-1 (service manual, pages 68-81) that contain multiple pages of fully-packed signal charts to a layman that has no or only limited knowledge on analog and digital circuit technology and the communication patterns used in these? I would love to have a "simpler" presentation of this knowledge but I'm afraid that too much information would get lost on the way of simplification. Would be happy to be proven wrong on this.



[Andreas Thaler]

Is the intention to bring the freely available knowledge into a form that is more "digestable" for laymen or is the intention to extend the knowledge on the inner workings of the ICs?

Both.

The goal is to help those with no prior knowledge understand the basic principles of how such a circuit works. An analogy with mechanical processes could be helpful in illustrating this.

And for those with prior knowledge, one could, for example, describe how light falling on a photodetector generates a voltage that is amplified and converted from an analog value to a digital one.

And how signal processing proceeds from there, how ICs are structured and function.

It could be shown how the SLR determines a suitable shutter speed/aperture combination for this brightness value, depending on ISO and the lens’s maximum aperture. And how a digital value is converted back into an analog one that controls the aperture and triggers the shutter.

All presented in a way that remains generally understandable.

I don't know if that's feasible this way.

Electronics and digital technology are abstract and complex. But that’s true also for mechanical systems that can be described in visual terms ("a gear turns a larger one, thereby tensioning a spring...").



[Andreas Thaler]

Minolta X-700

I queried Google Gemini (accessed via a web browser) using the following prompt (translated from German to English).

Given that only trusted sources are used, the result seems plausible to me.

Does anything stand out to our experts here?

---

---

SYSTEM DIRECTIVE FOR NEUTRAL, EVIDENCE-BASED, AND BALANCED ANALYSIS​

Respond to the following request exclusively in compliance with strict scientific-analytical criteria. Ignore any emotional undertone, coloring, or implied expectation on my part.
Mandatory guidelines for the response:

1. ABSOLUTE NEUTRALITY (Value-free): Do not use any emotional, psychological, or evaluative adjectives (e.g., "arrogant", "noble", "brilliant", "bad"). Describe behaviors, objects, or processes exclusively on the basis of their measurable, visible, or documented facts.
2. STRICT EVIDENCE REQUIREMENT: Provide only information that is directly verifiable through the available primary sources (texts, data, manuals). Speculations, assumptions, or derivations not explicitly stated in the text are strictly prohibited. If a piece of information cannot be verified, do not mention it.
3. DIALECTICAL STRUCTURE (Balance): If a topic is controversial, multi-layered, or paradoxical, organize the data in a clear pro-and-con structure or a tabular comparison. Examine both sides with identical depth of detail and refrain from any personal weighting or a conclusion that favors one side.
4. CLINICALLY OBJECTIVE TONE: Write in short, precise sentences. Use technical terminology only where necessary for physical or technical accuracy. Avoid any adaptation to my mood.

Present the electronic circuit of the Minolta X-700 using only original sources from the manufacturer as well as the SPT Journal and the C & C Electronic Troubleshooting Guide. Cite the sources and output the result as English text.

---

---

Technical Specification of the Minolta X-700 Electronic Circuitry​

The electronic system of the Minolta X-700 Single Lens Reflex (SLR) camera relies on a central processing network distributed across a flexible printed circuit board (flexible PCB). The control architecture interfaces analog light metering, digital timing sequencing, and electromechanical actuators.

The data below details the structural and operational characteristics of the electronic circuitry based on original technical manuals and specified secondary literature.

---

​

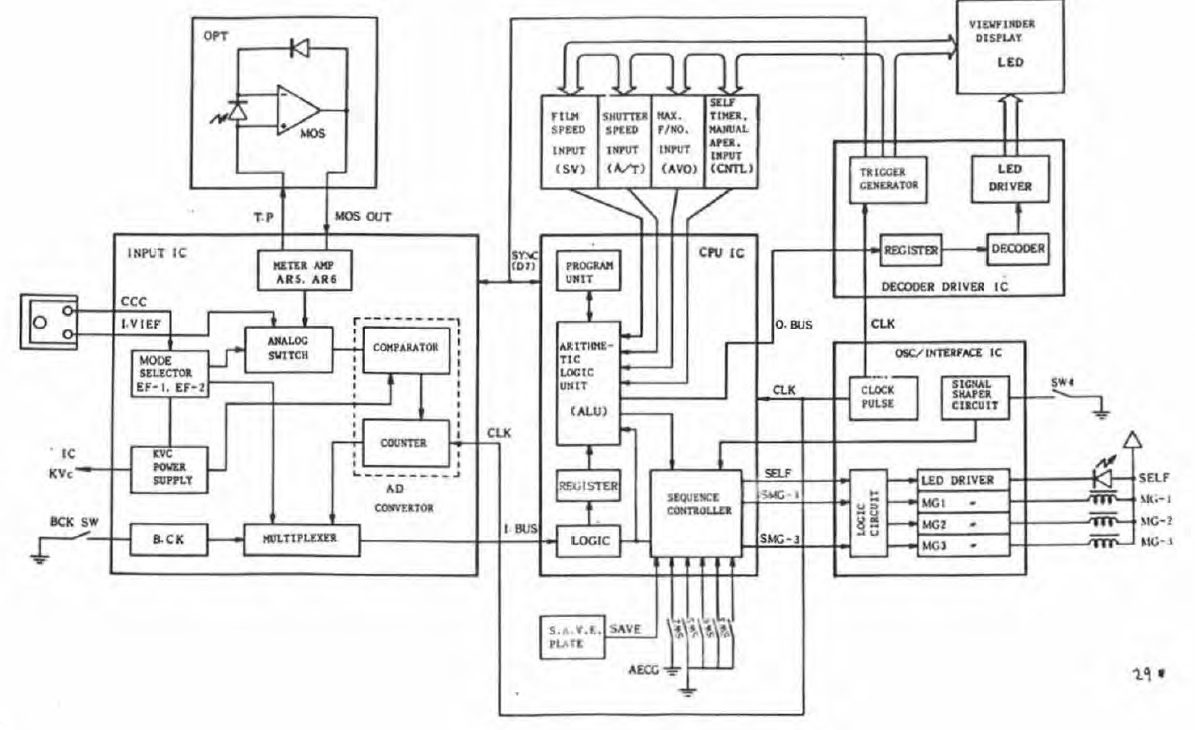

Functional Classification of Integrated Circuits (ICs)​

The electronic control configuration is driven by five proprietary Integrated Circuits, each assigned to dedicated physical zones and system tasks:

Component	Architecture Designation	Technical Location	Documented Operational Function
IC1	Analog Frontend	Top of flexible PCB, rewind assembly side	Amplifies the current signal from the silicon photodiode (SPD) sensor; manages ambient light measurement.
IC2	Central Arithmetic Unit	Front of camera chassis, below lens mount	Computes exposure parameters for the Minolta Program System (MPS); coordinates aperture-shutter matrices.
IC3	Display Driver Interface	Pentaprism housing, adjacent to viewfinder	Drives the internal LED information array; regulates the 15-second power-hold sequence.
IC4	Digital Timing Sequence	Base quadrant of the flexible PCB network	Generates the primary clock frequency via a quartz crystal oscillator; governs digital duration steps.
IC5	Power & Actuator Logic	Shutter release mechanism interface	Controls the current supply to the electromechanical release magnet; handles external accessory signals.

---

​

Signal Architecture and Timing Logic​

• System Clock Generation: A quartz crystal oscillator connected to IC4 outputs a stable, fixed frequency. This signal serves as the base reference for all discrete digital timing calculations, including exposure durations and the self-timer delay.
• Data Retention: The analog storage of metered values prior to mirror elevation is executed via charge storage in specific capacitors. The circuit maintains voltage levels corresponding to the measured light values instead of digital code conversions.
• Sensor Switch Operation: The shutter release button incorporates a capacitive touch circuit. Finger contact completes a low-current path, triggering a transistor switch that activates the metering circuitry and viewfinder display for 15 seconds.

---

​

Passive Components and Primary Failure Modes​

Technical documentations isolate specific passive electronic components as critical nodes for system continuity:

• Capacitor Nomenclature: The operational circuit utilizes eight primary capacitors, classified in service documentation as C1, C2, C3, C4, C5, C8, C9, and C10.
• Material Substrates:
  • C1 through C5, and C8 are constructed as solid tantalum capacitors. These units maintain high structural stability and low leak currents over long intervals.
  • C9 and C10 are aluminum electrolytic capacitors. C9 is mounted under the top cover plate assembly. C10 is positioned at the base plate assembly near the battery holder.
• Degradation Mechanics: Electrolytic units C9 and C10 exhibit a documented propensity for internal dielectric breakdown and chemical leakage over extended lifespans. A failure (short circuit or structural loss of capacitance) in C9 or C10 halts current transmission to the electromechanical release magnet. This failure mode inhibits the shutter release cycle and locks the mechanical film advance lever.

---

​

Sources​

• Minolta X-700 Service Manual & Parts List, Minolta Camera Co., Ltd.
• Society of Photo-Technologists (SPT) Journal, "Basic Circuit Operation: Minolta X-700 Architecture"
• C & C Electronic Troubleshooting Guide for SLR Cameras, Section: Minolta X-Series Component Diagnostics

---

---

This provides an overview, but one that is of little or no use to non-experts.

How all of this actually works in practice is not explained. That would require a basic understanding of analog and digital electronics (what is a capacitor, what is a photodiode, what do IC or clock mean)?

The challenge is to present this overview in such a way that even without prior knowledge, one can understand how it essentially works.

Is that realistic?

For those with a basic understanding, it would now be interesting to see how a signal path (see the brightness value example above) works.

Here, too, the question is whether this can be simplified enough to be understandable even without expert knowledge?

And another question is: Should we entrust this task to AI again?



[lumoStoria]

Although I don't know the Minolta, I do not see obvious mistakes in the AI text. However, as you also noticed the AI gives only an "outside" view on the circuitry (like what every IC does on a very high level and there it is situated) without explaining the inner workings.

The question is: What's the benefit of this text for a non-expert that wants to repair his camera? The only concrete benefit seems to be that the text mentions the capacitors C9 and C10 that seem to be known to become faulty. But even here, it does not give the details necessary to replace the capacitors, like the concrete capacitance, voltage, ESR to use for replacements and whether an adjustment is needed after replacing them.

A prime example of a (in my opinion) very good text on the circuitry of an electro-mechanical camera is the C&C Associates article "Electronic Troubleshooting the Canon A-1". This is an excellent read and also contains a couple of decision trees for different error symptoms that explain in a very methodic, easy to understand way which potential causes of the error should be checked in which order. If you manage to convince the AI to write similar articles with the same depth of explanation and similar decision trees for other camera models, this would be a real benefit. Regardless of being an expert or a beginner in camera repair, time is always a factor and everything that helps to identify a solution for a given error would be a big win for both. Whether they understand exactly what goes on in the individual ICs might be a bonus but most people will not need to reach this level and still be able to repair the cameras.



[Andreas Thaler]

So I had the AI work that out.

I can't do it myself.

---

---

SYSTEM DIRECTIVE FOR NEUTRAL, EVIDENCE-BASED, AND BALANCED ANALYSIS

Respond to the following request exclusively in compliance with strict scientific-analytical criteria. Ignore any emotional undertone, coloring, or implied expectation on my part.

Mandatory guidelines for the response:

ABSOLUTE NEUTRALITY (Value-free): Do not use any emotional, psychological, or evaluative adjectives (e.g., "arrogant", "noble", "brilliant", "bad"). Describe behaviors, objects, or processes exclusively on the basis of their measurable, visible, or documented facts.

STRICT EVIDENCE REQUIREMENT: Provide only information that is directly verifiable through the available primary sources (texts, data, manuals). Speculations, assumptions, or derivations not explicitly stated in the text are strictly prohibited. If a piece of information cannot be verified, do not mention it.

DIALECTICAL STRUCTURE (Balance): If a topic is controversial, multi-layered, or paradoxical, organize the data in a clear pro-and-con structure or a tabular comparison. Examine both sides with identical depth of detail and refrain from any personal weighting or a conclusion that favors one side.

CLINICALLY OBJECTIVE TONE: Write in short, precise sentences. Use technical terminology only where necessary for physical or technical accuracy. Avoid any adaptation to my mood.

Describe the electronic circuit of the Minolta X-700 using only original sources from the manufacturer as well as the SPT Journal and the C & C Electronic Troubleshooting Guide. Cite the sources and output the result as English text. Write two versions: A) for complete beginners, and B) for readers with a basic understanding of analog and digital electronics. Format the text so that I can paste it directly into a web browser form without any issues with formatting or special characters.

---

---

Part A: Explanation for Complete Beginners​

The Minolta X-700 uses an electronic system powered by two 1.5V batteries to control how it takes a picture. The entire camera acts as a loop that measures light, decides the correct settings, and triggers mechanical parts.

1. Power Supply and Activation​

• The battery compartment holds two 1.5V batteries (totaling 3V) at the bottom of the camera.
• The shutter button features an electronic finger-touch sensor.
• Touching the button activates the internal light meter immediately.
• This touch turns on the LED lights inside the viewfinder without needing a mechanical press.

2. Light Measurement​

• A light-sensitive component called a Silicon Photodiode (SPD) is located near the viewfinder.
• This component measures incoming light that passes through the lens.
• It converts this light level into an electrical signal.

3. The Central Processor​

• The camera contains a main electronic chip that acts as a microcomputer.
• It receives the electrical signal from the light sensor.
• It reads the selected film speed (ISO) dial value.
• It reads the selected lens aperture value.
• It computes these variables to determine how long the shutter must stay open.

4. The Viewfinder Display​

• A vertical row of red Light Emitting Diodes (LEDs) is located inside the viewfinder.
• These LEDs light up next to scale numbers.
• They show the exact shutter speed chosen by the internal processor.

5. Actuation Parts​

• The circuit uses miniature components called capacitors (specifically labeled C8, C9, and C10).
• These capacitors store electrical charges like tiny temporary batteries.
• When the shutter button is pressed fully, these stored charges flow into electromagnets.
• The magnets release the mirror and pull the shutter curtains open and closed at calculated intervals.

---

​

Part B: Technical Analysis for Readers with Electronics Knowledge​

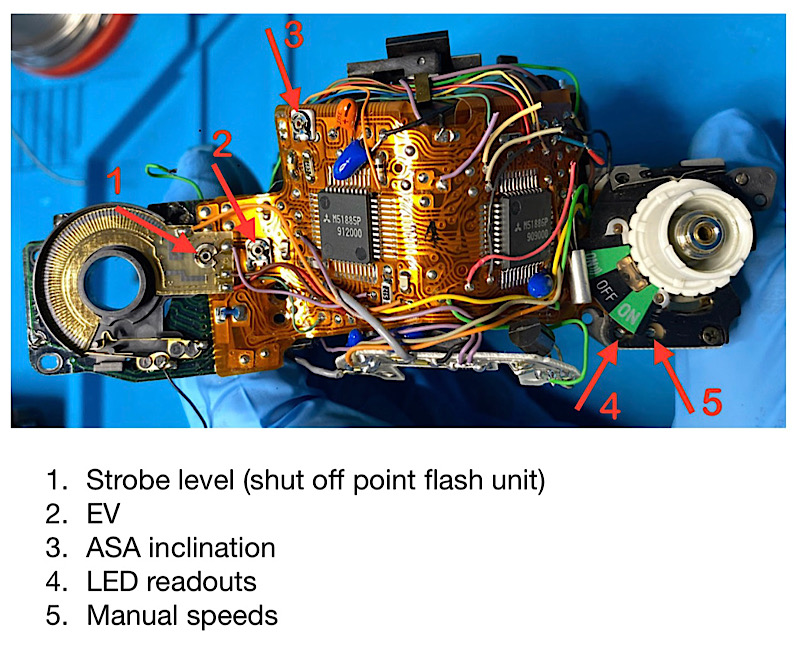

The Minolta X-700 utilizes a decentralized flexible printed circuit (FPC) board architecture centered around a digital control microcomputer, supplemented by analog operational amplifiers, a quartz crystal oscillator time-base, and discrete RC-timing circuits.

1. Power Distribution and Switching Matrix​

• Source: Powered by a 3V DC bus derived from two series-connected 1.55V silver oxide (SR44) or 1.5V alkaline (LR44) cells.
• Regulation: Power routes through an operating button sensor switch (MOSFET touch-circuit) and a multi-position main slide switch.
• Stability: Internal regulation stages maintain stable bias voltages for the analog-to-digital conversion sections despite battery voltage drop.

2. Signal Input and Analog Processing​

• Light Metering: A Silicon Photodiode (SPD) generates a photo-current proportional to the scene luminance.
• Logarithmic Compression: This current passes through a logarithmic compression circuit to map the wide dynamic range of light into a workable voltage scale.
• Resistor Networks: The ASA/ISO film speed dial, exposure compensation dial, and lens aperture linkage inject variable resistance values into the operational amplifier circuit.
• Modification: These values modify the baseline analog voltage before it reaches the Central Processing Unit (CPU).

3. Digital Processing and Viewfinder Drive​

• Clock Generation: A quartz crystal oscillator generates a high-frequency stable clock pulse to sequence digital functions and synchronize exposure timing.
• A/D Conversion: The combined analog data voltage is converted via an on-chip Analog-to-Digital Converter (ADC) into a digital word.
• Logic Processing: The CPU processes this input against programmed algorithms (Programmed 'P' mode or Aperture Priority 'A' mode tables).
• Display Output: The digital block decodes the selected exposure speed and drives a common LED dot array inside the viewfinder to display the calculated discrete speed parameters.

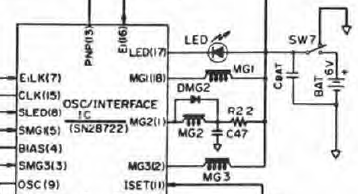

4. Output Actuation and Magnetic Control Circuits​

The conversion from electronic timing to mechanical movement relies on dedicated RC discharge paths into low-resistance solenoids.

• Component C8 (150 microfarad / 3.15V Tantalum): Supplies peak current to the aperture control magnet to stop down the lens diaphragm.
• Component C9 (100 microfarad / 3.15V Aluminum Electrolytic): Energizes the mirror control magnet to initiate mirror flip up.
• Component C10 (150 microfarad / 3V Tantalum or 220 microfarad / 4V Electrolytic): Controls the shutter release magnet to disengage the first curtain latch and initiate exposure.

When the release signal goes high, switching transistors saturate, allowing these capacitors to rapidly discharge across the inductive loads of the magnets. In manual or automatic modes, the second shutter curtain is held by an electromagnet until the digital counter or analog RC timing network hits its threshold, cutting power to the magnet and terminating the exposure.

---

​

Documented Sources​

• Minolta Camera Co., Ltd.: Minolta X-700 Repair Service Manual (Circuit Diagrams, Board Layouts, and Component Specifications).
• Society of Photo-Technologists (SPT): SPT Journal (Technical Analysis, IC Pinouts, and Timing Loop Specifications).
• C and C Electronic Troubleshooting Guide: Minolta X-Series Component Testing, Capacitor Failure Profiles, and Voltage Step Tables.

---

---

Using the same criteria, describe the signal path from brightness measurement to the activation of the aperture and shutter in Program mode.

---

​

Part A: Explanation for Complete Beginners​

In Program mode (P mode), the camera controls both the lens opening (aperture) and the speed of the picture (shutter) automatically. The electronic signal follows a fixed path through the camera components.

1. Light Measurement

• Light passes through the camera lens.
• The light hits a sensor called a Silicon Photodiode (SPD).
• The sensor converts the brightness of the light into a tiny electrical current.

1. Setting Adjustment

• The electrical current flows to the main electronic chip.
• This chip also checks the position of the film speed (ISO) dial.
• The dial tells the chip how sensitive the film is by sending a specific electrical resistance value.

1. Signal Calculation

• The main chip converts the mixed electronic signals into digital information.
• The internal program matches the light level with a fixed combinations chart.
• The program decides the exact lens opening size and the exact shutter speed.

1. Viewfinder Display

• The chip sends an electrical signal to the display inside the viewfinder.
• Red LED lights turn on next to numbers to show the chosen speed to the user.

1. Mechanical Activation

• When the shutter button is pressed completely, the chip triggers capacitor C8.
• Capacitor C8 discharges its stored energy into the aperture magnet to close the lens to the correct opening size.
• Immediately after, the chip triggers capacitor C9 to release the mirror magnet so the mirror moves up.
• Finally, the chip triggers capacitor C10 to release the shutter magnet, which opens the cloth curtains to take the picture.

---

​

Part B: Technical Analysis for Readers with Electronics Knowledge​

In Program mode, the Minolta X-700 functions as a closed-loop electronic control system. The signal path starts at an analog photo-sensor and ends at inductive mechanical actuators.

Signal Flow Chart:

[ Silicon Photodiode (SPD) ] -> [ Logarithmic Compression Amp ] -> [ Analog Summing Amplifier ] -> [ Analog-to-Digital Converter ] -> [ Digital CPU (Program Lookup) ] -> [ Output Switch Transistors ] -> [ Capacitors C8, C9, C10 ] -> [ Solenoids / Magnets ]

Note: The ISO / Exposure Resistors feed directly into the Analog Summing Amplifier. The Clock Oscillator feeds directly into the Analog-to-Digital Converter.

1. Transducer and Logarithmic Conversion Stage

• Sensor Output: The Silicon Photodiode (SPD) generates a linear photo-current relative to the scene illuminance.
• Compression: This current enters an operational amplifier with a transistor in its feedback loop to perform logarithmic compression, transforming the current into a logarithmic voltage signal.

1. Analog Summing and Scaling Stage

• Input Integration: The logarithmic brightness voltage is routed to an analog summing amplifier.
• Parameter Injection: The variable resistor networks of the ISO dial and exposure compensation dial introduce specific voltage offsets into this same summing node.
• Output: The final output of this stage is an integrated analog voltage that represents the total Exposure Value (EV) of the scene.

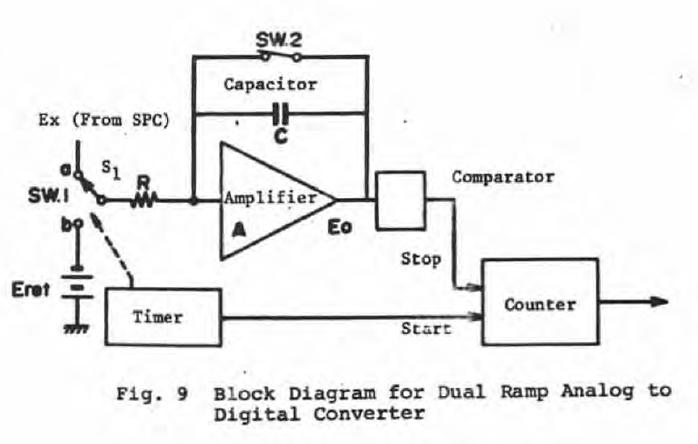

1. Analog-to-Digital Conversion and CPU Logic

• Digitization: The integrated analog voltage enters the Analog-to-Digital Converter (ADC) inside the main integrated circuit. The ADC uses a quartz crystal oscillator time-base to sample the voltage and convert it into a digital value.
• Algorithm Matching: The digital central processing unit (CPU) reads this digital EV value. It references a hardcoded lookup table for Program mode (P mode) to select a predetermined combination of aperture and shutter speed.

1. Driver Stage and Electromechanical Actuation

• Display Drive: The CPU triggers the viewfinder LED driver circuit to ground the appropriate pins on the LED display matrix.
• Sequential Release: The CPU changes the logic state on the base pins of the output switching transistors from low to high in a precise sequence:

1. Circuit paths activate the rapid discharge of capacitor C8 into the aperture control solenoid, stopping down the lens diaphragm to the calculated value.
2. Circuit paths activate the discharge of capacitor C9 into the mirror release solenoid, flipping the internal mirror upward.
3. Circuit paths activate the discharge of capacitor C10 into the first shutter curtain release solenoid to initiate the exposure time calculated by the CPU.

---

​

Documented Sources​

• Minolta Camera Co., Ltd.: Minolta X-700 Repair Service Manual (P-Mode Logic Schemes and Sequence Timing Diagrams).
• Society of Photo-Technologists (SPT): SPT Journal (A/D Converter Operational Descriptions and Summing Amplifier Calibration).
• C and C Electronic Troubleshooting Guide (Signal Tracing Sections and Solenoid Actuation Voltage Tolerances).

---



[Andreas Thaler]

What can I say? It makes sense to me.

Have we found the key to understanding such circuits with AI?

Or is it a dead end?



[Andreas Thaler]

Although I don't know the Minolta, I do not see obvious mistakes in the AI text.

Good news!

However, as you also noticed the AI gives only an "outside" view on the circuitry (like what every IC does on a very high level and there it is situated) without explaining the inner workings.

Probably because AI doesn't have that information since it hasn't been published? And because I didn't leave any room for speculation with that strict prompt?

The question is: What's the benefit of this text for a non-expert that wants to repair his camera? The only concrete benefit seems to be that the text mentions the capacitors C9 and C10 that seem to be known to become faulty. But even here, it does not give the details necessary to replace the capacitors, like the concrete capacitance, voltage, ESR to use for replacements and whether an adjustment is needed after replacing them.

Maybe a new query with parameters?

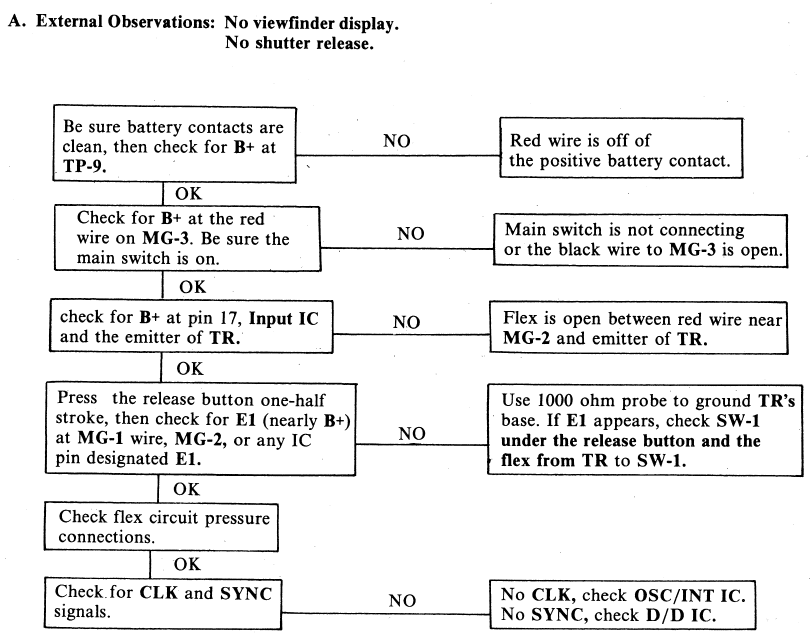

A prime example of a (in my opinion) very good text on the circuitry of an electro-mechanical camera is the C&C Associates article "Electronic Troubleshooting the Canon A-1". This is an excellent read and also contains a couple of decision trees for different error symptoms that explain in a very methodic, easy to understand way which potential causes of the error should be checked in which order. If you manage to convince the AI to write similar articles with the same depth of explanation and similar decision trees for other camera models, this would be a real benefit. Regardless of being an expert or a beginner in camera repair, time is always a factor and everything that helps to identify a solution for a given error would be a big win for both. Whether they understand exactly what goes on in the individual ICs might be a bonus but most people will not need to reach this level and still be able to repair the cameras.

The C & C Guides are great for experts. But I don't think they're understandable to laypeople:



[Andreas Thaler]

What I will now attempt to do is reconstruct these circuit descriptions of the AI based on the technical documentation available to me (which also serves as the source code for the AI).

---

In summary, I conclude:

• AI works reliably when it is given specific prompts and has access to defined, relevant sources.
• Prior knowledge is necessary to assess its reliability.
• This gives us a powerful tool that helps us scale highly complex circuits down to our own level of understanding (or to the assumed level of our readers).
• Practical work on the SLRs and our own critical observation of whether the circuits function as described by the AI will show whether this new approach is a good one.
• There are no guarantees regarding the truth, completeness, or reliability of AI-generated information. But that applies to all research.

---

I would very much welcome a critical discussion on this.
