Tachihara 8x10 with leaning front standard rails

Discussion in 'Large Format Cameras and Accessories' started by Richard Man, Jan 11, 2018.

  1. Richard Man

    Richard Man Member

    Messages:
    724
    Joined:
    Sep 24, 2005
    Shooter:
    Multi Format

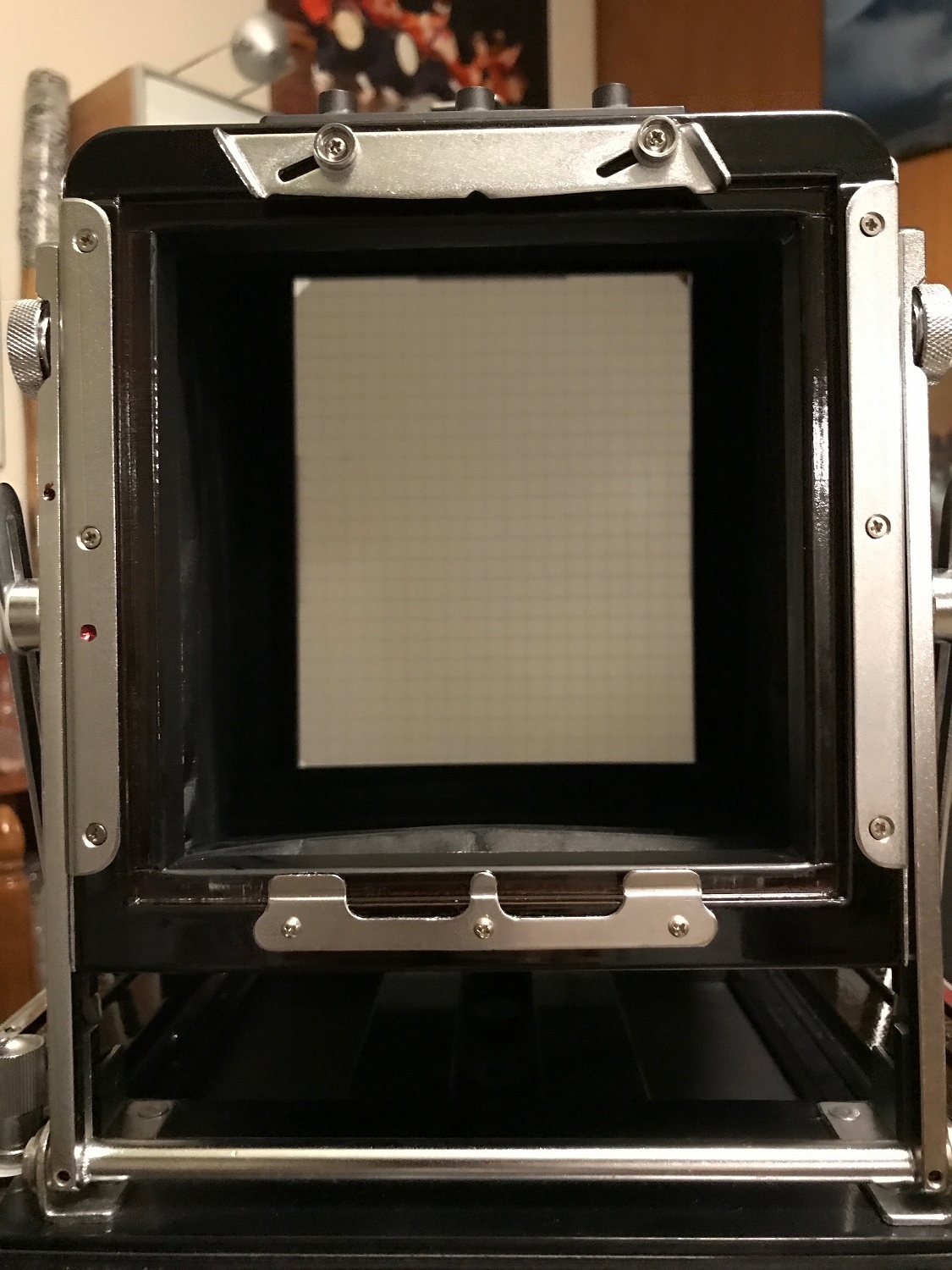

    Just "traded" my Sinar P2 8x10 for a lighter weight Tachihara. Everything looks good and I will be developing the first sheets shortly. However, the front standard has a lean, not sure if it is clear from the photo. I suppose as long as it's parallel to the rear standard (the lean is sideway), then it doesn't affect the functionality. Anyway, should I bother to disassemble and somehow fix it?


    Attached Files:

  2. ic-racer

    ic-racer Member

    Messages:
    8,719
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Looks like the front standard is bent from rough handling or rough storage. Looks like it could be bent back, but I'd use caution unless you have experience repairing cameras.

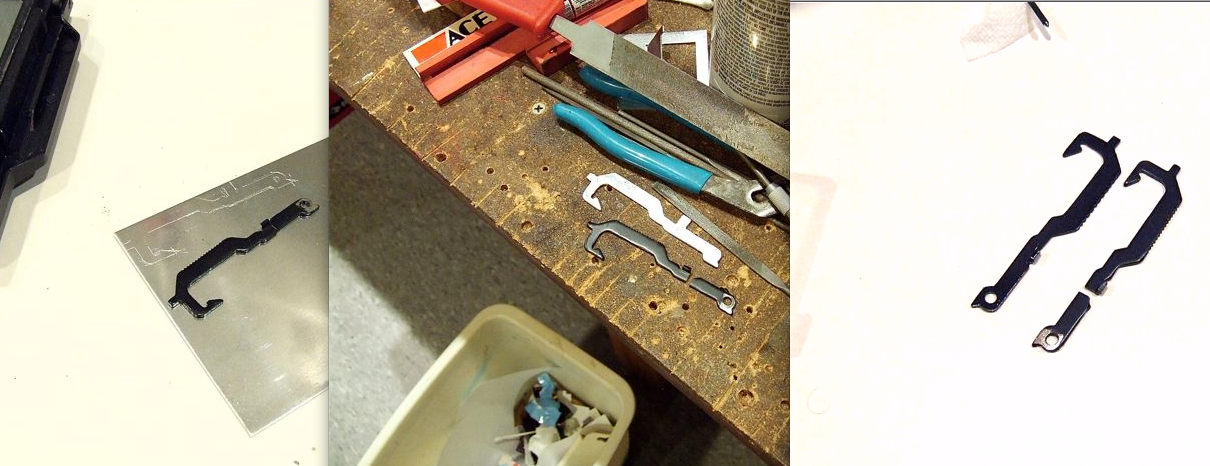

    I recall the one of the ground glass backs on my Horseman 45 was just a little sideways. I found one of the lever arms was bent, so I bent it back and it immediately fractured in two pieces.
    Good thing I have the tools to make a new one.
    Screen shot 2018-01-12 at 8.58.14 AM.png

  3. Peter Schrager

    Peter Schrager Subscriber
    Ads Enabled

    Messages:
    2,969
    Joined:
    Jul 19, 2004
    Location:
    fairfield co
    Shooter:
    Large Format
    Do yourself a favor and sent it to Richard ritter
    Why have s half ass. Tool for making photograhs??

  4. OP
    OP
    Richard Man

    Richard Man Member

    Messages:
    724
    Joined:
    Sep 24, 2005
    Shooter:
    Multi Format
    Thanks. It seems to look OK if I lock down on one side and push down on another. As long as the standards are parallel, the images should be OK. It's mainly an OCD thing otherwise.

  5. John Koehrer

    John Koehrer Subscriber
    Ads Enabled

    Messages:
    7,385
    Joined:
    Apr 3, 2004
    Location:
    Aurora, Il
    Shooter:
    Multi Format
    looking at the picture, there's a greater gap near the bottom of the bellows frame on the RH side. Makes me wonder if a shim or washer is missing.

  6. OP
    OP
    Richard Man

    Richard Man Member

    Messages:
    724
    Joined:
    Sep 24, 2005
    Shooter:
    Multi Format
    Not that I can see. It's looking better already when I un-tension the knobs. I suspect the previous owner(s) just were not careful and progressively let one side of the wooden frame riding higher and higher and tighten it that way, forcing the metal rails to lean more and more. So I think if I just keep the tension the other way, it will eventually move back to more neutral positions.

    Thanks

    Last edited: Jan 13, 2018
  7. John Koehrer

    John Koehrer Subscriber
    Ads Enabled

    Messages:
    7,385
    Joined:
    Apr 3, 2004
    Location:
    Aurora, Il
    Shooter:
    Multi Format
    That makes perfect sense. If in working it that way you find that the one side won't fully tighten down then the addition
    of a washer on the opposite side may help out. Yeah me & my washers.
