Can anybody tell me where I can find the following table for my Distar lenses? I need one for 15 cm focal length.



This one I got together with a Distar 3/IV lens but unfortunately parts are missing.

Markus


Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
23,262
Location
West Midland
Format
Multi Format
You might look on this web-page, half way down the page there's a link to a spreadsheet that calculates DOF, but it also includes the Bellows extension factors which is what you need. Then you can calculate relative apertures etc/

Ian


apkujeong

Member
Joined
Jul 13, 2007
Messages
166
Location
...
Format
Multi Format
Hope this is useful, I've attached a scan.


Attachments

  • Distar.JPG
    69.3 KB · Views: 197
OP
OP
Joined
Jan 27, 2009
Messages
31
Location
Berlin
Format
Large Format
Thank you very much! That is just what I was looking for. Saves me a lot of calculating.

Markus


Andreas

Member
Joined
Nov 15, 2007
Messages
22
Location
Larvik, Norw
Format
Multi Format
Distar and proxar combined

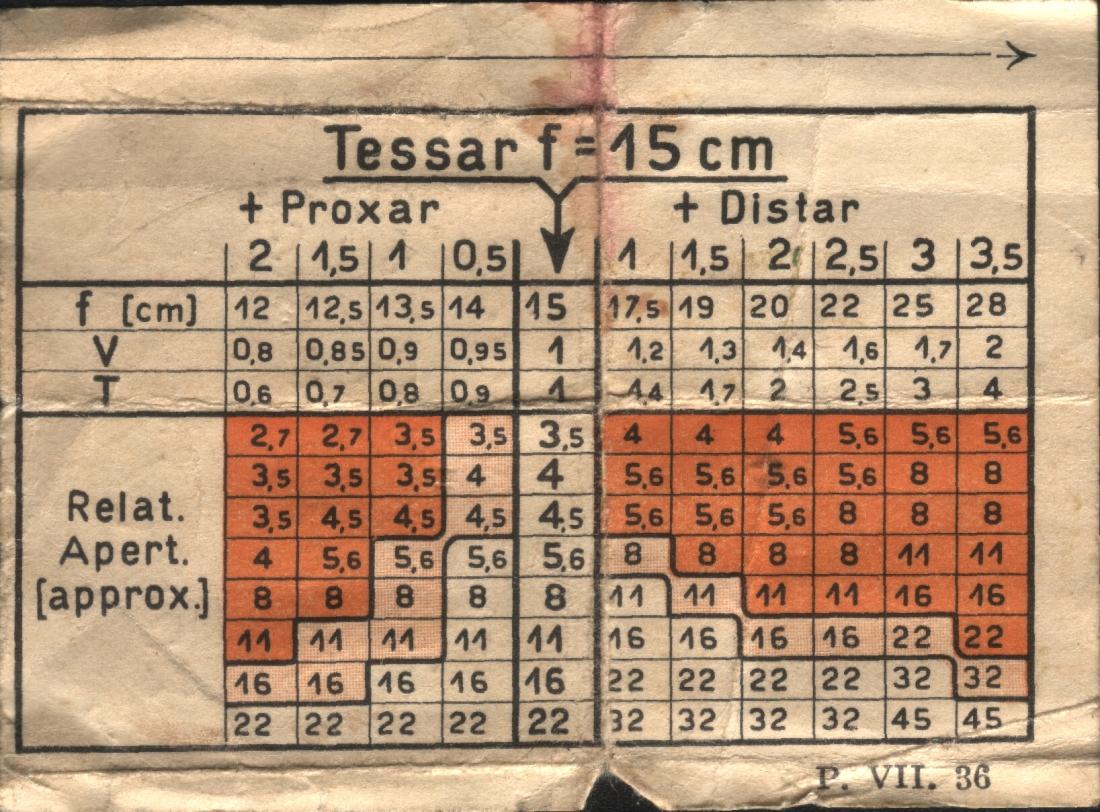

Here you have it all, both Distar and Proxar. I'm pretty sure you read it like this:
Vertical column in the middle is, of course, the unaided 15cm Tessar.
f (cm) is the resulting focal length with the supplemantary lens indicated on top of each column.
V is the factor for the change in focal length (perhaps it stands for Verlängerungsfaktor?)
T is the factor for calculating new exposure time with the supplementary lens. Multiply the measured time by this factor.
Relat. Appert. is the effective apperture with supplementary lens in place, with reference to the apperture scale on the lens. Orange numbers should be avoided because of too great loss in picture sharpness. Light orange numbers are o.k. for contact prints, I guess. (That's what most users would be making with this equippement). Use white numbers for sharp pictures.

I have only made a couple of tests with Distars and Proxars at small appertures. The results were not bad. Proxar 2 enlarged from 9x12cm to about 24x30cm was quite sharp, if not stunning.

By the way: I enlarged the table a bit (to about 7x10cm) printed it and got it laminated. Very durable and handy to keep in my bag.


Attachments

  • Distar&Proxar tbl.jpg
    Distar&Proxar tbl.jpg
    170.6 KB · Views: 193
