Please forgive me if this topic has already been discussed. Not knowing anything about electric connections, I am hoping I can get some help.

My darkroom setup includes an 8x10 Omega F enlarger (Super Chromega F head + Fotar chassis). The Omega F head has a 1,000-watt lamp-house (4 lamps, 250 Watts ea.). My timer is a Lektra TM8, which can handle the 1,000 watts no problem. I am seriously thinking about going the RH Designs' StopClock route but know their meter is rated for 500 Watts. In reviewing the Omega F's User's Manual, I see that I can use an Omega Power Relay (or some other type of contractor/relay) to absorb the high load and be able to connect any enlarger timer to my setup. The Omega F Power Supply controls not only the lamp-house but also the fan (that cools the lamp-house). When one turns on the power button (on Power Supply), the fan automatically goes on [a safety feature, I believe].

Can I simply connect the StopClock to the relay and the relay to the power supply and make the ensemble work with the StopClock? Does anyone have experience with this type of set-up?

Thank you in advance for your kind help.

Jack Rosa
jack.rosa@me.com


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,043
Location
USA
Shooter
Multi Format
Yes, using a relay would be safest for the Stopclock.
I don't recall how the F power supply deals with the fan, but the D power supply drives the fan from the power supply AC cord and powers the enlarger lamp from the timer input receptacle.

Last edited by a moderator:
OP
OP
JackRosa

JackRosa

Member
Joined
Nov 23, 2004
Messages
447
Location
Oklahoma, US
Shooter
Multi Format
Thanks ic-racer. I think I understand that using the relay would protect the StopClock (from getting fried by 1,000 Watts). Adding the StopClock to the circuit would not change how the Omega F Power Supply turns on the fan, correct? I want to make sure that when I turn ON the Power Supply, the lamp-house's fan goes on and that the StopClock simply turns on/off the lamp-house.


wildbill

Member
Joined
Nov 28, 2004
Messages
2,828
Location
Grand Rapids
Shooter
Multi Format
I have the same setup (chromega head, fotar enlarger) and I was worried about a timer as well but ended up getting a Kearsarge timer (without relay) that I believe is only rated for 500watts. Someone had been using the same timer on their 1000w chromega w/o any issues so I went for it. Not that you should risk a pricey timer by trying it.


Ian C

Member
Joined
Feb 8, 2009
Messages
945
Shooter
Large Format
From page 8 of the Super Chromega F manual:

“Any accurate enlarging timer can be used with the Super Chromega F enlarger. However, an electronic timer is recommended. Used in connection with the Omega Power Relay [Catalog number 412-022], this combination provides an ideal timing system for the most demanding requirements. Note: the power relay must be used with timers rated below 1000 watts (minimum 100 watts).”

Properly connected thorugh the relay, the timer never receives the transformer current, so any timer of at least 100 watts capacity will work.

Last edited by a moderator:

ic-racer

Member
Joined
Feb 25, 2007
Messages
12,043
Location
USA
Shooter
Multi Format
I found my schematic for the Chromega F unit. Indeed one needs to power the lamp through the timing circuit (with or without relay). The main AC plug for the unit is not connected to the timer. That way the fan is not affected by the timer. Do you have the manual that shows how to hook this up?

OP
OP
JackRosa

JackRosa

Member
Joined
Nov 23, 2004
Messages
447
Location
Oklahoma, US
Shooter
Multi Format
Thanks ic-
I do have the manual showing the electrical hook-up; just did not know how to interpret it. Your insight reassures me that I should be OK with the StockClock if I use a power relay (contractor) to connect it to the power supply. THANKS much!


Erik L

Subscriber
Joined
May 9, 2007
Messages
694
Location
Grand Juncti
Shooter
4x5 Format

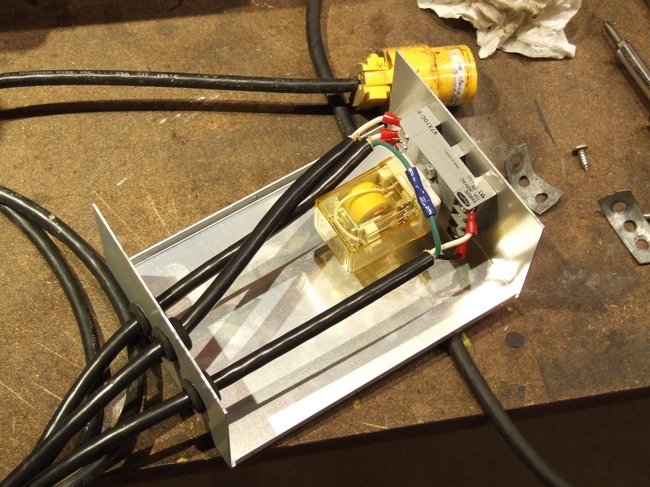

I have the same setup except with a darkroom automation timer and I made a relay with the following McMaster Carr part numbers. Just needed to get a few feet of electrical cord and some plugs. It was very simple to do.
7384k21 and 7384k45

OP
OP
JackRosa

JackRosa

Member
Joined
Nov 23, 2004
Messages
447
Location
Oklahoma, US
Shooter
Multi Format
Thanks Erik and thanks to ic-racer, Ian C, and wildbill for contributing to this thread. I am now convinced that this is "doable" and will go ahead and pursue. I will report back, once I have received the StopClock and connected it to the Omega F. The Lektra TM8 has been a workhorse for me but it is time to move into the 21st century.

OP
OP
JackRosa

JackRosa

Member
Joined
Nov 23, 2004
Messages
447
Location
Oklahoma, US
Shooter
Multi Format
Progress Report I: purchased parts from Mcmaster-Carr and wired per drawing Erik L sent me. It was a breeze! Tested tonight (using an old Kearsarge timer, just in case) and the ensemble worked like a charm. A big thanks to all and a HUGE thanks to Erik L. The StopClock is on order! :laugh:

OP
OP
JackRosa

JackRosa

Member
Joined
Nov 23, 2004
Messages
447
Location
Oklahoma, US
Shooter
Multi Format
Progress Report II (and final report): StopClock arrived and was connected to the enlarger via the power relay (as detailed in the enlarger's user's manual). The ensemble works perfectly.

Thank you all for your kind insight and help.

End of report


Fotocat2

Member
Joined
Aug 18, 2011
Messages
3
Shooter
4x5 Format
Another approach

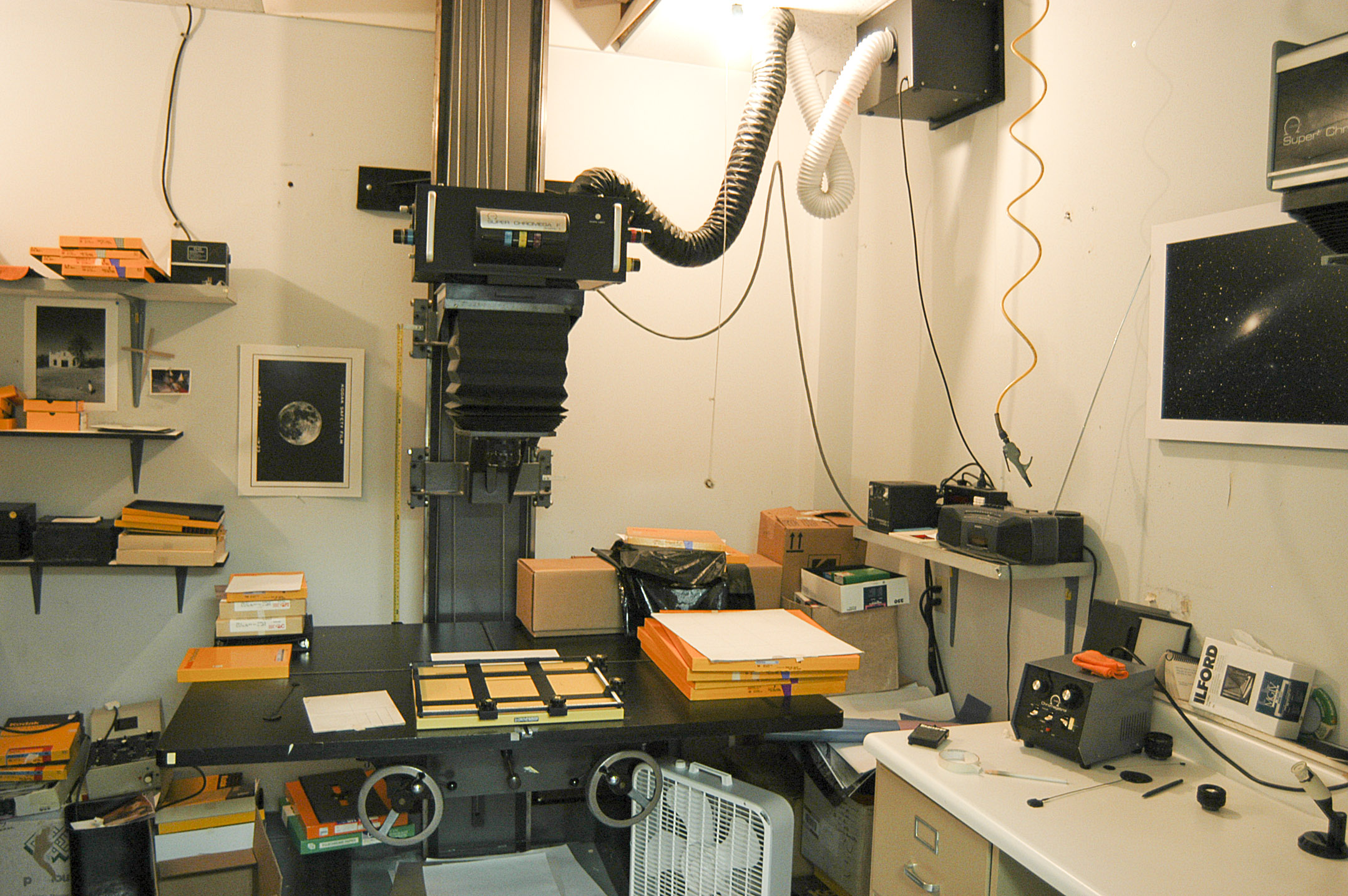

Attached is an image of how we did it. As mentioned above, the relay is safest and allows use of almost any timer, but we were lucky enough to get one of the high wattage timers. ENL810.jpg

OP
OP
JackRosa

JackRosa

Member
Joined
Nov 23, 2004
Messages
447
Location
Oklahoma, US
Shooter
Multi Format
Thanks for sharing! I have the exact same enlarger set-up … a Fotar armed with a Super Chromega F head. A workhorse!

Joined
Jul 22, 2013
Messages
1
Location
Asheville, N
Shooter
Medium Format
I realize this post is a few years old, but hope the op is still available.

Would you be kind enough to send me, or post, the instructions for making the power relay with the McMaster parts, please?

I am waiting to plug my new stopclock into my super chromega f. The power relay from khb is nearly $600, so if there is a safe & less expensive option I'd like to explore that before writing a rather large check (after having just bought a brand new stopclock pro).

Thank so much!


Chan Tran

Member
Joined
May 10, 2006
Messages
4,907
Location
Aurora, IL
Shooter
35mm
I have the same setup (chromega head, fotar enlarger) and I was worried about a timer as well but ended up getting a Kearsarge timer (without relay) that I believe is only rated for 500watts. Someone had been using the same timer on their 1000w chromega w/o any issues so I went for it. Not that you should risk a pricey timer by trying it.
You can use a timer rated for 500W with an 1000W enlarger for quite sometime without problem but I wouldn't recommend doing so. Generally most timer are underated in their output power but still it's much better to use a relay in between.
When I had my Besseler CB7 with it's dichroic head which has 2 200W 24VDC lamp. I installed 2 24VDC 10A power supplies and 2 25A solid state relay. I modified my timer to send out only 24VDC to switch the relay on.
