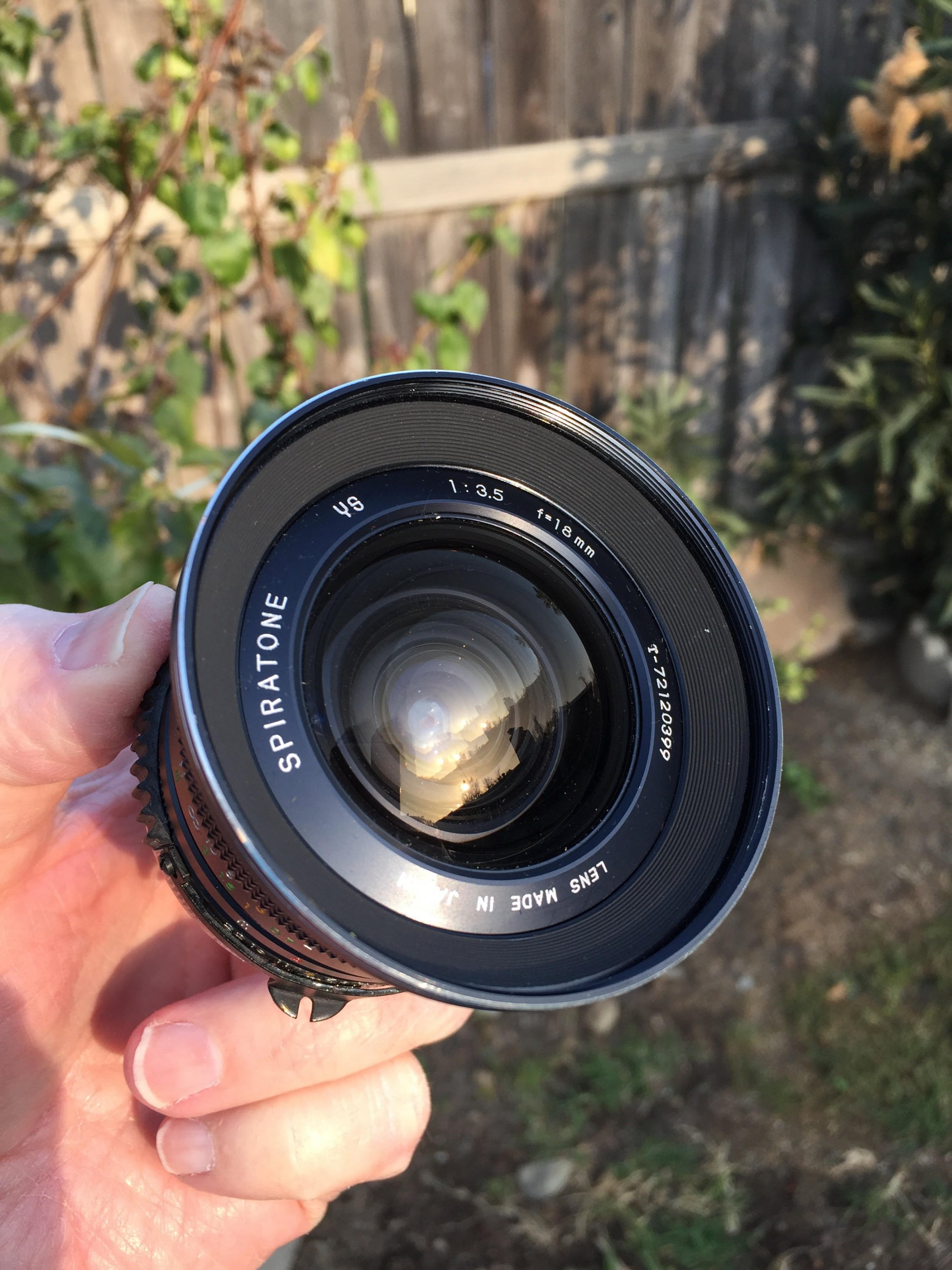

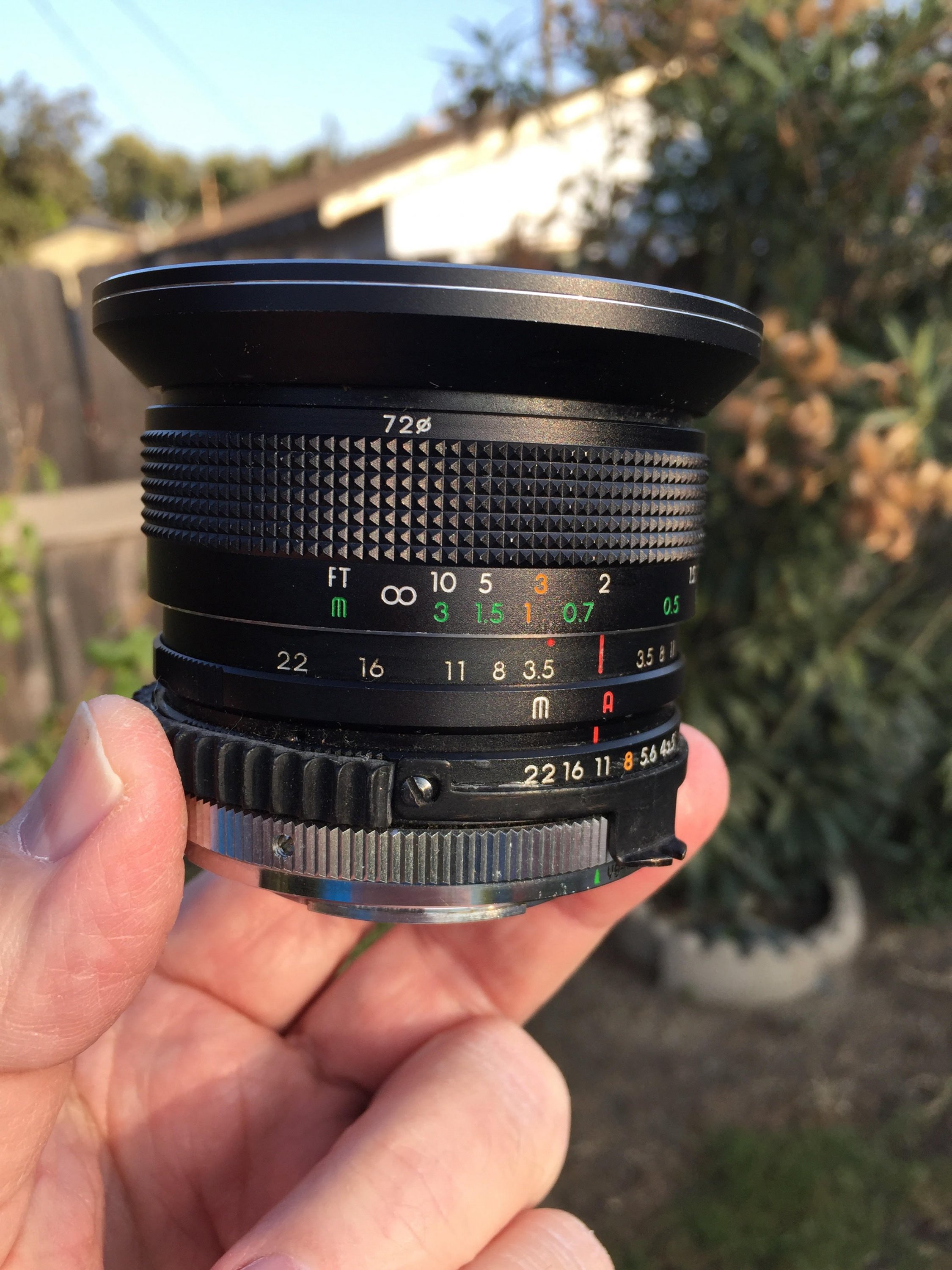

I am selling my Spiratone 18mm F3.5 for Nikon F mount (Non-AI). The lens is in good used condition with clean, clear, scratch-free glass. The iris action is snappy and correct. All other functions work properly.

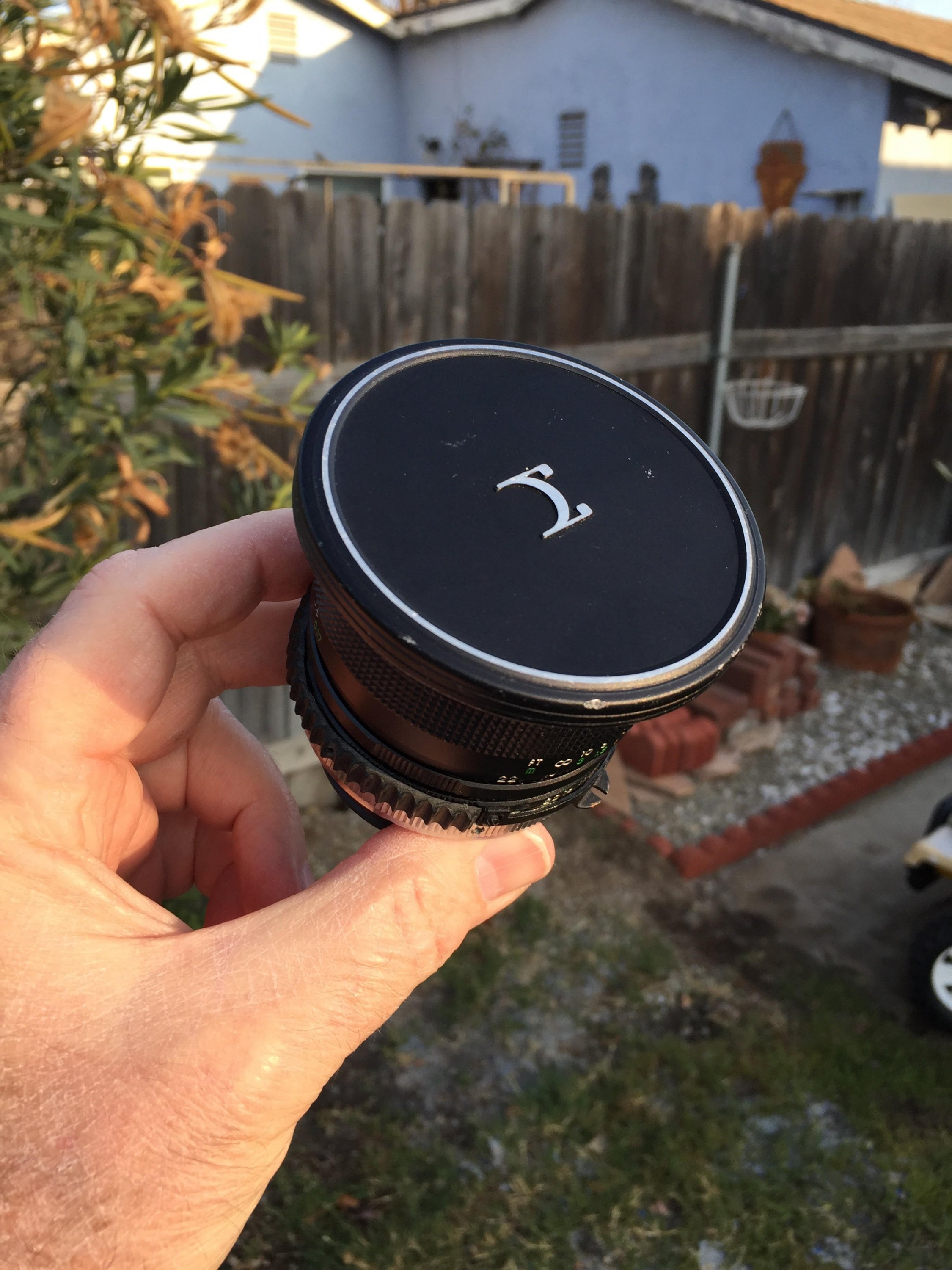

The lens comes with caps. The front cap is marked with the greek letter "Sigma", possibly denoting this lens was made my Sigma (Japan), but I am not sure. Spiratone was known for re-branding many fine quality Japanese made lenses.

Price: $75 plus shipping


Attachments

  • unnamed-1.jpg
    781.9 KB · Views: 414
  • unnamed-11.jpg
    734.4 KB · Views: 233
  • unnamed-7.jpg
    787.6 KB · Views: 221
  • unnamed-3.jpg
    802.3 KB · Views: 206
OP
OP

davela

Subscriber
Joined
Jan 3, 2008
Messages
2,382
Location
Satellite Beach, FL
Format
35mm

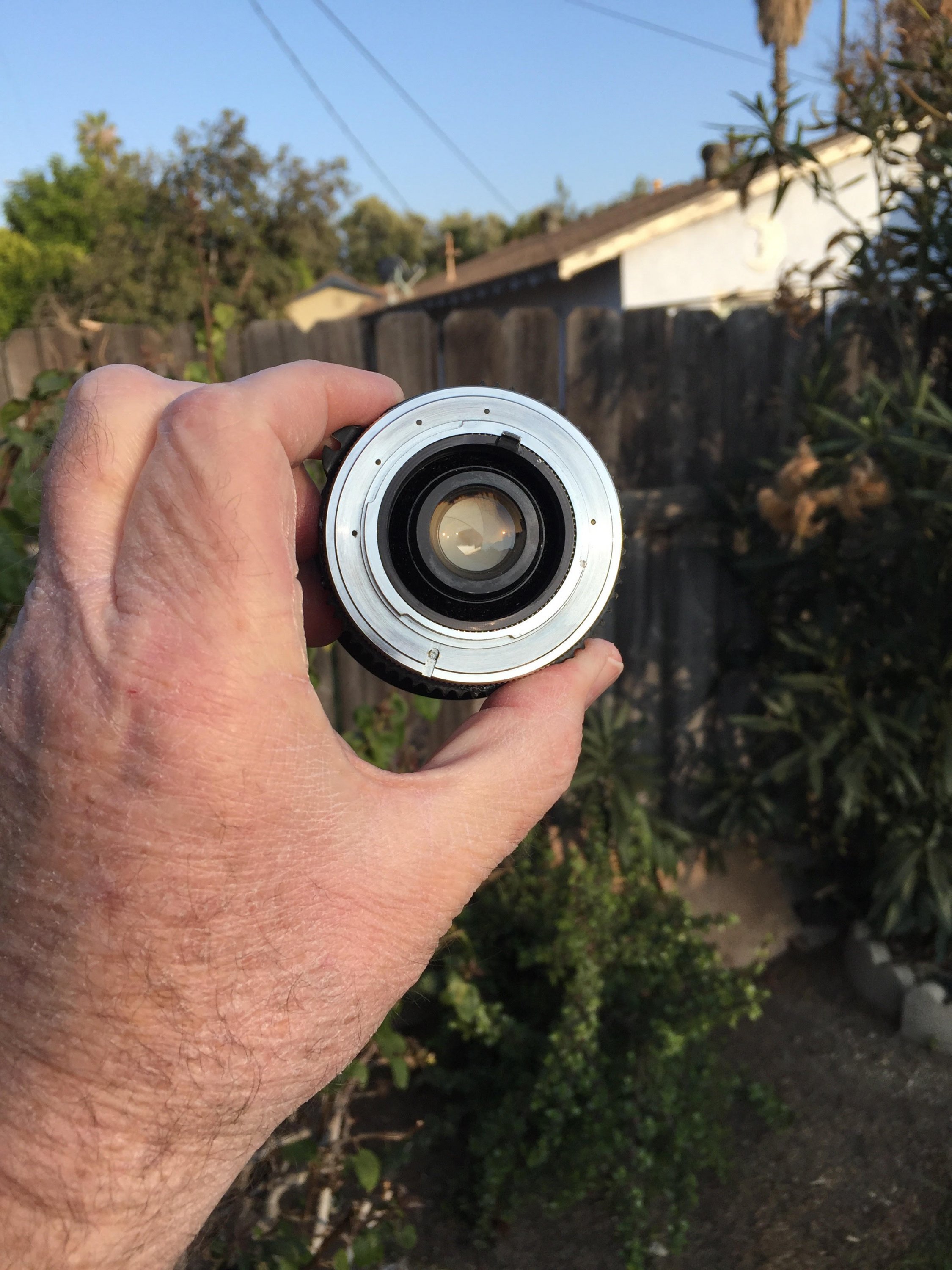

I just noticed this lens has a YS mount on it (for Nikon F), so that it can actually be used on almost any camera ever made that accepts interchangeable lenses with the appropriate adapter. For some camera mounts automatic iris control is also provided, and as well as coupling to internal meters. The details are a little involved, but covered nicely at this link:

https://www.butkus.org/chinon/y-s_mount/ys.htm


vsyrek1945

Member
Joined
Jul 15, 2013
Messages
169
Location
Long Island,
Format
35mm
Something not covered in the YS mount instruction manual reproduced by Butkus is that YS mounts have the same length as T2 mounts (AKA T-mounts). Thus, if you want to use this non-AI Nikon YS lens with a Minolta, Canon, Miranda, or even Leicaflex SLR and are unable to source an appropriate YS adapter (one comes up for sale every now and then on eBay, and one of the YS lenses I got came with a Leicaflex adapter), replacing the YS adapter with a T-mount will enable use of the lens with preset diaphragm operation.

I acquired a few YS system lenses over the years sold as M42 screw mount, but those who used the lenses tthat way had to be dissatisfied with their results. While the basic YS lens has a single pin auto diaphragm mechanism, and 42 mm ear thread, its a 0.75 mm pitch thread, not the 1.0 mm pitch of the M42 camera mount. Without either YS or T2 adapter, the lens won't be properly mounted on the camera, and the back focus of the combination will be incorrect.

Thanks and regards,
Vince


Karl K

Subscriber
Joined
Jan 13, 2006
Messages
1,096
Location
NJ
Format
35mm
I was the Marketing Manager for Interphoto Corporation, which owned Spiratone, from 1968 to 1975.
We rebranded lenses from many manufacturers, including Sigma, and sold them under various names, such as Accura, Spiratone, Sun, Suntar, Argus, Five Star, Formula 5, etc.
Indeed, this 18mm f/3.5 is a Sigma lens, designed by the lengendary Michihiro Yamaki, who founded the Sigma Lens Company in 1961 and was CEO until his death in 2012.
I tested various versions of this lens in 1967, including the later-released Filtermatic, which incorporated a rotating collar, providing access to several built-in filters.
The Y-S System (Yamaki System), was invented by Mr. Yamaki as an automatic stop-down and meter-coupled upgrade of the well established T-Mount System (Tamron System).
Fred Spira, the President of Spiratone, was a brilliant mail-order retail entrepreneur who established Spiratone in NY after WWII.
Spira traveled the world searching out photographic gizmos to sell under the Accura and Spiratone brand names.
Spiratone's ads on the back pages of every photo magazine from the 1960's to the 1980's are legendary.
A magnifying glass was essential for reading those brilliant ads!
Spira sold thousands of rear attached lens converters (Tele-Converters), invented by Yamaki and manufactured by Sigma in the early 1960's.
It was Fred Spira who encouraged Yamaki to fine-tune the Y-S System so it could be compatible with all SLR cameras.
Some of the Y-S adapters worked well (Pentax, Minolta, Nikon); others were less reliable, notably Canon FD, Konica, Exakta, Petri, and Miranda, which required the user to "fine-tune" the Y-S Adapter to each lens to ensure proper meter coupling and auto-diaphragm operation.
Michihiro Yamaki was one of the most inventive Japanese optical designers of the 20th Century.
"Yamaki founded Sigma Corporation on Sept. 9, 1961 with the development of the first-ever rear attached lens converter. At that time, most photo enthusiasts believed that a lens converter could only be attached to the front of a camera lens and the 27-year-old optical engineer turned conventional optical theory on its head.
He has been honored with the “Person of the Year” award from The Photoimaging Manufacturers & Distributors Association (PMDA), the “Hall of Fame” award from the International Photographic Council (IPC), and the Golden Photokina Pin for his longtime contribution to the imaging industry."

One final note, I was present at Mr. Yamaki's induction ceremony into the PMDA Hall of Fame.
When he entered the banquet hall, every Japanese person in attendance showed their reverence for Yamaki, making the long and deep "worship" bow, Nirei-Nihakushu.

Sorry I got off track.
David, you brought back fond memories.
Thanks, and good luck with the sale.

Last edited:

Vilk

Member
Joined
Jan 15, 2008
Messages
515
Location
hegeso.com
Format
35mm
I got off track

...please stay there as long as you wish. great post, thanks!

(and if it sells an extra siggy or two today--obviously, they hired the right guy those fifty-odd years back! :wink:)


Barlow

Subscriber
Joined
Jul 13, 2015
Messages
282
Location
New York
Format
8x10 Format
Karl, I've been aware of the Spiratone brand since the early 1980s and always wondered about the intended pronunciation of the name. Was it pronounced like the word spiral, or the word spirit?


Karl K

Subscriber
Joined
Jan 13, 2006
Messages
1,096
Location
NJ
Format
35mm
Karl, I've been aware of the Spiratone brand since the early 1980s and always wondered about the intended pronunciation of the name. Was it pronounced like the word spiral, or the word spirit?

Fred's last name was Spira, correctly pronounced like "speera".
However, everybody pronounced Spiratone like the word "spire".
Let's not clog up Davela's selling ad anymore.:smile:

Last edited:

craigclu

Subscriber
Joined
Sep 8, 2002
Messages
1,301
Location
Rice Lake, Wisconsin
Format
Multi Format
Thanks for the interesting post, Karl... I owned this lens back in the day and it was optically a good, solid piece of glass (keeping this on-topic for the seller!).
