Slide duplicators

Discussion in 'Misc. Hybrid Discussions' started by RalphLambrecht, Nov 2, 2018.

  1. RalphLambrecht

    RalphLambrecht Subscriber
    Ads Enabled

    Messages:
    10,648
    Joined:
    Sep 19, 2003
    Location:
    K,Germany
    Shooter:
    Medium Format
    has anybody tried to digitise negatives by photographing them via slide duplicator? Did it work. what was your experience?tips, recommendations?

  2. gorbas

    gorbas Subscriber
    Ads Enabled

    Messages:
    640
    Joined:
    Dec 9, 2007
    Location:
    Vancouver, Canada
    Shooter:
    35mm Pan
    Yes, it works well and super fast comparing to dedicated film scanners.

  3. twelvetone12

    twelvetone12 Member

    Messages:
    539
    Joined:
    Feb 16, 2015
    Location:
    Over the Alps
    Shooter:
    35mm
    I used one to digitalize super 8 still frames with a Nikon D40, the results were exceptional, unfortunately that camera is not full frame so I would only get crops out of slides with my duplicator, but the results were nice too.

  4. OP
    OP
    RalphLambrecht

    RalphLambrecht Subscriber
    Ads Enabled

    Messages:
    10,648
    Joined:
    Sep 19, 2003
    Location:
    K,Germany
    Shooter:
    Medium Format
    what equipment did you use?

  5. samcomet

    samcomet Subscriber
    Ads Enabled

    Messages:
    319
    Joined:
    Feb 4, 2008
    Location:
    Sydney, Australia
    Shooter:
    35mm RF
    Groups:
    I use an Illumitrans for 35mm (and sometimes 6 x 6) or a duplicon for 16mm and S8 movie film.. Both are used with Pentax screw mount (M 42 ?) analog cameras. Best of luck!
    Cheers,
    Sam

  6. guangong

    guangong Member
    Ads Enabled

    Messages:
    1,044
    Joined:
    Sep 10, 2009
    Shooter:
    Medium Format
    Ditto the Bowen’s Illumitran.

  7. twelvetone12

    twelvetone12 Member

    Messages:
    539
    Joined:
    Feb 16, 2015
    Location:
    Over the Alps
    Shooter:
    35mm
    I used an old Tamron duplicator which I modified so I could slid in 8mm film, which was held in place by an old slide frame

  8. C Jensen

    C Jensen Member
    Ads Enabled

    Messages:
    25
    Joined:
    Jun 27, 2015
    Shooter:
    Medium Format
    I use a ChromaPro with my Nikon Df and 55mm f2.8 AIs Micro Nikkor. I have masks from 8mm to 4X5

  9. gorbas

    gorbas Subscriber
    Ads Enabled

    Messages:
    640
    Joined:
    Dec 9, 2007
    Location:
    Vancouver, Canada
    Shooter:
    35mm Pan

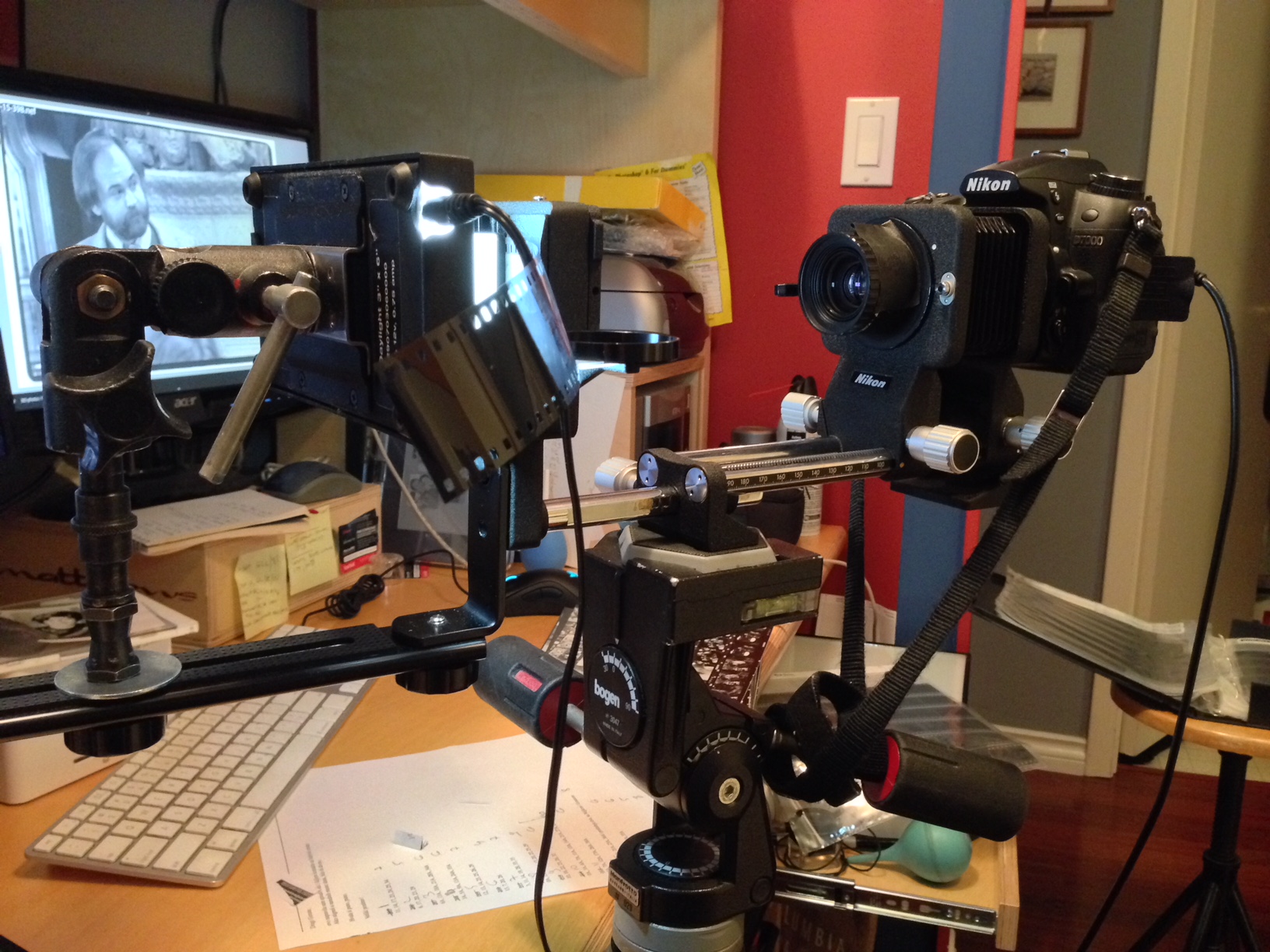

    This is my set up from a few years back, Using Nikon D7000. Due to native extension of bellows system (1:1 ratio with Micro Nikkor 55 at infinity at minimum extension) with APSC sensor and Nikon bellows you can not use 55mm lenses. Because of it use of 75mm or 80mm lens is mandatory. Nikon PB-5 and slide-negative holder PS-4. Light source: Rosco LED panel. Tethered shooting thru Adobe LR. Right now using Apo Rodagon D 4.5/75mm. Micro Nikkors 2.8 and 3.5/55 unfortunately were not as good as enlarging lenses I tried on APSC and full frame.
    Vertical setups are OK but I found them extremely uncomfortable for extended period of time. This horizontal set up works like charm. And as always YMMV!

    Last edited: Nov 3, 2018
