Replacing hood on Rolleiflex 2.8C

[campy51]

I have a Rollei 2.8C with a badly paint chipped hood and would like to know if any other model hood would fit it if I happen to come across one. It functions fine but I just want it for cosmetic purposes.



[Dan Daniel]

One from a D might fit. Or an MX-EVS Automat?

Although the holes and back section are consistent, the front section that goes behind the nameplate or meter cell block varies. I don't remember the pattern I found years ago, but do some checking!

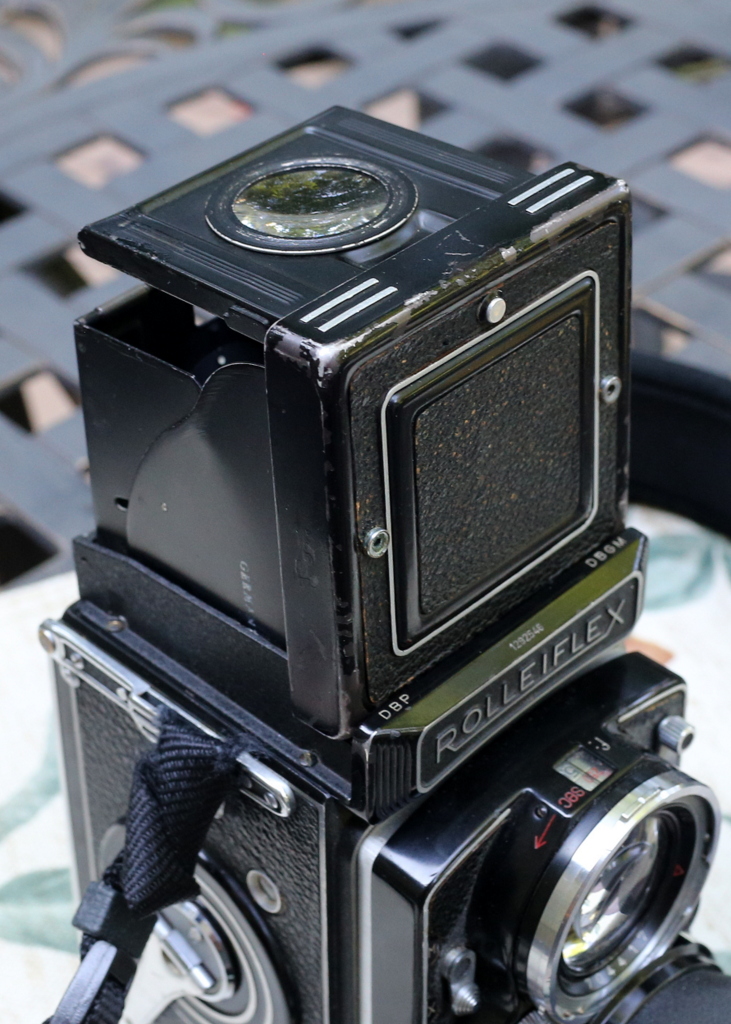

By the way, the hood you show in your photo is not the stock C hood. That looks like an MX-EVS hood? If it functions smoothly I would not bother changing it. A clean hood will be silly expensive as with most Rollei parts, and your hood has a nice look.



[EdSawyer]

probably could be repainted with a little effort, and some black spray lacquer paint.



[shutterfinger]

Krylon Satin Black spray paint is as close to the original as you can get.
https://www.ebay.com/sch/i.html?_fr...n+black.TRS0&_nkw=krylon+satin+black&_sacat=0
I use the Dual Superbond version.



[btaylor]

+1, paint. Problem solved.



[JPD]

Yes, a little paint will fix it. It's better than the feeling of having a Franken-Rollei. Braunschweig is in Niedersachsen and not in Frankenland.



[Dan Daniel]

Yes, a little paint will fix it. It's better than the feeling of having a Franken-Rollei. Braunschweig is in Niedersachsen and not in Frankenland.

He ALREADY has a Franken-Flex. The hood is not the correct design for a 2.8C. The C has a diopter on a much smaller metal flap with adjustable vertical position for focus.



[JPD]

He ALREADY has a Franken-Flex. The hood is not the correct design for a 2.8C. The C has a diopter on a much smaller metal flap with adjustable vertical position for focus.

You are correct! I didn't enlarge the picture.



[campy51]

Maybe I don't have a 2.8C? Here is the Ser.# 1292546



[shutterfinger]

http://www.rolleiclub.com/cameras/tlr/info/serial_numbers.shtml shows 1292546 to be a 2.8C .

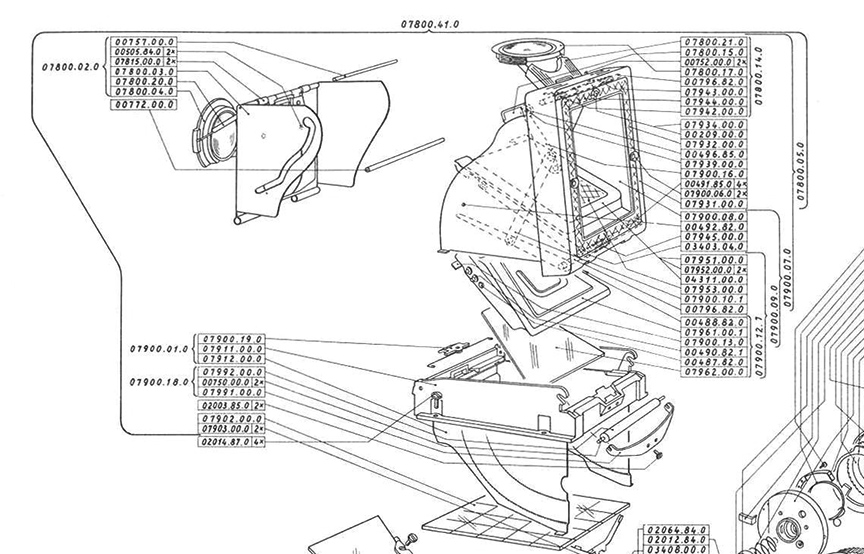

A pdf I purchased Honeywell Photographic Rollei/Honeywell Exploded Views and Part Numbers shows the 2.8 C as 1953 with the view hood complete as p/n 07800.41.0. The same hood is on the 2.8 D. The 2.8E, 2.8E3, and 2.8 F all have different part numbers.

Does yours match?



[btaylor]

Now that I enlarge the pic I can also see that the hood appears to be from a much earlier Rollei. I have a D, E and F, the drawing above matches my D, it is also my favorite of the three because I can easily adjust the focus for the sportsfinder critical focus lens for my increasingly poor eyesight. OP, you might prefer the model correct WL finder for your C.



[campy51]

Now that I enlarge the pic I can also see that the hood appears to be from a much earlier Rollei. I have a D, E and F, the drawing above matches my D, it is also my favorite of the three because I can easily adjust the focus for the sportsfinder critical focus lens for my increasingly poor eyesight. OP, you might prefer the model correct WL finder for your C.

I would like to find one if possible



[btaylor]

I took a quick look on eBay and came up with nothing. It may be a bit difficult.
