Hi,

I have a packard shutter that I recently acquired that needs to have one of the small shutter blade rivets replaced. It appears that this may have been a previous repair that was installed too tightly.

Any ideas on where I might be able to get one of these? I have already tried smallparts.com and they only have solid rivets this small, no tubular rivets.

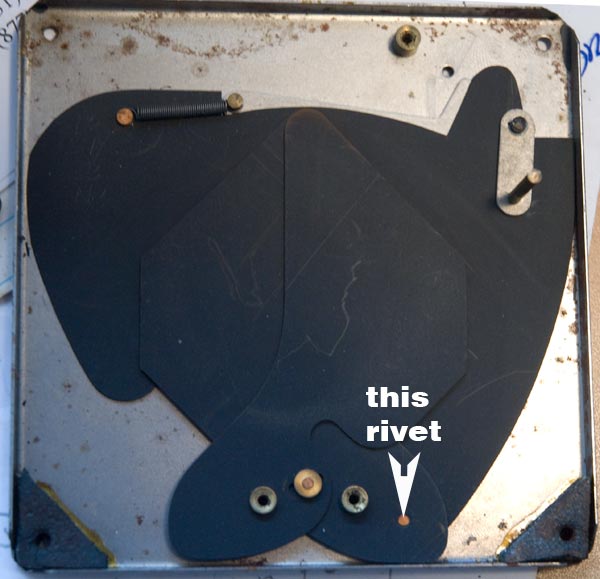

I attached a photo of one of my other packards to show the rivet.

TIA

Rob


Attachments

  • shutter.jpg
    44.6 KB · Views: 159
OP
OP

R Shaffer

Member
Joined
May 9, 2007
Messages
436
Location
Santa Cruz,
Format
Multi Format
Ciao Bob,

Not exactly certain, but it appears to be about 1/16" in diameter. When I measured the combined thickness the shutter blades it was 1/16", so it needs a grip length of a bit more than that.

When I searched the web last night, I found quite a few wholesale type sites, but no retail. McMaster had solid copper rivets 1/16" diameter, but that may be difficult for me to install.

OP
OP

R Shaffer

Member
Joined
May 9, 2007
Messages
436
Location
Santa Cruz,
Format
Multi Format
Well I did not think of the obvious. Just shot an email to packard shutter, so well see what we hear back.


removed account4

Subscriber
Joined
Jun 21, 2003
Messages
29,833
Format
Hybrid
thanks tracy,

it seems that the folks at hub have sold to these folks ...

john

OP
OP

R Shaffer

Member
Joined
May 9, 2007
Messages
436
Location
Santa Cruz,
Format
Multi Format
WOW, talk about a fast reply. I already heard back from Reno @ packard shutter company. Quite reasonable to have him repair shutter. I love to tinker with my LF gear, so it's not an easy decision.

OP
OP

R Shaffer

Member
Joined
May 9, 2007
Messages
436
Location
Santa Cruz,
Format
Multi Format
Fixed it!!!
I was able to gently pry the squashed edge of the rivet up. I used a piece of sheet metal to protect the blades & held the pin down with a small screw driver. Worked my way around rivet several times with my pocket knife. Then I pressed down the blades from the opposite side with a small fender washer, rivet in the middle. That gave the one blade enough room to move freely. Works like a champ.
Thanks for all the suggestions.


B&Jdude

Member
Joined
Apr 17, 2008
Messages
584
Location
Clinton, AR
Format
4x5 Format
Congrats on the DIY repair, Rob. If you ever do need any work done by Packard Shutter, Reno Farinelli is a great guy to deal with and does a wonderful job refurbishing old worn Packards. They come back freshly painted, and are just like new mechanically as well. The cost is a bargain, too. He refurbed several for me and sent back my "new" shutters for about 1/3 the new price.

Smiff


greybeard

Member
Joined
Jun 10, 2005
Messages
366
Location
Northern Cal
Format
Large Format
I'll second the opinion on Reno; he's a good guy to deal with. It's nice when the guy who will do the work is also the one who answers the phone when you call!
