Replacement Bulb for Durst 138S?

Mid Day Matinée

A
Mid Day Matinée

  • 0
  • 0
  • 13
Cumberland Falls-7

A
Cumberland Falls-7

  • 1
  • 0
  • 77
Winter

A
Winter

  • 2
  • 0
  • 181
Pig Iron elevations.jpg

A
Pig Iron elevations.jpg

  • 1
  • 0
  • 247
Cumberland Falls-6

A
Cumberland Falls-6

  • 0
  • 0
  • 191

Recent Classifieds

Forum statistics

Threads
181,940
Messages
2,517,800
Members
95,456
Latest member
jrhii
Recent bookmarks
0

ic-racer

Member
Joined
Feb 25, 2007
Messages
13,074
Location
USA
Shooter
Multi Format

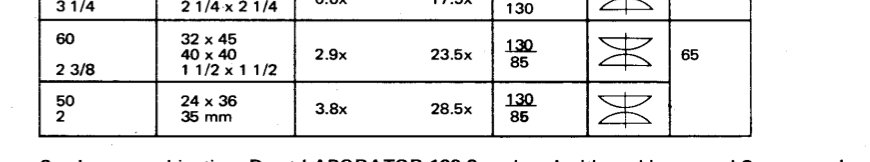

Screen Shot 2018-11-05 at 8.16.21 AM.png

If the length is really 120mm, then the globe is might not even be the 65mm minimum globe diameter (far right column) so it would likely only be good for small format enlargements. For $8, I'd try it and see.


AgX

Member
Joined
Apr 5, 2007
Messages
30,010
Location
Germany
Shooter
Multi Format
Diameter of that bulb in question is 65mm.


Ron789

Member
Joined
Nov 17, 2014
Messages
345
Location
Haarlem, The
Shooter
Multi Format
I have experienced very good results with household LED bulbs. Cheap, easy to purchase, no heat production, strong light output, long lifetime. I will never buy traditional tungsten bulbs again. Don't worry too much about the bulb diameter; in reality I found it makes very little difference. In fact, I got more even results with small bulbs than with some very large bulbs.


Luis-F-S

Subscriber
Joined
Sep 19, 2013
Messages
771
Location
Madisonville
Shooter
8x10 Format
Get the G40 bulb 150 watts and a large enough envelope

OP
OP
Doc W

Doc W

Subscriber
Joined
Nov 7, 2009
Messages
923
Location
Ottawa, Cana
Shooter
Large Format
The G40 is certainly large enough but it doesn't seem to throw a lot of light. I found a 300 watt frosted Sylvania bulb which seems to be powerful enough and does have a lot of fall-off around the edges. I also found an LED floodlight that looks like it might do the trick. What are the requirements in terms of quality of light for Ilford Multi Grade Filters? The LED output is 850 lumens and the colour temperature is 3000K.

I am going to try all of these over the weekend and see how they print.


wiltw

Subscriber
Joined
Oct 4, 2008
Messages
5,430
Location
SF Bay area
Shooter
Multi Format
The A21 shaped 150W bulbs I have located are low light output...1300 Lumens up to 1500 Lumens, falling far short of the 2800 Lumens that the bulb which is linked in the OP


ic-racer

Member
Joined
Feb 25, 2007
Messages
13,074
Location
USA
Shooter
Multi Format

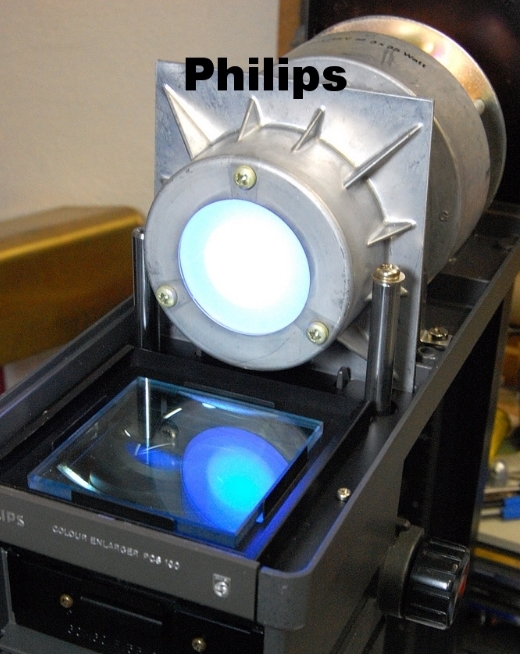

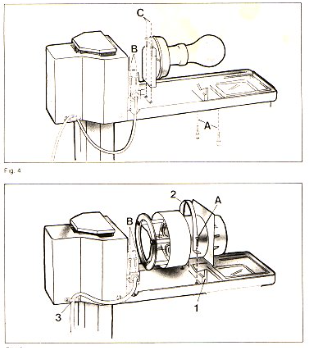

I had a condenser head I'd replace the lamp with a opal disk and shine a halogen lamp or whatever lamp I wanted on the disk form behind...wait...I have a condenser enlarger and that is exactly what I have done...


Screen Shot 2018-11-09 at 10.38.52 AM.png
