RB67 loose advance lever

Discussion in 'Medium Format Cameras and Accessories' started by eyesage, Sep 24, 2013.

Thread Tools

Thread Tools

  1. Sep 24, 2013 #1
    eyesage

    eyesage Member

    Messages:
    49
    Joined:
    Oct 13, 2010
    Location:
    Niagara, Can
    Shooter:
    Multi Format
    The advance lever on the 120 back of my RB67 Pro S is worryingly loose. So far it is functioning just fine, I've never had problems winding and frame spacing isn't an issue but it seems like it could be a minor disaster waiting to happen. I've only had the camera a couple weeks so I can't really say if it's been getting worse over time. I'm sure there's a way to tighten it though nothing seems obvious so rather than poking around blindly I'd be happy to defer to the wisdom of anyone who might know exactly what to do here.

    [video=youtube_share;hV_h32t6GSg]http://youtu.be/hV_h32t6GSg[/video]
    The should give you an idea of how loose it is.

    Your suggestions are appreciated, especially if you have successfully dealt with this before.

  2. Sep 25, 2013 #2
    George Nova Scotia

    George Nova Scotia Subscriber

    Messages:
    682
    Joined:
    Mar 17, 2010
    Location:
    Milford, Nova Scotia
    Shooter:
    Multi Format
    If you're lucky there is a loose screw under that leather disk.


  3. Sep 25, 2013 #3
    Jeff Kubach

    Jeff Kubach Member

    Messages:
    6,925
    Joined:
    Sep 29, 2007
    Location:
    Richmond VA.
    Shooter:
    Multi Format
    That is what happen to mine.

    Jeff

    Last edited by a moderator: Sep 25, 2013
  4. Sep 25, 2013 #4
    Tom1956

    Tom1956 Inactive

    Messages:
    2,014
    Joined:
    May 6, 2013
    Location:
    US
    Shooter:
    Large Format
    It will soon come off, probably ending with chewed up screws or screw sockets. You need to get under the leather, which is undoubtedly easy, and tighten things up.

  5. Sep 25, 2013 #5
    mwdake

    mwdake Member

    Messages:
    630
    Joined:
    Aug 25, 2007
    Location:
    FL, USA
    Shooter:
    Multi Format

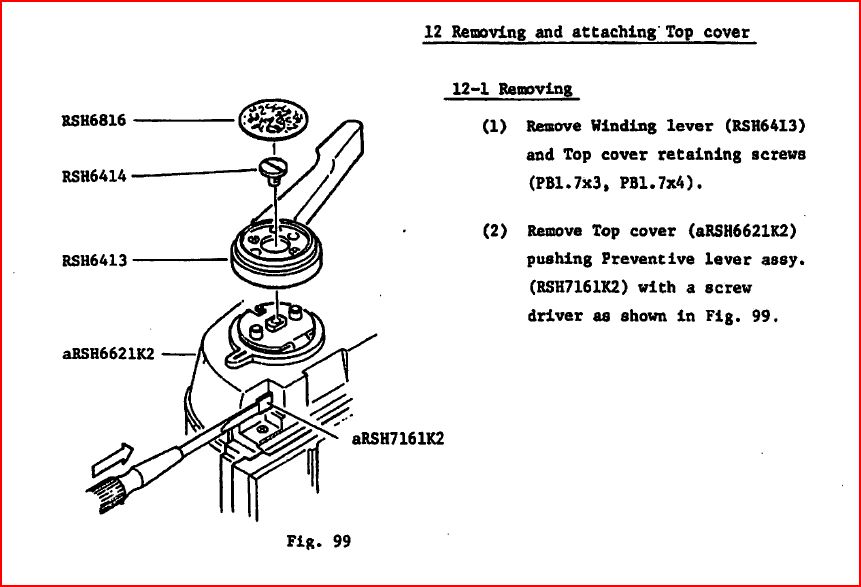

    I had the same problem, it was the screw holding the lever to the shaft under the leather disc.
    It is a simple fix after you carefully remove the disc.

  6. Sep 25, 2013 #6
    paul ron

    paul ron Subscriber

    Messages:
    2,376
    Joined:
    Jan 22, 2004
    Location:
    NYC
    Shooter:
    Medium Format
    The disk is on there with double sided tape n will go right back on.
