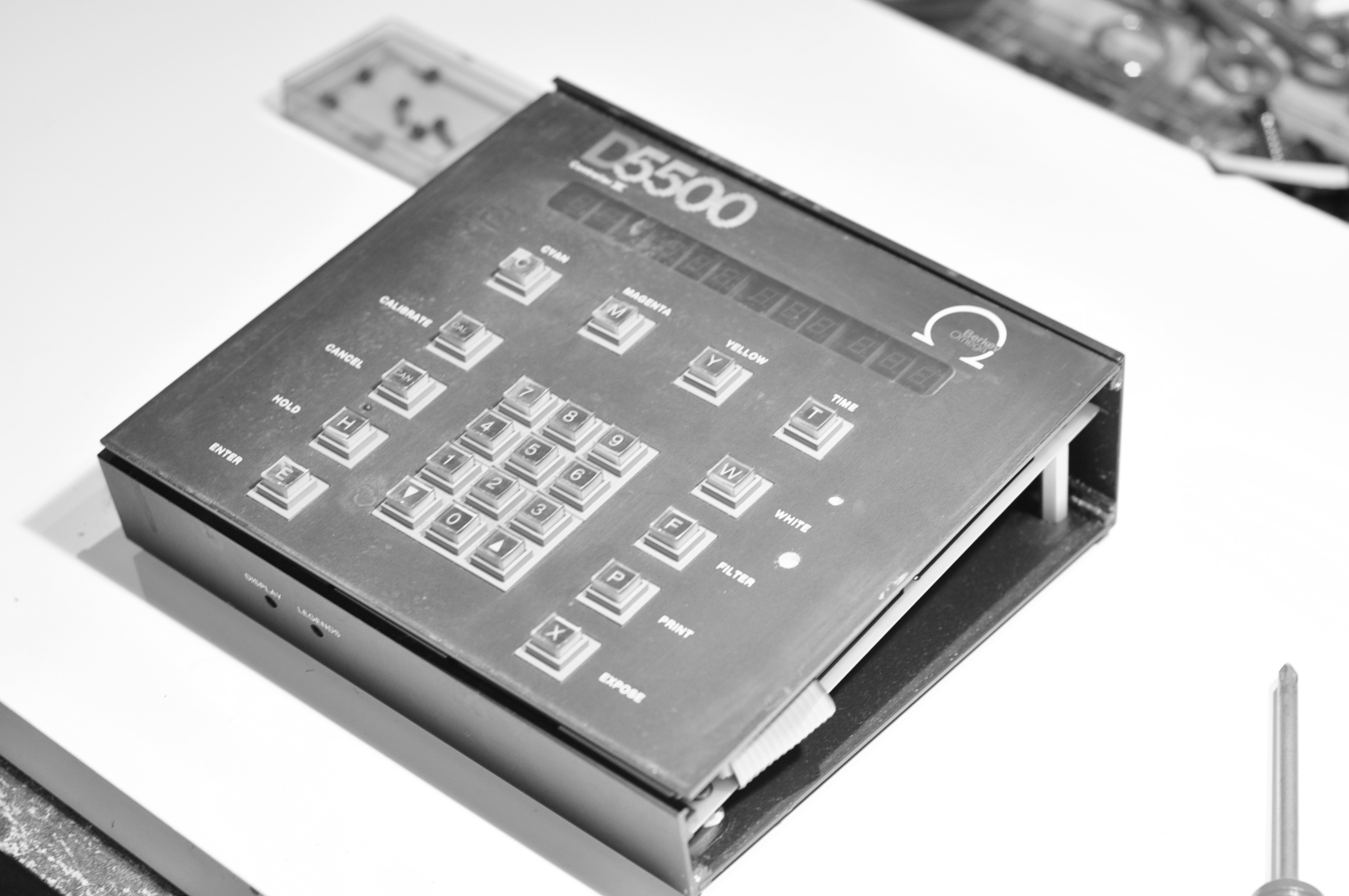

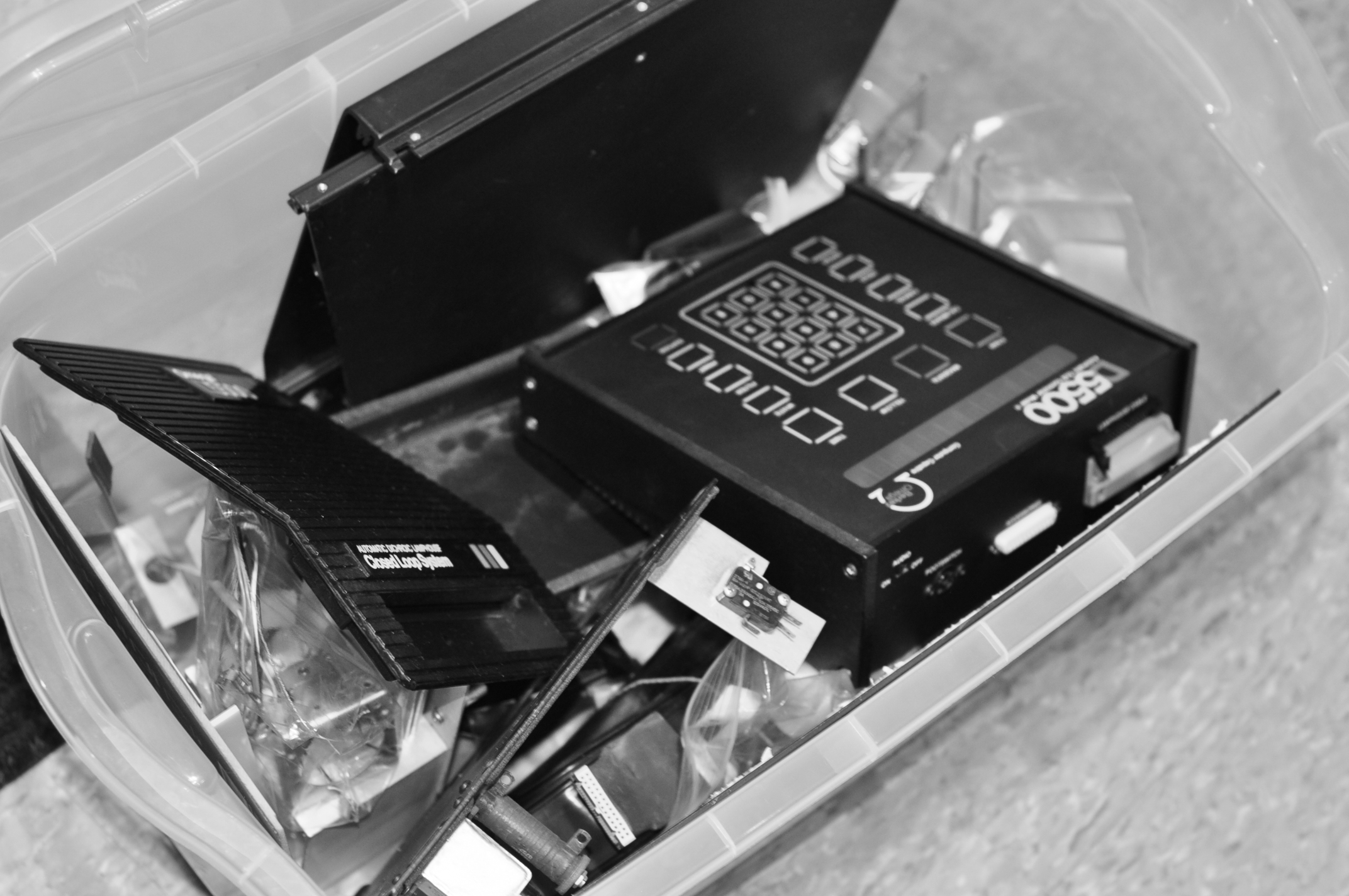

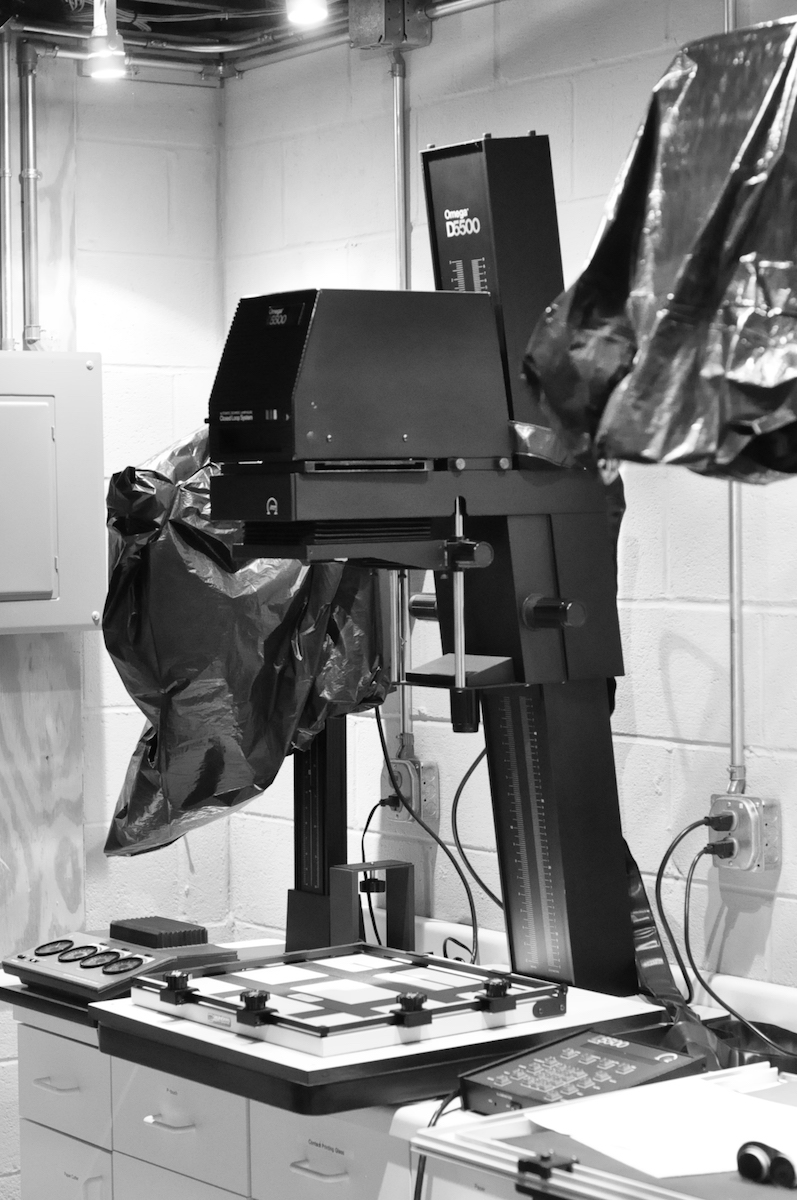

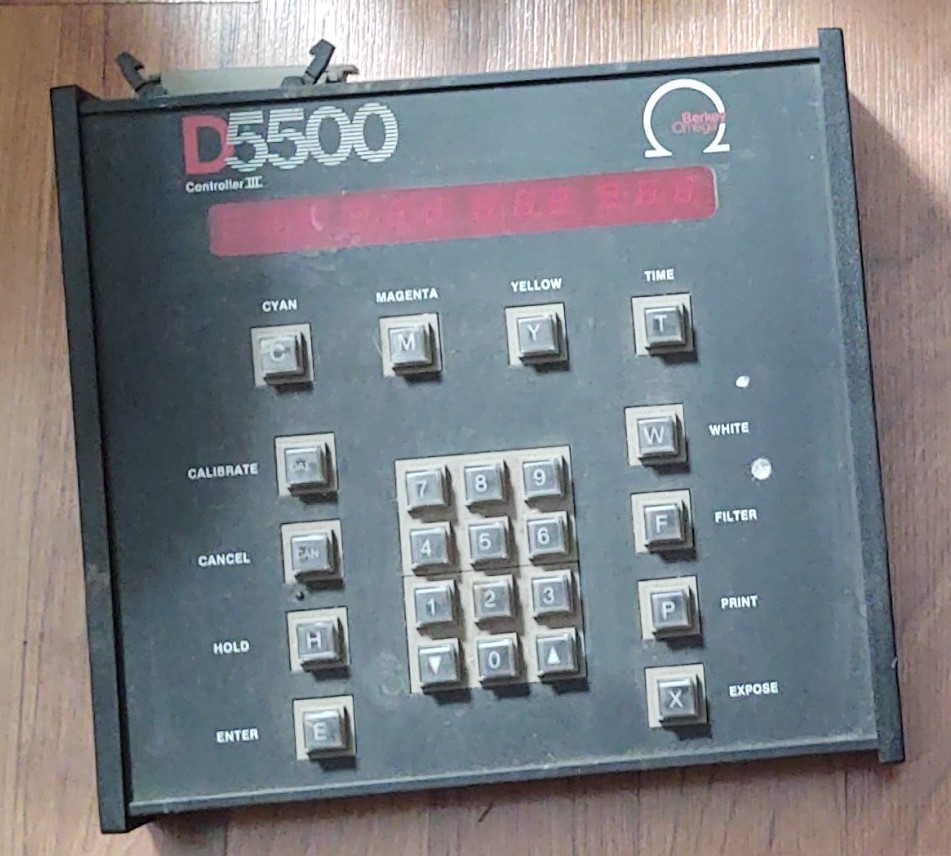

I got this D5500 controller as a spare for my Omega D5500 enlargers. Will check it out before I power it up.


DSC_0495 1.JPG

DSC_0052 copy.JPG

Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format

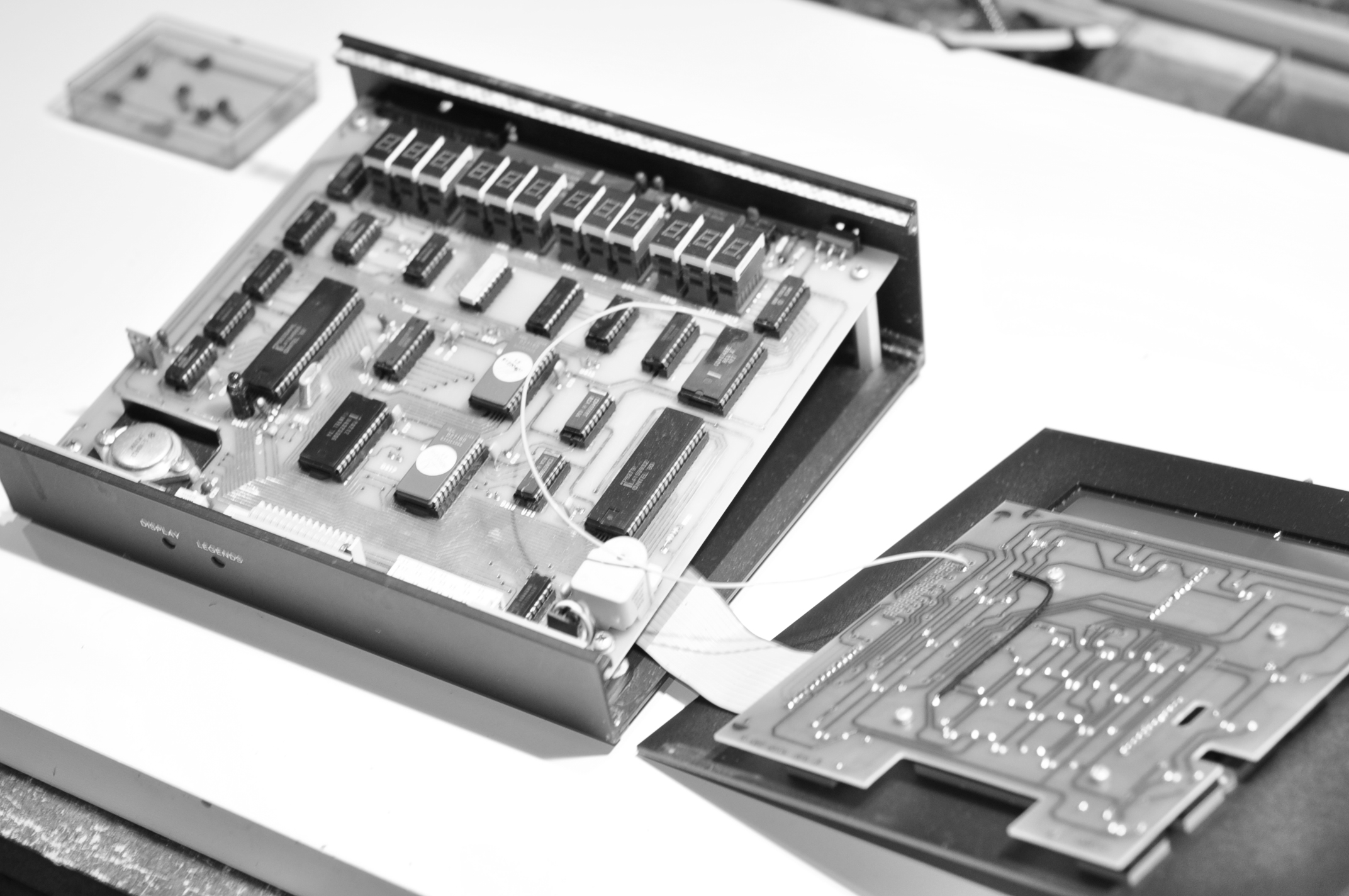

It is very nice in side. Looks like new. Nothing burned that I can tell. This is the later model with the push-button panel. That is why I wanted it. (the earlier model had a membrane touch panel).
DSC_0496 1.JPG

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format

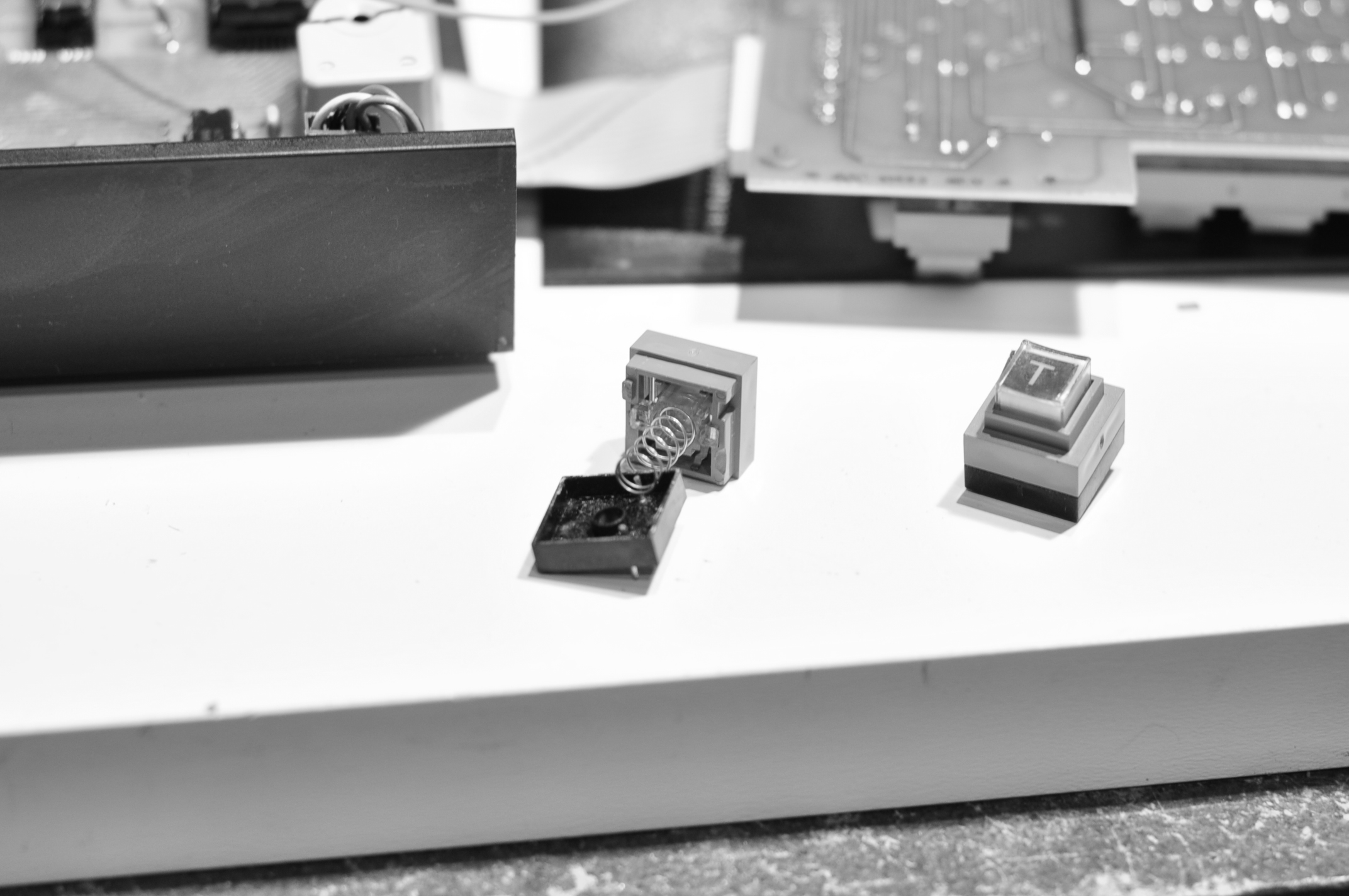

On inspection it looks like the "T" button is broken. The top and bottom pieces have sprung apart. Maybe I could glue it back, or just find a new switch.
I have a box of spare parts, I should have an extra button in there....


Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format

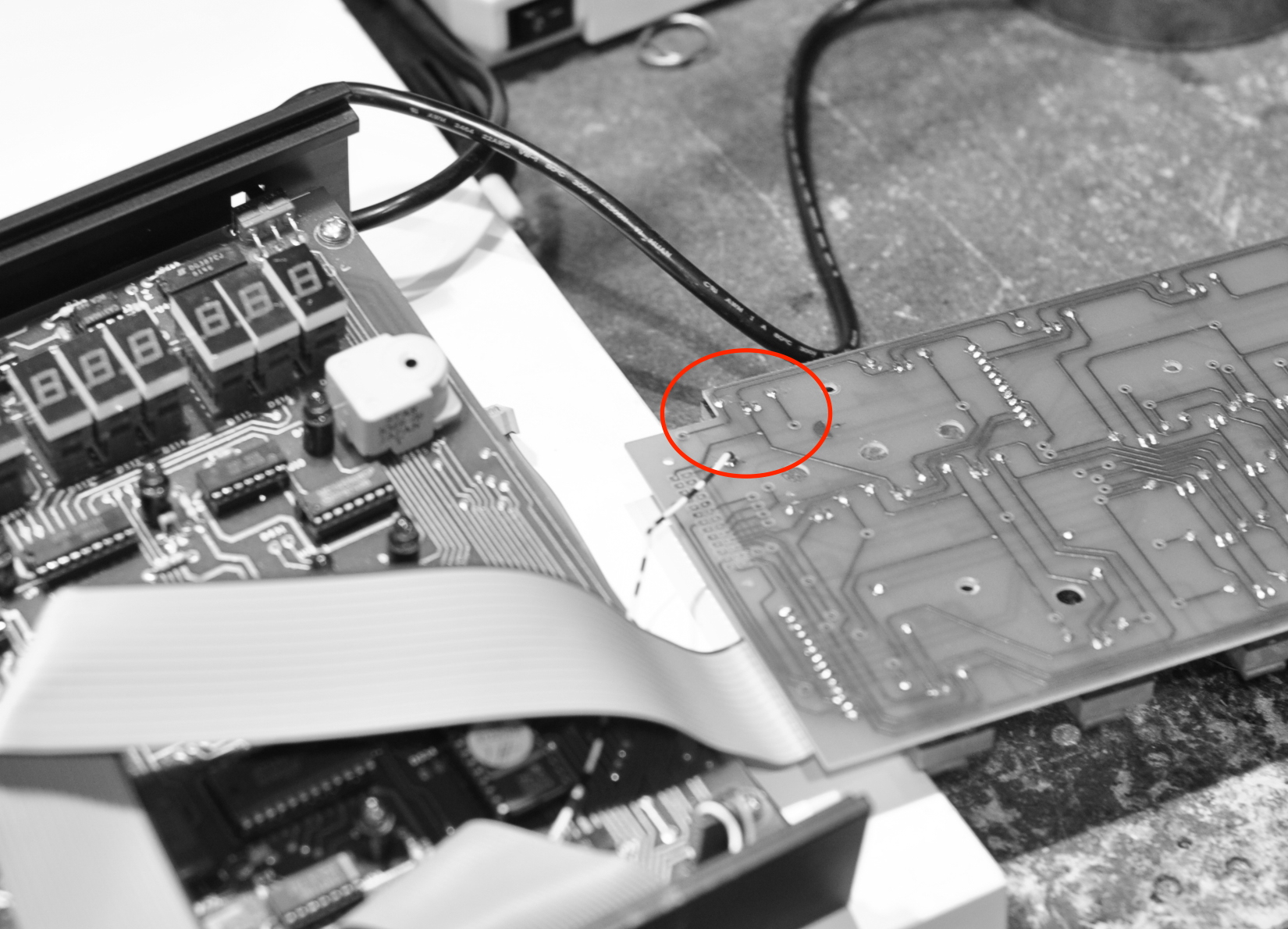

Here is a non-functional D5500 Translator Controller with a push-button keypad. I can pull a "T" button from the area circled.

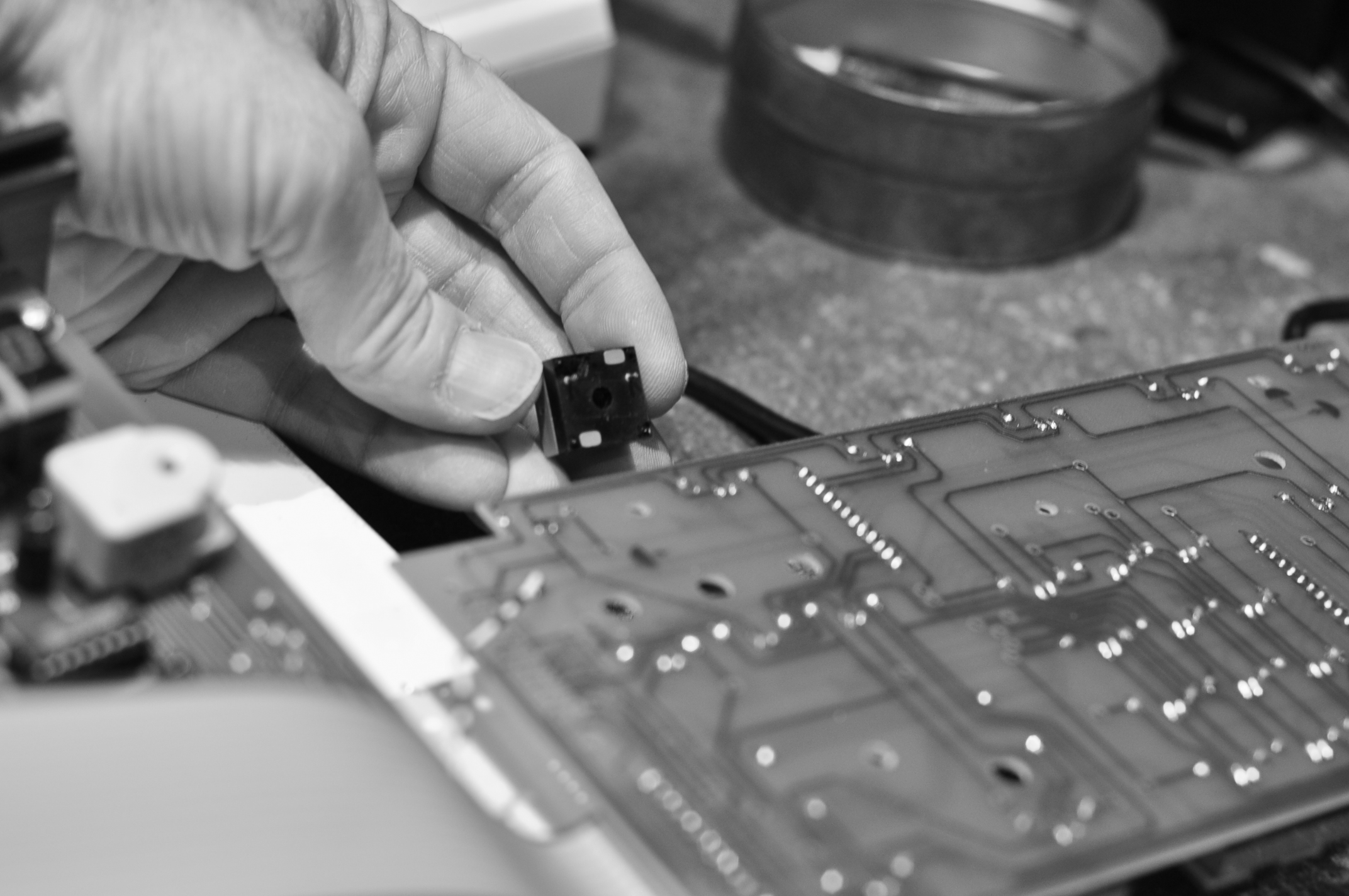

There are 4 solder points under the switch, but the inner two are for the tiny LED, those don't need to be de-solderd; the LED can stay on the main board. The LED is not attached to the switch, it sticks up in the hole in the bottom of the switch.

DSC_0498 1.JPG
DSC_0500 1.JPG

Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format

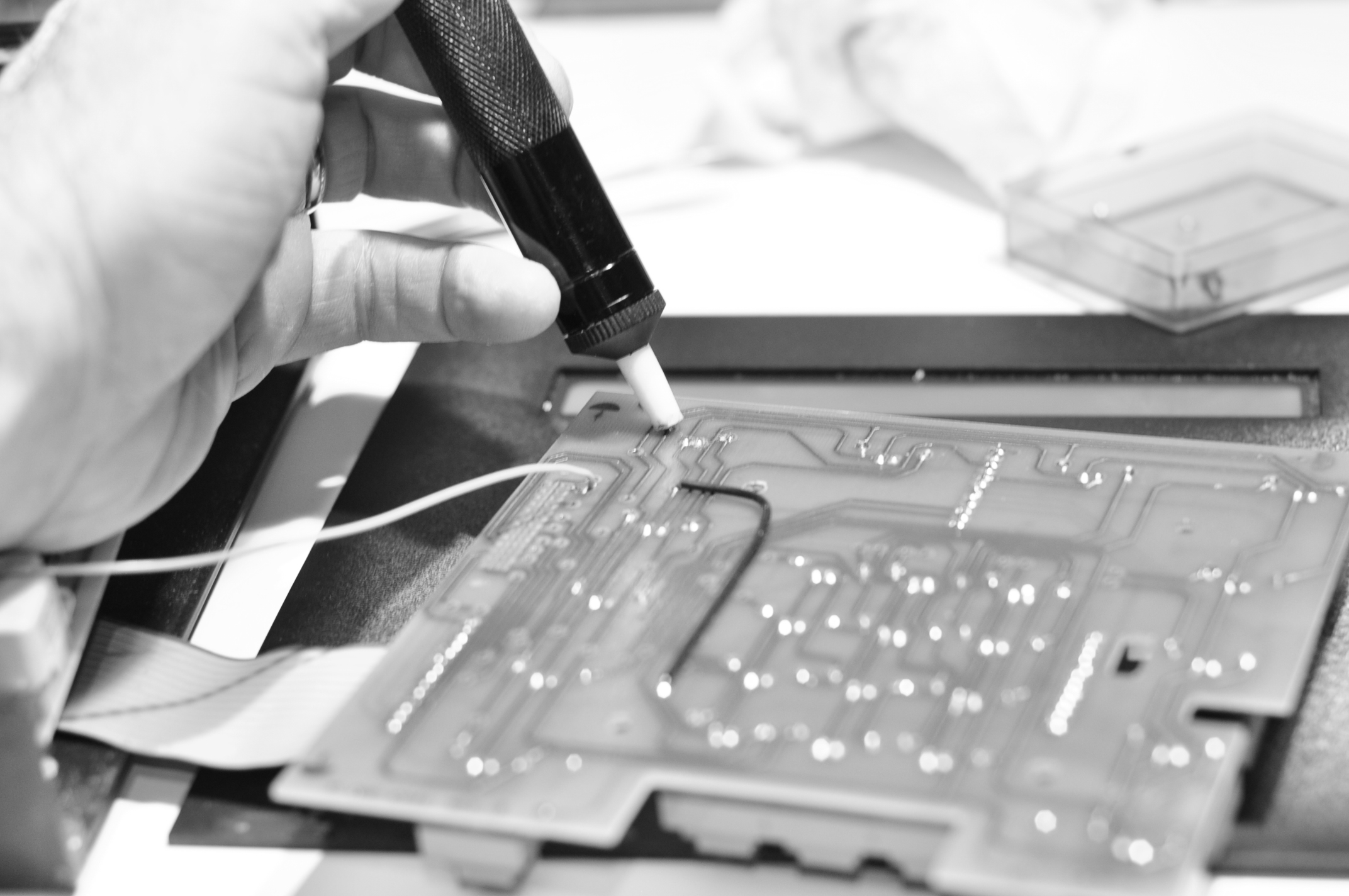

Remove the broken switch. The broken switch shows how it works. The two pins (which were soldered to the PC board) pass right through the base of the switch and are joined by a metal jumper in the top part of the switch when it is depressed. I see some green corrosion on the pins, so this switch may not have worked too well anyway. Also, it looks like the letters slide in from the side and could probably be be changed around easily.

DSC_0501 1.JPG

Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format

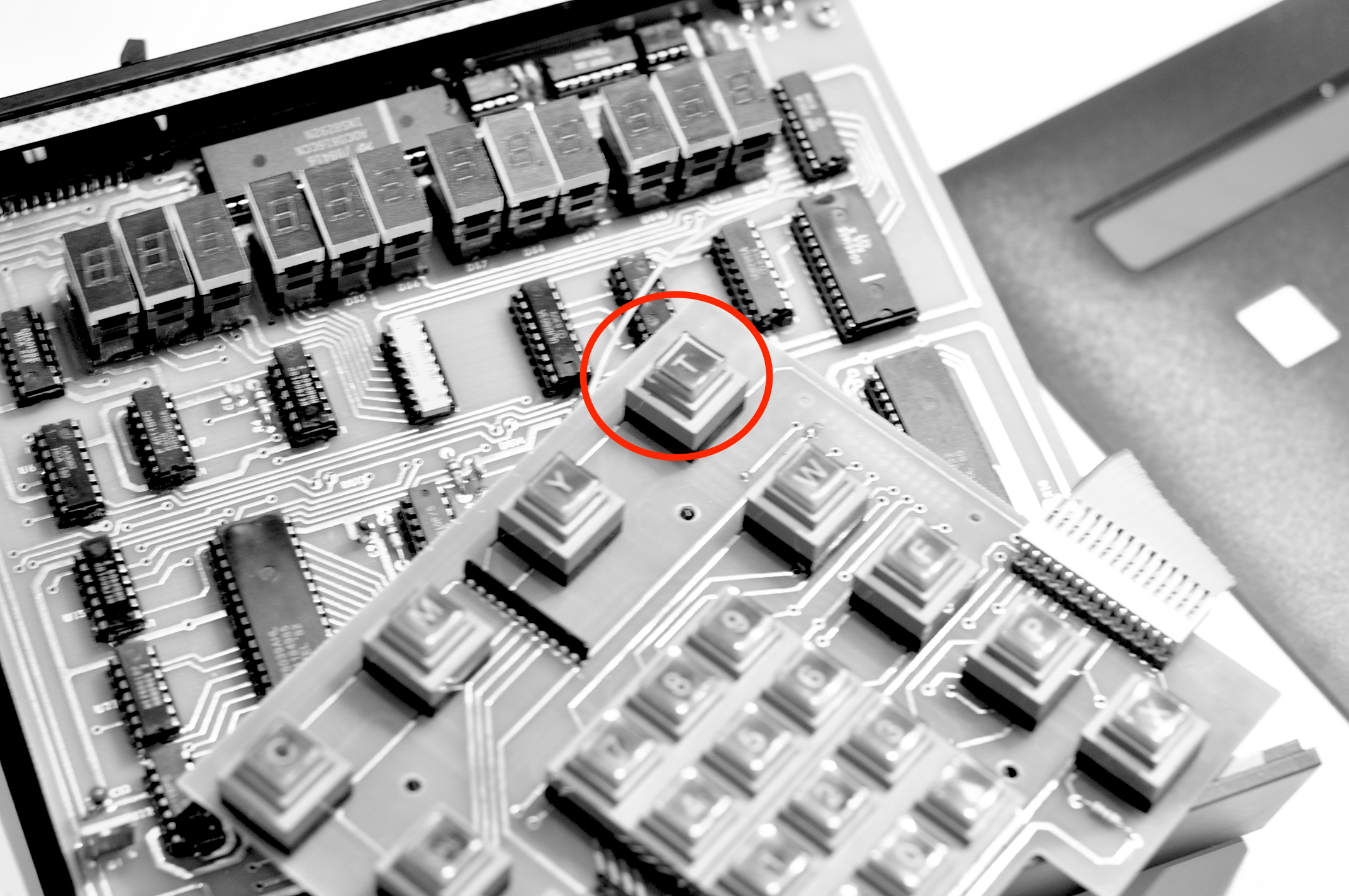

New "T" switch in place. Ready to go back together.

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format

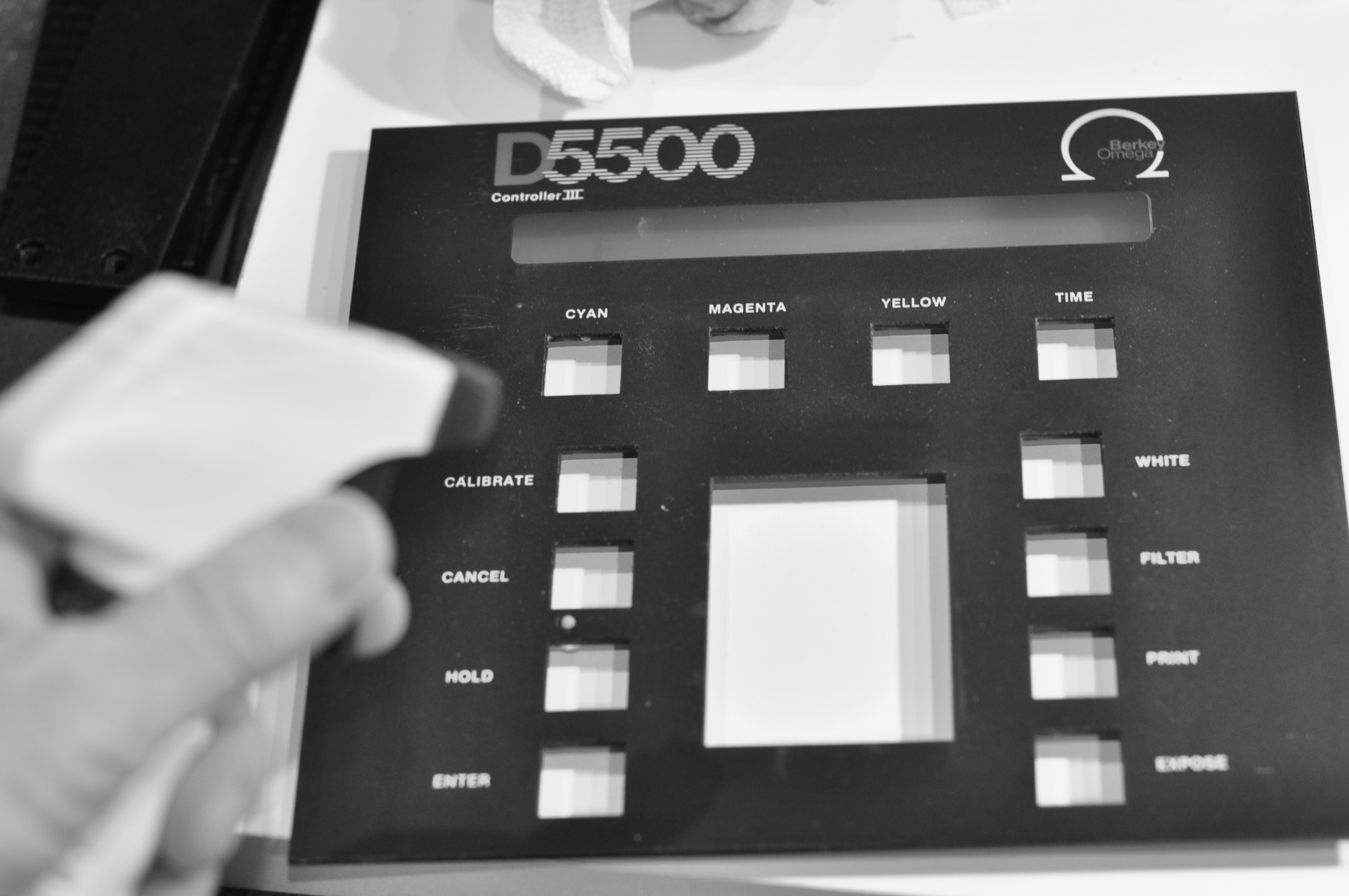

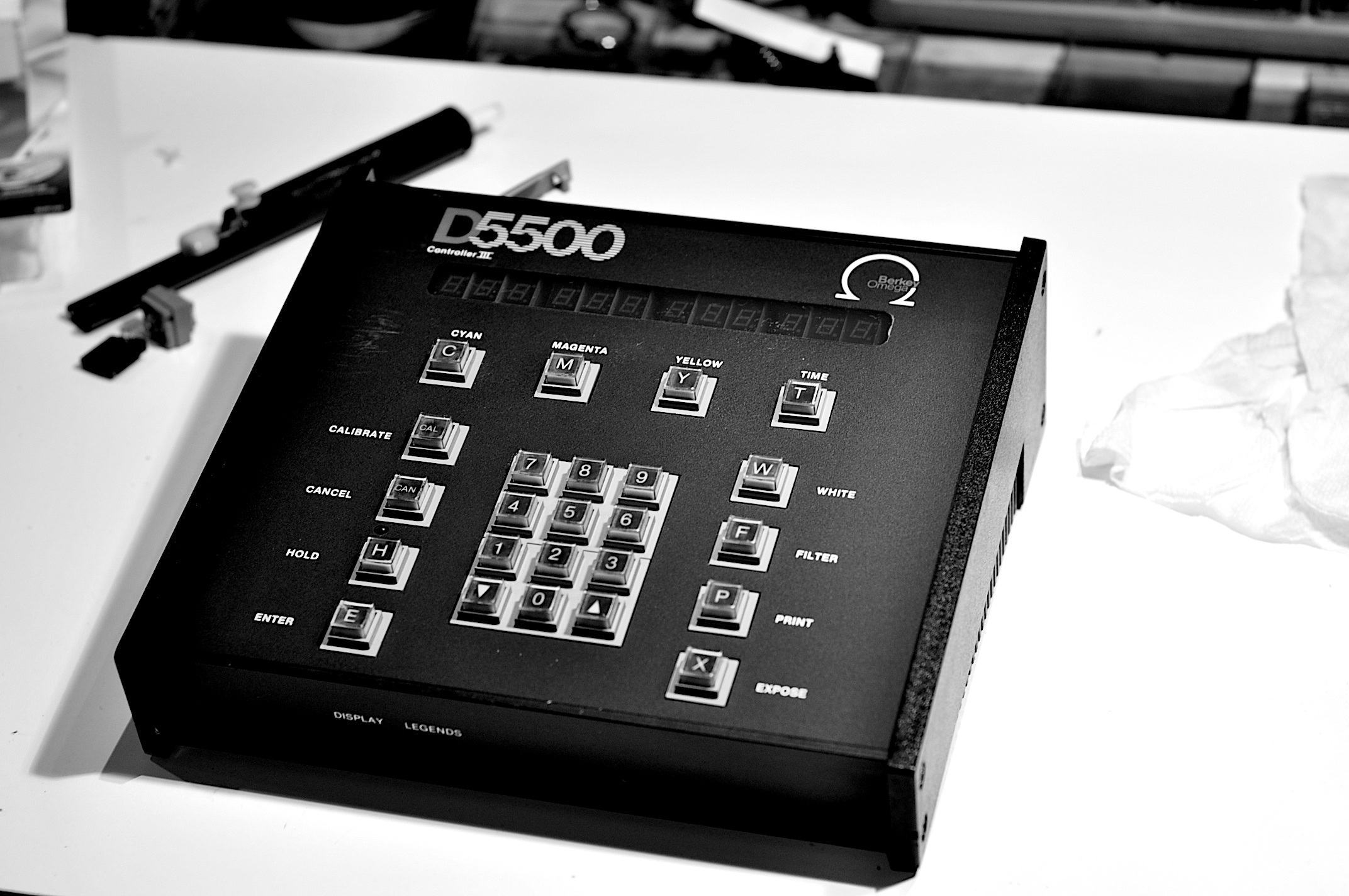

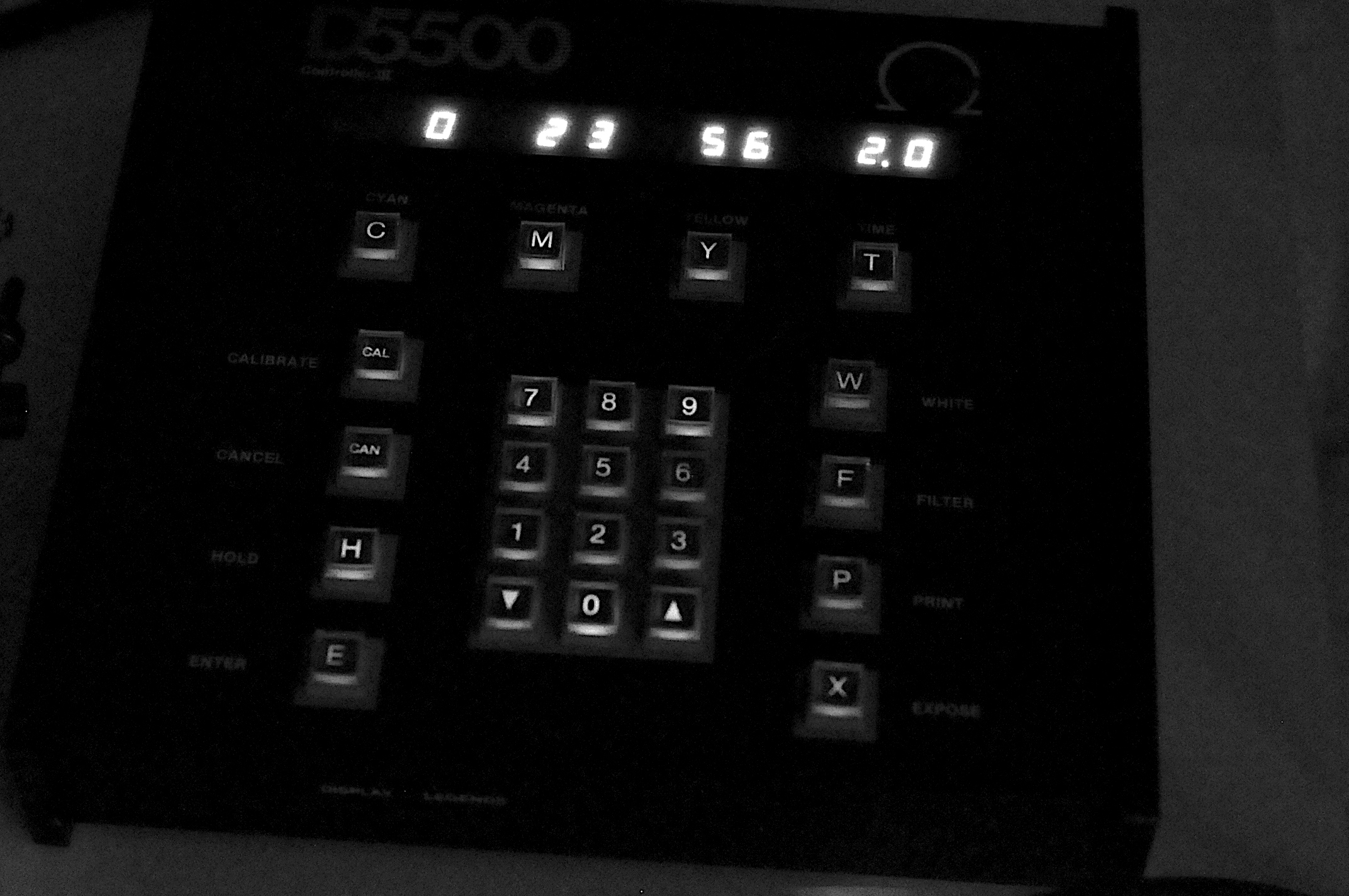

Re-assembled. It is actually in really nice shape under the dirt.



Jim Blodgett

Member
Joined
Apr 9, 2019
Messages
75
Location
Roy, WA
Format
Multi Format
Well done. There is something extremely satisfying about repairing/refurbishing/cleaning up equipment, tools, vehicles, buildings...


Lucid

Member
Joined
Jun 18, 2018
Messages
102
Location
England
Format
Multi Format
Thanks for sharing. This was interesting to see.


Aidan Sciortino

Subscriber
Joined
Apr 9, 2020
Messages
62
Location
Rochester, NY
Format
Medium Format
Any advice on finding controllers? There's an enlarger for sale cheap near me, but it's been separated from it's control panel.

I'm handy with electronics and could probably build something compatible given a schematic, but if someone has a stockpile of controllers somewhere I'd just as soon ask.

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format
I got two controllers from a local used photography equipment dealer in the early 2000s, but since then all my D5500 equipment has come from ebay.


darinwc

Member
Joined
Dec 14, 2003
Messages
3,160
Location
Sacramento,
Format
Multi Format
Is that the one I sold you? Glad you were able to use it. I gave the chassis away for free. Still have some of the neg carriers but everything is boxed for moving.

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,666
Location
USA
Format
Multi Format
Is that the one I sold you? Glad you were able to use it. I gave the chassis away for free. Still have some of the neg carriers but everything is boxed for moving.
Yes it is!
