Omega D5. Is there something missing and do I need it?

Recent Classifieds

Forum statistics

Threads
179,438
Messages
2,470,431
Members
94,814
Latest member
Anthony_
Recent bookmarks
0

Mrtony4x5

Member
Joined
Mar 11, 2018
Messages
26
Location
New York
Shooter
Medium Format
Hi there

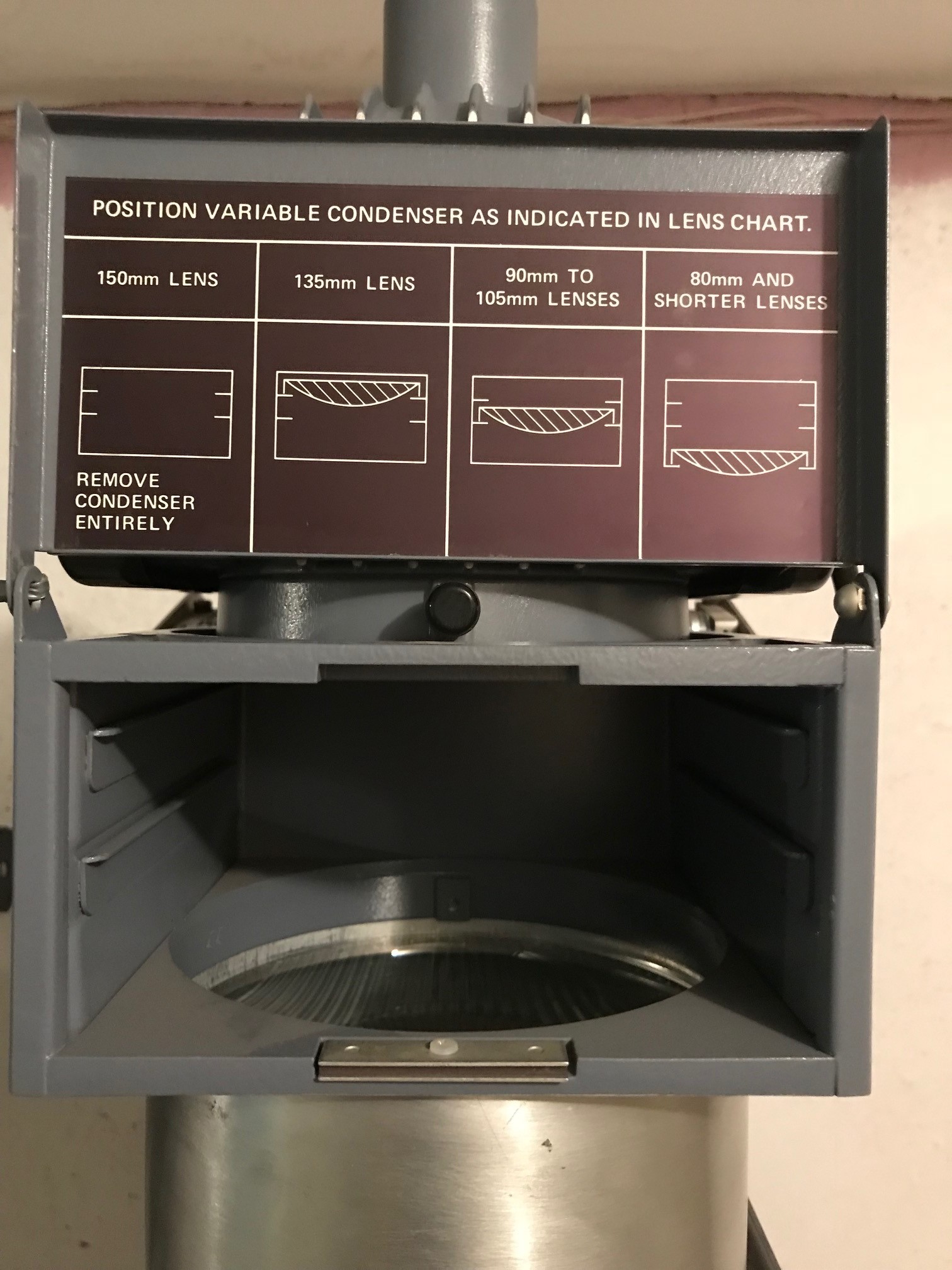

I just purchased an Omega D5 and would like some advice. I opened the door and saw this but I dont have any condenser lens on a tray. Am I supposed to have it? If I want to use a 135mm do I need it?
Thanks in advanced


Attachments

  • IMG_6182.jpg
    471.9 KB · Views: 138

ic-racer

Member
Joined
Feb 25, 2007
Messages
12,504
Location
USA
Shooter
Multi Format
You can probably find one on e-bay, or check with the seller, see if he has it.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,539
Location
Delta, BC, Canada
Shooter
Multi Format
You probably need one with a 135mm enlarging lens (shortest lens normally appropriate for 4" x 5").
You almost certainly need one with a 105 mm, 90mm, 75-80mm or 50mm enlarging lenses (lenses appropriate for smaller formats).


absalom1951

Subscriber
Joined
Nov 7, 2008
Messages
198
Location
Iowa
Shooter
Multi Format
If you can't locate one, let me know. I might possibly have one . If I can find it in my pile of treasures.

OP
OP
Mrtony4x5

Mrtony4x5

Member
Joined
Mar 11, 2018
Messages
26
Location
New York
Shooter
Medium Format
So I can’t get away with it with a 135mm. What would happen tho? I don’t have any lens so I’ll probably just get a 150.


absalom1951

Subscriber
Joined
Nov 7, 2008
Messages
198
Location
Iowa
Shooter
Multi Format
I have one but I think it came from a D2 ? Looks good. Also have the 2 fixed condensers . You are welcome to it for shipping costs.


darkroommike

Subscriber
Joined
Mar 22, 2007
Messages
1,578
Location
Iowa
Shooter
Multi Format
Your illumination will be less efficient but you will (probably) be fine. Much like using the old 6.5 inch condensers for all lenses. I, have one I picked up as a spare if you are interested but I would advise you try it out first.


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
41,599
Location
Southern California
Shooter
Multi Format
I have a diffuser.

OP
OP
Mrtony4x5

Mrtony4x5

Member
Joined
Mar 11, 2018
Messages
26
Location
New York
Shooter
Medium Format
Your illumination will be less efficient but you will (probably) be fine. Much like using the old 6.5 inch condensers for all lenses. I, have one I picked up as a spare if you are interested but I would advise you try it out first.
Yeah thats what I thought

OP
OP
Mrtony4x5

Mrtony4x5

Member
Joined
Mar 11, 2018
Messages
26
Location
New York
Shooter
Medium Format
I have one but I think it came from a D2 ? Looks good. Also have the 2 fixed condensers . You are welcome to it for shipping costs.

Thanks for the offer! I'll keep that in mind. Right now Im more closer with my Durst enlarger which unfortunately have super expensive parts thats killing my bank now... Should not have went for it


John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,222
Location
Aurora, Il
Shooter
Multi Format
I believe the condenser would only slightly decrease your exposure times by a few seconds. It's certainly not going to be a drastic change.
You would be likely to experience the difference with smaller formats but the advantage would be longer exposure times for
burning & dodging.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,539
Location
Delta, BC, Canada
Shooter
Multi Format
Your illumination will be less efficient but you will (probably) be fine. Much like using the old 6.5 inch condensers for all lenses. I, have one I picked up as a spare if you are interested but I would advise you try it out first.
I struggled with this before I posted.
Unlike diffusion boxes in diffusion heads, the correlation between condenser position and lens focal length may actually matter when it comes to evenness of illumination.


darkroommike

Subscriber
Joined
Mar 22, 2007
Messages
1,578
Location
Iowa
Shooter
Multi Format
I struggled with this before I posted.
Unlike diffusion boxes in diffusion heads, the correlation between condenser position and lens focal length may actually matter when it comes to evenness of illumination.
Going bigger to smaller is usually less of a problem than going from smaller to bigger. Before the DV box both 135mm and 150mm lenses (and the occasional 165mm) all used the 6.5 inch condensers.


darkroommike

Subscriber
Joined
Mar 22, 2007
Messages
1,578
Location
Iowa
Shooter
Multi Format
Thanks for the offer! I'll keep that in mind. Right now Im more closer with my Durst enlarger which unfortunately have super expensive parts thats killing my bank now... Should not have went for it
yeah, didn't you get three enlargers at the same time that you are trying to put right?


Rick A

Subscriber
Joined
Mar 31, 2009
Messages
9,100
Location
Laurel Highlands
Shooter
Large Format
You need the variable condenser lens for 135 mm lens, not for a 150 mm. I have a spare set of condensers including the variable that goes in the slots. I'll sell them as a set, they are in perfect condition.


Huub

Member
Joined
Dec 4, 2007
Messages
218
Shooter
4x5 Format
I do have a D2V, which has an indentical condensor setup, not sure if they are exchangeable, but they look pretty much the same. When printing 4x5 with a 135mm lens, I always remove the upper condensor with no ill effects. When you are only using the enlarger with the 135mm, you should give it a try first before investing in an extra condensor. At the other hand: it won't harm to contact the seller and ask him if he still has the thing lying around somewhere, as it should come withthe third condensor in the first place.


choiliefan

Member
Joined
Dec 27, 2013
Messages
1,049
Shooter
Medium Format
Pretty sure any Omega Variable Condenser head parts are interchangeable between older and newer model chassis.
