I'm not an Olympus user, and I need some assistance. I have what looks like a nice 135mm f2.8 lens, but I can't figure out how to get the lens to stop down. I can set it on f22, and a pin on the rear of the lens moves, but the aperture stays open. Do I need to do something else to get it to stop down -- or is it likely defective?
Olympus lens help
-
A
- Thread starter xkaes
- Start date
Recent Classifieds
-
For Sale 8x10 Toyo 810G camera
- Started by Guivd
-
For Sale FS: 14x17 ULF Wisner Traditional Field
- Started by Jurgen Estanislao
-
Want to Buy 6x9 folding rangefinder
- Started by madsox
-
Want to Buy Zone vi Camera Bag
- Started by notoriousLT
-
For Sale Leica Summicron-M 50mm/F2.0
- Started by fiddle
Forum statistics

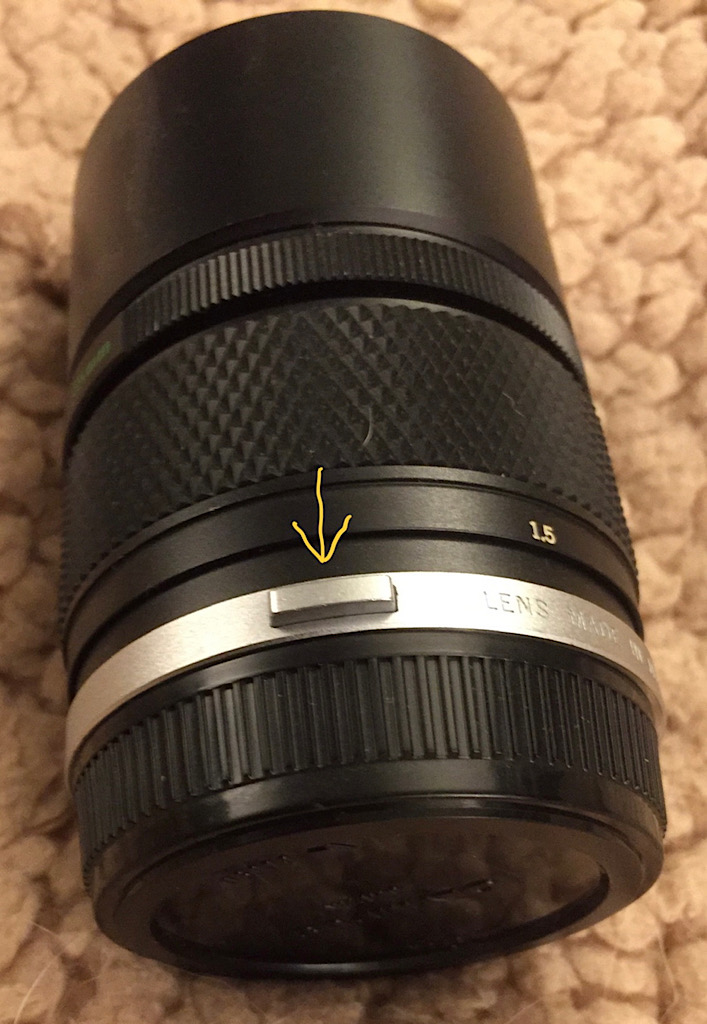

If you press and hold the depth of field preview button you should the aperture close down. It's the smooth topped button on the opposite side of the lens mount from the ribbed lens release button.
Last edited:
There should be a lever in the side you can push to stop down the lens. If you mount it on an Olympus body it will stop down when you fire the shutter. I have an Olympus Pen F kit and should work the same for OM series.

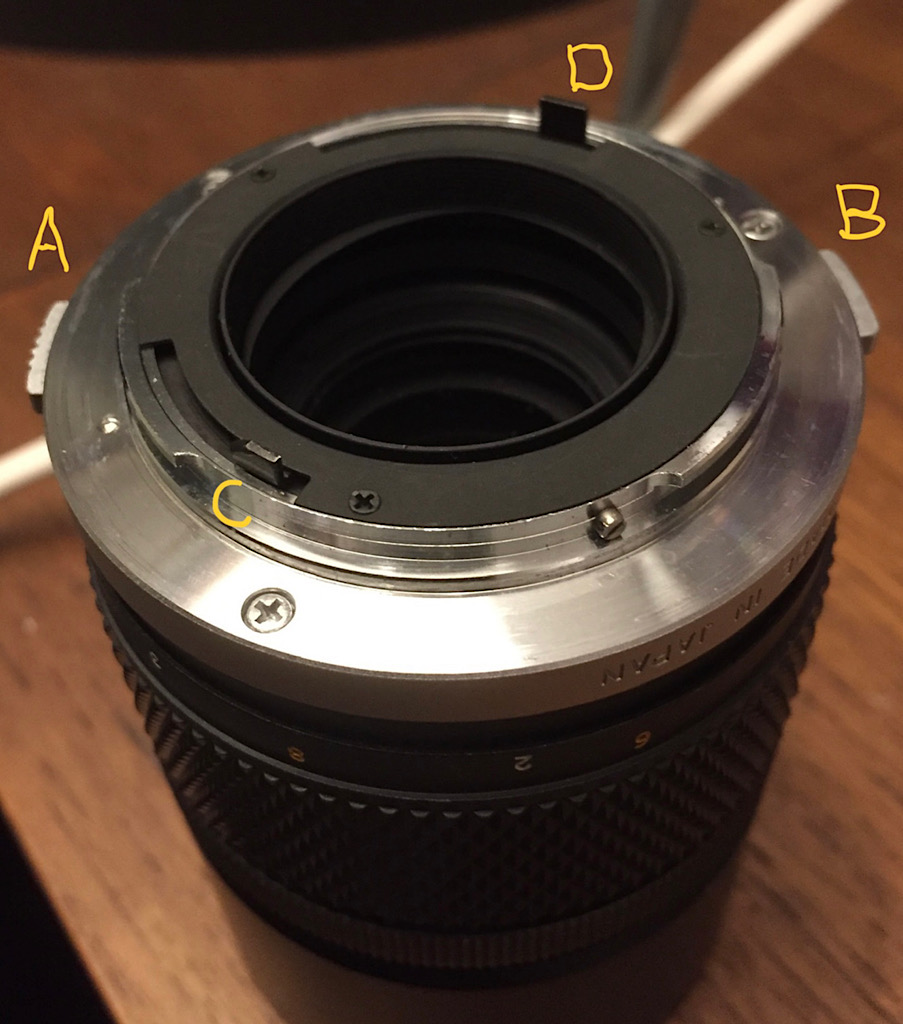

Looking at the rear of the lens mount:
- A is the ribbed top lens release
- B is the smooth topped depth of field preview
- C is the lever that closes down the aperture when the shutter is released
- D is the lever that moves when the aperture ring is turned to communicate the chosen aperture to the camera
MattKing
Moderator
Just for clarity, is this is an OM system lens?
Not a lens for the FTl, the Pen series, or the digital series (which may or may not have included a 135mm f/2.8 offering).
Not a lens for the FTl, the Pen series, or the digital series (which may or may not have included a 135mm f/2.8 offering).
OM I'm guessing, as far as I can tell the 135mm for the FTL was f3.5 only and the Pen series didn't have a 135mm lens, they went from 100 mm f3.5 to 150mm f4.0.
The OM system had both f2.8 and f3.5 versions of the 135mm. I've no idea about the digital lenses.
p.s. the lens in my pictures above is an OM system 135mm f2.8
The OM system had both f2.8 and f3.5 versions of the 135mm. I've no idea about the digital lenses.
p.s. the lens in my pictures above is an OM system 135mm f2.8
Yes, sounds like there is something amiss inside. That's a pity. I can't recall the details of the internal mechanism and whether there is a possibility of something being out of alignment or whether it's more likely that something is broken.
Yep mostly something disengaged inside the lens. On my few lens repair forays, I remember Olympus lenses not being overly complex but then again, wasted a good 50mm on that foray so probably that lens previous owner was someone like me.
Oil might have crept onto the blades and frozen them open. This is a common problem with lenses for SLRs.
Yeah. I notice that when the stop-down button is pressed, the lever on the rear rotates -- as it should -- but the aperture blades don't budge. Still it's usable as is, and being a 135mm stuck at f2.8, it should make a great portrait lens.
The mount for OM is not that complicated. You could open the lens from the back and check whether the transmission of the stop button works or whether the aperture blades are oily and therefore do not close.

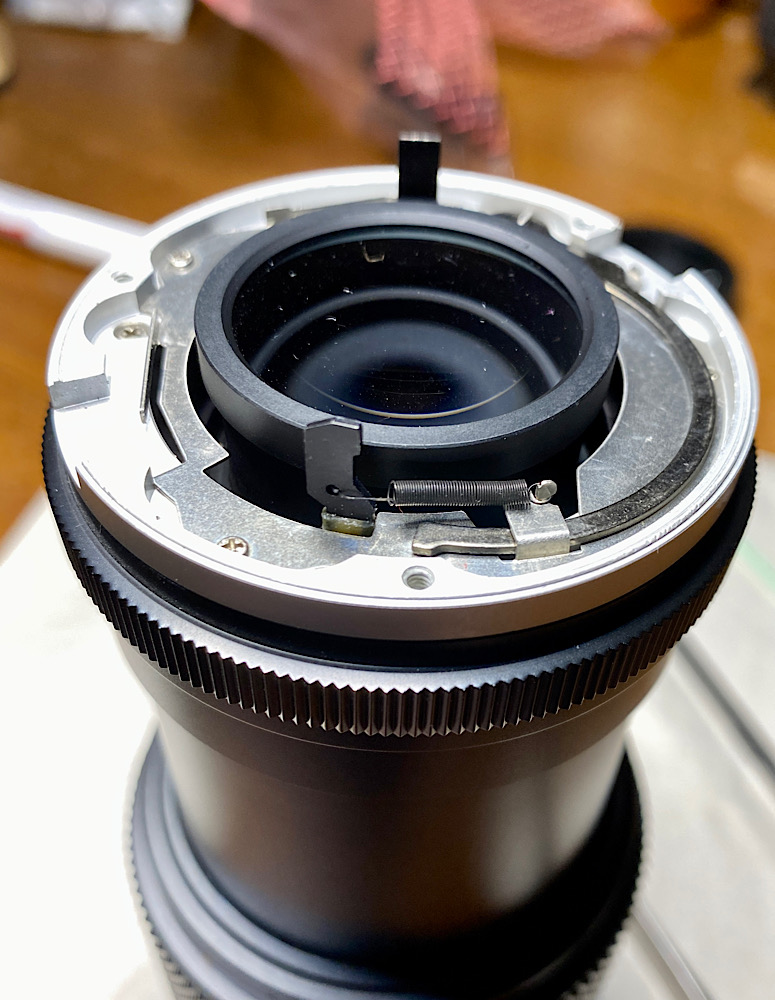

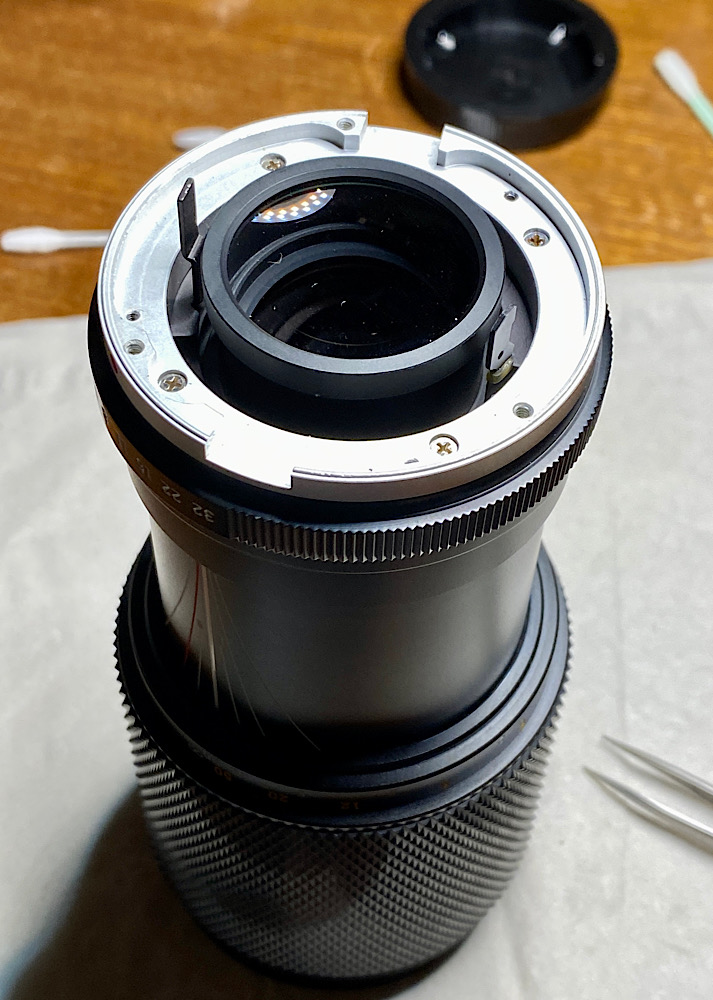

This is the mount of a Zuiko 65-200:
Last edited:
