Nikon FE2 and DK-3 eyepiece?

Discussion in '35mm Cameras and Accessories' started by Arestrix, Jan 27, 2018.

  1. Arestrix

    Arestrix Member

    Messages:
    1
    Joined:
    Jan 27, 2018
    Location:
    Texas
    Shooter:
    35mm
    I have an FE2 that has no eyepiece on it so I picked up a DK-3 one. I can't work out how you would get this onto the camera - I've seen mention of screwing it on but neither the DK-3 or the camera is threaded - if anything it looks like something pushes onto the camera. Anyone done this successfully?

  2. ronnies

    ronnies Member
    Ads Enabled

    Messages:
    131
    Joined:
    Aug 9, 2014
    Shooter:
    35mm
    The FE2 eyepiece should have threads visible if there is no eyepiece fitted. Maybe the DK-3 is held on by the missinf eyepiece?

    Ronnie

  3. Marco Gilardetti

    Marco Gilardetti Member
    Ads Enabled

    Messages:
    601
    Joined:
    Jun 7, 2005
    Location:
    Torino, Italy
    Shooter:
    Large Format
    It also seems to me that the DK-3 should be held in place by the ordinary glass eyepiece (which is threaded). To the best of my knowledge the DK-3 is unthreaded and won't fit the camera alone.

  4. The DK-3 is just a rubber eyecup, it has no threads. It's held in place by either an eyepiece or a simple ring that threads into the back of the finder.

  5. macfred

    macfred Subscriber
    Ads Enabled

    Messages:
    1,767
    Joined:
    Nov 6, 2014
    Location:
    Germany
    Shooter:
    Multi Format
    You have to go for a Nikon Japan Official Eyepiece Finder FXA10066 (for FM3A/NewFM2/FE2/FM2/FE/FM/FA). It will fix your rubber eyepiece.

  6. E. von Hoegh

    E. von Hoegh Member
    Ads Enabled

    Messages:
    5,939
    Joined:
    Sep 14, 2011
    Location:
    Adirondacks
    Shooter:
    Multi Format
    See if there is a glassless retainer ring screwed into the viewfinder of the camera.

  7. Sophist

    Sophist Member

    Messages:
    6
    Joined:
    Nov 10, 2012
    Shooter:
    Medium Format

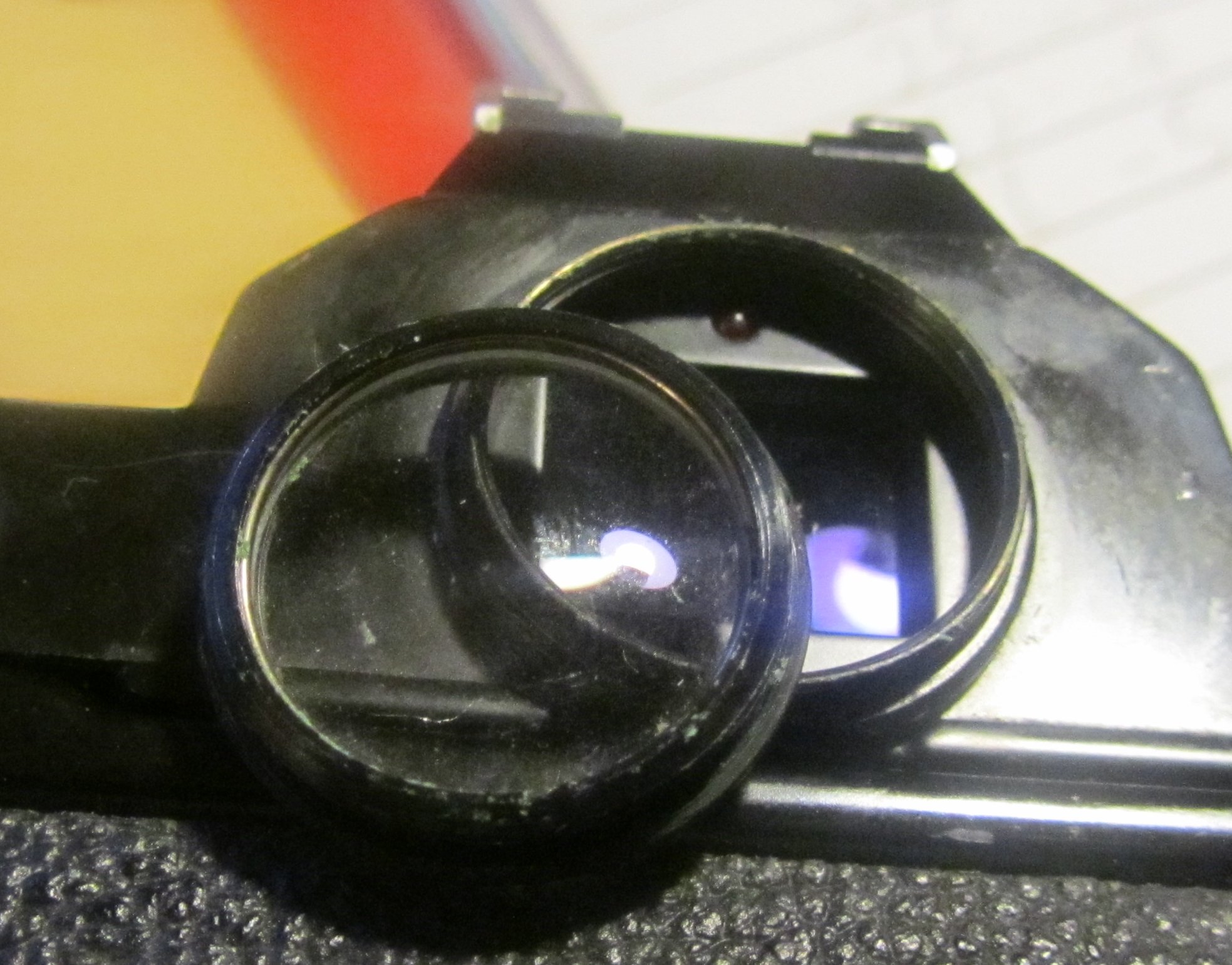

    Does it look like this?

    This is what a Nikon Eyepiece looks like when it's so old all the rubber has decayed away. It still unscrews though, so you should be able to replace it or use it to mount the rubber eye cup:

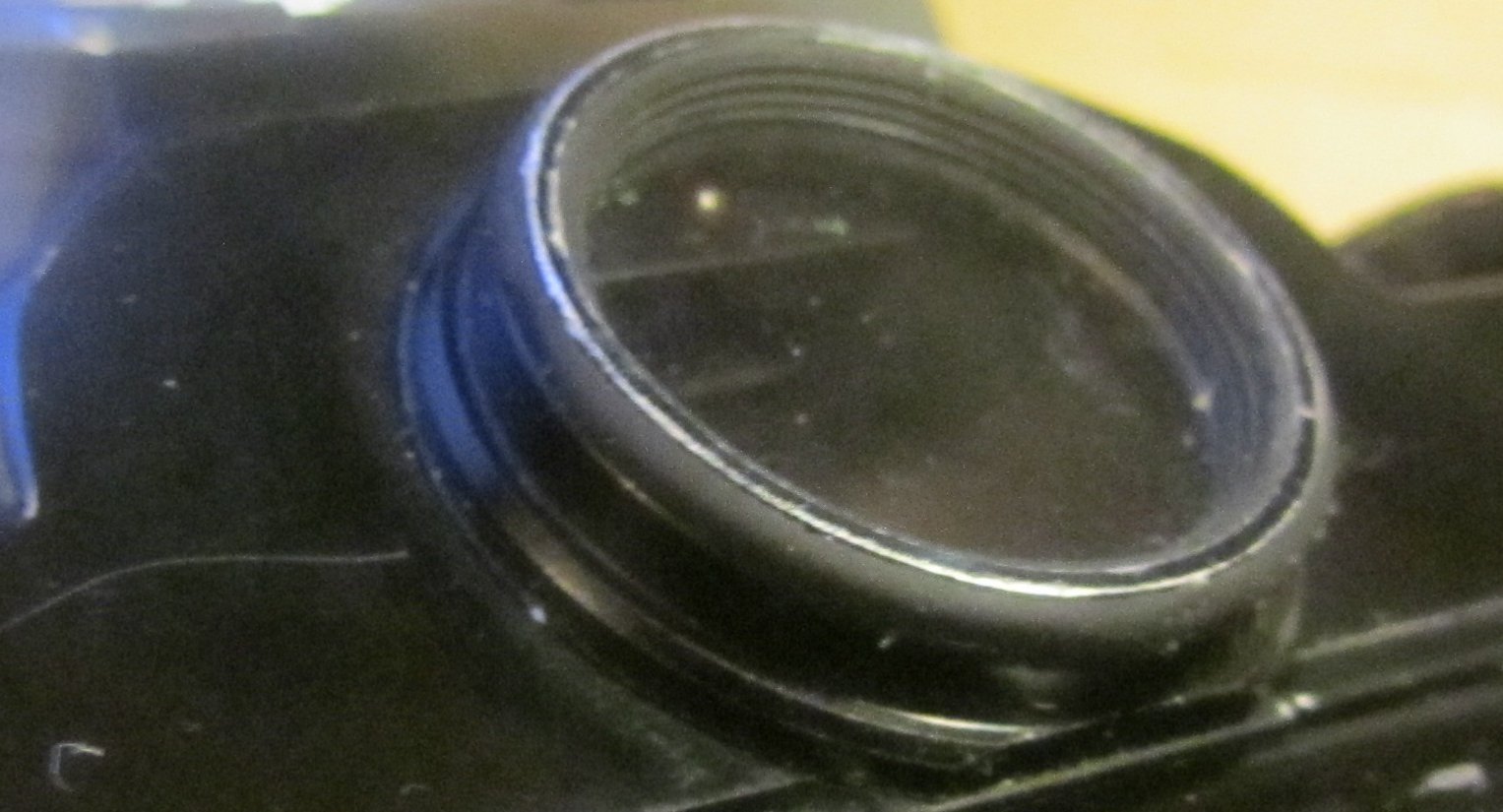

    (note that the thread is internal to the ring where the eyepiece screws in)
