OK, I got two actual Voigtlander plate holders to fit my (supposedly) 9 x 12 cm AVUS.

However, they have 3 1/4 x 4 1/4 Kodak Cut Film Sheaths inside them and they appear to have a raised metal insert around the edge that would not allow a true 9x12 cm glass plate to insert down into the plate holder.

What the heck?

Is there yet another type of plate holder strictly for 9 x 12 cm that I will have to track down? The insert seems fixed and not easily removable...

OP
OP
Kino

Kino

Subscriber
Joined
Jan 20, 2006
Messages
5,642
Location
not here
Shooter
Multi Format

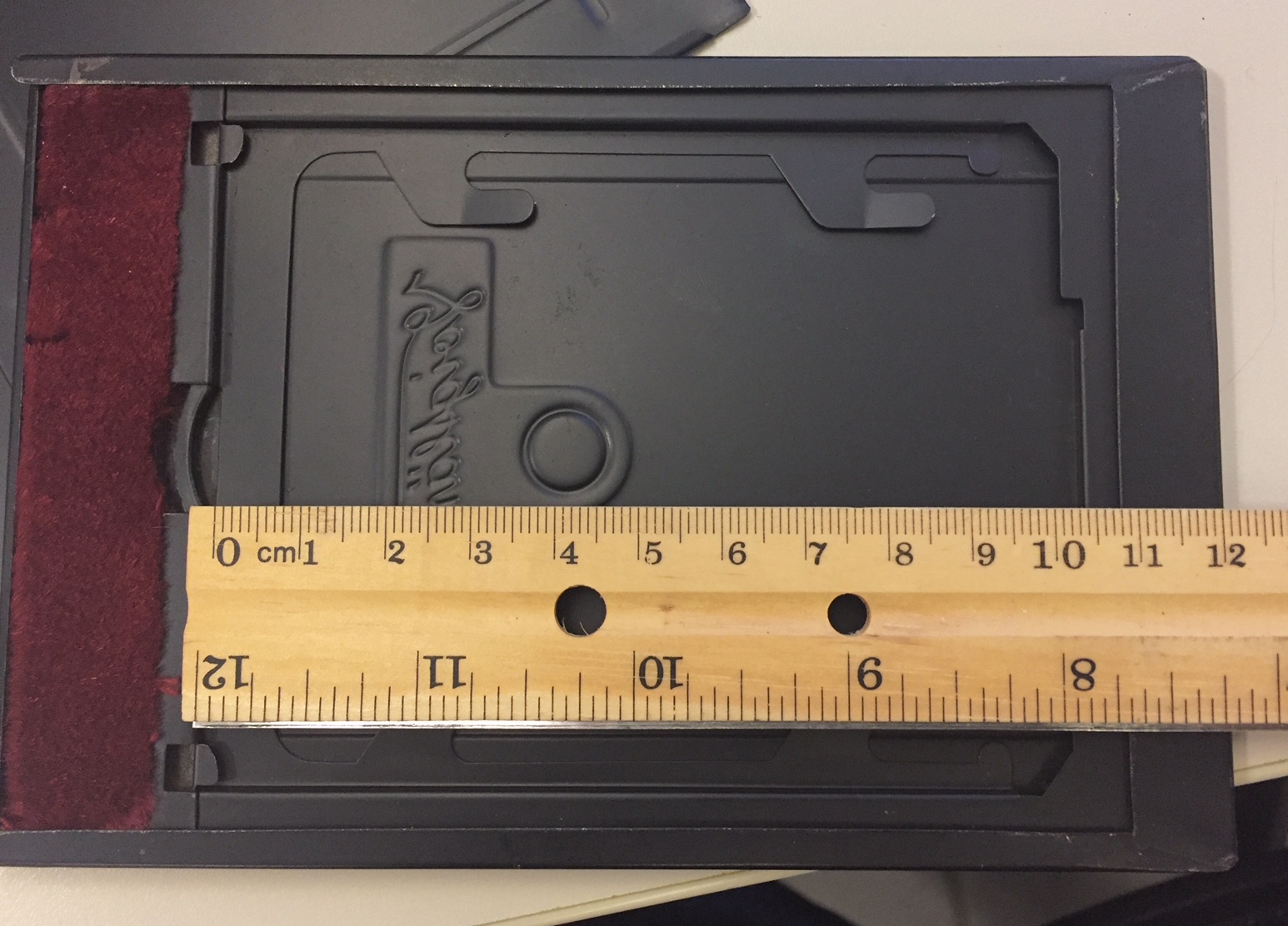

The sheath will come out, but not the "insert"; it seems to be built-in, but have a look and see if I am not thinking straight. This is the holder with the film sheath removed...


  • Kino
  • Kino
  • Deleted
OP
OP
Kino

Kino

Subscriber
Joined
Jan 20, 2006
Messages
5,642
Location
not here
Shooter
Multi Format
So, is everyone just slapping their forehead, saying "What a dummy", or are these unusual holders?


JPD

Member
Joined
Mar 24, 2007
Messages
1,657
Location
Sweden
Shooter
Medium Format
I have a couple of holders like these, and the inserts can't be removed. They were probably soldered in place and sold like that.

Is there yet another type of plate holder strictly for 9 x 12 cm that I will have to track down?

Yes. :wink:

OP
OP
Kino

Kino

Subscriber
Joined
Jan 20, 2006
Messages
5,642
Location
not here
Shooter
Multi Format
Oh, this just gets better and better...


Nodda Duma

Subscriber
Joined
Jan 22, 2013
Messages
2,657
Location
Batesville, Arkansas
Shooter
Multi Format
I never had issue with the metal 9x12’s I bought. They just worked as intended (or to say, I made them work).


ChuckP

Subscriber
Joined
Jan 8, 2003
Messages
719
Location
NW Chicagola
Shooter
Multi Format
I also have a couple of those Voigtlander 3 1/4 x 4 1/4 plate holders. Looks like they are only for that size film. No spacing insert to remove. I picked these up cheap along with some Zeiss 665/7 plate holders set up for 3 1/4 x 4 1/4. The Zeiss holders do have a removable spacer insert that a 3 1/4 x 4 1/4 film sheath slips into. The spacer (or adapter may be a better word) is Zeiss marked 725/4. Removal of the spacer allows regular 9x12 film sheaths to be used.

OP
OP
Kino

Kino

Subscriber
Joined
Jan 20, 2006
Messages
5,642
Location
not here
Shooter
Multi Format
Thanks, ChuckP. Good information to know!
