I purchased an RH-12 120 roll film back for my Super Graphic, only to discover the previous owner of the camera had removed the two slide locks and four mounting screws used to secure the adapter.

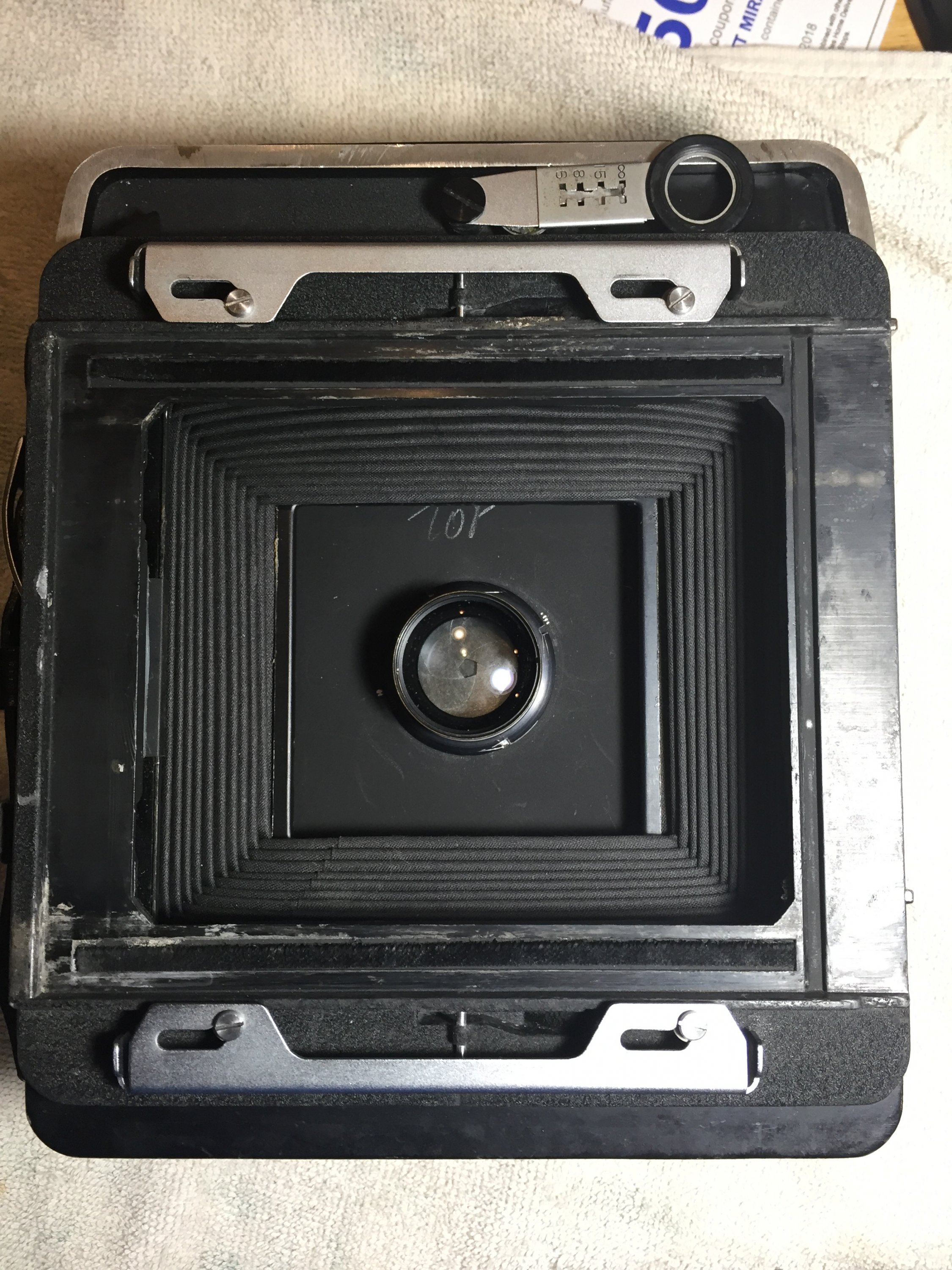

These are hidden beneath the removable Graflok back on the Super Graphic, or I would have noticed.

I am sure these slide locks have different slot designs than the earlier Graflex press cameras, as the slots for the screws allow for a compound motion to lock the roll film adapter in place.

Any idea of where to source a pair?

Best regards,

Don


shutterfinger

Member
Joined
Feb 25, 2013
Messages
5,045
Location
San Jose, Ca.
Shooter
4x5 Format
Seems the back is what gets broken or robed of parts. Watch ebay, possibly buy a parts body.

Joined
Jul 19, 2008
Messages
291
Shooter
Med. Format RF

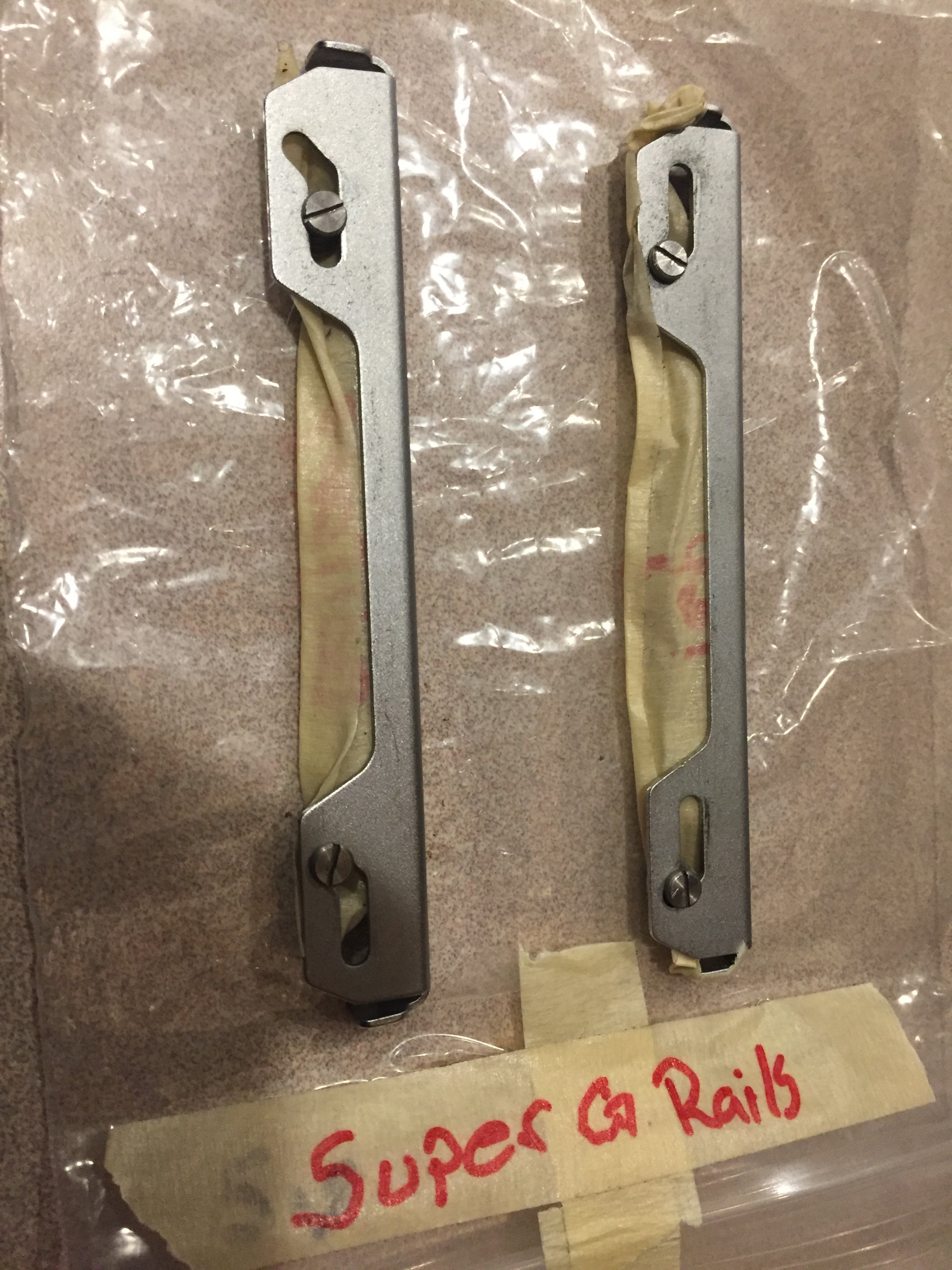

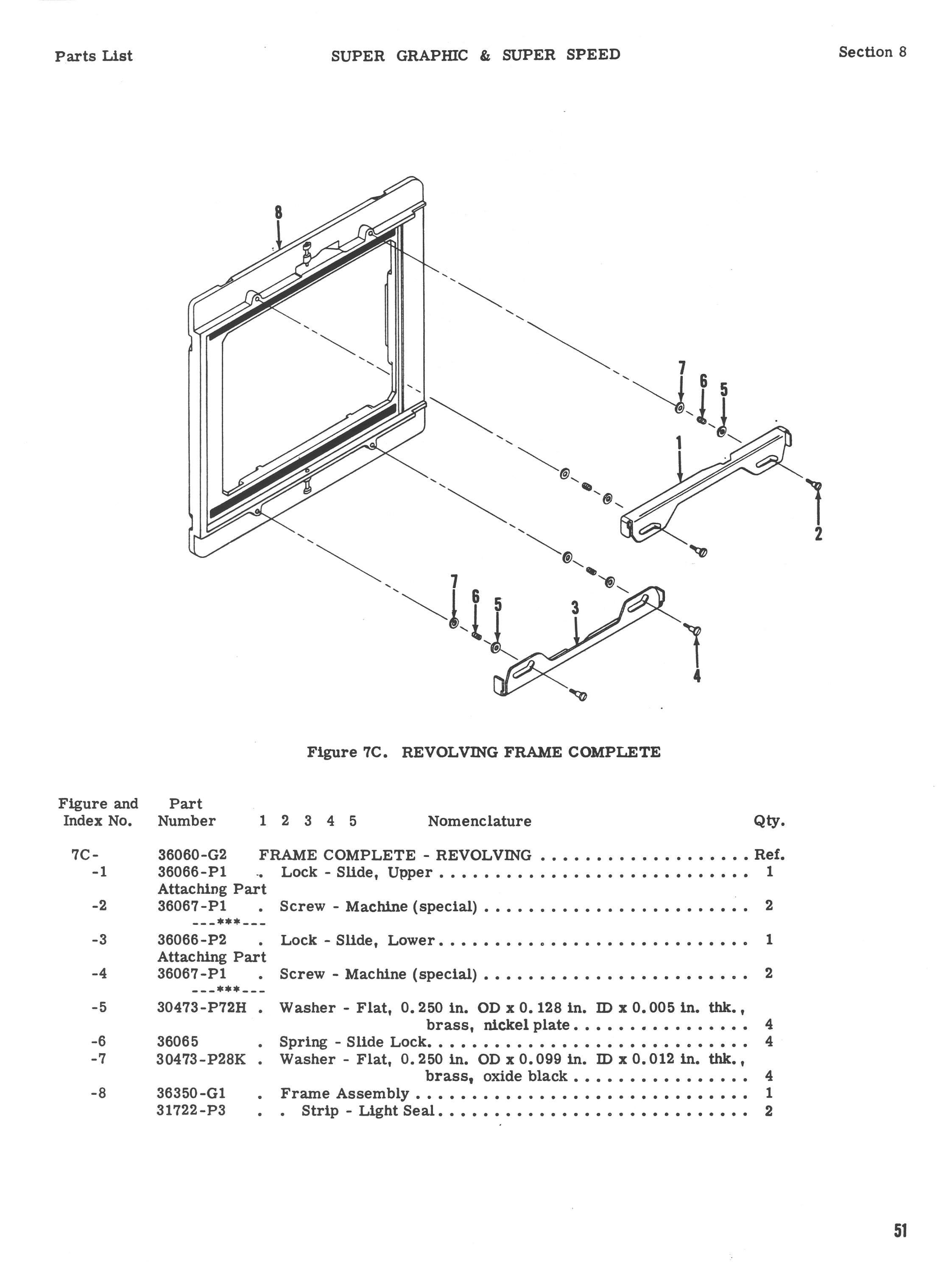

Thanks for the parts schematic! Fortunately, a friend with whom I'm collaborating on a shutter speed tester offered the parts up! Looks like I'm good to go.

Regards,

Don
Would that friend have the two mteal clips that hang the viewing back onto the super graphic (at a reasonable price) I'm in need of them
